1.0/1.5 Ton Economic Walkie Stacker

Brand: NOELIFT
Load Capacity: 1000 kg / 1500 kg
Lift Height: 1600 – 3500 mm
Warranty: 12 months
Delivery Time: 15–30 working days
Minimum Order Quantity: 1 unit

Quantity:
Availability:





Inquire

Model:
ESC
Brand:
NOELIFT

Products Detail

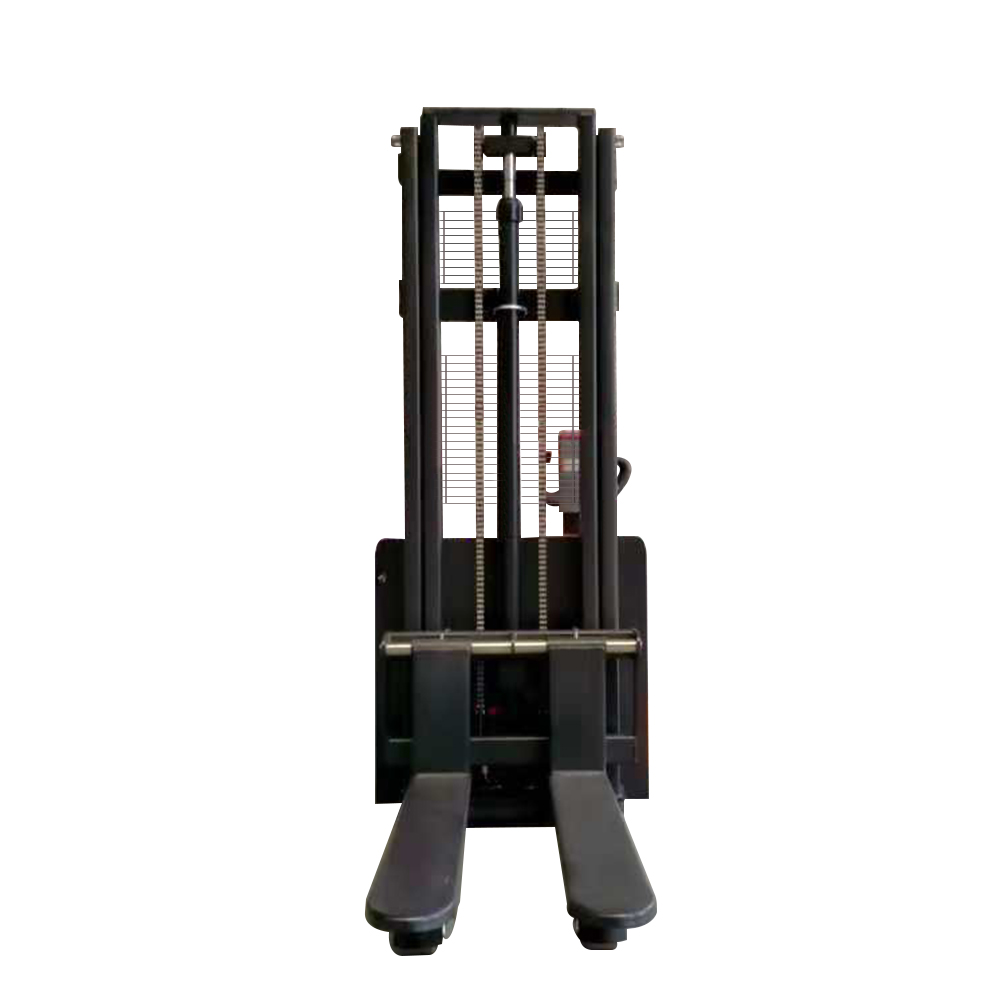

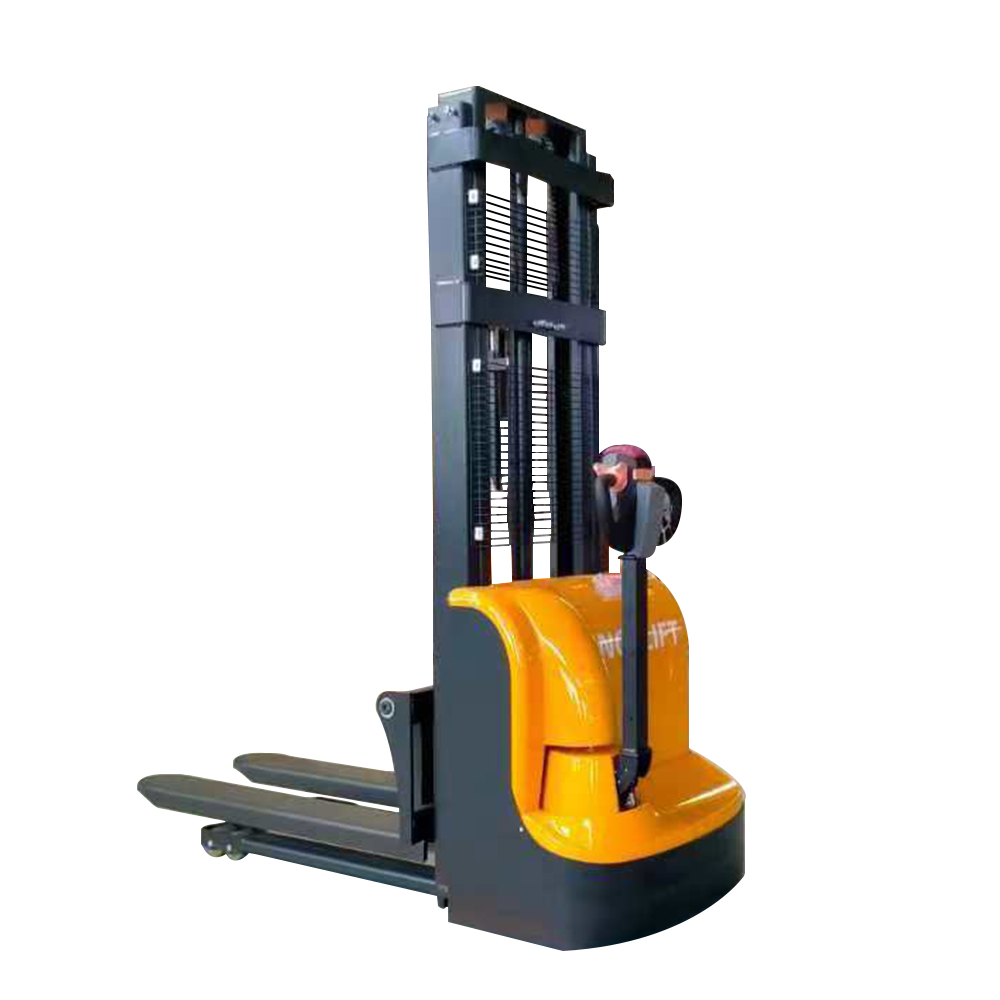

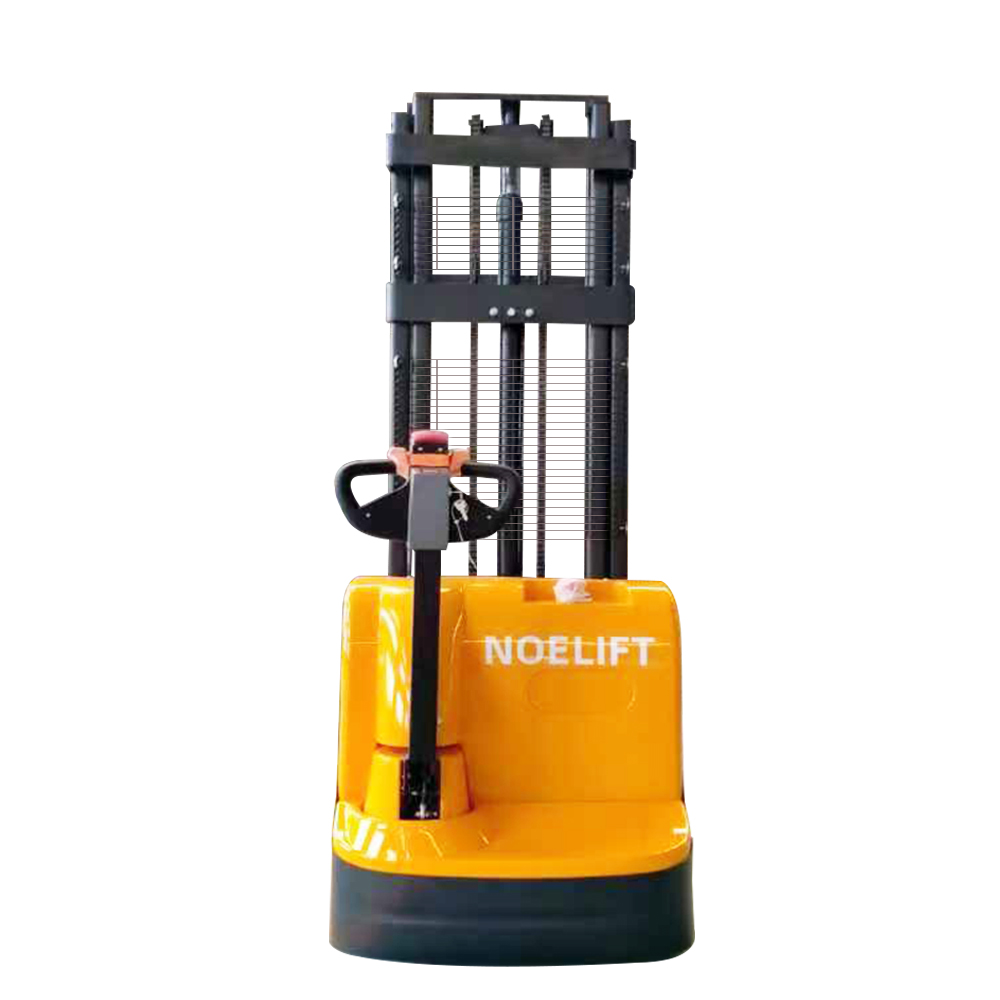

ESC Economy Walkie Electric Stacker – Your Material Handling Solution

The NOELIFT ESC Series is an economic full electric pallet stacker designed to bring high efficiency and effortless pallet stacking to warehouses, workshops, and distribution centers. Available in 1000kg and 1500kg rated load capacities with lifting heights ranging from 1600mm to 3500mm, the ESC Series is the perfect cost-effective solution to replace manual stackers and semi-electric stackers in the market.

Built with a high-strength frame designed for tough pallet handling tasks, this walkie electric stacker combines lower consumption, lower service cost, and higher performance—making it an ideal choice for light to medium-duty stacking operations.

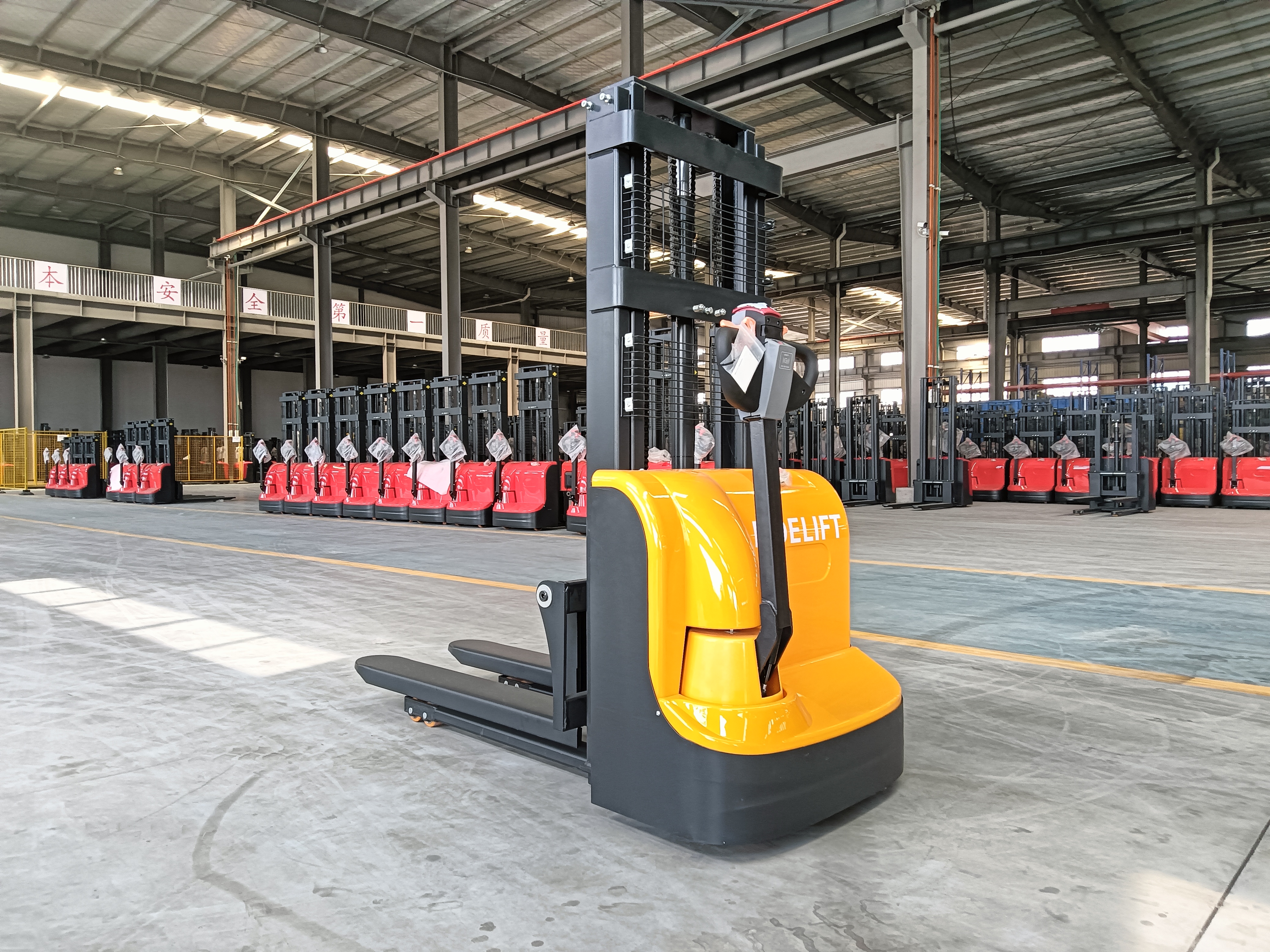

economic electric stacker

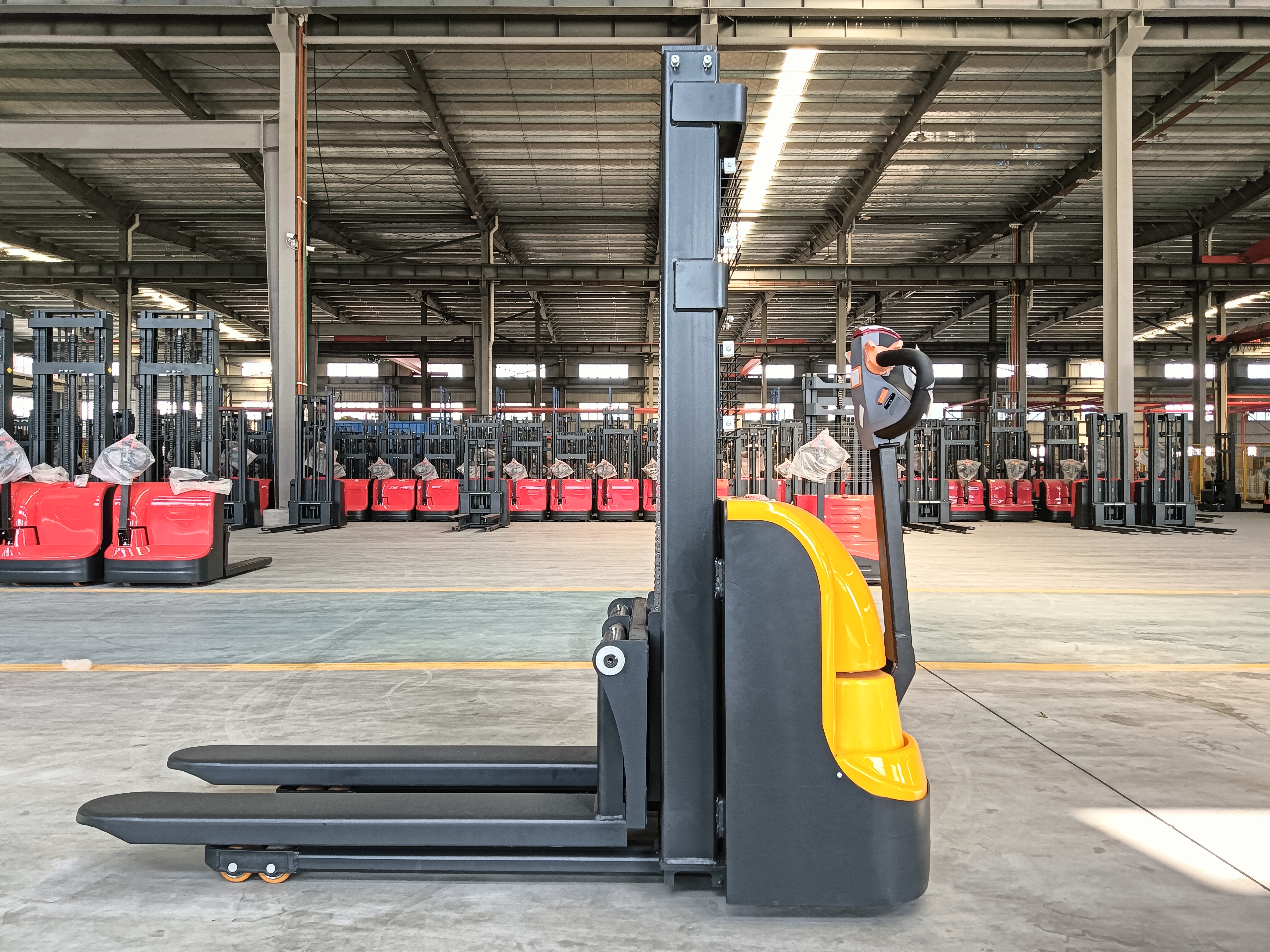

warehouse stacking equipment

Specifications

Model	ESC
Rated Load (kg)	1-1.5T
Lift Height (mm)	1.6-3.5M
Wheel material	PU (Polyurethane)
Front wheel diameter	78 mm
Drive wheel diameter	210 mm
Stabilising wheel diameter	124 mm

Key Advantages

Maintenance‑free battery – 24V / 65 AH standard (80 AH optional) delivers strong power and simple operation without daily watering or maintenance.

Robust construction – High‑strength frame and rational layout ensure stability and durability even in tough working conditions.

Compact footprint – Only 820 mm wide with a turning radius of 1460 mm (excluding handle); minimum right‑angle stacking aisle is just 2220 mm for 800×1200 pallets – maximises your storage density.

Lower total cost – Reduced energy consumption and minimal service requirements keep operating costs low.

Easy operation – Walkie design with intuitive controls; optional 80 AH battery extends shift runtime.

Applications

Industry / Area	Use Case
Warehousing & Logistics	High bay pallet storage and retrieval
Retail Distribution	Shelf replenishment and goods transfer
Manufacturing	Material supply and finished goods handling
Freight Terminals	Loading, unloading and stacking
Cold Storage (with adaptations)	Suitable for controlled environment facilities

Frequently Asked Questions (FAQ)

Q: How does the electric stacker compare to a manual stacker?

A: It is fully electric – no pushing or pulling required. Both lifting and travel are powered by the battery, dramatically improving efficiency and reducing worker strain.

Q: What is the battery life?

A: The standard 24V / 65 AH maintenance‑free battery provides a full shift of typical use. An optional 80 AH battery is available for extended runtime.

Q: Can it work in narrow aisles?

A: Yes. With an overall width of only 820 mm and a turning radius of 1460 mm, the walkie electric stacker is designed for narrow‑aisle operations. The minimum stacking aisle is as tight as 2220 mm (with 800×1200 pallets).

Q: Are the fork widths adjustable?

A: Yes, the fork outside width can be set to either 560 mm or 680 mm to accommodate different pallet sizes.

Q: What lift heights are available?

A: Five options: 1600, 2500, 3000, 3300 and 3500 mm, covering most warehouse storage levels.
