1.0-4.0T Diesel Forklift

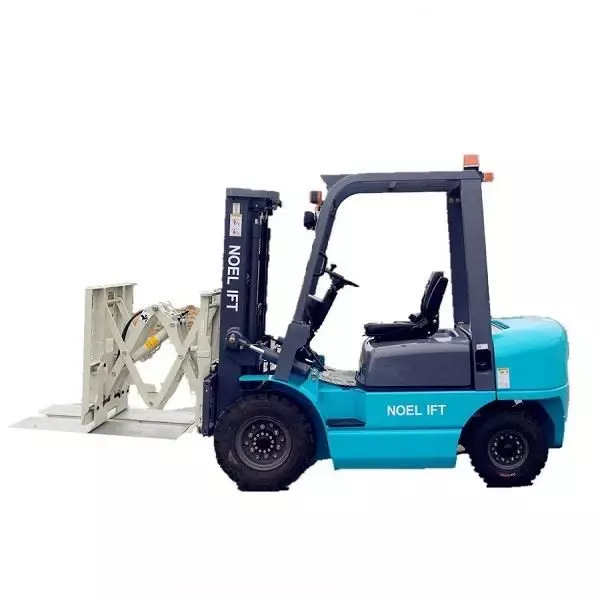

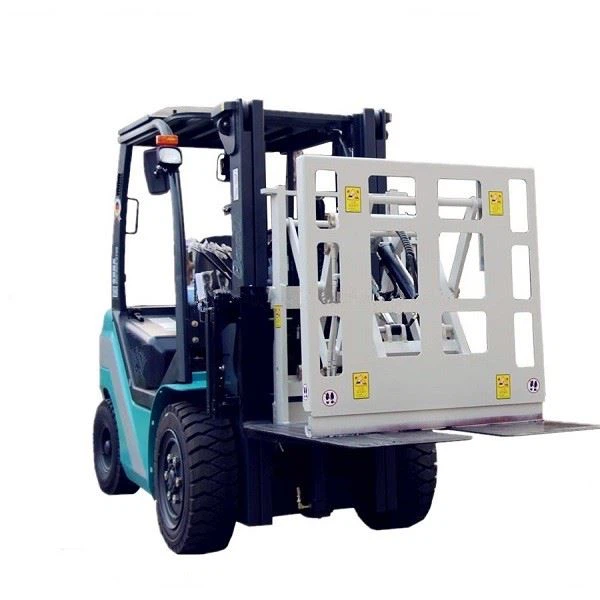

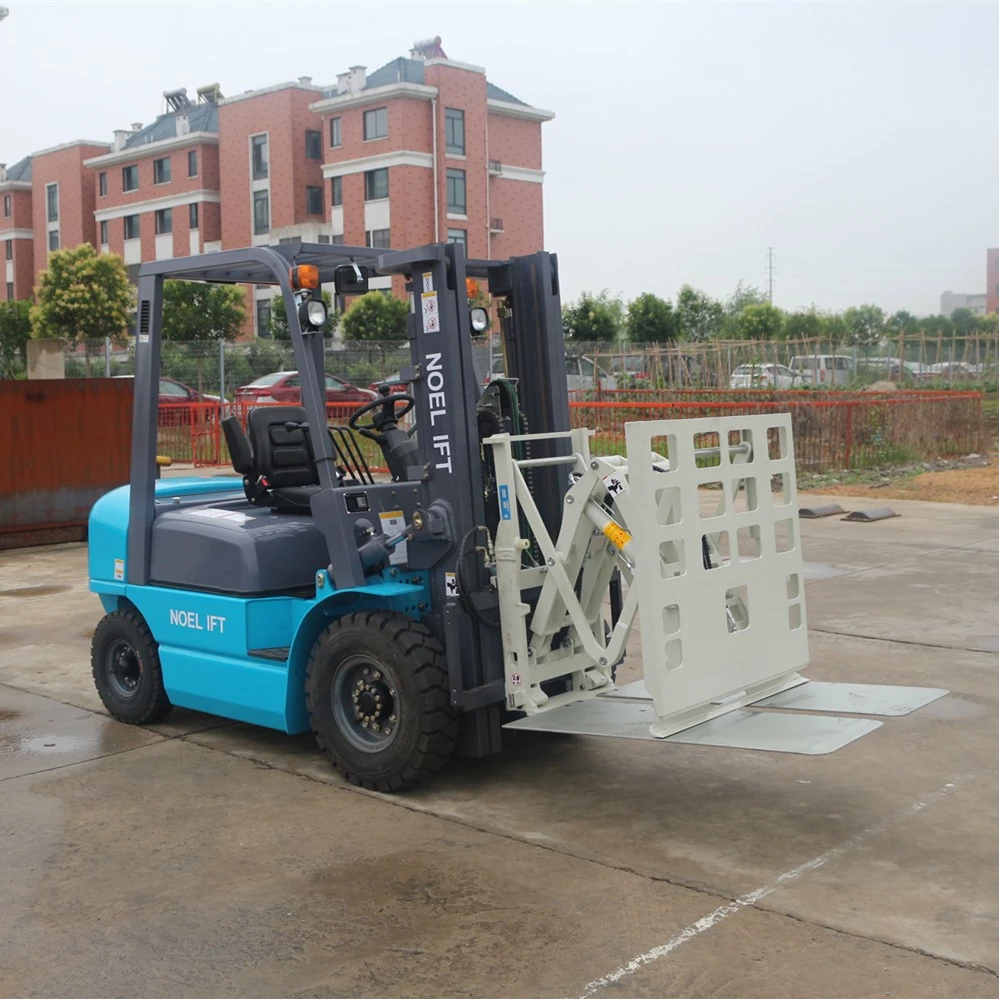

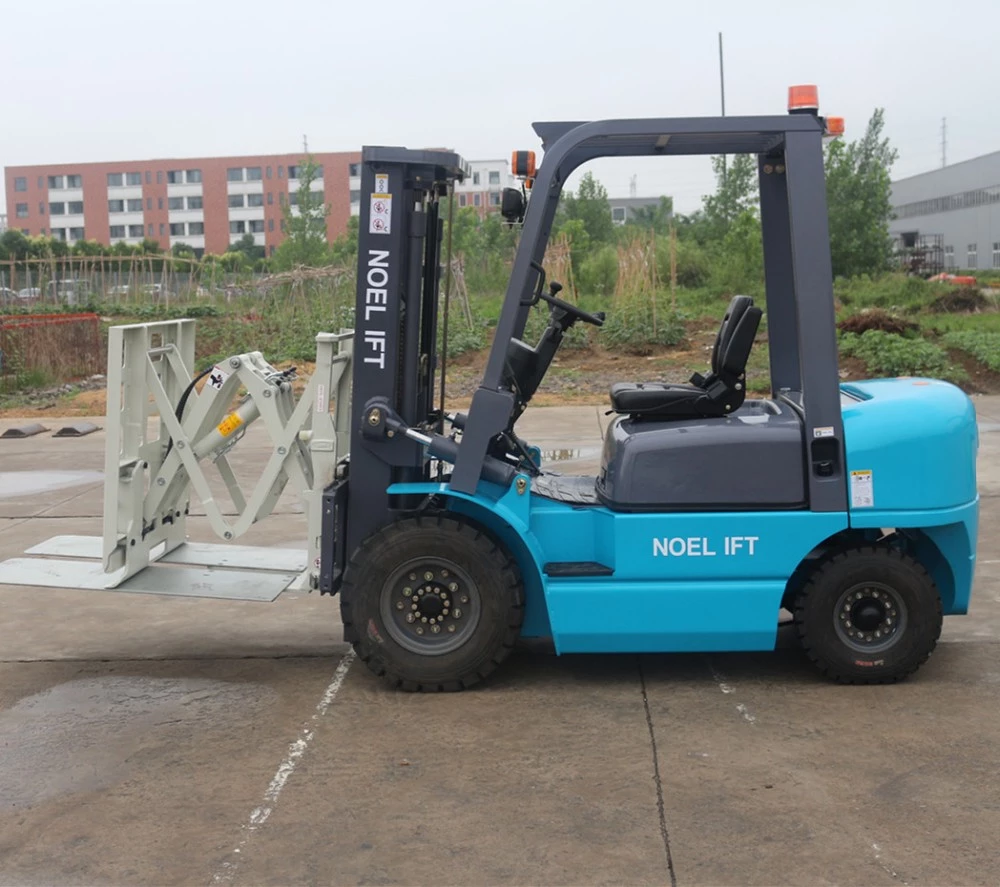

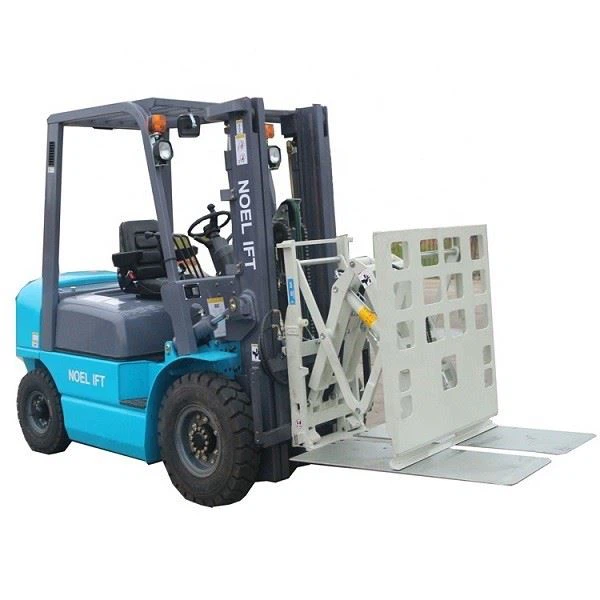

1-4 ton diesel forklift equipped with forklift slip sheet attachment| Flexible Attachments for Versatile Material Handling

Adapt to any handling requirement with our slip sheet forklift. It supports various attachments, so you can switch between slip sheets, pallets and other loads without changing trucks. Optional lift heights from 3000mm to 6000mm fit different warehouse racking systems. A cost-effective solution for businesses handling mixed loads, reducing the need for multiple specialized pieces of equipment.
✅ Multiple attachments for slip sheet & pallet handling✅ Adjustable lift height: 3000–6000mm✅ One truck for multiple applications, reduces equipment investment

Quantity:
Availability:





Inquire

Products Detail

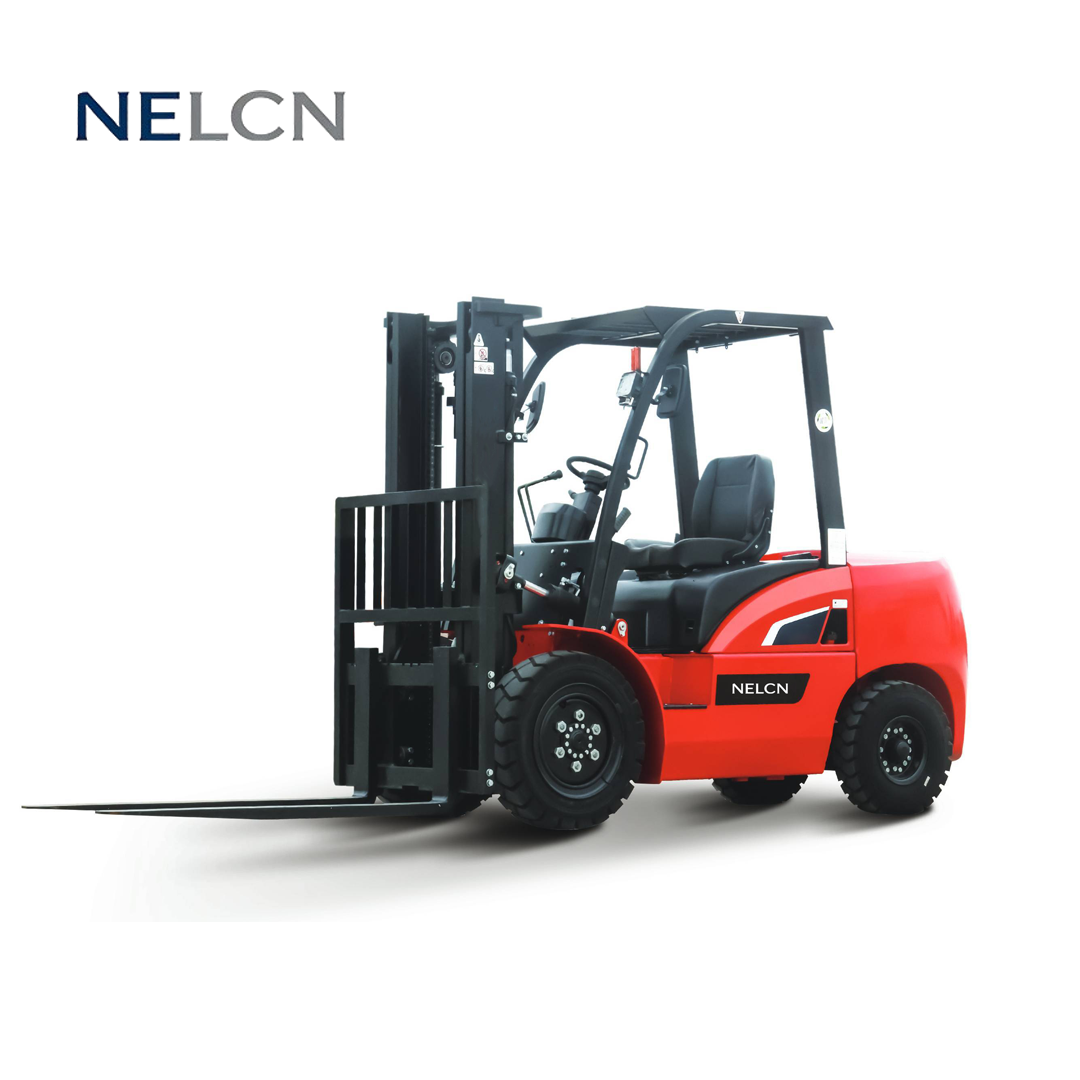

1-4 ton diesel forklift

Maximize your warehouse efficiency with our heavy-duty 1-4 ton diesel forklift, now fully compatible with professional slip sheet attachments. Designed for high-intensity industrial handling, this versatile diesel truck eliminates the need for traditional pallets, significantly reducing shipping costs and increasing storage space.

Key Specifications & Customization

Core Capacity: Standard 1-4 ton diesel forklift models (2000kg to 4000kg).
Extended Range: Optional load capacities available up to 5000kg, with customized heavy-duty solutions reaching 10,000kg.
Lifting Versatility: Mast lifting heights range from 3 meters to 6 meters to suit various racking systems.
Condition: Brand-new industrial-grade diesel forklift engineered for durability.

Professional Slip Sheet Integration

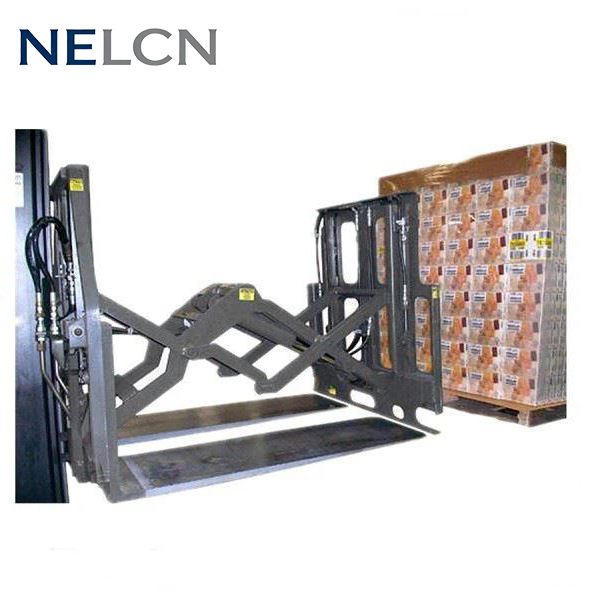

Our 1-4 ton diesel forklift can be equipped with a specialized push-pull attachment, allowing for the seamless handling of goods on plastic or fiberboard slip sheets.

Precision Handling: The high-strength gripper jaw at the bottom of the face plate automatically secures the slip sheet at the end of the stroke and releases it at the start.
Hydraulic Efficiency: The attachment requires only a single hydraulic function to grab, pull, and push loads. This streamlined operation makes the 1-4 ton diesel forklift an incredibly labor-saving tool for container loading and unloading.
Ultra-Thin Platens: The attachment features widened, ultra-thin forks (platens) available in multiple shapes, ensuring they can slide under the thinnest slip sheets without damaging the cargo.

Why Choose Our 1-4 Ton Diesel Forklift?

By choosing a 1-4 ton diesel forklift equipped with a slip sheet attachment, you transition to a pallet-less handling system that is faster, greener, and more cost-effective. We offer factory-direct sales with wholesale pricing, ensuring you get premium industrial equipment with a high price-to-quality advantage.

Specifiction parameters

Main informaiton
1	Manufacturer	NOELIFT
2	Model	Unit	FD10	FD15	FD18	FD20	FD25	FD30	FD35	FD45
3	Power type		diesel
4	Rated capacity	kg	1	1500	1800	2000	2500	3000	3500	4500
5	Load center	mm	500			500
6	Operator type		drive in seat
Size
7	Max. lift height of mast with Load-backrest	mm	4030	4030	4030	4030	4030	4262	4262	4280
8	Max.lift height of fork(standard)	mm	3000	3000	3000	3000	3000	3000	3000	3000
9	Height of mast (standard)	mm	1985	1985	1985	2000	2000	2065	2180	2330
10	Free lift height(standard)	mm	125	125	125	170	170	160	170	150
11	Height of Load-backrest	mm	1010	1010	1010	1010	1010	1240	1235	1195
12	Distance from seat to overhead guard	mm	1015			1000
13	Front wheel overhead	mm	2070			2070	2070	2090	2090	2290
14	Overall Length without fork	mm	2160	2230	2270	2502	2576	2682	2693	3105
15	Front overhang	mm	420	420	420	477	477	479	498	565
16	Rear overhang	mm	350	424	461	420	494	495	495	540
17	Wheel base	mm	1400	1400	1400	1600	1600	1700	1700	2000
18	The height of traction pin	mm	230	230	230	290	290	310	310	350
19	Min. ground clearance	mm	100	100	100	110	110	135	135	160
20	Overall width	mm	1070	1070	1070	1170	1170	1225	1225	1480
21	The distance between forks	mm	125-910	125-910	125-910	1024/200	1024/200	1060/250	1060/250	1370/300
22	Tread(front /rear)	mm	890/920	890/920	890/920	970/970	970/970	1000/970	1000/970	1180/1190
23	Min. Turning radius(outside)	mm	1980	2060	2060	2170	2240	2400	2420	2780
24	Min. Turning radius(inside)	mm	130	130	130	160	160	200	200	270
25	Min. Intersecting aisle	mm	1785	1865	1865	2200	2280	2380	2400	3365
26	Mast tilt angle	deg	6° / 12°			6° / 12°
27	Fork size	mm	920X100X35	920X100X35	920X100X40	920X100X45	1070X100X45	1070X125X50	1070X125X50

Detailed specifications for all models are available. Contact us for a full catalog. Customized capacities and lifting heights are available upon request.
