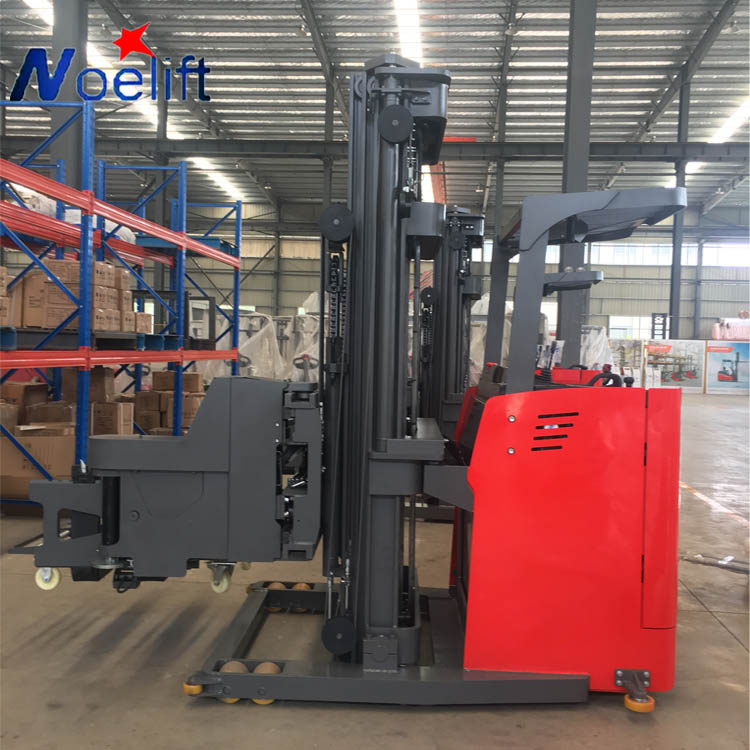

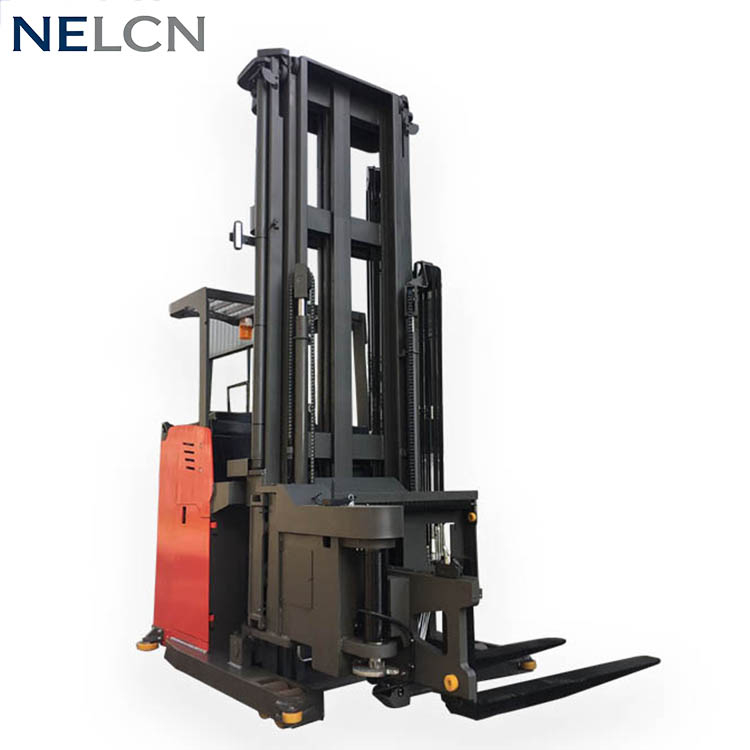

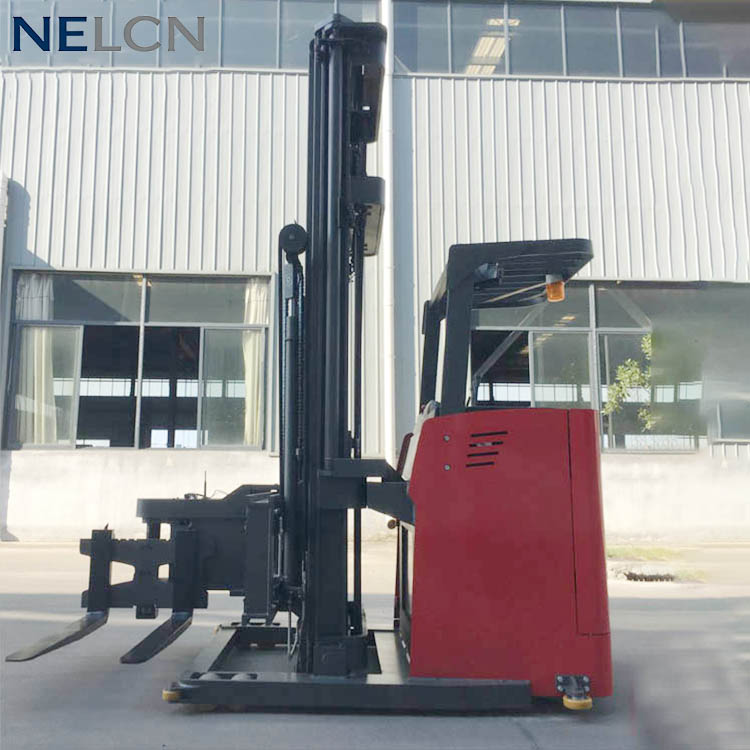

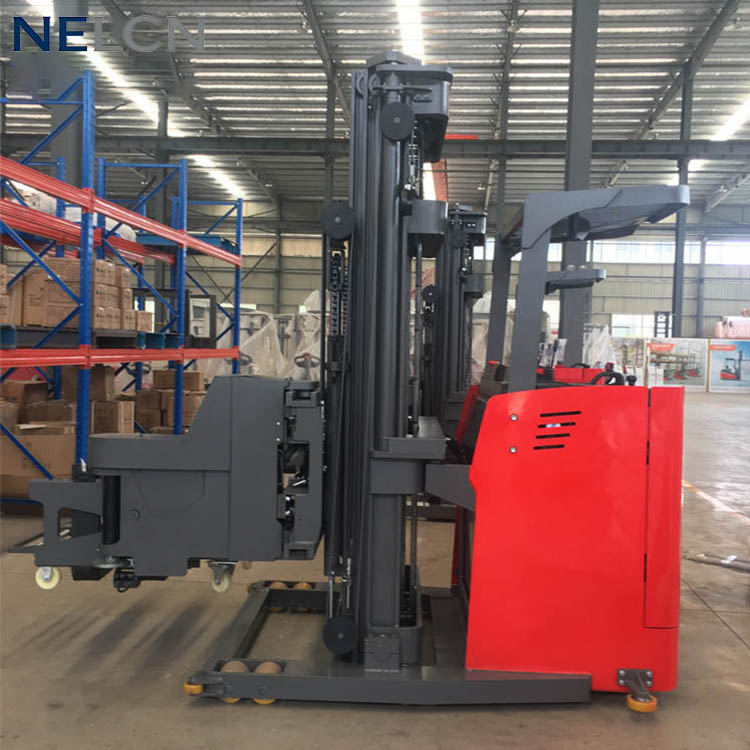

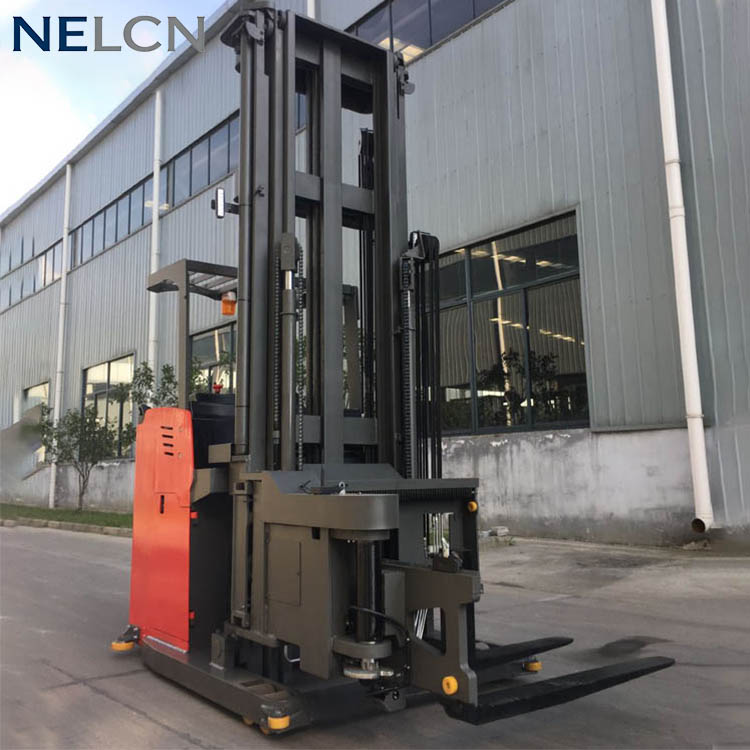

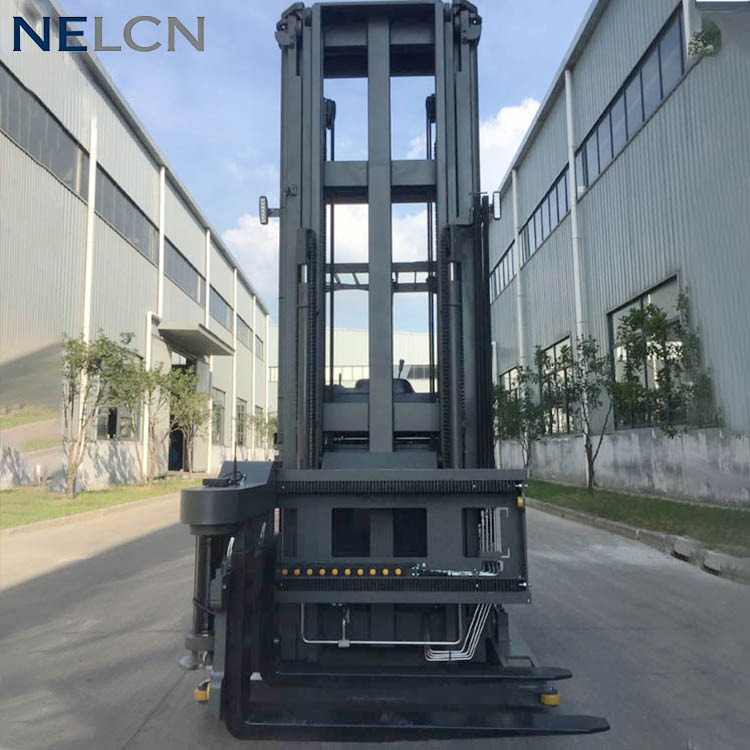

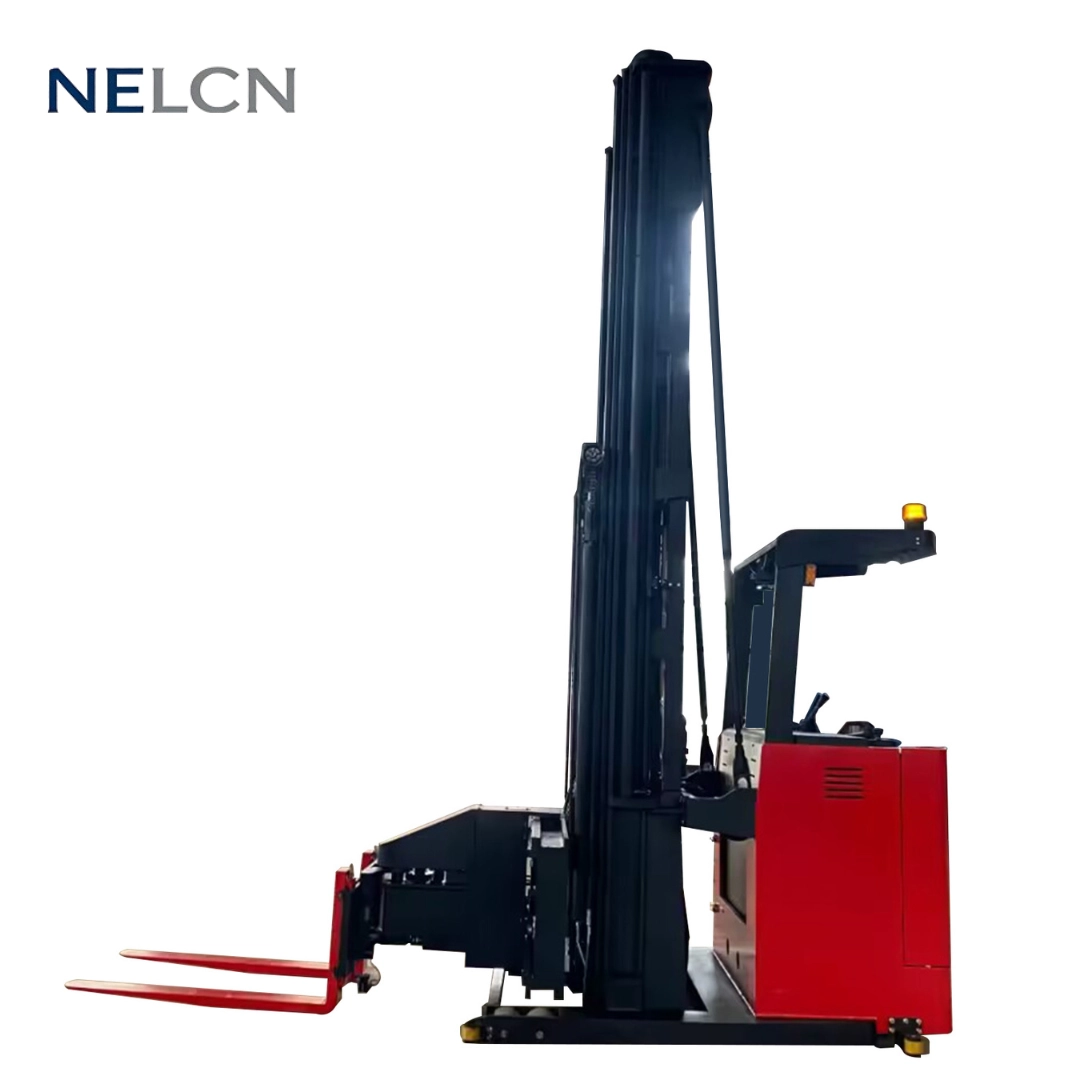

3 Way Pallet Stacker

The NOELIFT TC Series electric 3-way pallet stacker is engineered for high-level stacking in ultra-narrow aisle (VNA) warehouses. By combining 180° fork rotation and lateral shifting, this versatile narrow aisle truck enables efficient goods handling on both sides without turning the vehicle chassis. With a lift height of up to 7.5m and a minimum stacking aisle width of just 1500mm, it is the ultimate solution for maximizing warehouse storage capacity.

Quantity:
Availability:





Inquire

Model:
TC
Brand:
NOELIFT

Products Detail

High-Efficiency Electric 3-Way Pallet Stacker | VNA Narrow Aisle Solution

Maximize your warehouse storage density without expanding your physical footprint. Our Electric 3-Way Pallet Stacker is a game-changer for high-density logistics centers, third-party logistics (3PL), and cold storage facilities. Featuring advanced multi-directional capabilities, this VNA forklift stacks and retrieves pallets from the front and both sides effortlessly, reducing required aisle widths down to 1.5–1.6 meters. aisle widths as narrow as 1.6 meters.

Key Features & Advantages

1. AC Maintenance‑Free Drive System

Equipped with a 5.5 kW AC drive motor, the maintenance‑free system ensures stable performance and high productivity even under intensive, high‑frequency operation.

2. Curtis Controller (USA)

The American‑made Curtis controller offers reliable performance, intelligent self‑diagnosis, and simplified troubleshooting – reducing downtime.

3. Imported Core Hydraulic Components

Key hydraulic parts are sourced from world‑renowned brands, delivering higher precision and consistent reliability for accurate stacking.

4. H‑Section Mast + Central Guide Rail

The mast is built with H‑shaped channel steel and a central guide rail design, providing superior stability and positioning accuracy at high lift heights.

5. Ergonomic Operator Comfort

Padded backrest, leg cushion, and armrests are designed to reduce fatigue and maximise comfort during long shifts.

6. Ultra‑Narrow Aisle Capability

With a minimum clear stacking aisle of just 1500 mm, the TC10 significantly reduces aisle space, freeing up more room for pallet storage.

7. Turn Speed Limiting

Automatic speed reduction when cornering enhances safety for both operator and goods, ensuring secure handling in tight spaces.

8. KDS AC Steering Motor + EPS

The standard KDS AC steering motor and electronic power steering (EPS) deliver effortless, precise control with minimal effort.

9. Wireless Fork Video Assistance

An integrated wireless camera system gives the operator a clear view of the fork tips, improving visibility and enabling quick, accurate high‑level stacking.

10. Wheel Angle Display

The real‑time steering angle display on the dashboard helps novice operators learn quickly and manoeuvre with confidence.

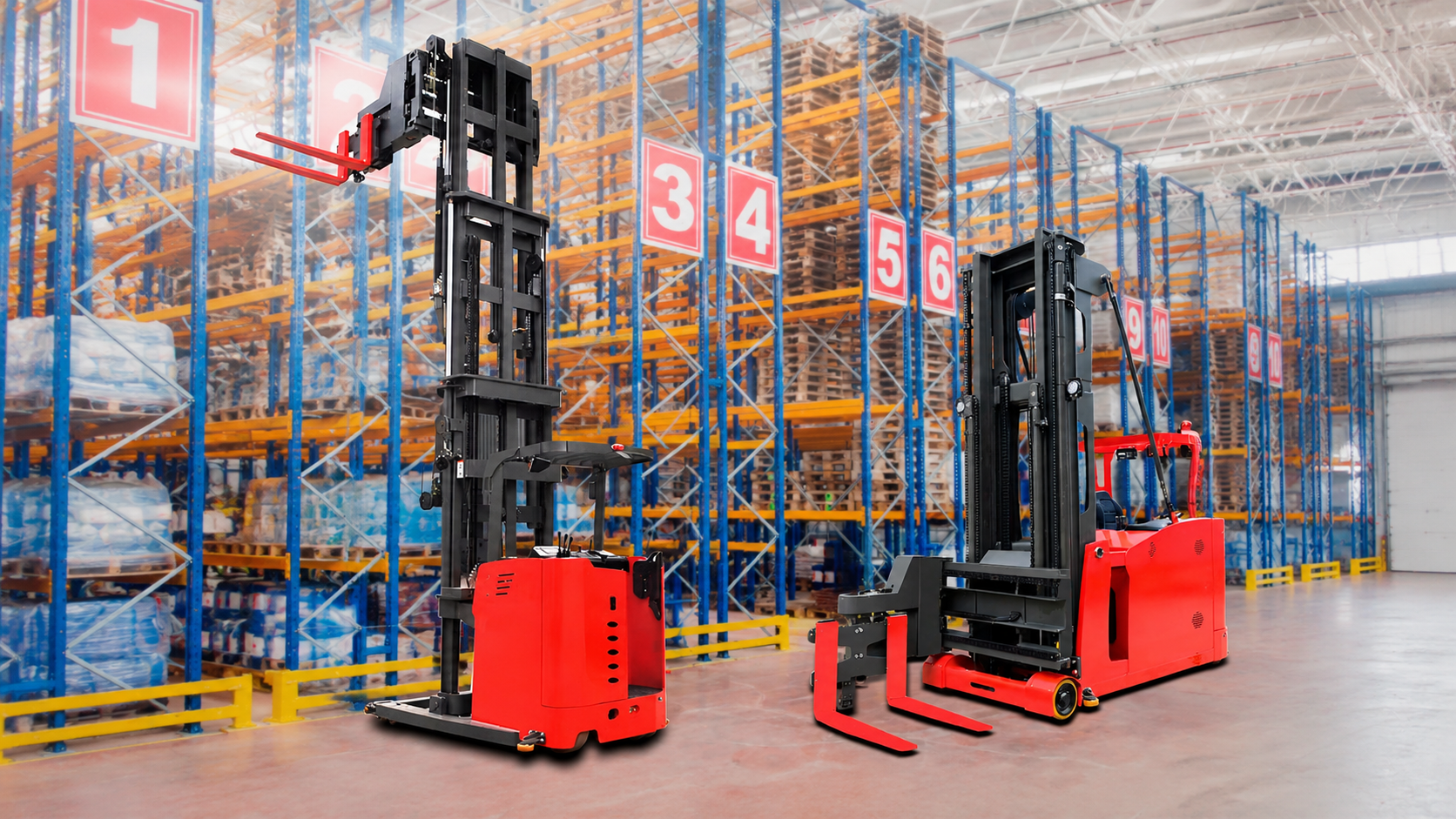

VNA forklift

Technical Specifications

Specification	TC10 Duplex	TC10 Triplex Full Free	TC15 Duplex	TC15 Triplex Full Free
Rated Capacity (kg)	1000	1000	1500	1500
Load Center (mm)	500	500	600	600
Lift Height (mm)	3000	4500	3000	4500
Mast Lowered Height (mm)	2595	2800	2570	2817
Mast Extended Height (mm)	4085	5584	4040	5555
Overall Length (mm)	2906	2906	2985	2985
Overall Width (mm)	1450	1450	1550	1550
Service Weight (Including Battery) (kg)	4235	4775	4715	5545
Travel Speed (Loaded/Unloaded) (km/h)	7.5 / 8.0	7.5 / 8.0	7.5 / 8.0	7.5 / 8.0
Lifting Speed (Loaded/Unloaded) (mm/s)	240 / 290	240 / 290	260 / 300	260 / 300
Lowering Speed (Loaded/Unloaded) (mm/s)	310 / 310	310 / 310	360 / 390	360 / 390
Battery Voltage / Capacity (V/Ah)	48 / 390 (Lead-acid)Optional: 48 / 300 Lithium Battery	Same as left	48 / 480 (Lead-acid)Optional: 48 / 300 Lithium Battery	Same as left
Battery Weight (kg)	650	650	765	765
Lift Motor Power (kW)	8.6 AC (S3-15%)	8.6 AC	12.8 AC	12.8 AC
Fork Dimensions (L×W×T) (mm)	1000 × 125 × 50	1000 × 125 × 50	1200 × 125 × 50	1200 × 125 × 50
Fork Outer Distance (mm)	265–760 (Adjustable)	Same as left	Same as left	Same as left
Turning Radius (mm)	1880	1880	1980	1980
Aisle Width (1000×1000 Pallet) (mm)	1500	1500	1600	1600

Applications of NOELIFT 3-Way Pallet Stacker

Very Narrow Aisle (VNA) Operations: Designed specifically to squeeze maximum efficiency out of restricted layouts.
High-Density Racking Systems: Ideal for modern automated and high-rise warehouses storing high-value goods.
Cold Storage & Logistics Hubs: Built for heavy-duty, continuous workflow requirements.
