TKC
NOELIFT

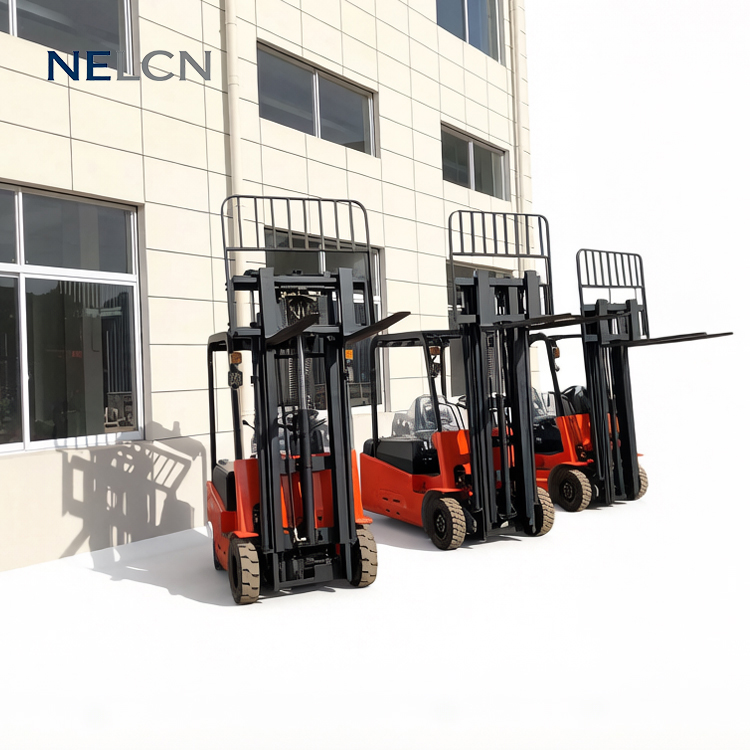

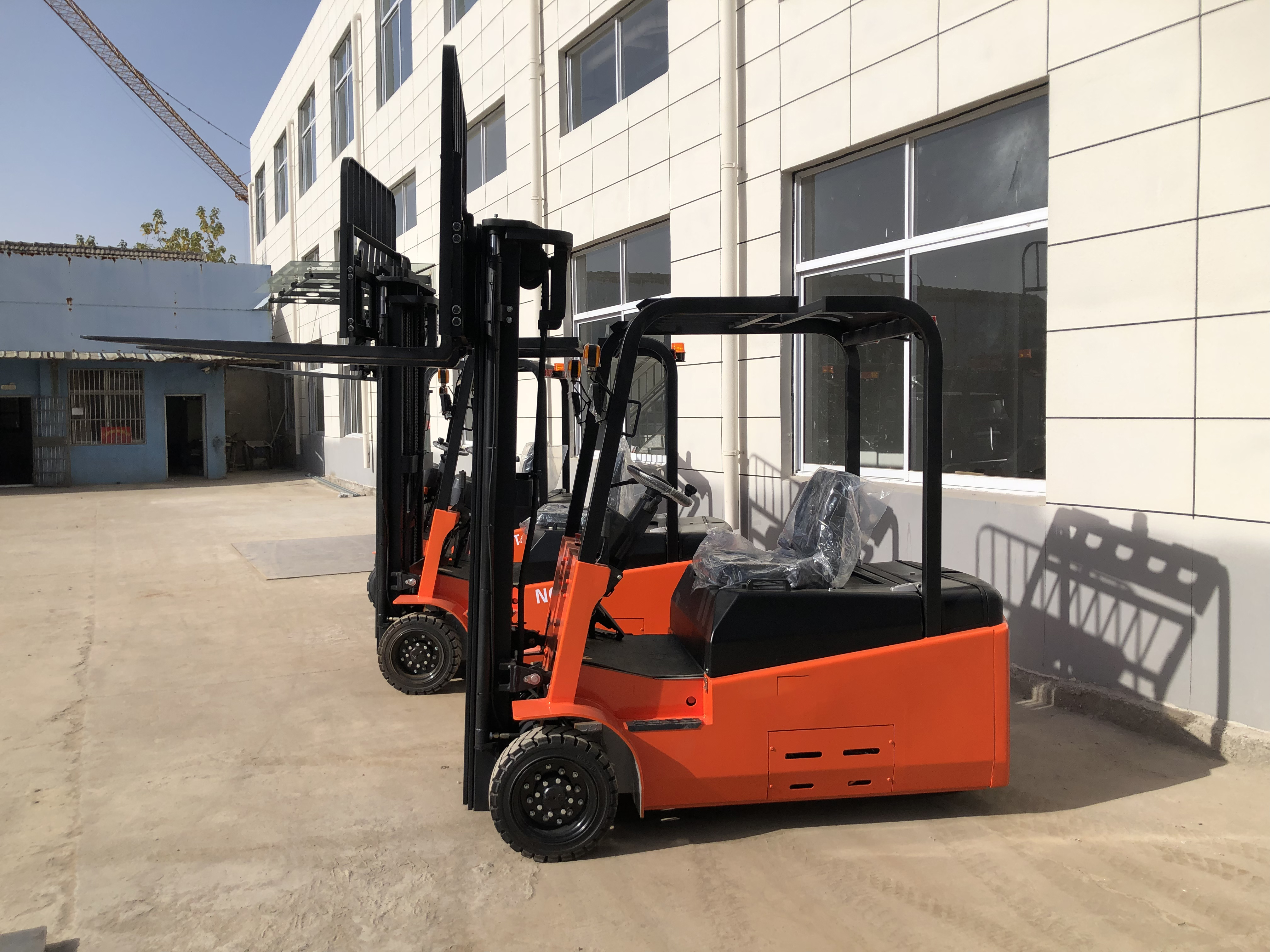

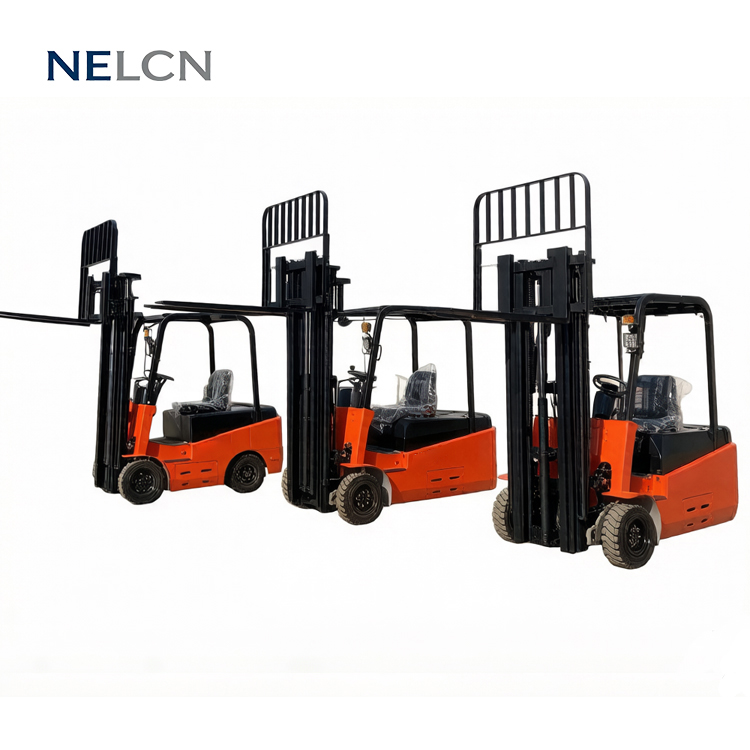

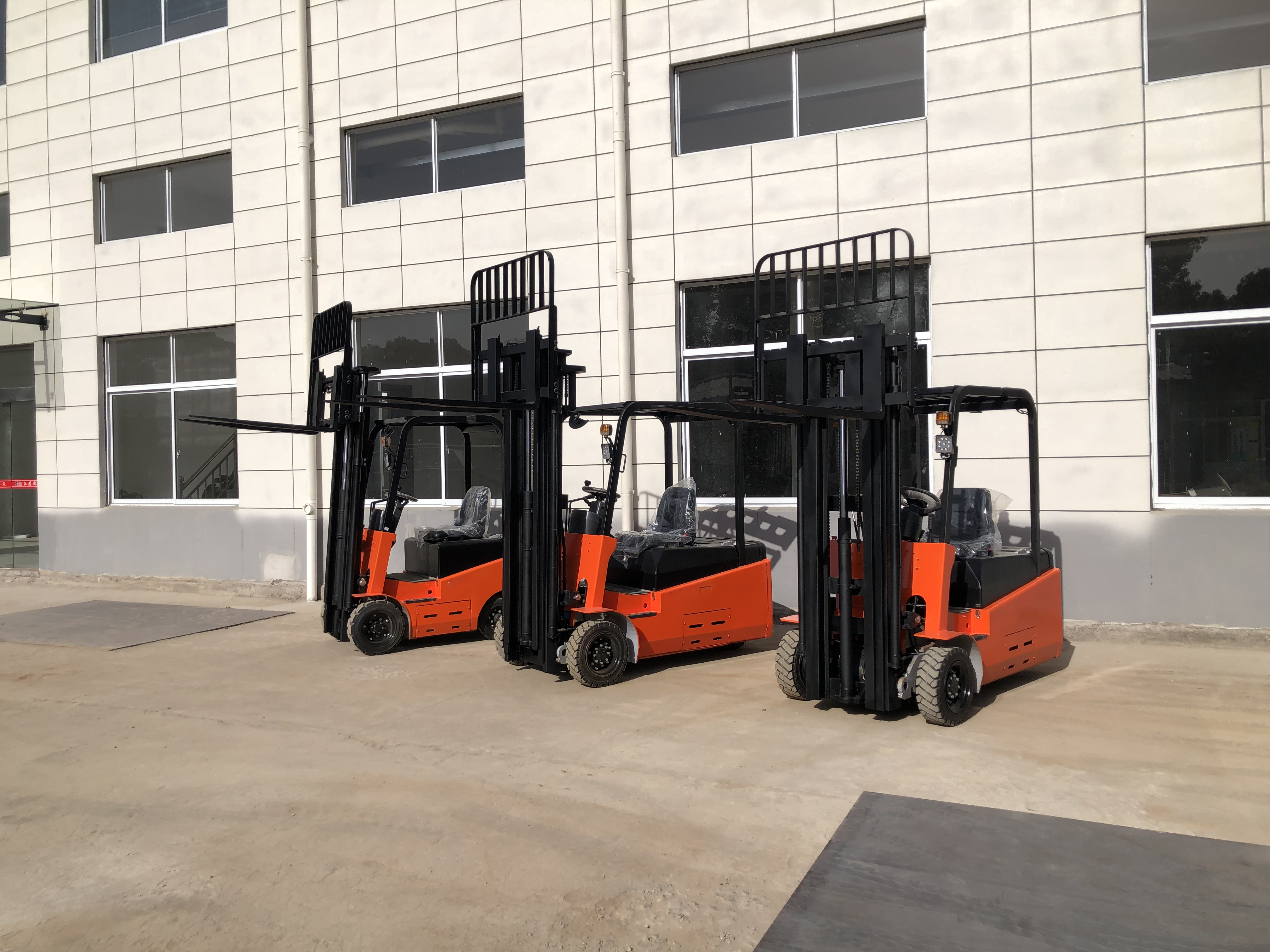

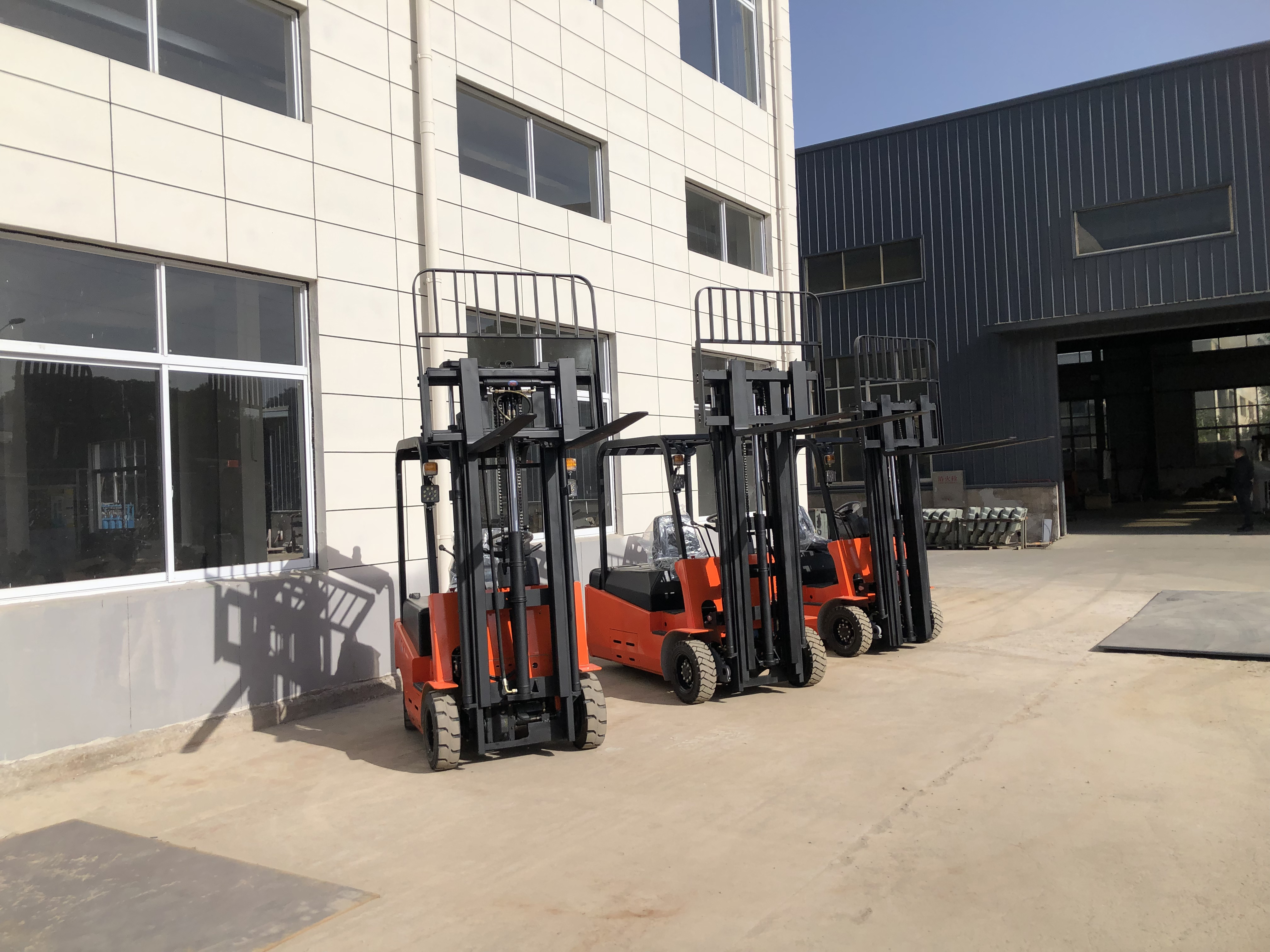

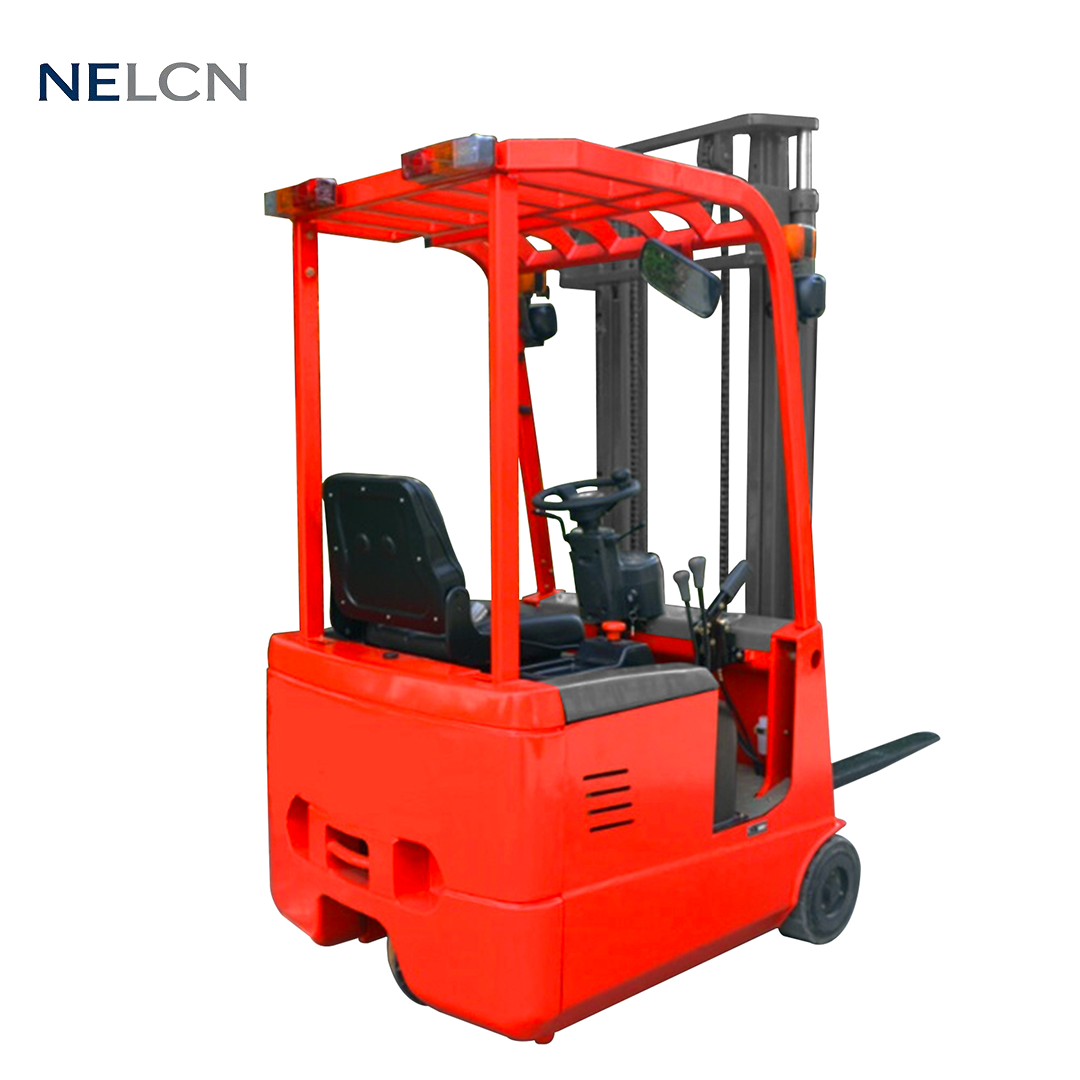

The TKC Series 3-wheel electric counterbalance forklift is a high-performance material handling solution engineered for maximum efficiency in confined spaces. Available in 1.6-ton (TKC16) and 2.0-ton (TKC20) models, this compact forklift features a three-point suspension design and an AC front dual-drive system. It delivers the power and stability of a larger counterbalance truck while requiring significantly less operating space, making it the ideal choice for warehouses, retail environments, and manufacturing facilities with narrow aisles and tight turning radii.
Model | TKC16 | TKC20 |
Power type | Battery | Battery |
Driving type | Seated | Seated |
Load capacity (Q) | 1600 kg | 2000 kg |
Load center distance | 500 mm | 500 mm |
Service Weight (incl./excl. battery) | 3290 / 2640 kg | 3420 / 2650 kg |
Fork tilt range (front/rear) | 6° / 6° | 6° / 6° |
Lift height ((h3)) | 3300 mm (Up to 6000 mm optional) | 3300 mm (Up to 6000 mm optional) |
Overall length (L1) | 2880 mm | 2885 mm |
Overall width (b1/b2) | 1086 / 1070 mm | 1120 / 1070 mm |
Turning radius (Wa) | 1595 mm | 1595 mm |
Travelling speed (laden/unladen) | 15 / 15 km/h | 15 / 14 km/h |
Lead-acid battery (Standard) | 48V / 400Ah | 48V / 490Ah |
Lithium battery (Standard) | 48V / 300Ah | 48V / 400Ah |
Lithium battery (Optional) | 48V / 400Ah | 48V / 460Ah |
Superior Maneuvering in Tight Spaces: The 3-point design and smaller turning radius significantly reduce stacking aisle requirements, optimizing your warehouse storage capacity.
Powerful Dual Front-Wheel Drive: High-power dual drive motors provide robust performance, ensuring excellent gradeability and reliable operation on ramps.

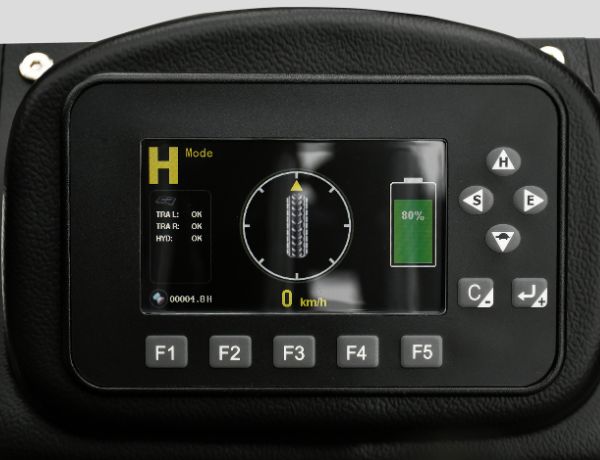

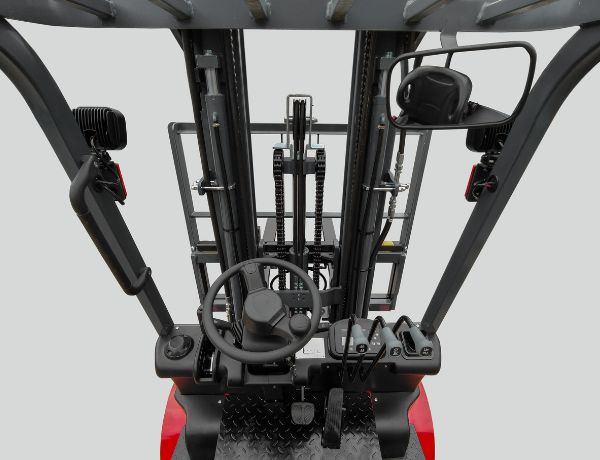

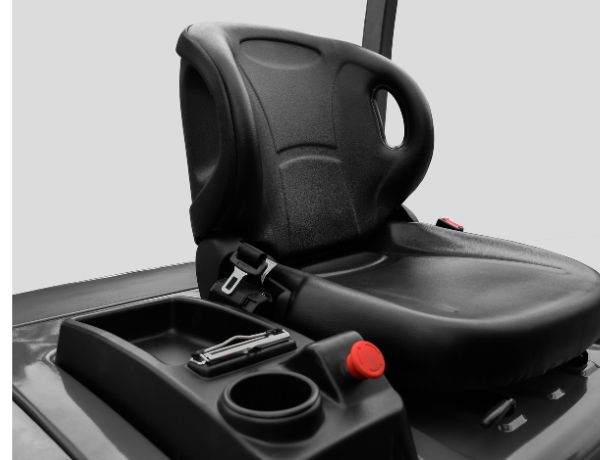

Advanced Safety & Control: Powered by a reliable Curtis controller and featuring electric steering, multi-functional digital displays, and ergonomic layouts for fatigue-free operation.
Flexible Battery Options: Supports high-capacity Lead-acid or maintenance-free Lithium-ion (Li-ion) batteries tailored to your operational shifts.
The TKC Series is widely used in industries requiring high-density storage and precise handling, such as:
Warehousing and Logistics
Food and Beverage Distribution
Pharmaceutical and Cold Chain Storage
Electronics and Manufacturing
