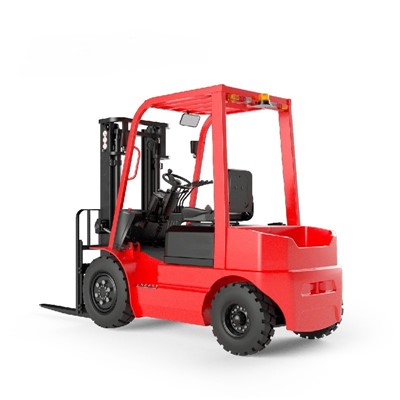

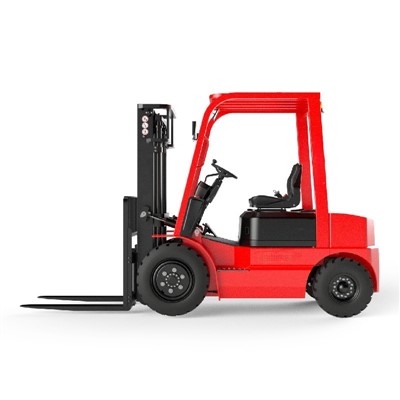

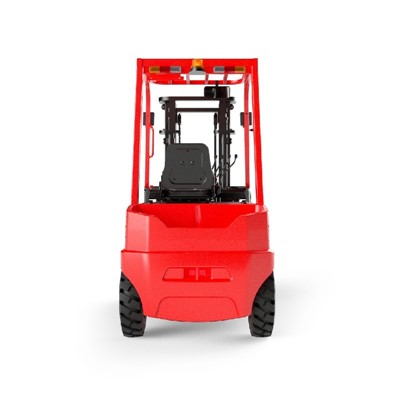

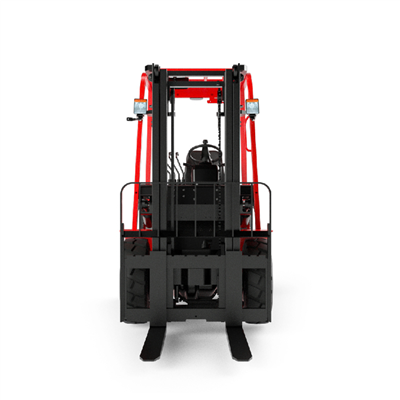

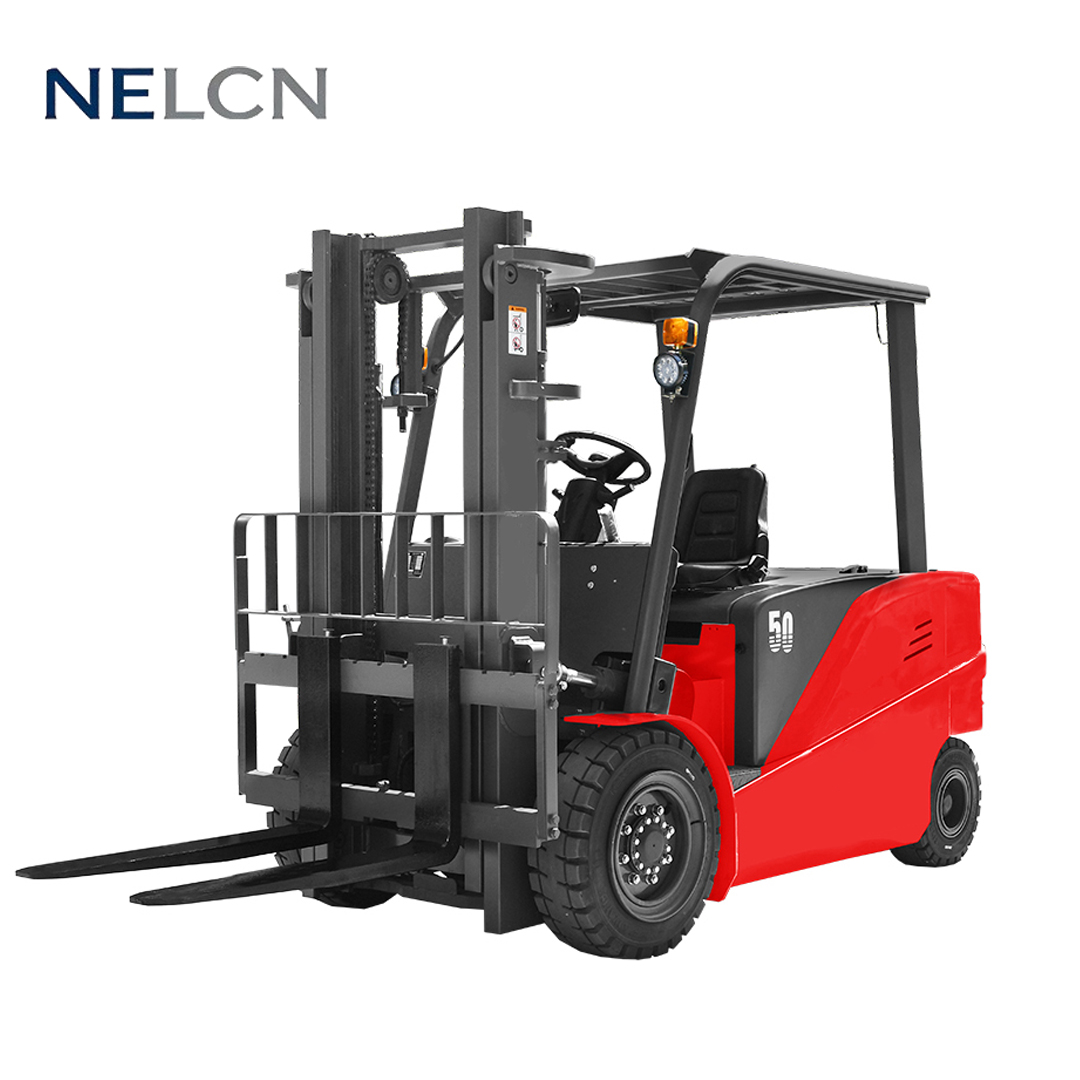

3.5T Electric Forklift

◎Lifting overload protection, explosion-proof design of hydraulic system, even if the oil pipe bursts, the mast will not drop quickly, improving safety. ◎Standard fork descent to the bottom buffer function to ensure the smooth lifting and lowering of the fork, reduce vibration and...

Quantity:
Availability:





Inquire

Products Detail

FEATURE

Lifting overload protection + hydraulic system explosion-proof design: Even if the oil pipe bursts, the mast will not drop suddenly, significantly enhancing operational safety.
Standard fork bottoming buffer function: Ensures smooth lifting and lowering of the fork, reduces vibration, and protects cargo integrity.
Ramp descent control function: Prevents slipping during downhill operation for stable maneuvering.
Full-vehicle LED lighting system: Provides superior visibility for safer night operations.
Safe start protection: The forklift can only be activated following the correct startup sequence to avoid misoperation.
High-performance lithium battery: Adopts top-tier electric vehicle-grade cells, paired with an independently developed BMS system tailored to forklift working conditions, backed by a 5-year warranty.
One-piece cast tapered roller steering axle: Optional turning deceleration feature, offering exceptional durability and safety.
Multiple starting options (Optional): Fingerprint recognition, card swiping, and other methods to meet diverse safety requirements.
Light warning system (Optional): Facilitates quick confirmation of safe driving zones.
Active safety system (Optional): Automatically decelerates when detecting human figures to mitigate collision risks.
OPS (Operator Presence Sensing) system (Optional): Prevents fork descent when the driver leaves the seat.

Vehicle parameter table

Features	Model	-	-	FTS30
	Power type	-	-	Electric
	Operation mode	-	-	Seat-on
	Load	Q	kg	3500
	Load center distance	c	mm	500
	Load length	x	mm	481
	Wheelbase	y	mm	1650
Weight	Deadweight	-	kg	3920
	Axle load, full load front/rear	-	kg	6580/440
	Axle load, empty load front/rear	-	kg	1700/2220
Tires/Chassis	Tire type, drive wheel/load wheel	-	-	Pneumatic tire
	Front wheel (diameter * width)	-	-	7.00-12-16PR
	Rear wheel (diameter * width)	-	-	18X7-8-14PR
	Drive wheel, number of balance wheels/load wheels (x = drive wheel)	-	mm	2x/ 2
	Front wheel track	b10	mm	975
	Rear wheel track	b11	mm	955
	Mast or fork tilt angle	α/β	°	6/10
Performance Parameters	Right-angle stacking channel width (pallet is 800 width × 1200 length)	Ast	mm	4098
	Turning radius	Wa	mm	2217
	Travel speed, fully loaded/unloaded	-	km/h	11/12
	Lifting speed, fully loaded/unloaded	-	m/s	0.29/0.36
	Lowering speed, fully loaded/unloaded	-	m/s	0.4/0.43
	Traction (60min), fully loaded/unloaded	-	N	--
	Maximum traction (5min), fully loaded/unloaded	-	N	--
	Maximum climbing grade, fully loaded/unloaded	-	%	15/15
	Travel brake	-	-	Hydraulic
	Parking brake	-	-	Mechanical brake
Electric Motor	Drive motor rated power S2 60 minutes	-	kW	8
	Lifting motor rated power S3 15%	-	kW	16
	Battery voltage/starting capacity	-	V/Ah	80/100
	Battery weight	-	kg
Other Data	Drive unit type	-	-	Permanent magnet synchronous
	Steering type	-	-	Hydraulic
	Noise level S	-	dB(A)	< 74
Dimensions	Minimum height after mast lowered	h1	mm	2070
	Free lifting height	h2	mm	135
	Lifting height	h3	mm	3000
	Mast height when mast is lifted to the highest position	h4	mm	4110
	Overhead guard/cabin height	h6	mm	2170
	Height of seat/platform from the ground	h7	mm	1110
	Height of towing pin center	h10	mm	295
	Vehicle length (including tow hook)	l1	mm	3566
	Length to the vertical plane of the fork	l2	mm	2496
	Vehicle width	b1/b2	mm	1154
	Fork size	s/e/l	mm	45×122×1070
	Fork frame type	-	-	3A
	Outer width of the backrest	b3	mm	1100
	Ground clearance at the bottom of the fully loaded mast	m1	mm	120
	Ground clearance at the center of the wheelbase	m2	mm	150
	Right-angle stacking channel width (pallet is 1000 length × 1200 width)	Ast	mm	3898
