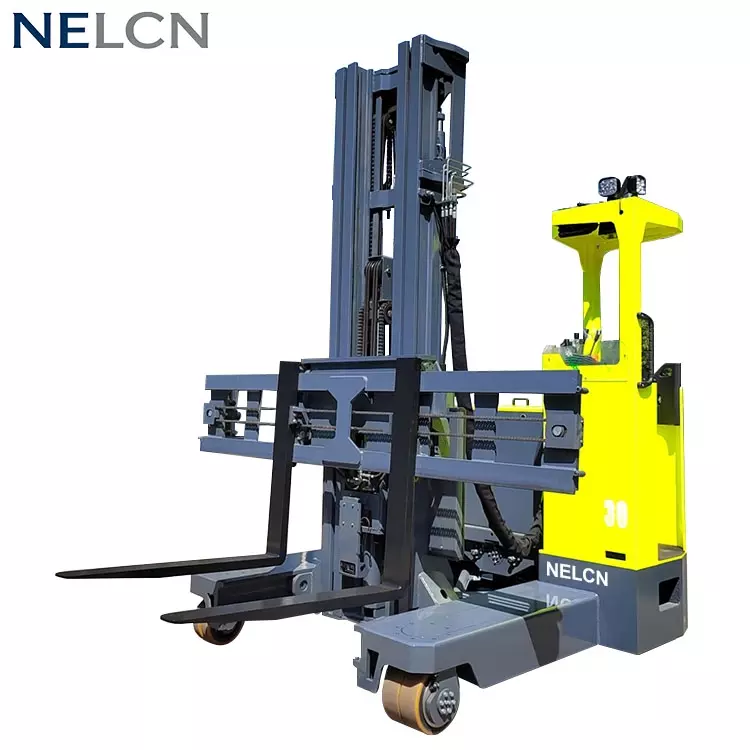

4 Way Reach Truck

The Ultimate Cost-Effective Solution for Handling Long & Bulky Materials in Narrow Aisle Warehouses

4 Way Reach Trucks are designed for warehouses and industrial applications where space utilization, narrow aisle operation, and long material handling are critical.

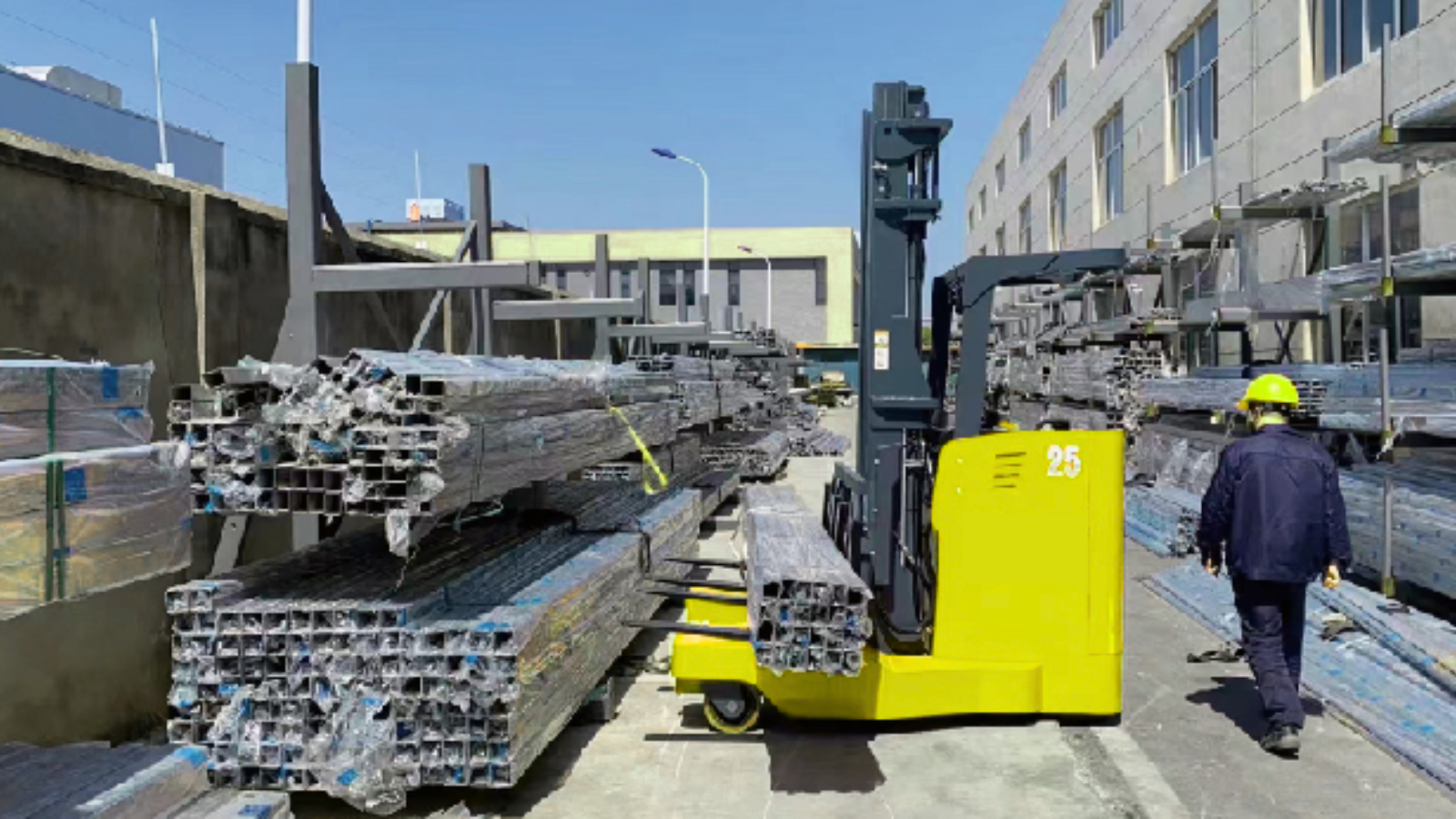

Combining the advantages of a reach truck and side loader, the 4 way reach truck can travel in four directions: forward, backward, and sideways by rotating the wheels 90°. This allows operators to transport long materials such as steel profiles, timber, pipes, and aluminum extrusions through narrow aisles without requiring large turning space.

Technical Specifications

Key Features & Buyer Benefits

1. 4-Directional Travel: Maximize Warehouse Storage

• One-Touch Switching: Seamlessly shift between forward, backward, and lateral (side-to-side) travel at the touch of a button.

• Narrow Aisle Efficiency: Requires a lateral aisle width of only 2.7 meters, making it ideal for high-density, narrow-aisle storage configurations.

2. High-Value Solution for Long Materials

• Cost-Effective Performance: Delivers top-tier return on investment (ROI) within the long-material handling category.

• 3.0-Ton Heavy Duty Capacity: Built specifically for moving, stacking, and organizing standard long materials reliably.

3. Integrated Hydraulic Fork Positioner & Full Reach Mast

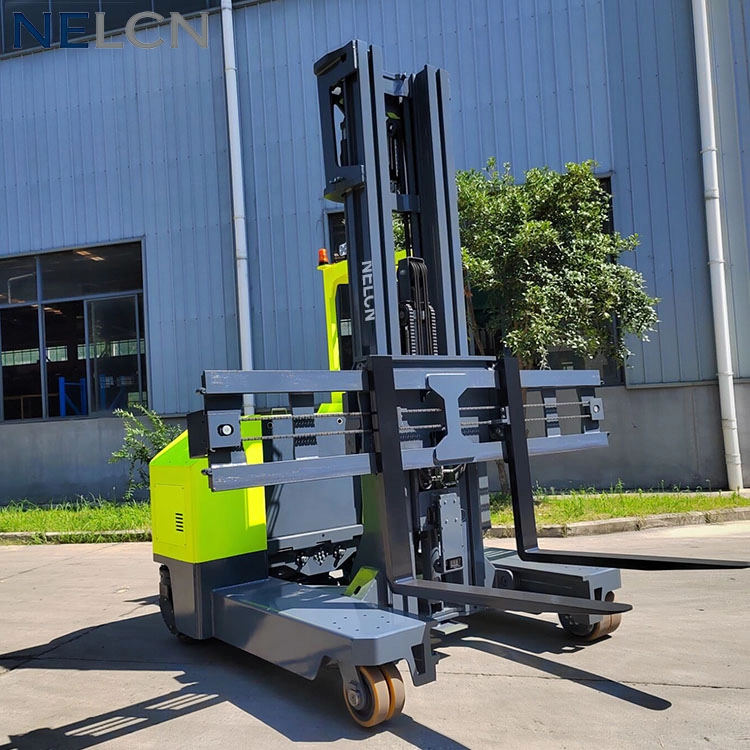

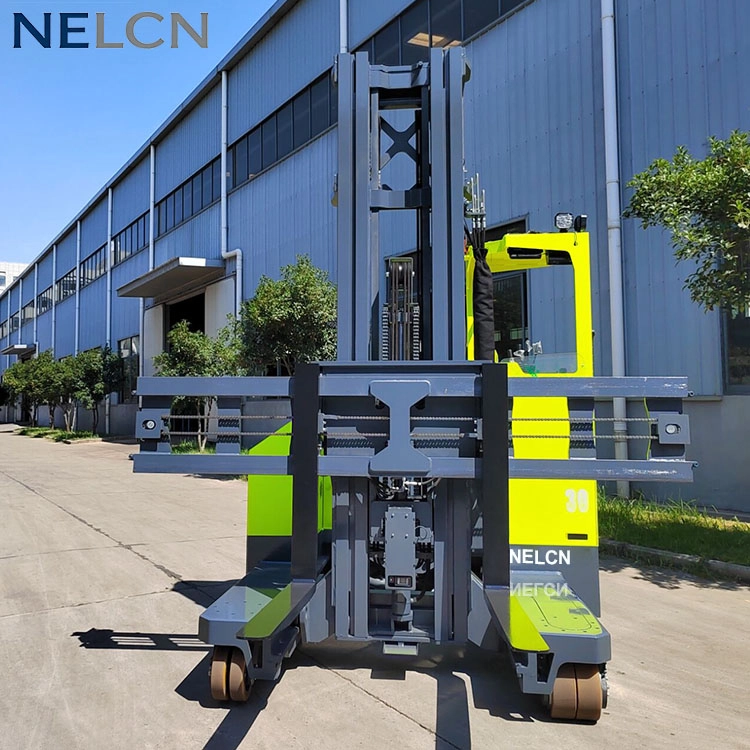

• Automatic Fork Adjustment: The standard wide hydraulic fork positioner allows operators to adjust fork distance automatically to handle varying load lengths safely.

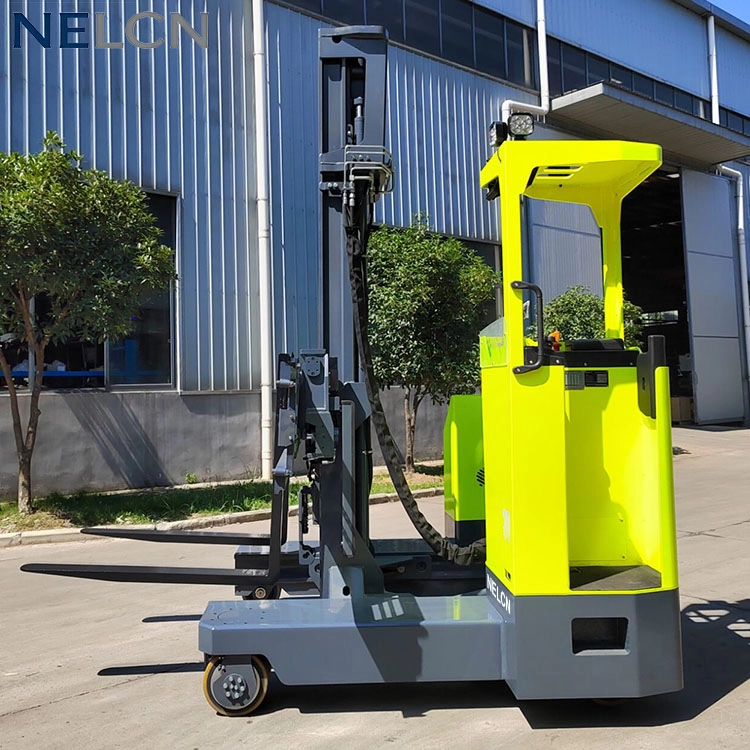

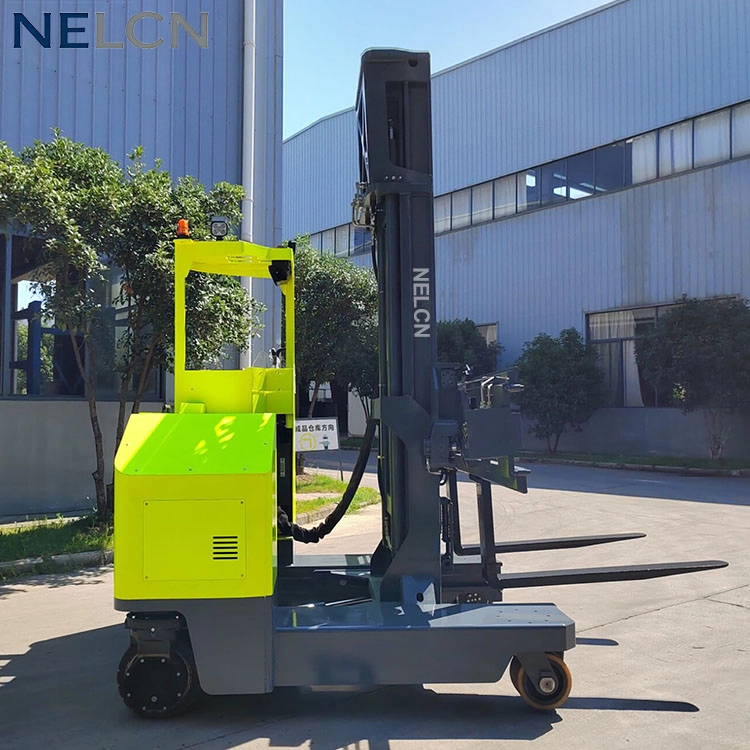

• Moving Mast Mechanism: The entire mast reaches forward and retracts smoothly for precise pick-and-place operations.

4. All-Wheel Braking System for Maximum Safety

• Enhanced Stopping Power: Equipped with both front and rear wheel brakes for reliable stopping efficiency.

• All-Surface Stability: Ensures safe operation on slippery or icy ground, significantly reducing operational risks and protecting your workforce.

5. Indoor & Outdoor Versatility

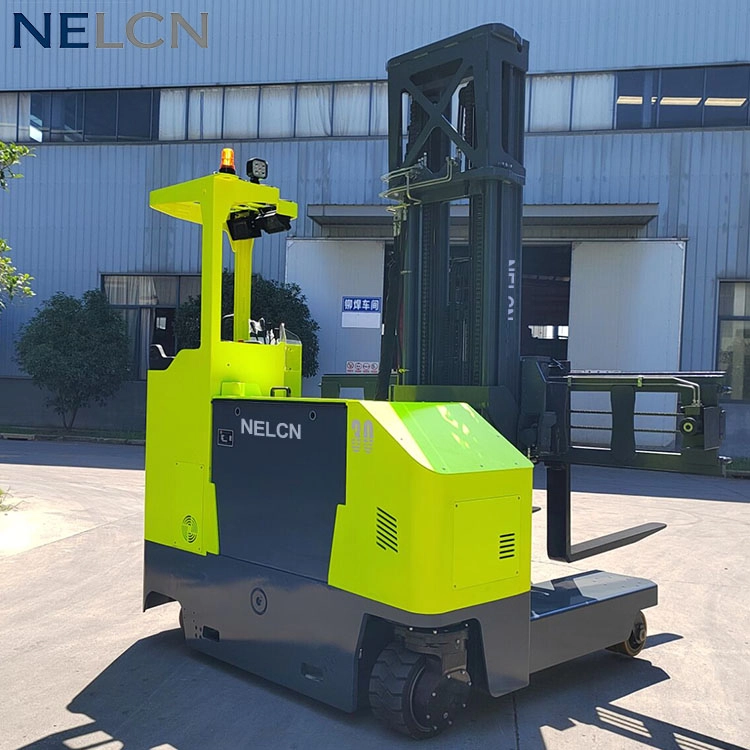

• Solid Rubber Tires: Superior terrain adaptability allows the truck to effortlessly tackle wet, slippery, or uneven surfaces.

• One-Stop Material Handling: Eliminates the need for multiple specialized trucks by handling both indoor warehouse stacking and outdoor yard transit seamlessly.

Applications of MQB30 Four-Way Reach Truck

The MQB30 is suitable for customers requiring efficient handling of long materials in space-limited environments, including:

• Metal Processing Industry – Handling steel bars, profiles, and metal components

• Building Material Storage – Moving pipes, panels, and construction materials

• Manufacturing Facilities – Feeding production lines with long components

• Warehouse & Distribution Centers – Improving storage density in narrow aisles

• Wood Processing Industry – Handling timber and extended wooden products

Frequently Asked Questions (FAQ)

Q1: Why is the MQB30 ideal for long and bulky material handling?

A: Standard forklifts require wide turning radiuses when carrying long items like pipes, timber, or aluminum profiles. The MQB30 features 4-directional travel, allowing operators to drive sideways through aisles as narrow as 2.7 meters. Combined with an wide hydraulic fork positioner (560 mm to 2,800 mm spread), it easily adapts to varying load lengths without wasting storage space.

Q2: Can the MQB30 operate on uneven or outdoor ground?

A: Yes. Unlike conventional reach trucks limited to smooth indoor floors, the MQB30 is equipped with durable solid rubber tires that provide high terrain adaptability. It handles wet, slippery, or uneven indoor and outdoor surfaces, enabling seamless one-stop material transit across your facility.

Q3: How does the MQB30 ensure operator safety on slippery surfaces?

A: The truck features a full all-wheel braking system (both front and rear wheel brakes). This provides superior stopping power and control compared to standard rear-wheel-only brake systems, ensuring safe operation even on slippery or icy surfaces.

Q4: What is the benefit of the moving mast feature?

A: The entire mast mechanism can reach forward or retract smoothly. This enables precise picking and stacking of heavy loads (up to 3.0 tons at a 6,000 mm lift height) while keeping the truck stable and compact during transport.
