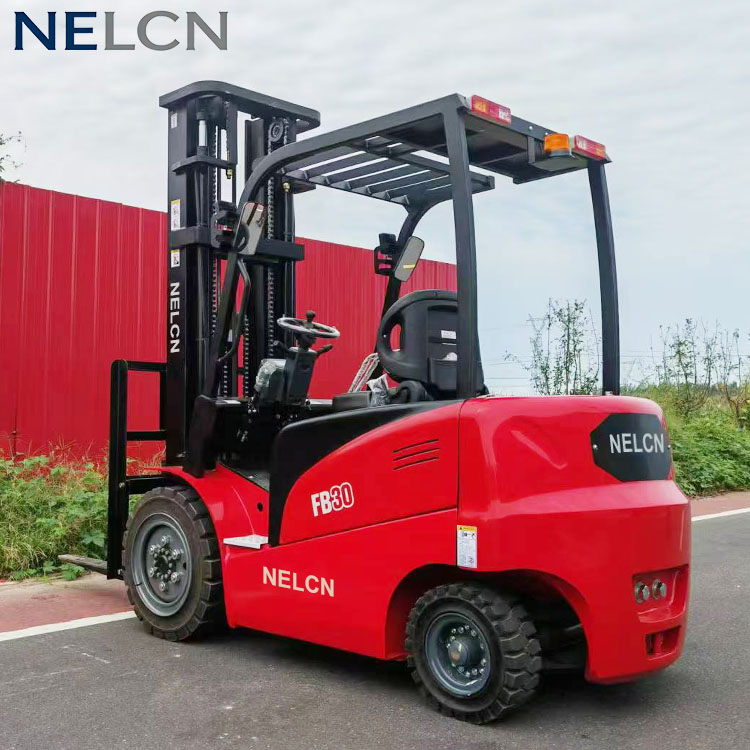

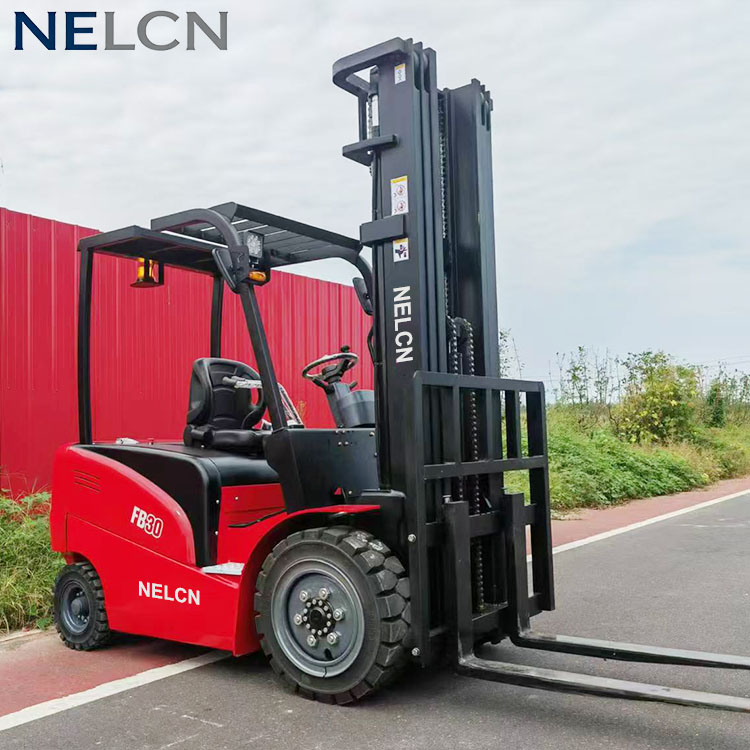

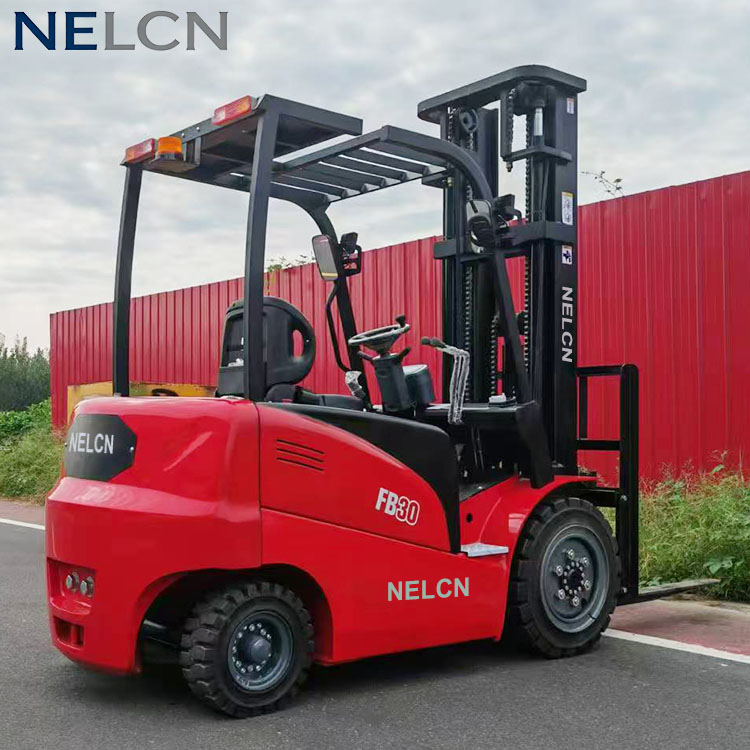

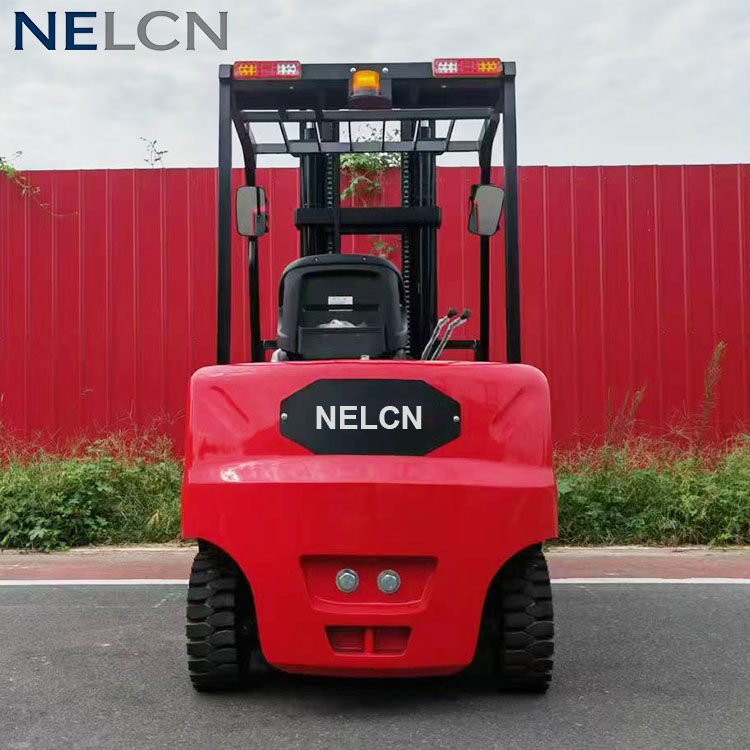

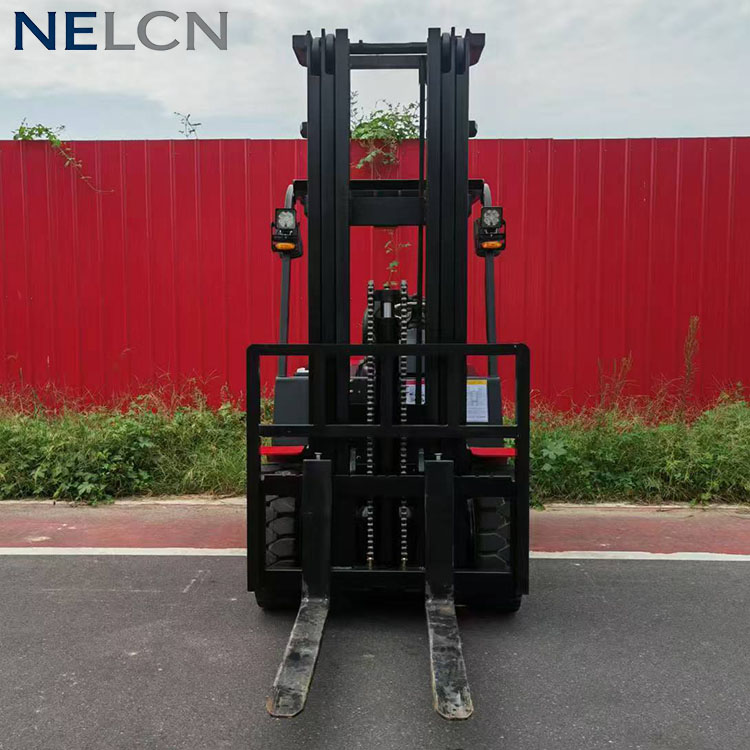

4-Wheel Electric Forklift

Our 4-wheel electric counterbalance forklift is designed for efficient material handling with a load capacity of 1.5-5 tons.

Equipped with a maintenance-free AC drive system, full hydraulic steering, and a high-ratio gearbox, it provides excellent stability, strong climbing ability, and reliable performance in various working conditions.

Suitable for warehouses, factories, logistics centers, container operations, cold storage, and high-frequency material handling applications.

Quantity:
Availability:





Inquire

Model:
TK
Brand:
NOELIFT

Products Description

Reliable Electric Forklift Solution for Indoor and Outdoor Material Handling

The high-performance electric counterbalance forklift is designed to meet the daily handling needs of warehouses, manufacturing facilities, logistics centers, and container handling operations. With a front single-drive mechanical differential system, full hydraulic steering, and maintenance-free AC drive technology, this forklift delivers reliable performance, smooth operation, and excellent energy efficiency.

Equipped with a high-ratio gearbox, the forklift provides strong climbing ability and improved obstacle-crossing performance, making it suitable for various working environments, including indoor warehouses and outdoor material transfer applications.

Designed with a focus on operator comfort, safety, and ease of operation, this electric forklift helps businesses improve handling efficiency while reducing maintenance requirements compared with traditional internal combustion forklifts.

Product Details

Technical Specifications

Parameter	TK25	TK30
Power Type	Battery (Electric)	Battery (Electric)
Driving Mode	Sit-down	Sit-down
Rated Load Capacity	2500 kg	3000 kg
Load Center Distance	500 mm	500 mm
Total Weight (with battery)	3600 kg	4370 kg
Mast Tilt (Fwd / Back)	6° / 10°	6° / 10°
Max Lift Height	3000 mm	3000 mm
Overall Length	3615 mm	3620 mm
Overall Width	1200 mm	1200 mm
Fork Size (L×W×T)	1070×100×45 mm	1070×125×45 mm
Fork Outer Spacing (adjustable)	222–1000 mm	250–1050 mm
Turning Radius	2300 mm	2300 mm
Travel Speed (Loaded / Empty)	10 / 12 km/h	10 / 12 km/h
Battery (Lead-acid)	48V / 560 Ah	48V / 630 Ah
Lithium Battery Option	48V / 480 Ah	48V / 480 Ah

Key Features & Benefits

1. Lower Operating Costs Through Advanced Drive Technology

We equip our trucks with a front single-drive AC motor featuring regenerative braking. This system is maintenance-free, reduces brake wear, and recovers energy during deceleration—extending component life and cutting consumable costs. For even greater efficiency, an all-AC system is available as an option, delivering faster, more precise responses to driver inputs.

2. Superior Stability & Traction for Mixed Environments

The drive motor is transversely mounted, and the battery is positioned low in the chassis, lowering the center of gravity for enhanced stability during tight turns and ramp operations. Combined with a large-ratio gearbox, our forklifts provide superior gradeability and torque for tough conditions—whether navigating dock levellers, ramps, or uneven yard surfaces.

3. Operator-Centric Design That Boosts Productivity

Pure electric power steering reduces steering effort dramatically, cutting driver fatigue during long shifts.
Hydraulic foot brake offers lightweight, compact, and instant response—improving safety in congested workspaces.
Anti-fatigue, multi-angle adjustable seat accommodates operators of all sizes, promoting comfort and alertness.
Large LED dashboard with intuitive icons ensures at-a-glance readouts on battery status, speed, and warnings—minimizing errors and training time.

4. Built for Real-World Duty Cycles

Whether moving pallets inside a warehouse, transferring loads between indoor and outdoor zones, or working inside shipping containers, the TK series delivers consistent performance. With a tight turning radius (2300 mm) and adjustable fork spacing, these trucks excel in confined spaces without sacrificing lifting capacity.

Applications

Ideal for light‑to‑medium cargo handling and stacking, this series excels in container stuffing/unstuffing as well as operations in confined spaces with low overhead clearance. Its compact turning radius and adjustable fork spacing enable precise maneuvering inside containers, while optional attachments (e.g., side shift, fork positioner, clamp) further expand versatility across diverse load types and work conditions.

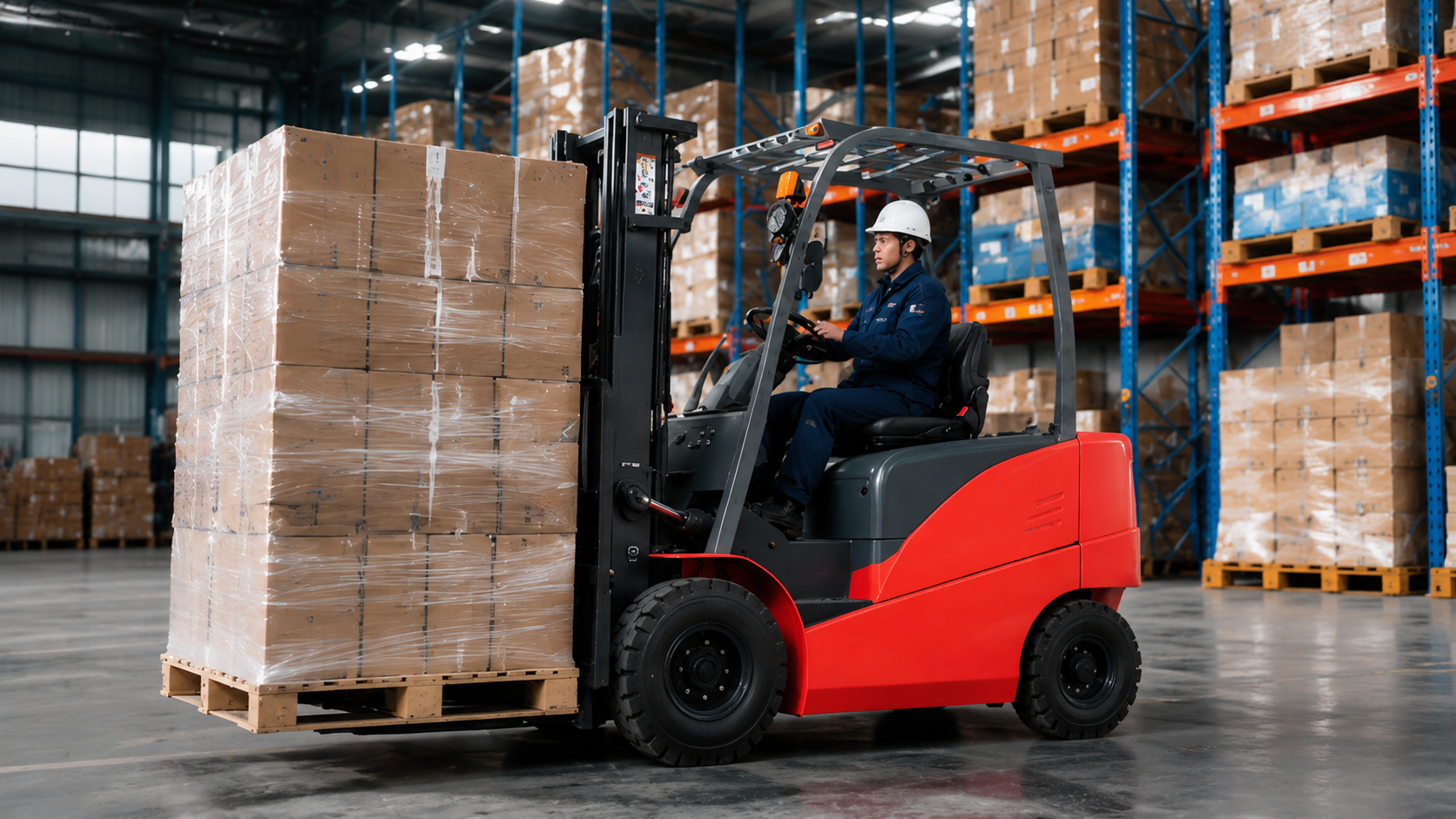

4-Wheel Electric Counterbalance Forklift

Frequently Asked Questions (FAQ)

Q1: Can this electric forklift operate effectively on ramps and outdoor slopes?

A: Yes. The vehicle is engineered with a high gear ratio transmission and a low center-of-gravity design, delivering strong gradeability and superior torque to navigate ramps and overcome low-traction surfaces smoothly.

Q2: What is the primary advantage of choosing the Lithium-ion battery option over standard lead-acid?

A: While the standard lead-acid battery (48V/560Ah–630Ah) provides dependable, cost-effective power, the optional 48V/480Ah Lithium-ion battery supports opportunity charging during shift breaks, requires zero watering maintenance, charges faster, and offers a significantly longer operating lifespan for multi-shift operations.

Q3: How does the AC drive system reduce total cost of ownership (TCO)?

A: The brushless AC motor eliminates wear-and-tear components like carbon brushes and directional contactors, substantially cutting routine maintenance costs. Additionally, the integrated regenerative braking system recovers kinetic energy during deceleration, extending operating hours per charge cycle.
