Necessity of using explosion-proof forklifts
Forklifts are used as a logistics handling, loading and unloading, and stacking machine in more and more fields and places. However, in many industries and units such as petroleum, chemical, pharmaceutical, pigment, paint, coal, and national defense, when producing, concentrating, liquefying, storing and transporting flammable gases; or producing, filling, releasing, storing and transporting flammable liquids, and using these liquids to handle and clean objects, the flammable gas or dust that may be generated may mix with the air to form an explosive mixture, making these areas inaccessible to ordinary forklifts. Explosion-proof forklifts are specially designed and produced for places where explosive gases or dust may be generated.
Division of explosion-proof areas
Depending on the frequency and duration of explosive environments, hazardous areas are divided into different areas.
Gas areas are divided into three areas: Zone 0, Zone 1 and Zone 2;
Dust areas are divided into three areas: Zone 20, Zone 21 and Zone 22.
| areas | Division of hazardous areas |
| Zone 0 | Places where explosive gas atmosphere occurs continuously or for a long time |
| Zone 1 | Places where explosive gas atmosphere may occur during normal operation |
| Zone 2 | In normal operation, explosive gas atmospheres are unlikely to occur, and if they do occur, they occur only occasionally and for a short period of time. |
| Zone 20 | An explosive atmosphere that occurs continuously or for a long time or frequently in the form of a combustible dust cloud in the air |
| Zone 21 | An explosive atmosphere in the form of combustible dust clouds in the air that may occasionally occur under normal operating conditions |
| Zone 22 | An explosive atmosphere in the form of combustible dust mist in the air that is unlikely to occur under normal working conditions or is likely to occur only for a short period of time |
For explosive gas environments in Zone I and II
| Grouping by gas ignition temperature (temperature grouping) |
| | T1 | T2 | T3 | T4 | T5 | T6 |
| Ⅰ | Methane | | | | | |
| Ⅱ | Ethane, propane, R-malone, styrene, ethylene, chlorobenzene, benzene, benzene, chlorine, methanol, carbon monoxide, ethyl acetate, acetic acid, acrylic acid | Butane, ethanol, propionic acid, butanol, amyl acetate, acetic anhydride | Pentane, hexane, heptane, decane, octane, gasoline, cyclohexane sulfide | Ether, acetaldehyde | | Ethyl Nitrite |
| Ⅲ | Dimethyl ether, civil gas, cyclopropane | Ethylene oxide, propylene oxide, butadiene, ethylene | | | | |
| Ⅳ | Water gas, hydrogen, coke oven gas | Acetylene | | | Carbon disulfide | Ethanol nitrate |
Temperature classification of hazardous areas
| Temperature Group | Maximum allowable surface temperature of forklift | Ignition temperature of flammable materials |
| T1 | 450℃(842°F) | >450℃ |
| T2 | 300℃(572°F) | >300~450C |
| T3 | 200℃ (392°F) | >200~300℃ |
| T4 | 135℃(275°F) | >135~200℃ |
| T5 | 100℃(212°F) | >100~135°C |
| T6 | 85℃(185℉) | >85~100℃ |

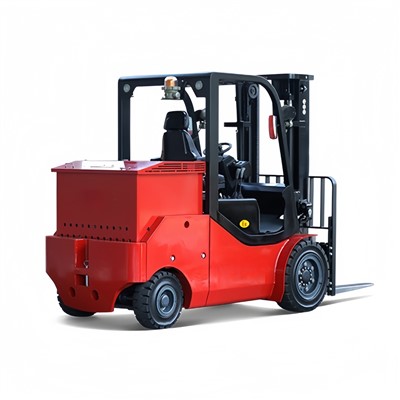

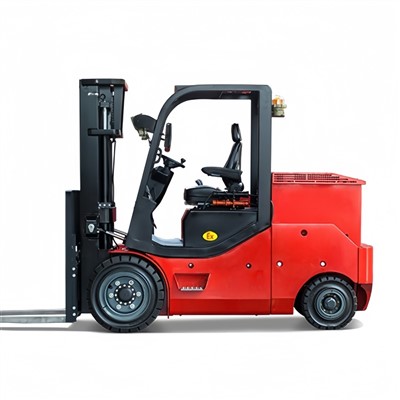

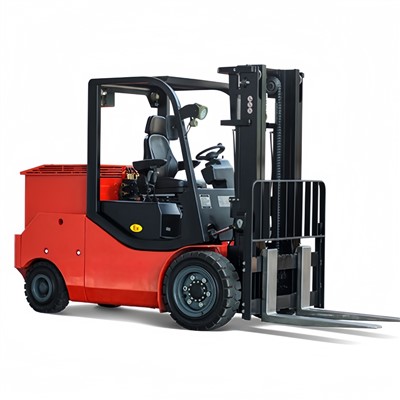

| Model | 5.0 Ton Explosion-proof Forklift |
| Power Type | | electric |
| Operation Type Ride-on | | Ride-on |
| Rated load | kg | 5000 |
| Load center distance | mm | 500 |
| Weight (including battery) | kg | 7650 |
| Front wheel size (diameter x width) | | 250-15 |
| Mast and fork front and rear inclination angle | α/β (°) | 6/12 |
| Minimum height of mast after lowering | mm | 2325 |
| Maximum lifting height of standard mast | mm | 3000 |
| Height of roof guard (cockpit) | mm | 2265 |
| Vehicle length | mm | 3970 |
| Overall width | mm | 1470- |
| Fork size | s/ e/ l | 1070 |
| Minimum ground clearance | mm | 120 |
| Turning radius | mm | 2700 |
| Minimum right angle channel width | mm | 4525 |
| Travel speed, fully loaded/unloaded | km/h | (fully loaded) 15 |
| Lifting speed, full load/no load | m/s (full load) | 0.27 |
| Maximum climbing grade, full load/no load | % | (full load) 15 |
| Drive motor rated power S2 60 minutes | kw | 18 |
| Rated power of hoisting motor S3 15% | kw | 13 |
| Battery voltage/nominal capacity | V/ Ah | 80/720 |
| Explosion-proof grade | | Ex tD ibD A21 IP65 T135℃/Ex de ib s ⅡC T4 Gb |
Product advantages:
Use explosion-proof AC control system;
Overall explosion-proof design, whole machine manufacturing, reliable whole machine performance and explosion-proof performance;
The whole machine has active protection design, and is equipped with intelligent control systems such as thermal protection system, insulation monitoring system, and overload protection system;
It has rich energy recovery functions;
Adopts hydraulic wet braking technology, and there is no spark and local temperature rise when braking;
The whole machine is humanized, easy to operate and comfortable;
The explosion-proof mark is Ex de ib s ⅡC T4 Gb. It is suitable for use in explosive gas environments (zones 1 and 2) and places with high explosion-proof requirements such as hydrogen and acetylene, such as petrochemical, military industry, pharmaceuticals, paint, coal chemical, powder, winery and other industries in explosive environments, production, warehouses and other places for handling and loading operations;
