5 Ton Telehandler

Take your material handling to new heights with our heavy-duty 5 Ton Telehandler. Designed for the most demanding construction sites and industrial environments, this machine combines the lifting power of a heavy forklift with the reach of a crane.

Quantity:
Availability:





Inquire

Products Detail

5 Ton Telehandler: Power and Precision for High-Altitude Projects

Take your material handling to new heights with our heavy-duty 5 Ton Telehandler. Designed for the most demanding construction sites and industrial environments, this machine combines the lifting power of a heavy forklift with the reach of a crane.

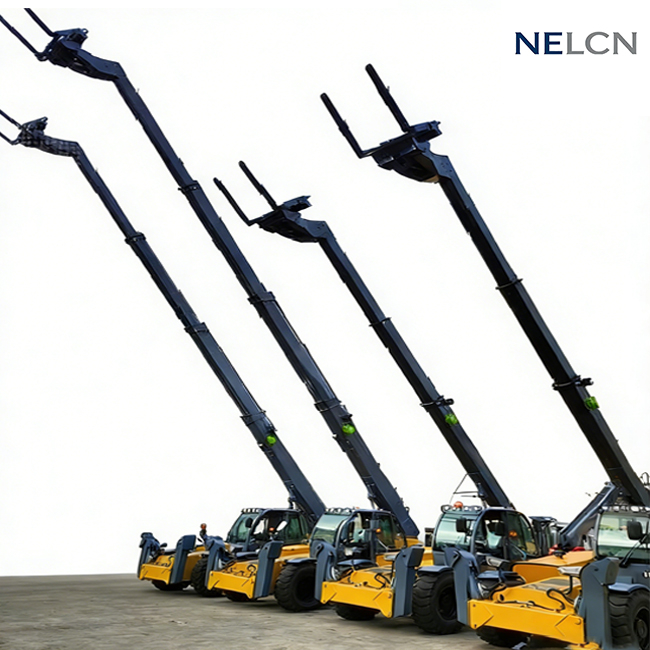

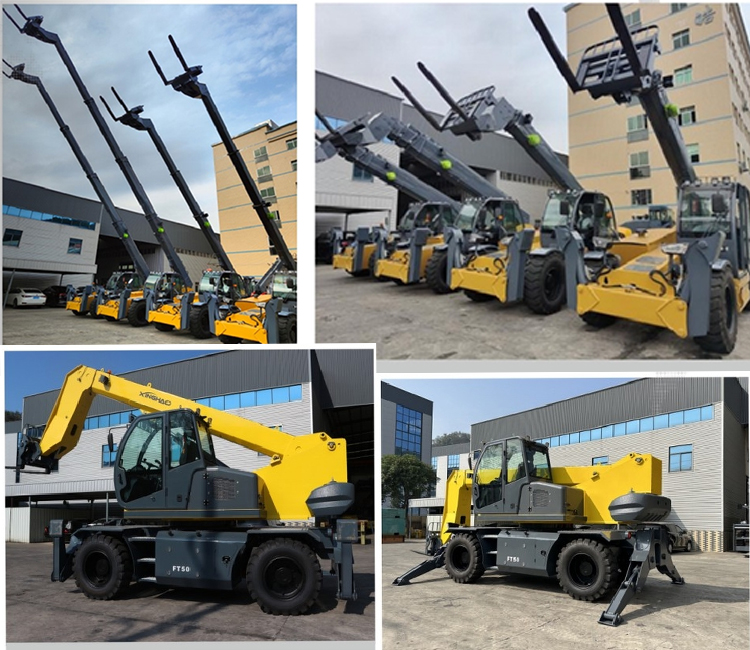

Versatile Lifting Solutions: 9m to 18m

We offer multiple mast configurations to match your specific job site requirements:

The High-Reach Specialist (17m - 18m): Ideal for high-rise construction, roofing, and steel structure installation. Deliver 5-ton loads to the 5th floor with absolute stability.
The Mid-Range Performer (9m - 12m): Perfect for general construction, large-scale warehousing, and port logistics where both reach and speed are essential.

Product Highlights & Advantages

1. Robust 5000kg Lifting Capacity

Unlike standard reach trucks, our 5-ton telescopic handler is built with a reinforced chassis and high-tensile steel boom. It maintains exceptional residual capacity even at significant forward reach.

2. Advanced All-Terrain Capability

Equipped with 4-wheel drive (4WD) and three steering modes (Two-wheel, Four-wheel, and Crab-steer), this machine maneuvers effortlessly through thick mud, gravel, and confined spaces.

3. Safety First Engineering

Load Moment Indicator (LMI): Real-time monitoring to prevent overloading.
Hydraulic Outriggers: Provides a rock-solid foundation for 18m high-lift operations.
FOPS/ROPS Certified Cabin: Maximum protection for the operator with 360° visibility.

4. The Ultimate Multi-Tool

Maximize your ROI by switching between attachments in minutes. Our 5-ton series supports:

Heavy-duty Pallet Forks
Material Buckets
Aerial Work Platforms (Man Baskets)
Glass Suction Lifters

Technical Specifications Summary

SPE
Rated load	5000Kg	5000Kg	5000Kg	5000Kg
Max.lifing height	10m	9m	12m	17m
Max.Horizontal Reach	6.80m	5.05m	7.46m	13.08
Weight/Size
Overall length(without forks)	6.08m	5.8m	6.13m	6.15m
Overall Width	2.26m	2.26m	2.26m	2.46m
OverallHeight	2.54m	2.38m	2.54m	2.54m
Wheelbase	3.3m	3.35m	3.3m	3.3m
Ground clearance	0.4m	0.36m	0.4m	0.36m
weight	11000Kg	1250Kg	10500Kg	15000Kg
Cab width	0.9m	0.9m	0.9m	0.9m
Standard Tyre	16/70-24	405/70-24	16/70-24	0.9m
Fork	1200×125×45	1200×125×45	1200×125×45	16/70-24
Performance Speed
lifting	7.20S	7.35S	15.5S	13S
Lowering	5.50S	8.02S	11.6S	13S
Extend	6.50S	9.5S	16.5S	10S
Retraction	5.40S	10.5S	11.9S	8S
Uptit(filload)	2.90S	10.5S	5S	5S
Down tilting(unloading)	2.80S	4S	5S	5S
Engine
Brand	Yuchai	Yuchai	Yuchai	Yuchai
Emmission	3	3	3	3
Model	YC4DK90-T304	YC4A125-T300	YC4A125-T300	YC4A125-T300
cylinder	4-3.621L	4-4.837L	4-4.837L	4-4.8371L
Rated Power	66Kw	92Kw	92Kw	92Kw
Maximum Torque	350N.m	480N.m	480N.m	480N.m
Transmission system
Transmission type	hydrotransmitter	hydralictransmision box	hydrodynamic	hydrodynamic
Numberof Gear	F4R3	F4R3	F4R3	F4R3
Max.Speed	34km/h	40km/h	30km/h	28km/h
Break	Double axle oil penetration multi disc brake
Fuel rank capacity
Hydraulic Oil	450L	380L	450L	380L
Diesel oil	260L	170L	260L	170L

Why Source From Us?

As a specialist in industrial equipment manufacturing, we provide factory-direct pricing, global after-sales support, and customizable configurations. our 5-ton telehandler is built to perform.
