CDDE-15
NOELIFT

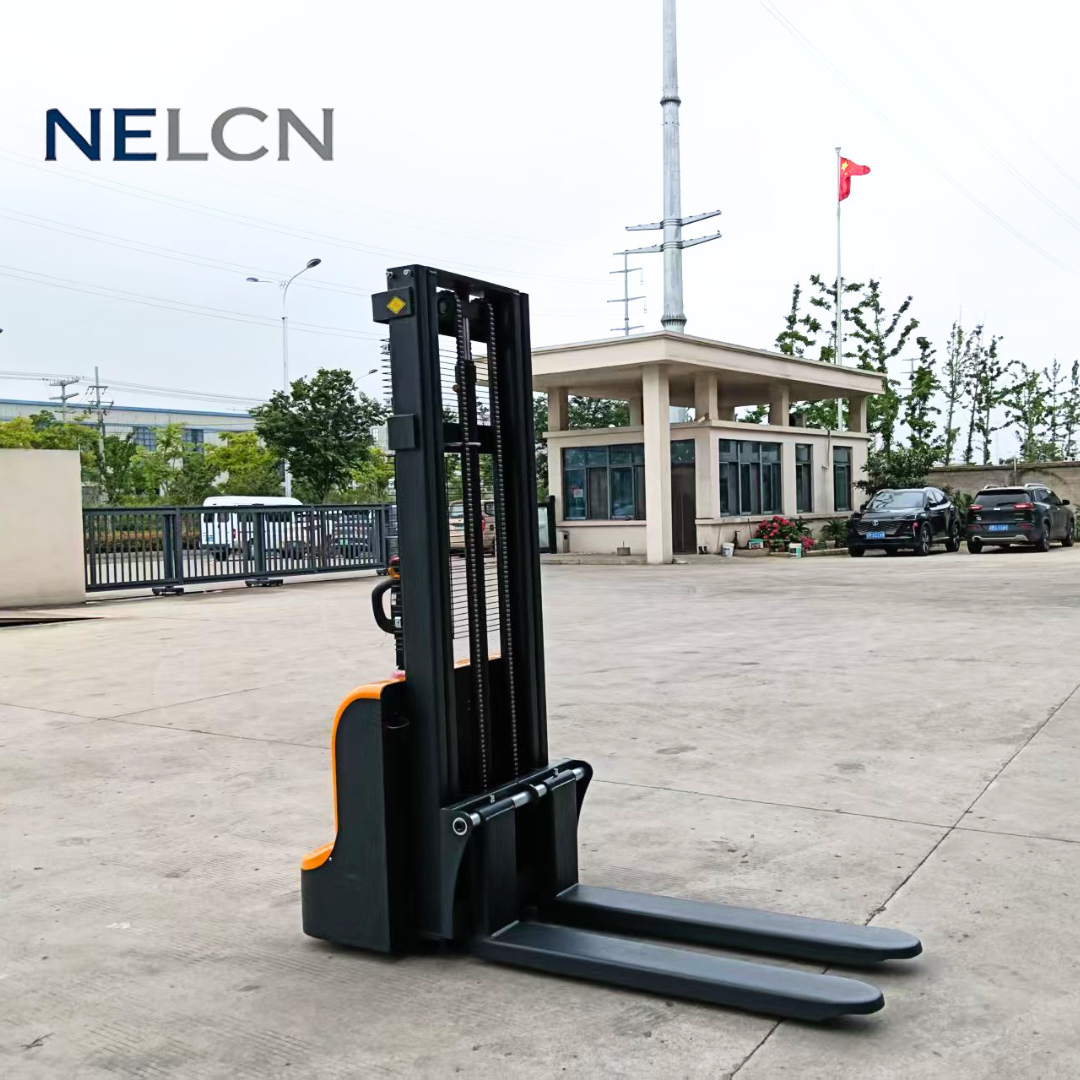

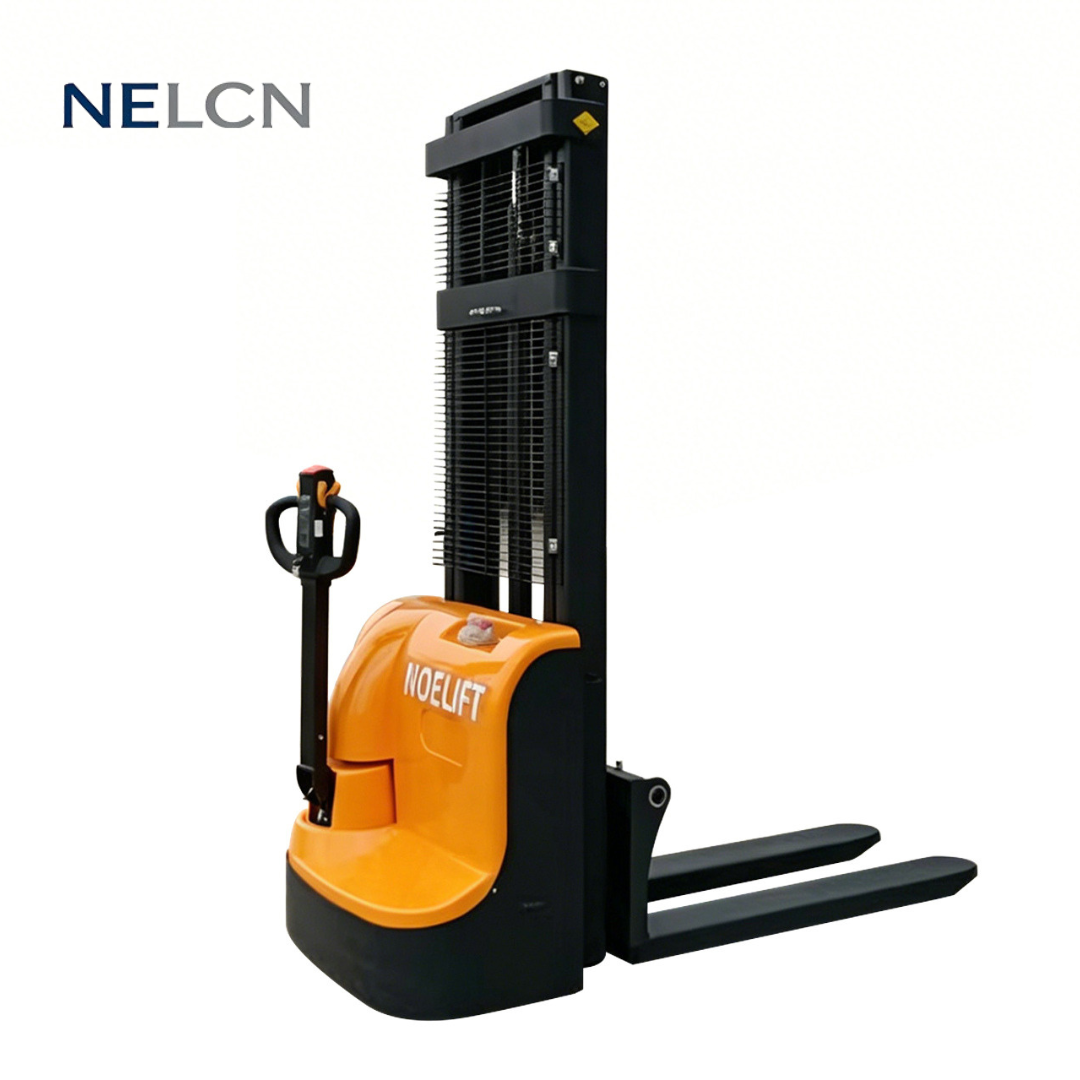

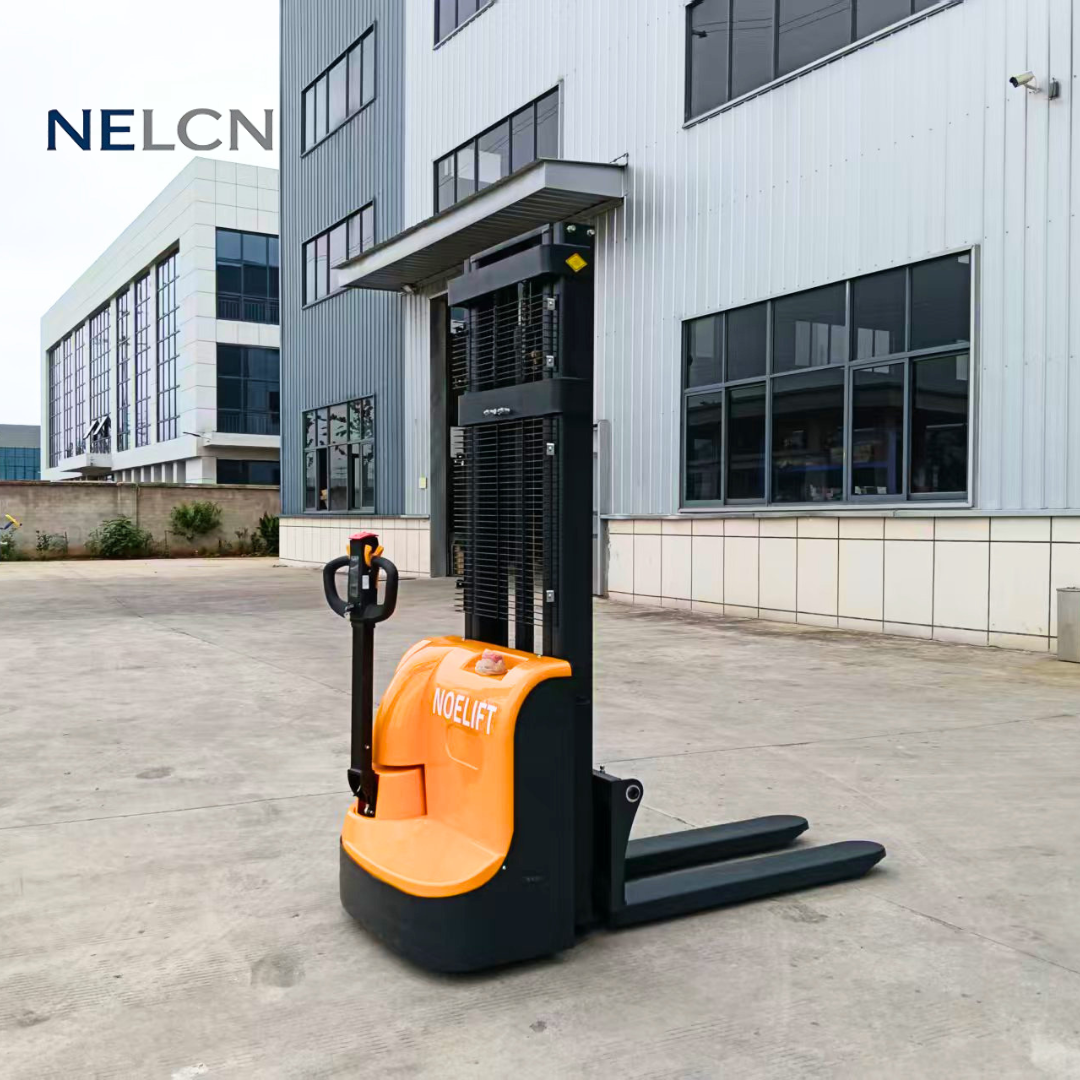

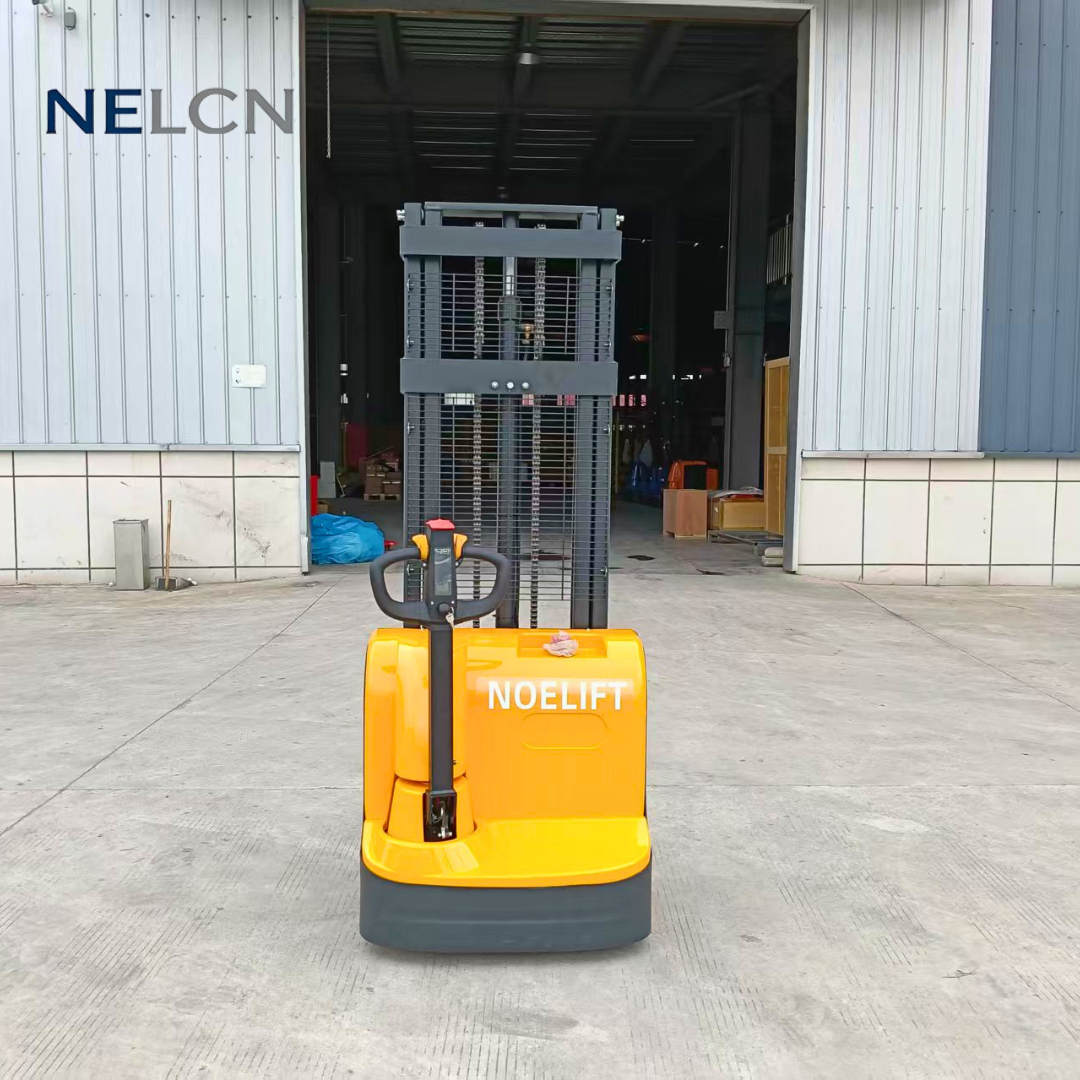

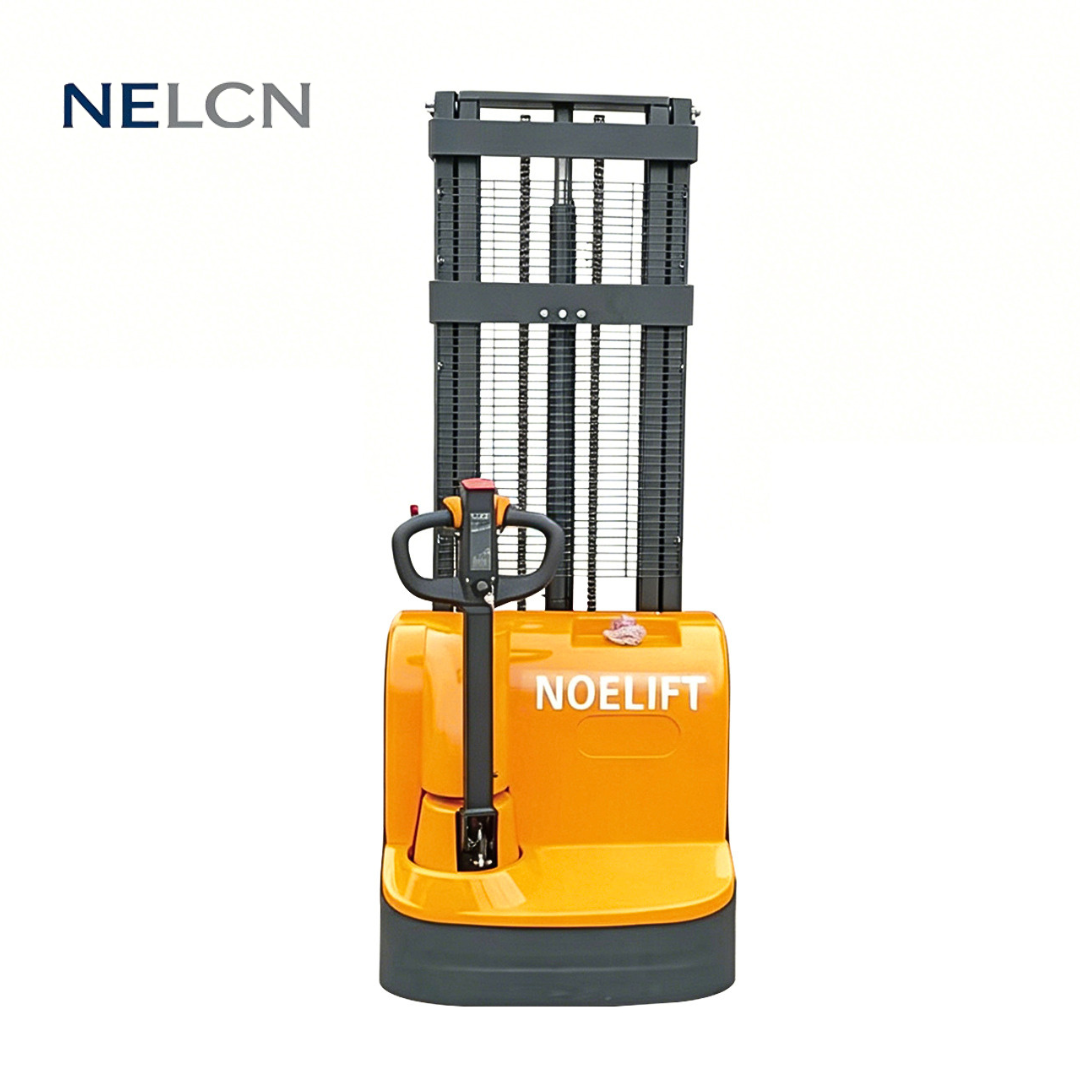

The CDDE-15 Electric Walkie Stacker is a robust, highly efficient warehousing tool engineered for modern distribution centers, retail spaces, and manufacturing plants. Built with a 1,500 kg load capacity and an ergonomic walk-behind design, it excels at pallet transportation, rack stacking, and routine inventory management.
Unlike bulky traditional forklifts, the CDDE-15 features a streamlined chassis and tight turning radius, allowing operators to navigate narrow aisles safely and effortlessly. Powered by a dependable electric drive system, maintenance-friendly battery technology, and responsive electromagnetic braking, this stacker delivers consistent, day-after-day reliability.
High Performance: 1,500 kg rated capacity handles standard pallets and heavy loads with ease.
Compact Maneuverability: Designed specifically for tight spaces and narrow warehouse aisles.
Ergonomic & Safe: Walk-behind design drastically lowers operator fatigue and increases workplace safety.
Electromagnetic Braking: Provides reliable stopping power and enhanced operational control.
Durable Engineering: Heavy-duty steel frame, wear-resistant polyurethane wheels, and quality electrical components.
Model | CDDE-15 |
Drive Type | Electric |
Operation Type | Walkie (Walk-Behind) |
Rated Capacity | 1500 kg |
Load Center | 500 mm |
Wheelbase | 1300 mm |
Service Weight (Including Battery) | 560 kg |
Tire Type | Polyurethane |
Drive Wheel Size | Ø160 × 50 mm |
Front Wheel Size | Ø80 × 70 mm |
Steering Wheel Size | Ø125 × 50 mm |
Front/Rear Wheel Quantity | 1×1 / 4 |
Front Wheel Track | 520 mm |
Rear Wheel Track | 513 mm |
Fork Dimensions | 60 × 170 × 1150 mm |
Fork Outside Width | 550 / 680 mm |
Ground Clearance | 30 mm |
Turning Radius | 1431 mm |
Overall Length | 1895 mm |
Overall Width | 822 mm |
Travel Speed (Loaded/Unloaded) | 3.4 / 4.3 km/h |
Lift Speed (Loaded) | 75 mm/s |
Lift Speed (Unloaded) | 115 mm/s |
Gradeability (Loaded/Unloaded) | 5% / 10% |
Brake Type | Electromagnetic Brake |
Drive Motor | 0.75 kW |
Lift Motor | 2.2 kW |
Battery | 12V × 2 / 80Ah |
1. What is an Electric Walkie Stacker?
An Electric Walkie Stacker is a battery-powered material handling machine used for lifting, transporting, and stacking pallets in warehouses and industrial facilities.
2. What is the maximum capacity of the CDDE-15?
The rated load capacity is 1500kg.
3. What lifting heights are available?
The stacker can be configured with lift heights ranging from 1600mm to 3500mm.
