Articulated Forklift Truck - Professional Material Handling Solution for Global Warehouses
Welcome to our product page! As a professional manufacturer of material handling equipment, we specialize in articulated forklift trucks that combine flexibility, efficiency and safety. Our products are exported to more than 50 countries and regions, including the United States, India, Mexico, and European countries, and are widely recognized by logistics companies, warehouses, and industrial enterprises worldwide . Whether you need to optimize narrow-aisle storage, improve indoor-outdoor material handling efficiency, or reduce operational costs, our articulated forklifts will be your reliable partner.

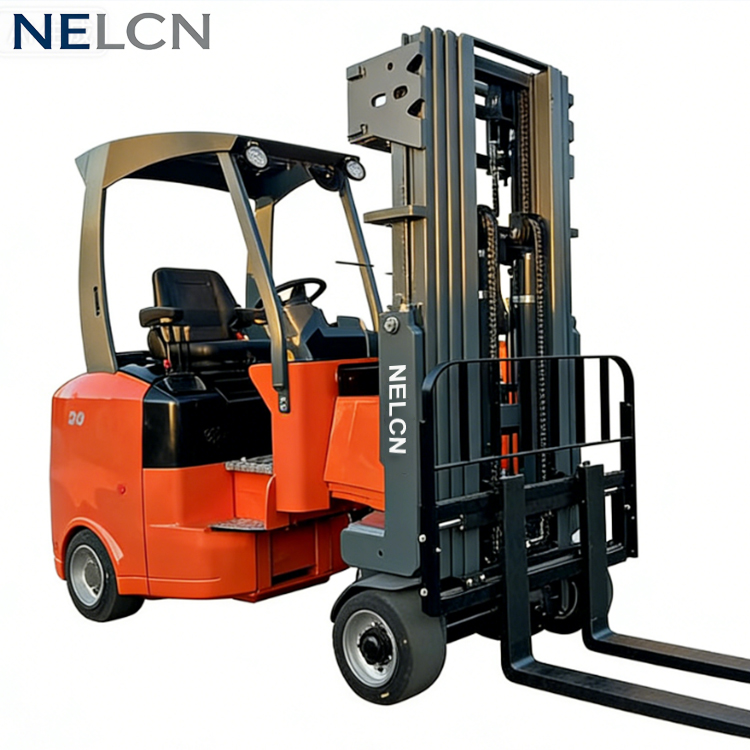

The articulated forklift truck, also known as a pivot forklift, is a specialized material handling vehicle designed with a unique articulated joint between the front and rear axles . This innovative design allows the truck to "bend" in the middle, enabling sharp turns and flexible movement in confined spaces that traditional rigid-frame forklifts cannot reach. Our articulated forklifts cover a load capacity of 2.0-3.0 tons, with a maximum lifting height of up to 12.5 meters, perfectly
adapting to medium and heavy-duty working conditions that pursue high lifting speed, high driving speed and efficiency priorit.
|
Product
|
Core Advantages
• Superior Maneuverability for Narrow Aisles: Equipped with a large-angle gantry swing design, the swing angle can reach up to 210 degrees, allowing the forklift to operate in aisles as narrow as 2 meters . This significantly reduces the aisle width requirement, maximizes warehouse storage density, and helps you make full use of every inch of space . Compared with traditional forklifts, it can increase storage capacity by 30% without expanding the warehouse area.
• Energy-Saving & Low Maintenance Cost: Adopting maintenance-free AC drive system, no need to replace carbon brushes, which not only improves the efficiency of the power system but also greatly reduces maintenance costs and downtime . The regenerative braking function converts the driving motor into a generator during deceleration and downhill, recharging the battery to achieve energy saving and high efficiency . Long service life of key components ensures stable operation for a long time.
• Indoor & Outdoor Versatility: Equipped with large solid rubber tires, it can adapt to semi-rough indoor and outdoor venues, without being restricted by terrain . Whether it is a high-bay warehouse, cold storage, port yard, or lumber yard, it can complete loading, unloading, and handling tasks efficiently . The ultra-low overhead guard design is suitable for operations in ordinary containers and space-constrained environments .
• Advanced Safety & Precision Control: Configured with active operator presence safety monitoring OPS system, high-brightness laser lights, LED headlights, turn signals, and warning lights, providing comprehensive safety protection for operations . The new Curtis controller with high-frequency MOSFET integration ensures excellent reliability and controllability . The hydraulic system is equipped with side shift and fork spacing adjustment functions, improving operation convenience and precision, and reducing product damage .
• Ergonomic Design: The steering wheel angle is adjustable, and the seat can be moved back and forth, allowing the operator to find the best driving position . The large floor area and reasonable layout reduce operator fatigue during long shifts, while the excellent visibility design (low dashboard, wide gantry) ensures precise load handling .
|
Technical Specifications
Item
| Unit | MJ20BSQC (Narrow Body) | MJ20BSQCH (Wide Body) | MJ30BSQCH (Narrow Body) |
Power Type | - | Battery | Battery | Battery |
Driving Mode | - | Sit-down Type | Sit-down Type | Sit-down Type |
Rated Load | kg | 2000 | 2000 | 3000 |
Load Center Distance | mm | 600 | 600 | 600 |
Tire Type | - | Solid Rubber Tire | Solid Rubber Tire | Solid Rubber Tire |
Turning Radius | mm | 2200 | 2200 | 2200 |
Maximum Lifting Height | mm | 12500 | 12500 | 12500 |
Overall Length | mm | 3830 | 3830 | 3830 |
Overall Width | mm | 980/1260 | 980/1400 | 980/1600 |
Fork Size | mm | 1100/100/50 | 1100/125/45 | 1100/125/45 |
Stacking Aisle Width (800*1200) | mm | 1900 | 2100 | 2300 |
Driving Speed (Loaded/Unloaded) | km/h | 12/13 | 12/13 | 12/13 |
Lifting Speed (Loaded/Unloaded) | mm/s | 400/420 | 300/400 | 300/400 |
Battery (Voltage/Capacity) | V/Ah | 80/500 | 80/500 | 80/500 |
Note: The above parameters are for standard models. We also provide customized services according to your specific needs, such as adjusting load capacity, lifting height, and power type (diesel/electric). Please contact us for detailed customized solutions.
|
Application Scenarios
Our articulated forklift trucks are widely used in various industries and scenarios, solving the pain points of material handling in confined spaces and complex terrains:
• Narrow-aisle and high-density warehouses: Maximize storage space, suitable for third-party logistics centers, e-commerce warehouses, and food and beverage warehouses .
• Indoor-outdoor transfer: Adapt to semi-rough ground, ideal for port yards, lumber yards, and manufacturing workshops .
• Space-constrained environments: Ultra-low overhead guard design is suitable for container operations and low-height workshops .
• Cold storage and high-bay warehouses: Stable performance in low-temperature environments, efficient handling of goods at high heights

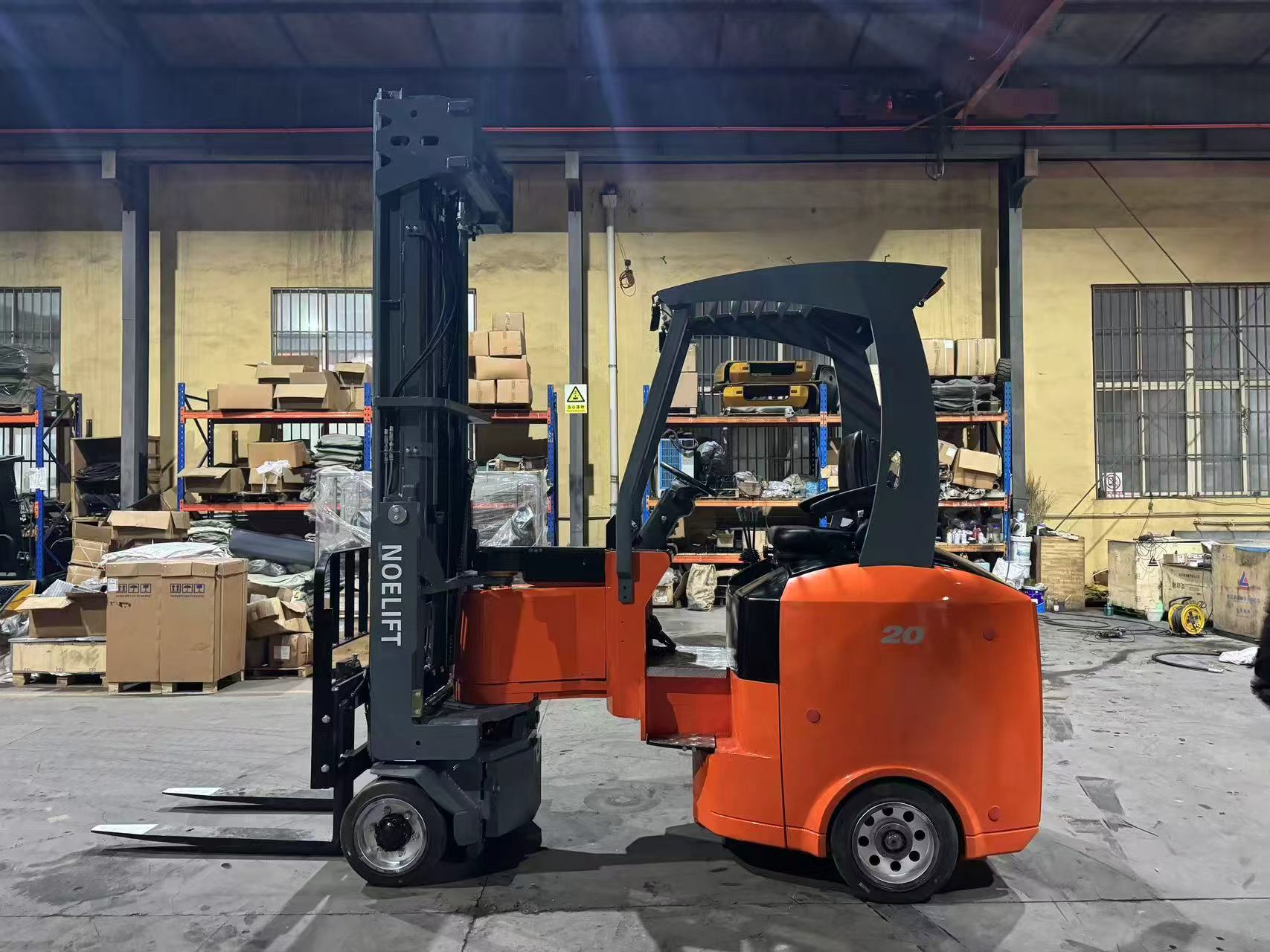

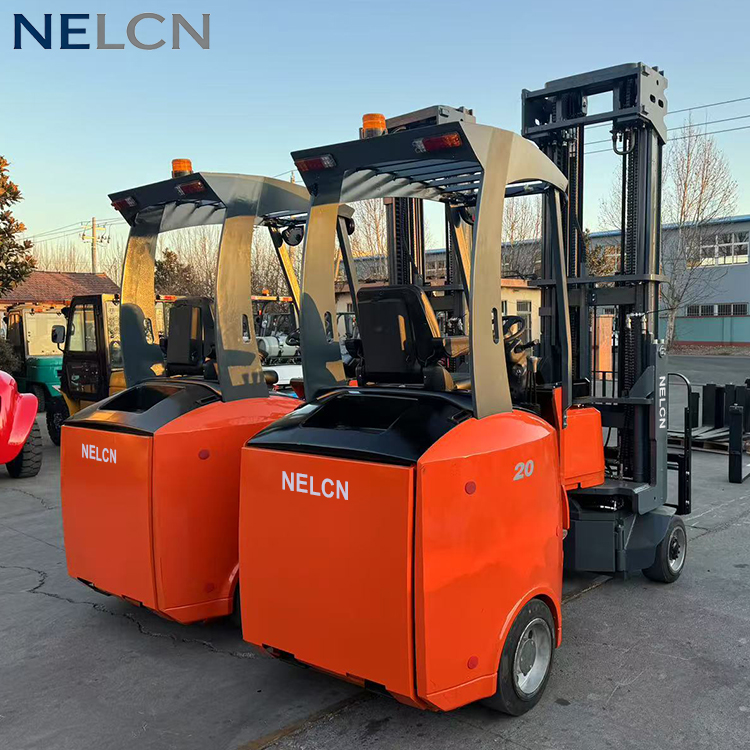

|Product details

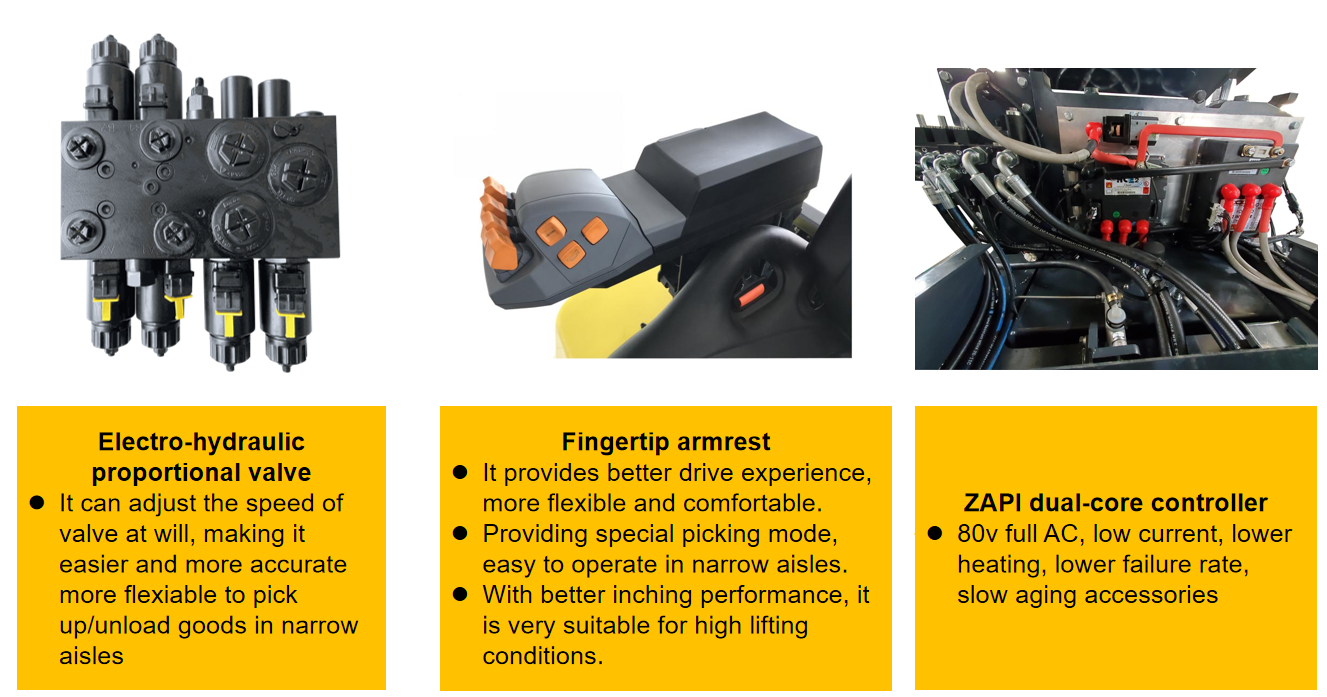

![111]( "111")

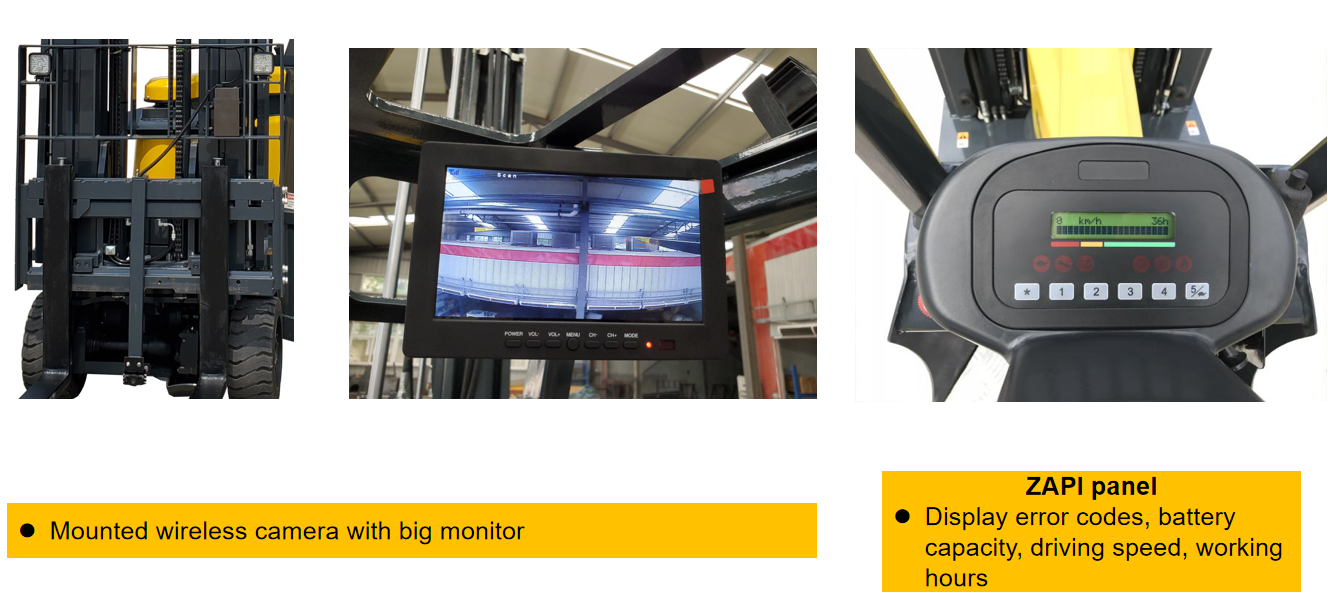

![2]( "2")

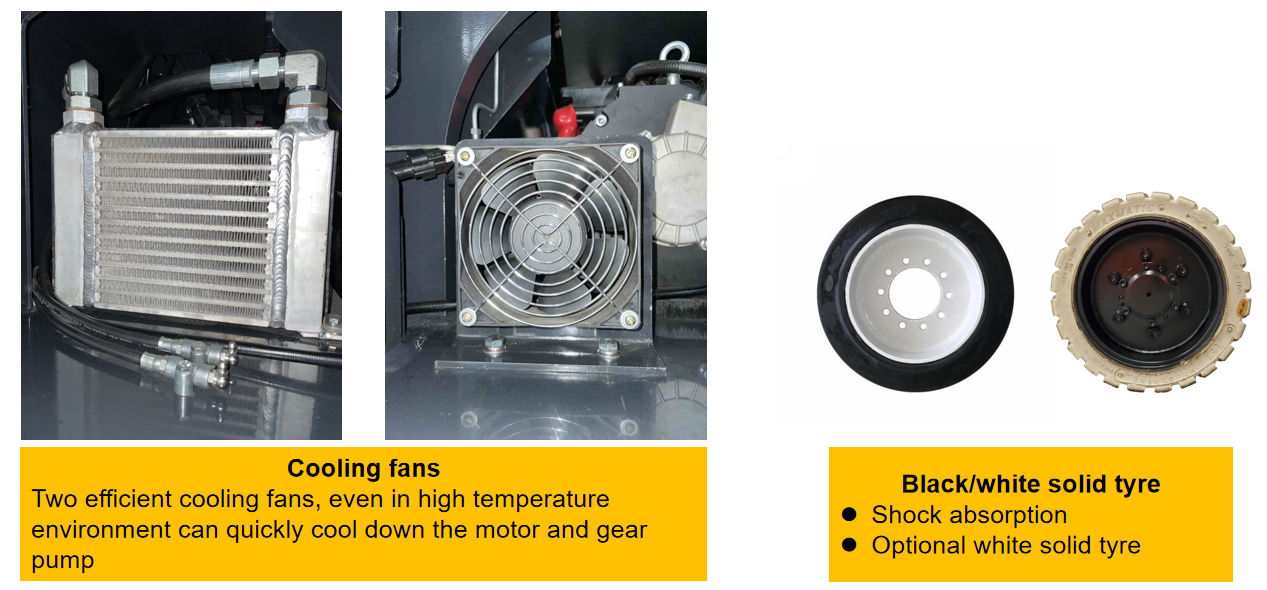

![1]( "1")

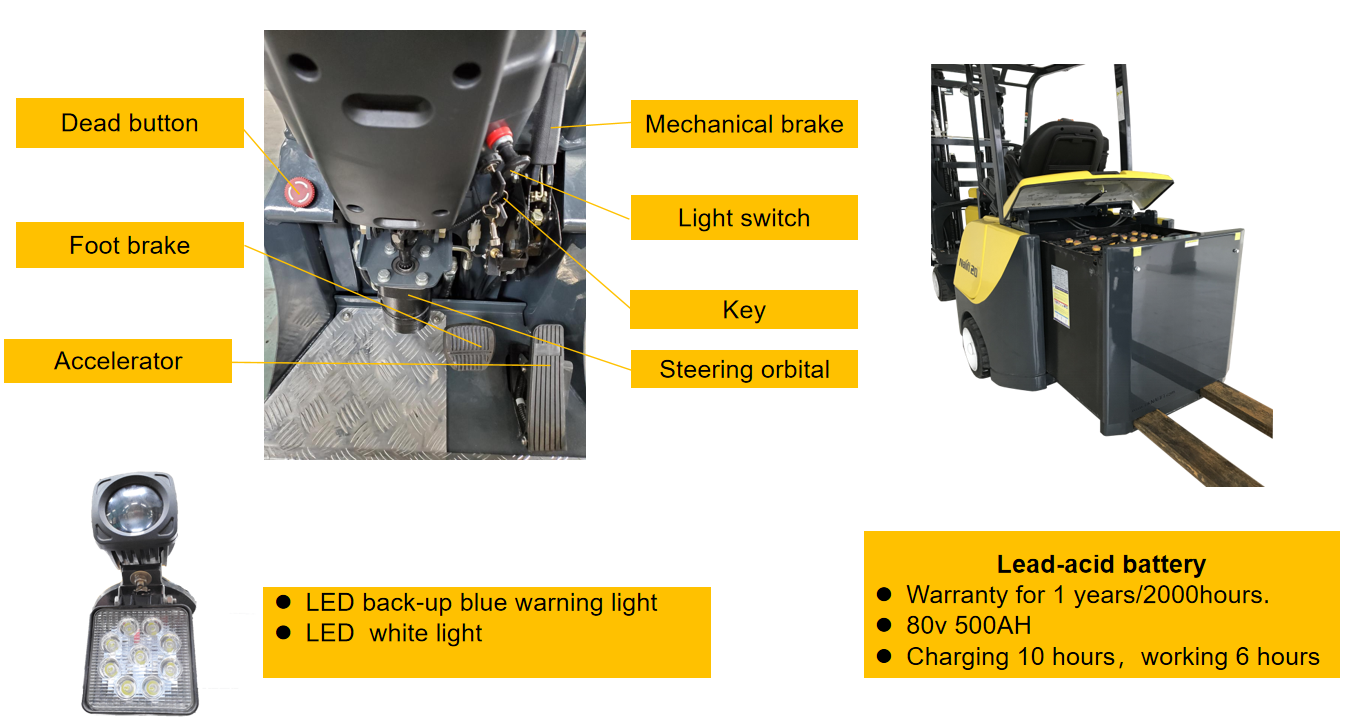

![微信图片_2026-03-04_170816_764]( "微信图片_2026-03-04_170816_764")
| Product Quality & Certification

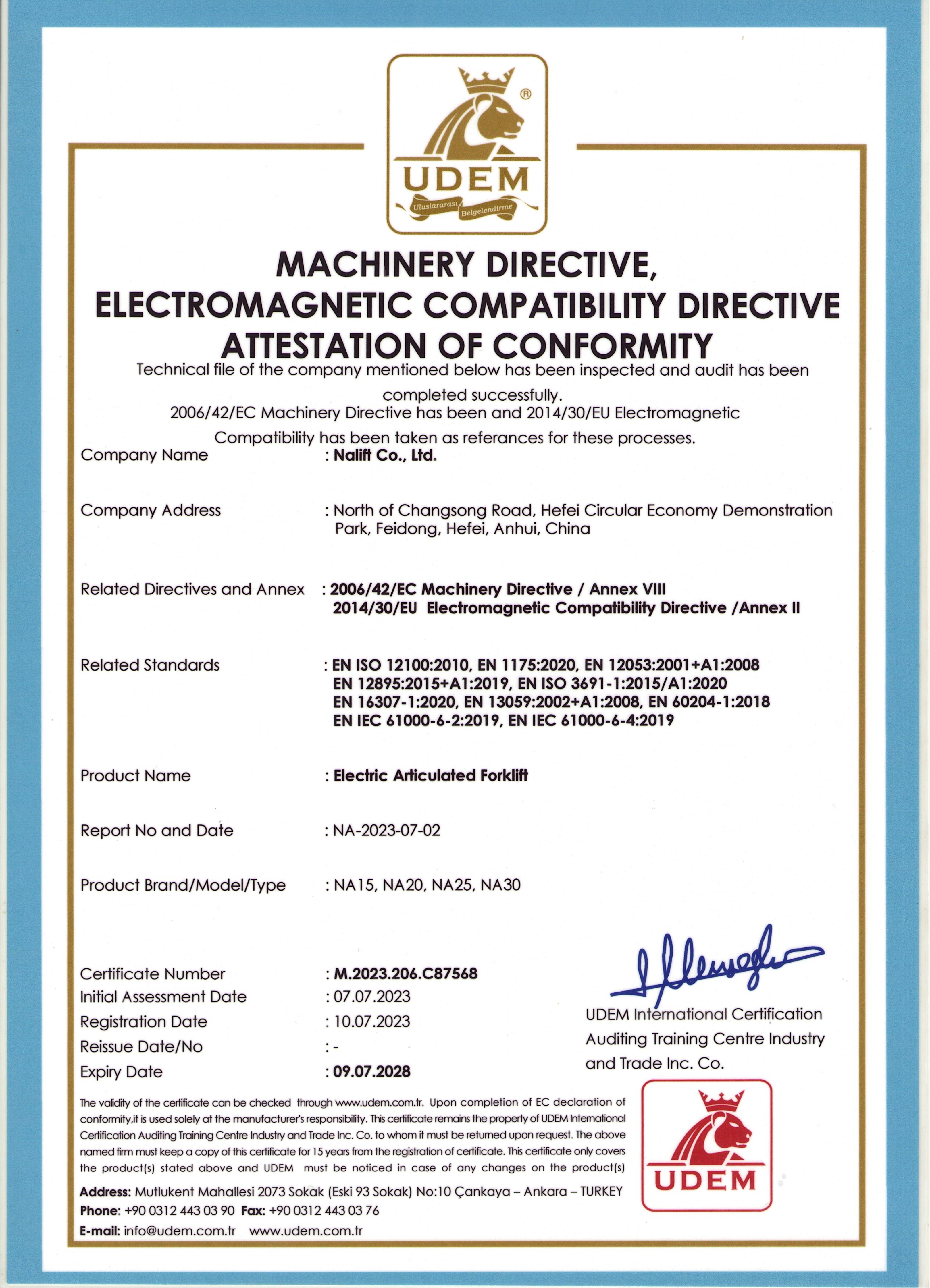

![Nalift CE 2023_01]( "Nalift CE 2023_01")
We adhere to strict quality control standards to ensure that each articulated forklift meets international safety and performance requirements. Our products have passed CE, ISO9001, and other international certifications, and all key components are sourced from well-known brands (such as Curtis controller) to ensure durability and reliability. Each forklift undergoes rigorous testing before leaving the factory, including load testing, maneuverability testing, and safety performance testing, to ensure trouble-free operation in actual working conditions.
| Global After-Sales Service & Support
• Warranty Service: Provide 1-year warranty for the whole machine (excluding vulnerable parts), and lifelong maintenance support . During the warranty period, we will provide free replacement of faulty parts and on-site maintenance services if needed.
• Spare Parts Supply: Set up spare parts warehouses in key regions around the world to ensure timely supply of spare parts, reducing your downtime.
• Technical Training: Provide professional operation and maintenance training for your team, helping you master the use skills and daily maintenance methods of the forklift.
• 24/7 Online Support: Our professional technical team provides 24-hour online consultation to solve your operation and maintenance problems in a timely manner.
• Professional Manufacturer: With years of experience in R&D and production of articulated forklifts, we have advanced production equipment and mature technical teams.
• Global Market Experience: Our products are exported to more than 50 countries, familiar with the import policies and market needs of various regions .
• Customization Capacity: We can provide personalized solutions according to your specific working conditions and needs.
• Competitive Price: Direct factory sales, no middlemen, providing you with high-quality products at competitive prices .
• Reliable After-Sales: Perfect global after-sales service system, solving your worries about using the product.
Contact Us
If you are interested in our articulated forklift trucks or need detailed product catalogs, quotes, and customized solutions, please feel free to contact us. We will reply to you within 24 hours and provide you with professional services.
