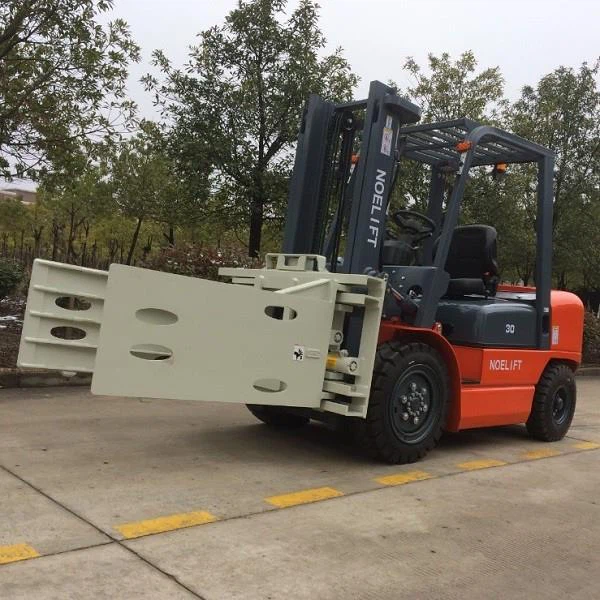

Diesel Forklift with Bale Clamp

✅ Purpose-built bale clamp for pallet-free handling✅ 4.8m triplex mast for high stacking✅ Ideal for paper, textile, and recycling industries

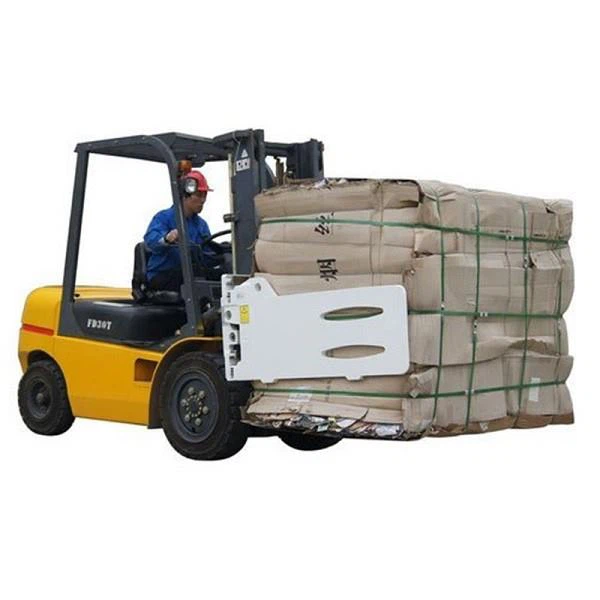

A purpose-built solution for handling bales, rolls, and bulky loads in paper mills, textile factories, and recycling facilities. The heavy-duty bale clamp eliminates the need for pallets, saving you packaging costs and speeding up loading/unloading. Powered by a reliable diesel engine and paired with a 4.8m triplex mast, it delivers stable performance even in tough industrial environments. One truck for multiple applications, maximizing your equipment ROI.

Quantity:
Availability:





Inquire

Products Detail

Diesel Forklift with Bale Clamp – Main Features

1. Reliable & Stable Mast Structure

This diesel forklift with bale clamp adopts a professional buffer device to greatly reduce mast impact and vibration.With finite element analysis and optimized structural parameters, the mast vibration acceleration is reduced by 40%, delivering stable operation, long service life and reliable performance for heavy-duty bale handling.

2. Eco-Friendly Design & Safer Operation

Equipped with a high-efficiency premium engine, this bale clamp diesel forklift fully complies with the latest European EC and EPA emission standards.Non-asbestos insulation components effectively lower working noise for a comfortable working environment.The optimized lifting system and innovative structural design greatly enhance driving visibility, ensuring safe, flexible and high-efficiency daily handling work.

3. Strong Power & Flexible Control

Our bale clamp diesel forklift is fitted with international premium electric actuators.It provides stronger power output, more flexible steering and stable overall control, perfectly adapting to industrial warehouses, farms, factories and various heavy-load bale transportation scenarios.

Forklift Specifications

1				NOELIFT
2	Model		Unit	FD30/FG(L)30	FD35/FG(L)35	FD40/FG(L)40	FD50
3	Power type			DIESEL	DIESEL	DIESEL	DIESEL
4	Rated capacity		kg	3000	3500	4000	5000
5	Max lift height		mm	3000	3000	3000	3000
6	Load centre		mm	500	500	500	500
7	Mast extend height		mm	4262	4262	4275	4280
8	Max lift height of fork		mm	3000	3000	3000	3000
9	Mast closed height		mm	2065	2180	2150	2330
10	Free lift height		mm	160	170	150	150
12	Overall length (Without fork)		mm	2682	2693	2895	3105
13	Overall Width		mm	1225	1225	1410	1480
14	Front overhang		mm	479	498	500	565
15	Rear overhang		mm	495	495	495	540
16	Wheel base		mm	1700	1700	1900	2000
17	The height of traction pin		mm	310	310	330	350
18	Min. ground clearance		mm	135	135	130	160
19	Fork Size		mm	1070X125X45	1070X125X50	1070X130X50	1070X150X50
20	The distance between forks		mm	1060/250	1060/250	1290/260	1370/300
21	Tread(front/rear)		mm	1000/970	1000/970	1160/1065	1180/1190
22	Min. Turning Radius(outside)		mm	2400	2420	2700	2780
23	Min. Turning Radius(inside)		mm	200	200	230	270
24	Min. intersecting aisle		mm	2380	2400	2685	3365
26	Speed	Travel (full load/no load)	km/h	18/19	19/19	18/19	18/19
27		Lifting(full load/no load)	mm/s	440/480	330/370	350/380	400/450
28		Lowering(full load/no load)	mm/s	450/500	350/400	350/400	350/400
29	Max.Grade ability(with/without full load)		%	20/20	15/20	15/18	18/20
30	Total weight		kg	4270	4700	5310	6400
31	Weight distribution full load(front/rear)		kg	6543/727	7380/820	8380/930	9540/1360
32	Weight distribution sero load(front/rear)		kg	1708/2560	1880/2820	2120/3190	2630/3770

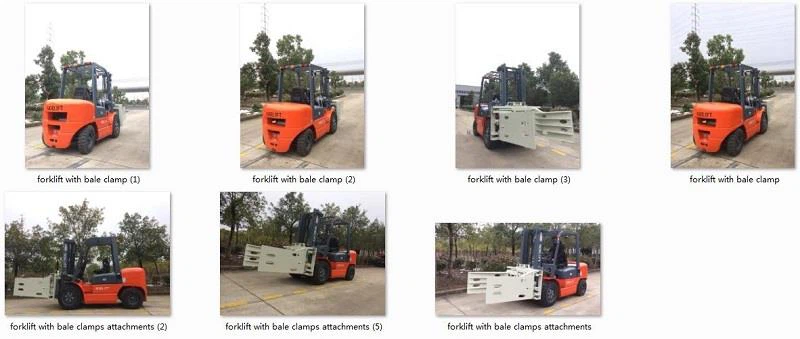

Forklift Details

201912261801595621063

Forklift with Various Optional Attachments

A wide range of optional forklift attachments are available, including paper roll clamp, bale clamp, pull push clamp and tire clamp to meet diverse handling needs.

All Noelift forklifts are manufactured in strict accordance with ISO9001:2008 quality standards and CE safety regulations.

Certifications

Our forklifts are fully certified with ISO9001-2008 Certificate and CE Certificate, ensuring reliable quality, stable performance and global compliance.

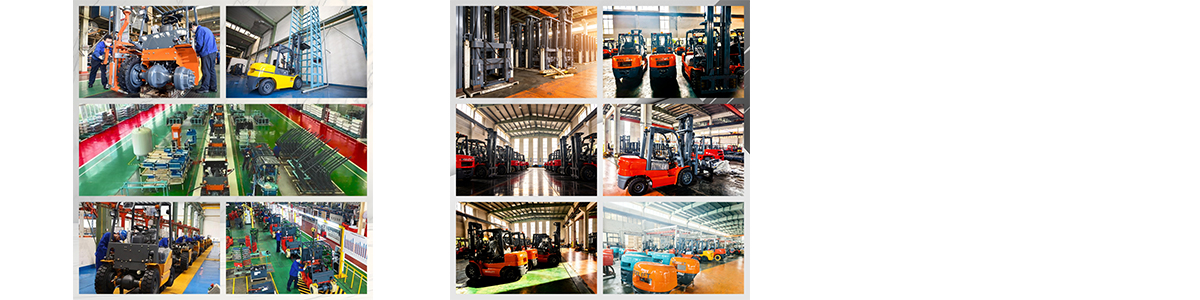

Our company

Noelift Forklift factory with years experiences, our forklifts already exported to Austria, Saudi, Arabia, USA, Malaysia, Peru so on.
as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1 to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.

Welcome to get best material handling equipment solutions from NOELIFT!
We are at your services!

未标题-1

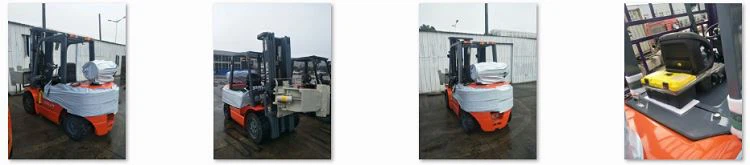

Packing & Delivery
