A large-scale logistics hub in Southeast Asia previously operated a fleet entirely composed of leading global forklift brands. While the machines were reliable, the business faced two unsustainable financial burdens:
After 12 months of high-intensity operation (10+ hours per day), the performance data showed:
Key Specifications (Typical Range) Lifting Capacity: 1.5 Ton – 40 Ton
Lifting Height: 3M – 9M (customizable for higher requirements)
Engine: 4-Stroke Diesel Engine (Euro V / Tier 4 Final compliant for low emissions)
Transmission: Manual or Automatic (Hydrostatic)
Load Center: 500mm
Turning Radius: 1.8M – 2.5M (varies by model)
Ideal Applications
Construction sites (handling building materials)
Manufacturing facilities (heavy component transport)
Warehouses with high-load requirements
Agriculture and farming (bulk crop or equipment moving)
Safety & Maintenance
Safety is prioritized with features including anti-slip platforms, overhead guards, load backrests, and easy-to-operate controls. Routine maintenance is simplified with accessible engine compartments and durable parts, ensuring minimal downtime and maximum productivity. Our global service network also provides timely support and genuine spare parts for long-term reliability.
Whether you need to lift heavy loads, navigate rough terrain, or maintain high efficiency in 24/7 operations, our diesel forklifts deliver the power, durability, and versatility to keep your business moving forward.
|
Application Video
|
Advantages
✅ Lower cost than premium brands
✅ Same heavy‑duty performance
✅ 1‑year warranty, 72h testing before delivery
Diesel Forklift: Your Reliable Heavy-Duty Handling Partner
Our diesel forklifts are built for tough industrial operations, combining strong power, durable structure and long-lasting performance. Ideal for heavy loads, outdoor work and high-intensity logistics.
|
Data Sheet
| Manufacture |
| Noelift |
|
|
|
| Model |
| FD20 | FD25 | FD30 | FD35 |
| Power type |
| Diesel/Gasoline/LPG |
|
|
|
| Capacity | KG | 2000 | 2500 | 3000 | 3500 |
| Load center | MM | 500 |
|
|
|
| Lift height | MM | 3000-6000 |
|
|
|
| Free lift height | MM | 140 | 145 |
|
|
| Fork size | MM | 1070*120*40 | 1070*120*45 | 1070*125*45 | 1070*130*45 |
| Mast tilet angle | deg | 6/12 |
|
|
|
| Front overhang | MM | 484 | 489 | 494 | 500 |
| Overall length | MM | 2510 | 2580 | 2720 | 2775 |
| Overall width | MM | 1150 | 1225 |
|
|
| Mast lowered height | MM | 2050 | 2080 | 2230 |
|
| Mast extended height | MM | 4040 | 4272 |
|
|
| Overhead guard height | MM | 2060 | 2090 |
|
|
| Turning radius | MM | 2170 | 2240 | 2460 | 2540 |
| Service weight |
| 3550 | 3880 | 4380 | 4750 |
| Front tire |
| 7.00-12-12PR | 28*9-12-12PR | 28*9-12-14PR |
|
| Rear tire |
| 6.00-9-10PR | 6.50-10-10PR |
|
|
|
Testing Quality
I. Advantages in Power & Heavy-load Testing
Verified under full-load continuous lifting, climbing, acceleration and stable idling, with stable and non-attenuated power output.
Common-rail engine tested under high/low temperature, high dust and long-duration endurance, with lower failure rate
120% rated load overload test ensures no rear lifting, no sinking and no instability.
Actual climbing capacity meets standards, with strong adaptability to complex roads, construction sites and mines.
II. Advantages in Structural Strength & Safety Testing
Frame, mast and overhead guard pass four tests: impact, static pressure, fatigue and anti-falling.
High-strength steel + robotic welding, greatly improved resistance to deformation and cracking.
Braking system repeatedly verified for cold/hot braking distance, ramp parking and emergency braking.
Complies with ISO, GB, CE safety standards, with higher safety redundancy.
III. Advantages in Hydraulic System Performance Testing
Oil cylinder settlement and internal leakage are better than industry standards; no shaking or sinking under heavy load.
Multi-way valve and hydraulic pump tested for millions of cycles, longer service life.
Dual-pump confluence /load sensing tested for faster, more fuel-efficient and smoother operation.
IV. Advantages in Reliability & Durability Testing
Over 1000 hours intensive durability test, simulating high-intensity continuous operation.
Key pins, chains and bearings tested for wear resistance, sealing and dustproof, longer maintenance interval.
Passed salt spray, rain and dust tests, more durable in harsh outdoor environments.
Engine, gearbox and drive axle endurance verified, significantly extended overhaul period.
V. Advantages in Handling & Environmental Adaptability Testing
Steering system optimized for minimum turning radius and steering force, more flexible in narrow aisles.
Noise, vibration and cooling system bench-tested for more comfortable long-time operation.
Simulated high/low temperature and high-altitude tests, stable operation in all regions.
VI. Economic & Maintenance Advantages (From Testing)
Durability test proves longer service life of wearing parts, reducing replacement frequency.
Fuel economy optimized in actual test, more fuel-efficient than ordinary models.
Modular design + easy maintenance test, shorter downtime.
Lower total life-cycle cost, higher second-hand residual value.

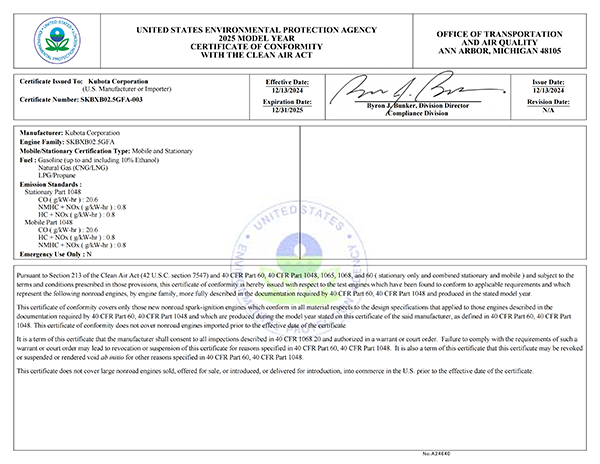

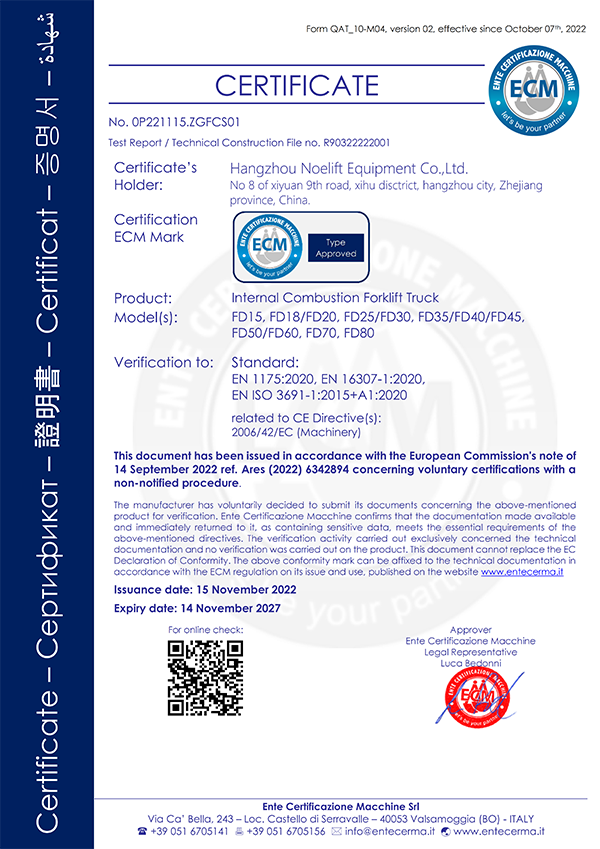

| Certificate
![微信图片_20240328140805]( "微信图片_20240328140805")
FAQ：
Q: What brands are used for the core configurations (engine, mast, hydraulic system) of your diesel forklift?
A: Imported engines are available: Isuzu, Kubota, Nissan, Mitsubishi. Domestic engine options include Xinchai, Xichai, Quanchai, Guangqing, etc. The mast is independently developed with a reinforced design for enhanced durability. The hydraulic system adopts high-quality components: multi-way valves from Tianyou, Haihong; gear pumps from Jiyuan, Changyuan, etc., ensuring stable and reliable performance.
Q: What are the specific parameters of rated load, maximum lifting height, and turning radius?
A: Rated load: 1.5-40 tons (optional); Maximum lifting height: 3-9 meters (customizable);
Q: What are the factory inspection standards? Are CE, ISO and other international certifications obtained?
A: Complies with ISO 9001 quality system and CE safety certification. Each forklift undergoes 72-hour continuous operation testing before delivery.
Q: Is it in stock or customized? What is the delivery cycle for regular orders?
A: There is no stock available; orders are made to order and the delivery time is generally 15-30 days.
Q: Compared with competitors of the same tonnage, what advantages do your forklifts have in fuel consumption, failure rate, and maintenance cost?
A: Fuel consumption is 8-12% lower than industry average; failure rate ≤ 0.5% within 2 years; maintenance cost is reduced by 15% thanks to easily accessible parts and simplified design.
Q: What is the warranty period for the engine and hydraulic system? How to handle failures during the warranty period?
A: Engine warranty: 1 years/2000 hours; Hydraulic system warranty: 1 years/2000 hours. During the warranty period, we will provide online guidance for repair or parts replacement within 48 hours.
Q: What is the daily continuous working time of the forklift? Does it support 24-hour high-intensity operation?
A: Daily continuous working time: 8-12 hours; Supports 24-hour operation with regular refueling and simple inspection, suitable for heavy-duty scenarios.
Q: Can you provide free operation training and on-site commissioning services? Are the fees included in the quotation?
A: Yes. Free on-site training and commissioning are included in the quotation, helping your team master operation and daily maintenance quickly.
Q: What is the price for one unit? Does it include shipping and installation costs?
A: Quotation for 1 units: diesel truck: starting from RMB 50400. Transportation costs are included; installation is free for bulk orders.
Q: What payment methods are supported? Can 30% quality deposit be reserved for payment after acceptance?
A: Supports T/T, L/C, and other methods. 30% deposit + 70% payment before delivery.
Q: If the actual performance of the forklift does not match the publicity, do you support return, replacement or compensation?
A: Yes. If performance does not meet the stated parameters, we provide free replacement, repair, or corresponding compensation as per the contract.
Q: Can you provide annual maintenance discounts?
A: Bulk purchasers enjoy a 10% discount on annual maintenance for the first 3 years.
Q: Can a clear quality assurance agreement be signed, specifying the fault response time and maintenance time limit?
A: Yes. We sign a formal quality assurance agreement.
