TFE
NOELIFT

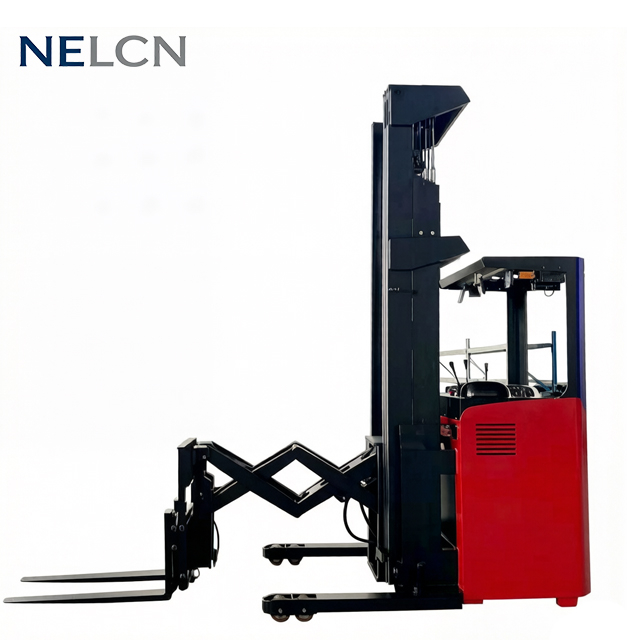

The TFE Series electric scissor reach forklift is designed for high-density warehouse storage and narrow-aisle operations. With a rated load capacity of 1.4–2.0 tons, the forklift uses a scissor-type reach mechanism to move the forks forward and backward, combining a compact body, small turning radius and high operating efficiency.

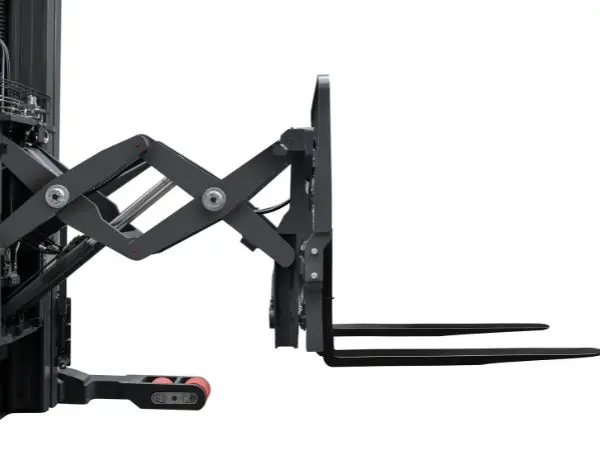

The double-scissor reach mechanism is designed for double-deep pallet racking, allowing operators to place and retrieve pallets at greater depth and helping maximize warehouse storage capacity.
With a high-capacity mast, precise mast design and strong residual capacity, the TFE Series provides reliable performance when handling loads at high lifting heights. The mast maintains strong load capacity below 8,000 mm, while remaining suitable for high-level warehouse applications.
Specification | 1TFE14 | 1TFE20 |
Rated Capacity | 1,400 kg | 2,000 kg |
Overall Length | 2,665 mm | 2,594 mm |
Overall Width | 1,080 / 1,364 mm | 1,080 / 1,364 mm |
Lift Height | 5,025 mm | 5,025 mm |
Minimum Turning Radius | 1,815 mm | 1,735 mm |
Battery | 48V 500Ah | 48V 500Ah |
Reach Distance | 1,080 mm | 600 mm |
Right-Angle Stacking Aisle Width* | 3,045 mm | 2,976 mm |
Fork Dimensions (L × W × T) | 1,070 × 100 × 40 mm | 1,070 × 100 × 40 mm |
Fork Outer Width | 222–702 mm | 222–702 mm |
High-Efficiency Double-Deep Operations: Equipped with a double-scissor telescoping mechanism to effortlessly handle double-deep rack stacking, maximizing storage density and lowering warehousing costs.
High-Capacity & High-Precision Mast: Rigid, high-precision mast design ensures zero capacity reduction up to 8,000mm, delivering outstanding high-level load performance.
Superior Operational Efficiency: Features faster lifting, lowering, and traveling speeds to supercharge fast-paced, high-intensity logistics workflows.
Intelligent Safety Protection: Built-in maximum lift limit, automatic speed reduction during lowering, and cushioning functions effectively prevent impact on the ground, protecting both goods and pallets while extending floor and vehicle longevity.

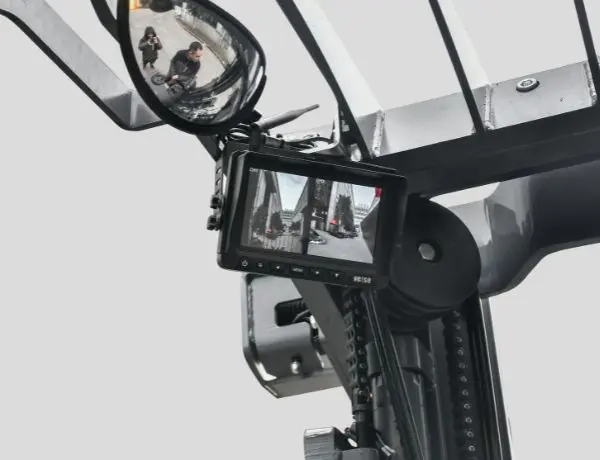

Wide-View Mast Design: Clear-view mast architecture minimizes visual obstruction, providing operators with an expansive field of vision for safer driving.
Maintenance-Free AC Drive System: Powered by high-efficiency AC motors, eliminating carbon brush replacement and routine maintenance costs. Integrated with speed and thermal sensors for complete protection, high reliability, and an extended lifespan.
High-Bay Narrow Aisle (VNA) Warehousing: Navigating tight aisles effortlessly thanks to an ultra-tight turning radius and responsive reach mechanism.
Double-Deep Racking & High-Density Storage: Maximizing footprint utilization by storing pallets two-deep.
Cold Storage, Pharmaceuticals, 3PL & Manufacturing: Delivering clean, reliable, and high-performance material handling for demanding industrial environments.
