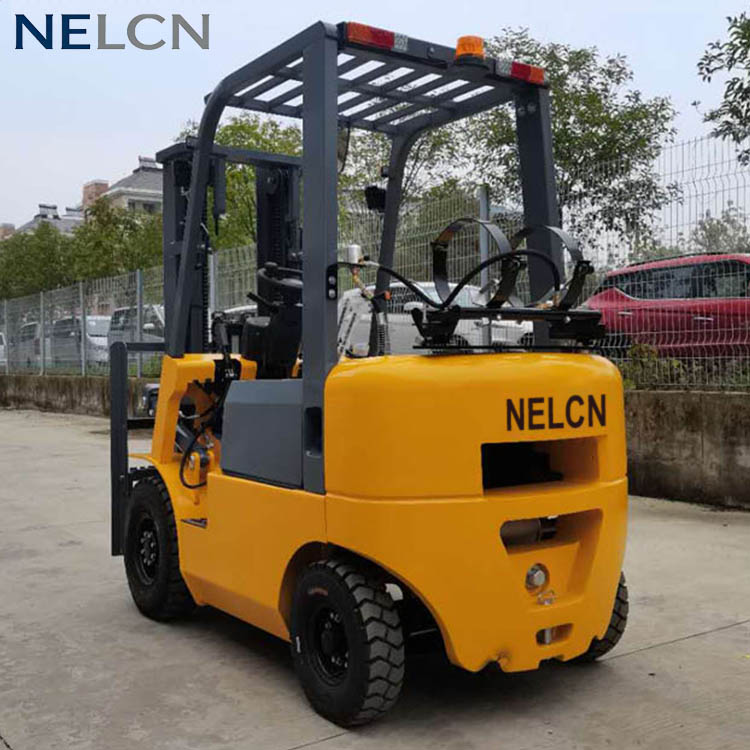

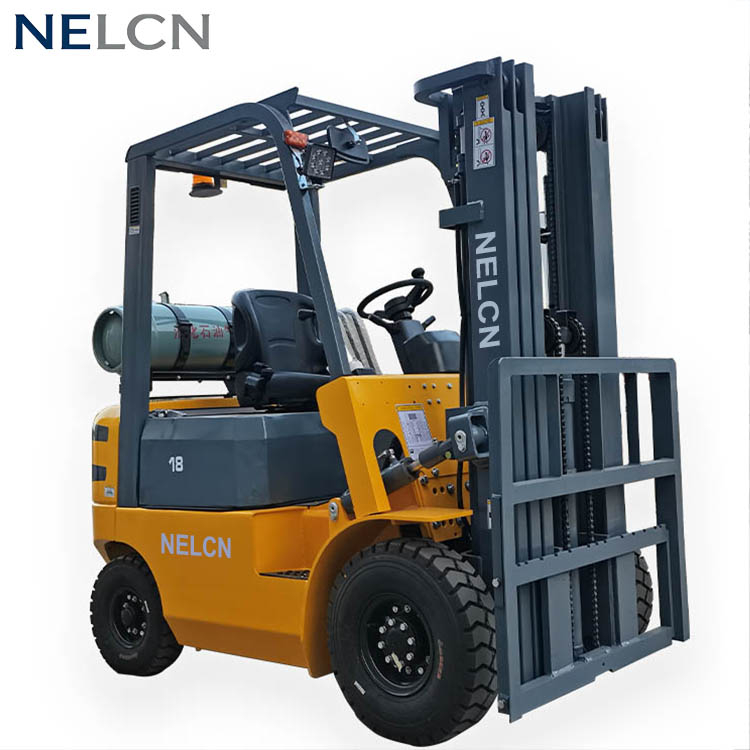

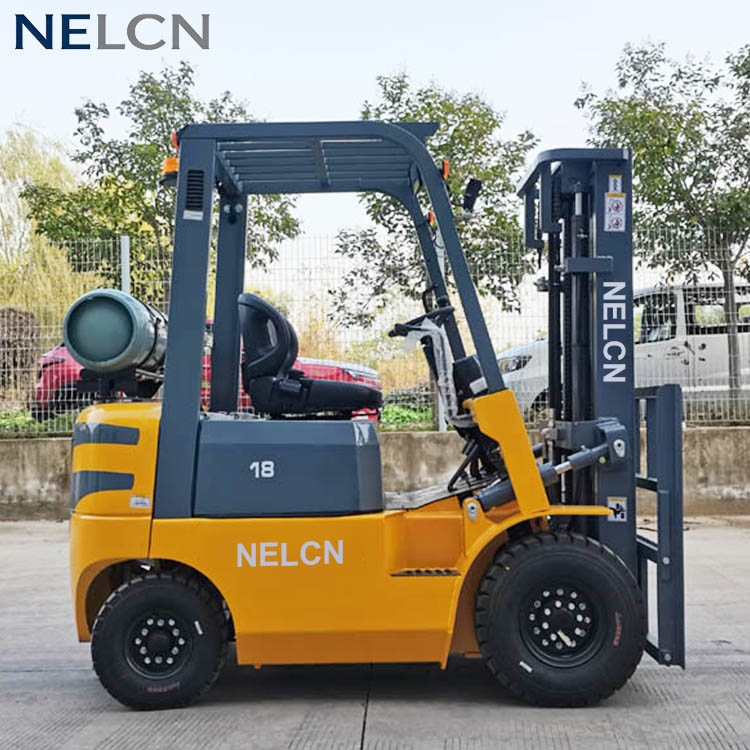

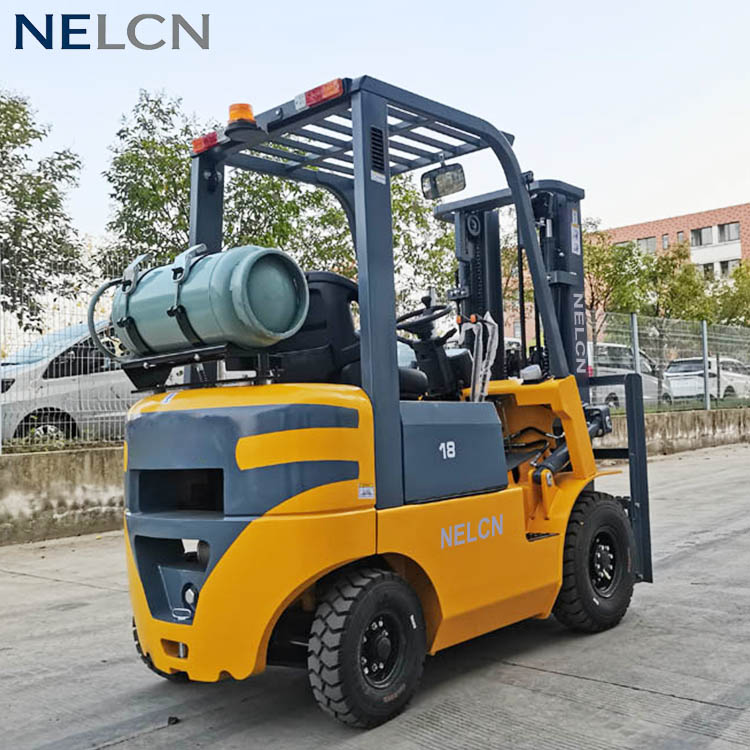

1.5-4.0 Ton Gasoline LPG Forklift

Model: CPQD(K Series)
Load Capacity: 1,500 kg – 4,000 kg
Lift Height: 3,000 mm
Mast Options: Wide-View Mast Design
Drive Type: LPG / Gasoline
Minimum Order Quantity: 1 unit
Warranty Period: 1 year

Quantity:
Availability:





Inquire

Model:
CPQD(K Series)
Brand:
NOELIFT

Products Detail

1.5-4.0 Ton Gasoline LPG Forklift

Reliable Gasoline & LPG Counterbalance Forklift for Warehouse and Industrial Material Handling

The K Series Gasoline / LPG Forklift is a versatile material handling solution available in 1.5 to 4.0 ton rated capacities. Designed for both indoor and outdoor applications, this series combines robust performance, fuel flexibility (LPG or Gasoline), and reliable Japanese-inspired engine technology.

Whether you operate a warehouse, distribution center, manufacturing plant, or port facility, the CPQD15K–CPQD40K series delivers consistent lifting power, excellent gradeability, and low operating costs.

Core Performance & Engine Specs

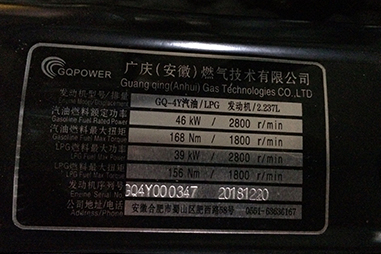

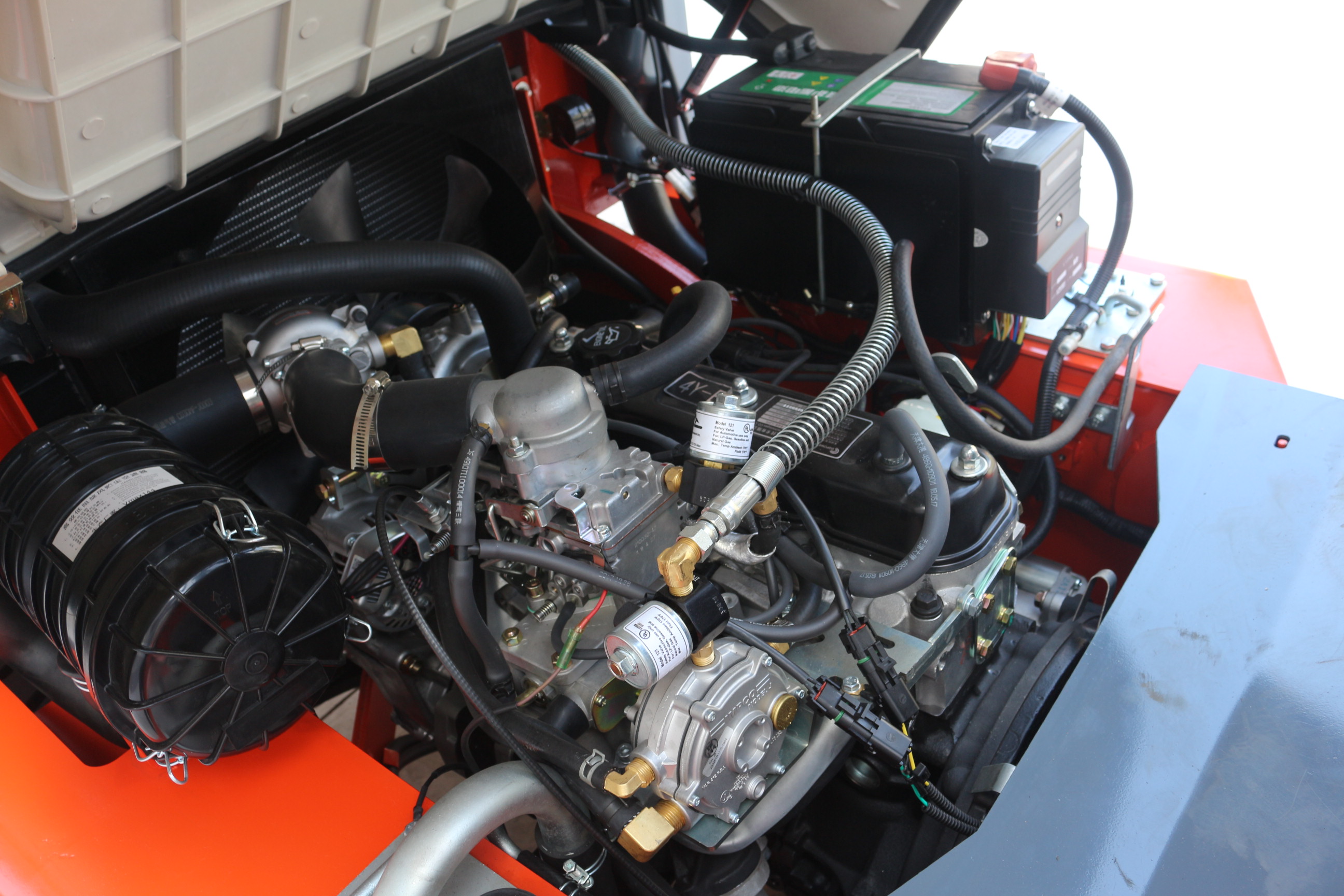

Engine Power & Torque: Models CPQD15K through CPQD38K are driven by the reliable GQ4Y engine (2.237L displacement), generating 46 kW / 2800 rpm on Gasoline and 39 kW / 2800 rpm on LPG. The heavy-duty CPQD40K upgrades to the Mitsubishi PSI 2.4 engine (2.351L), delivering 48 kW (Gas) and 46 kW (LPG) with high torque at lower RPMs.
Transmission: Equipped with smooth 1-1 Power Shift and 2-2 Manual Shift options, ensuring responsive acceleration and effortless directional changes.
Gradeability & Traction: Exceptional climbing capability ranging from 20% to 27% (loaded), paired with high tractive force to handle ramps, inclines, and rough outdoor terrain with ease.
Pneumatic Tires: High-durability pneumatic tires provide superior shock absorption, protecting cargo and ensuring stable traction across uneven ground.

Technical Specifications

Model	CPQD15K	CPQD18K	CPQD20K	CPQD25K	CPQD30K	CPQD35K	CPQD38K	CPQD40K
Rated Capacity (Kg)	1500	1800	2000	2500	3000	3500	3800	4000
Load Center (mm)	500	500	500	500	500	500	500	500
Power Type	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline
Driving Type	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Wheelbase (mm)	1400	1400	1600	1600	1740	1740	1740	1900
Fork Size L×W×T (mm)	1070 x 100 x 35	1070 x 100 x 40	1070x 100 x 40	1070 x 120 x 40	1070 x 122 x 45	1070 x 122 x 50	1070 x 122 x 50	1220x150x50
Overall Length (fork excluded) (mm)	2230	2230	2540	2540	2755	2755	2800	2880
Overall Width (mm)	1090	1090	1170	1170	1225	1225	1225	1410
Turning Radius (mm)	2060	2060	2330	2330	2420	2420	2450	2700
Ground Clearance of Mast (mm)	105	105	110	110	120	120	120	130

Applications of 1.5-4 Ton LPG Forklift

NELCN K Series gasoline/LPG forklifts are widely used in:

Warehousing

- Pallet transportation

- Goods stacking

- Loading and unloading

Logistics & Distribution

- Truck loading

- Material transfer

- Distribution center operations

Manufacturing

- Raw material handling

- Production line supply

- Factory transportation

Outdoor Industrial Applications

- Construction material handling

- Yard operations

- Heavy-duty lifting tasks

Certifications

Our Services

1. Pre-sales: One-on-one engineer customized solutions, free product manuals and operation videos provided;

2. During sales: Logistics tracking updated every 2 days, supporting multiple trade terms such as FOB/CIF/CFR;

3. After-sales: 1-year warranty on the whole machine, free parts delivered within 7 days during the warranty period, 24-hour uninterrupted technical support, and on-site debugging by local engineers worldwide.
