CDD15D/CDD20D
NOELIFT

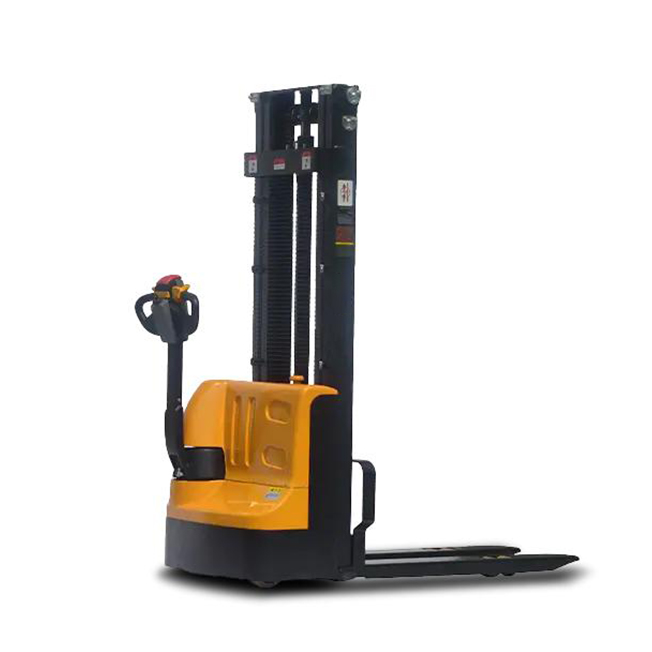

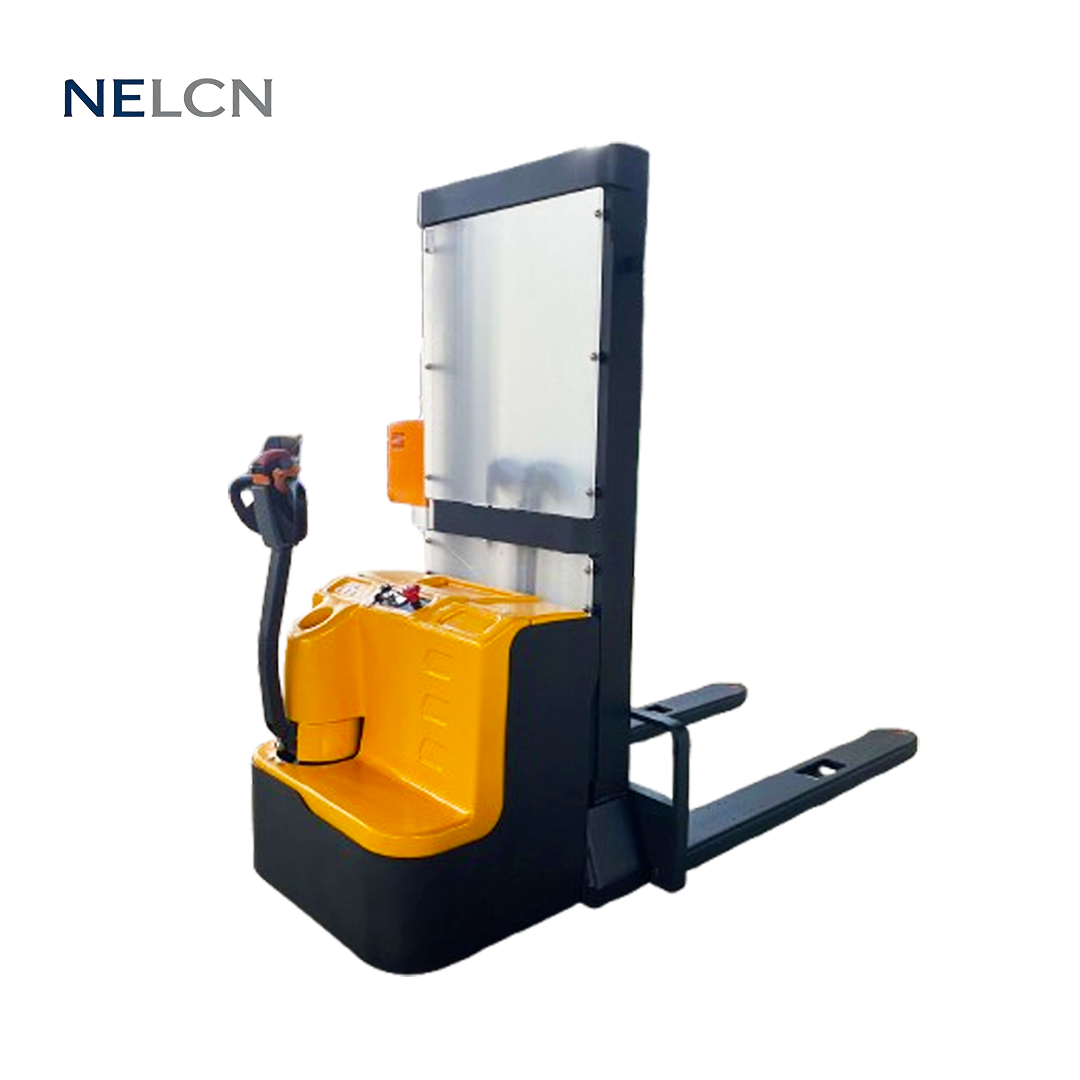

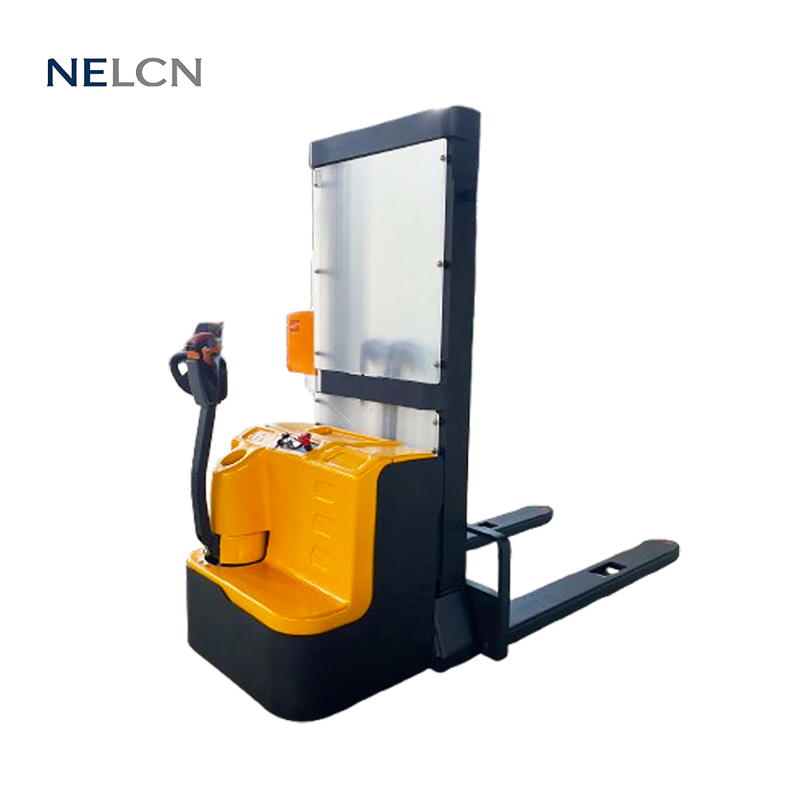

Maximize your warehouse storage capacity and streamline material handling with our premium Electric Walkie Stacker. Engineered for high-density storage and narrow-aisle operations, this robust walkie stacker combines heavy-duty lifting capability with precise maneuverability. Available with a rated load capacity of 1500kg to 2000kg and customizable lifting heights from 1600mm to 3000mm, it is the ultimate economic and reliable solution for modern logistics, manufacturing plants, and distribution centers.
Specification | CDD15D | CDD20D |
Model | CDD15D | CDD20D |
Power Type | Lead-acid battery | Lead-acid battery |
Driving Type | Walkie type | Walkie type |
Rated Load | 1500 kg | 2000 kg |
Lifting Height | 2500 mm | 2500 mm |
Overall Length | 2030 mm | 2030 mm |
Overall Width | 850 mm | 850 mm |
Fork Dimensions (s/e/l) | 65/190/1150 mm | 65/190/1150 mm |
Outside Fork Width | 680 mm | 680 mm |
Inside Fork Width | 370 mm | 370 mm |
Mast Closed Height | 1810 mm | 1810 mm |
Maximum Mast Height During Lifting | 3041 mm | 3041 mm |
Load Backrest Width | 800 mm | 800 mm |
Minimum Fork Height | 86–88 mm | 86–88 mm |
Minimum Ground Clearance | 30 mm | 30 mm |
Load Center | 600 mm | 600 mm |
Front Overhang | 740 mm | 740 mm |
Turning Radius | 1644 mm | 1644 mm |
Stacking Aisle Width – 1000×1200 Pallet | 2498 mm | 2498 mm |
Stacking Aisle Width – 800×1200 Pallet | 2454 mm | 2454 mm |
Maximum Gradeability, Full/No Load | 6% / 10% | 6% / 10% |
Braking Type | Electromagnetic brake | Electromagnetic brake |
Powerful AC Drive Motor: Delivers high acceleration, exceptional travel performance, and strong climbing force to navigate ramps effortlessly.
Rugged Durability: Built with high-strength support legs and forks, alongside an industrial-grade forklift specialized mast channel for maximum structural longevity.
Maintenance-Free Power: Equipped with a high-capacity, free-maintenance lead-acid battery to ensure long operational hours and minimal downtime.
Smart Integrated Charging: Features a built-in smart charger for convenient, safe, and efficient plug-and-play charging anywhere.
Ergonomic Control Handle: Multi-function integrated operation handle designed specifically for narrow aisle navigation, reducing operator fatigue.
Low-Noise Hydraulic System: Incorporates a precision low-noise lifting hydraulic pumping station for smooth, quiet, and reliable lifting.
Enhanced Safety: Reliable electromagnetic braking system ensures secure stopping performance under full or empty loads.
Warehouses, logistics centers, factory workshops, and e-commerce order picking
Pallet handling and stacking in narrow-aisle racking systems
For 1000×1200 mm pallets (positioned with the 1200 mm side along the forks): stacking aisle width required is approximately 2498 mm
For 800×1200 mm pallets (positioned with the 1200 mm side along the forks): stacking aisle width required is approximately 2454 mm
Operations requiring a walk-behind electric stacker with a rated load capacity of 1500 kg or 2000 kg
1. Pre-sales: One-on-one engineer customized solutions, free product manuals and operation videos provided;
2. During sales: Logistics tracking updated every 2 days, supporting multiple trade terms such as FOB/CIF/CFR;
3. After-sales: 1-year warranty on the whole machine, free parts delivered within 7 days during the warranty period, 24-hour uninterrupted technical support, and on-site debugging by local engineers worldwide.
