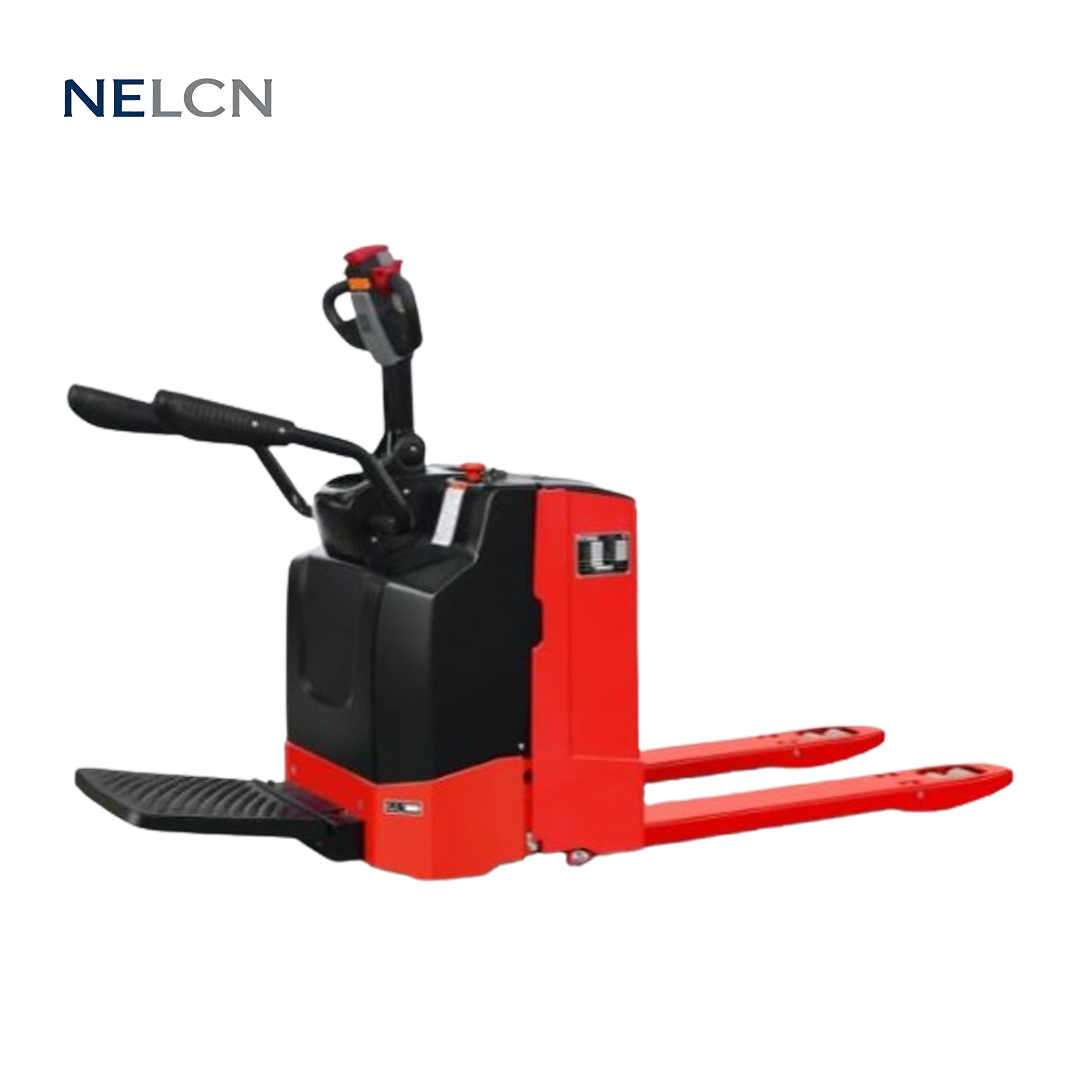

2.0–4.0 Ton Ride-On Electric Pallet Truck

Models: TE
Capacity: 2,000 / 2,500 / 3,000 / 4,000 kg
Operation: Stand-on
Drive: Electric
Load Center: 600 mm
Battery: 24V / 160Ah
Lifting Height: 205 mm
Travel Speed: Up to 5.8 km/h

MOQ: 1 Unit

Warranty: 12 Months

Quantity:
Availability:





Inquire

Model:
TE
Brand:
NOELIFT

Products Detail

2.0–4.0 Ton Ride-On Electric Pallet Truck

TE Series Battery-Powered Pallet Truck for Heavy-Duty Horizontal Transport

Discover our advanced TE Series Stand-On Electric Pallet Trucks, engineered for high-efficiency point-to-point horizontal material transport. Ranging from 2.0 tons to 4.0 tons in load capacity, this series combines powerful battery electric drive with a responsive pure electric steering system to maximize warehouse productivity and operator comfort.

Key Features & Benefits

Pure Electric Steering System: Say goodbye to manual steering fatigue. The advanced electric power steering ensures effortless, precise maneuverability, even under heavy loads and tight turning conditions.
Versatile Foldable Stand-On Platform: Designed with a flexible foot-pedal layout that supports both folded and unfolded configurations, adapting easily to tight warehouse aisles or long-distance travel.
High-Performance Battery Power: Powered by robust, high-capacity batteries delivering top travel speeds of up to 6 km/h (loaded/unloaded), ensuring seamless point-to-point workflow.
Comprehensive Load Range: Choose from 2.0T, 2.5T, 3.0T, and 4.0T capacities to match your exact industrial, warehousing, or distribution requirements.

Technical Specifications

Specification	Unit	TE20	TE25	TE30	TE40
Model	–	TE20	TE25	TE30	TE40
Power Type	–	Battery	Battery	Battery	Battery
Driving Type	–	Stand-on	Stand-on	Stand-on	Stand-on
Rated Load Capacity Q	kg	2,000	2,500	3,000	4,000
Load Center C	mm	600	600	600	600
Service Weight incl. Battery	kg	630	630	810	950
Lift Height h3	mm	200	200	195	200
Minimum Fork Height h13	mm	85	85	85	85
Overall Length, Platform Folded / Extended l1	mm	1900 / 2310	1900 / 2310	1945 / 2390	1945 / 2390
Overall Width b1	mm	730	730	850	850
Fork Outside Width b2	mm	680	680	685	685
Fork Dimensions l/e/s	mm	1150 / 175 / 56	1150 / 175 / 56	1150 / 175 / 75	1150 / 205 / 75
Turning Radius, Platform Folded / Extended	mm	1730 / 2065	1730 / 2065	1800 / 2220	1750 / 2170
Travel Speed, Loaded / Unloaded	km/h	6 / 6	6 / 6	5 / 6	5 / 6

Ideal Applications

The TE Series electric pallet jacks are widely used in:

Warehousing & Distribution Centers: Fast and efficient horizontal transport of goods across long bays.
Manufacturing & Assembly Plants: Reliable production line material handling and heavy component shuttling.
Retail & Logistics Hubs: High-frequency pallet loading, unloading, and staging operations.
