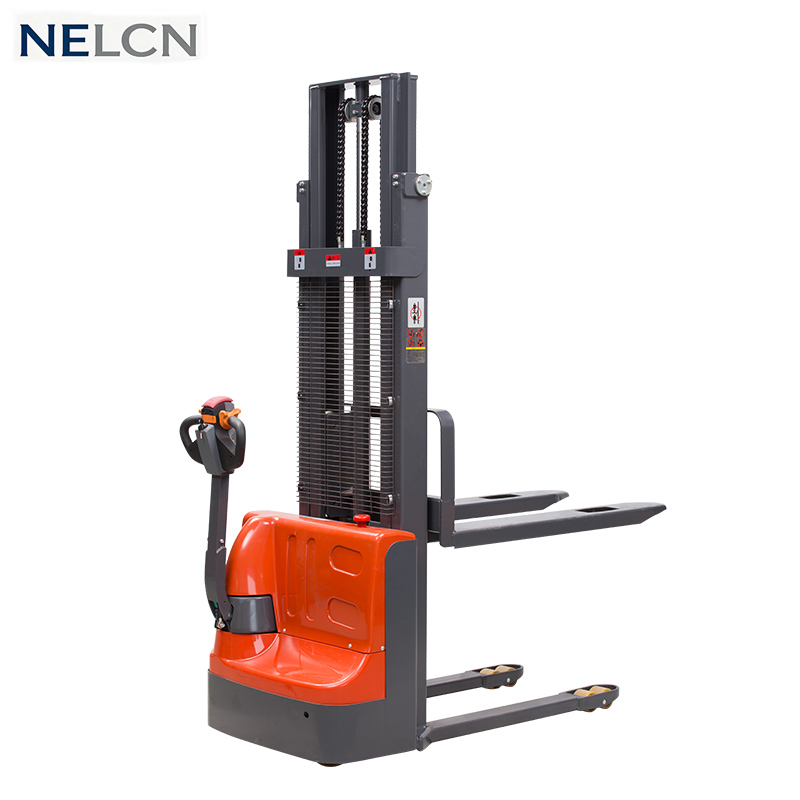

High-Performance Walkie Pallet Stacker

Built for Narrow-Aisle Power and Productivity

Looking for a reliable, powerful, and efficient material handling solution? The TBD Walkie Pallet Stacker is engineered with advanced permanent magnet drive technology to deliver exceptional performance in warehouses, logistics centers, and manufacturing plants. With a rated load capacity of 1.2 to 1.5 tons (1200kg - 1500kg) and a maximum lifting height of 3.0 meters, this electric pallet stacker ensures seamless pallet transport and vertical storage optimization.

Key Features & Advantages

• Integrated Handle Design: Ergonomically designed for precise control, reducing operator fatigue during long shifts.

• Emergency Reversal Switch: Prioritizes operator safety by instantly reversing the stacker's direction upon accidental contact.

• Heavy-Duty H-Channel Mast: Built with high-grade H-steel for superior structural rigidity and maximum stability during high-reach operations.

• Advanced Drive Unit: Powered by cutting-edge permanent magnet technology for high torque, energy efficiency, and low maintenance.

• Multifunctional Instrument Display: Provides real-time data on battery status, hour meter, and error codes for effortless fleet management.

• Exceptional Maneuverability: Compact design ensures tight turning radiuses, perfect for narrow aisle warehousing.

Technical Specifications

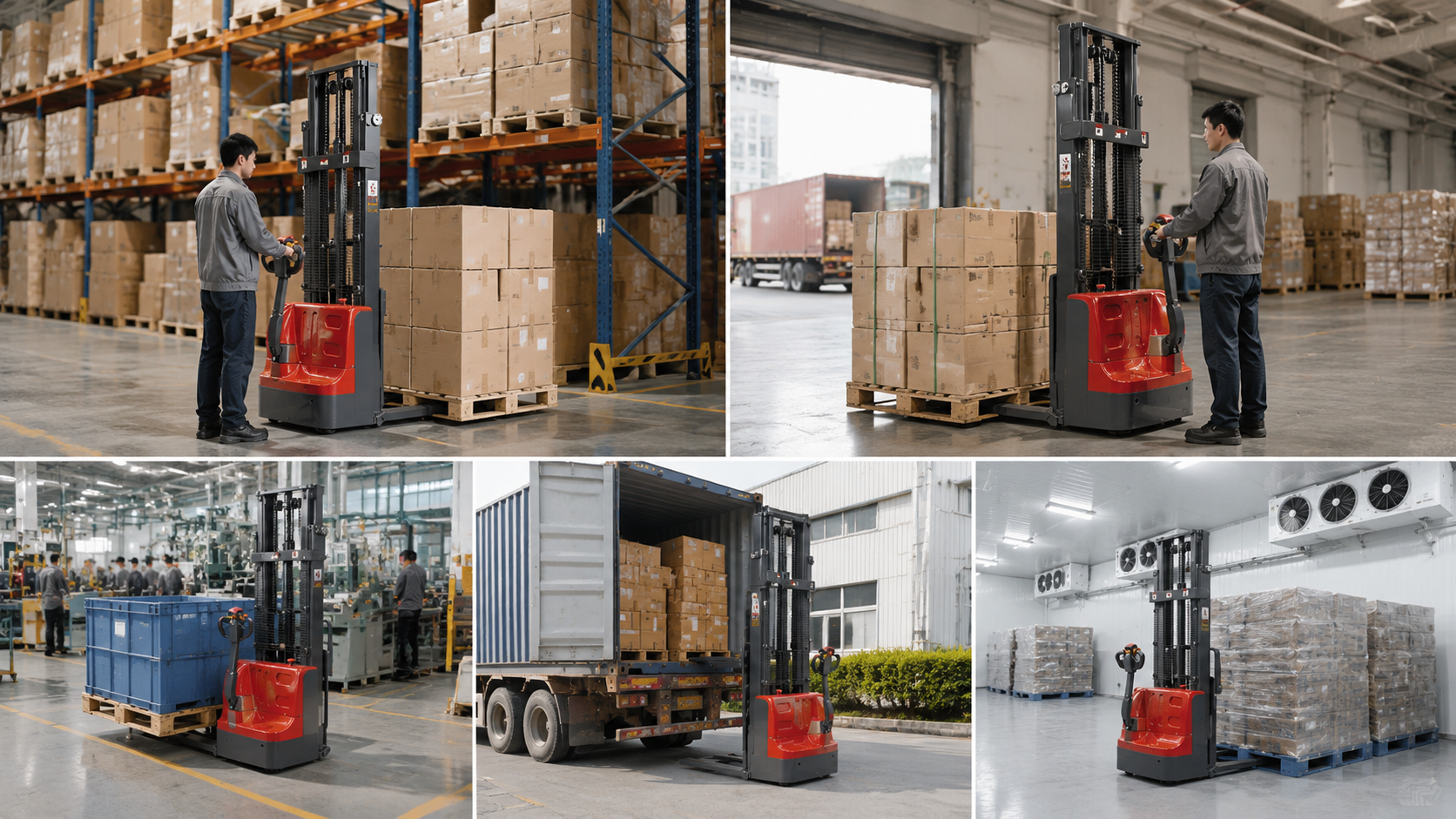

Where the TBD Stacker Works

The MBD walkie stacker is a versatile workhorse for light-to-medium duty pallet handling.

Warehouse Storage

Stack and retrieve pallets on low-to-medium level racking up to 3 meters.

Distribution Centers

Unload delivery trucks and stage pallets for order picking and shipping.

Manufacturing

Move raw materials and finished goods between production lines and storage.

Retail Backrooms

Compact footprint fits stockrooms and narrow back-of-house aisles.

Cold Storage

Zero-emission electric operation is safe for refrigerated and freezer environments.

3PL / Logistics

Low-maintenance design supports high-frequency pallet transport in multi-user operations.

Frequently Asked Questions

What is the load capacity of the walkie pallet stacker?

The TBD is offered in two capacity variants — 1,200 kg and 1,500 kg — both rated at a 500 mm load center distance. This covers most standard euro-pallet and industrial load handling needs.

How high can the TBD electric stacker lift?

The standard maximum lift height is 3,000 mm (3.0 meters). The H-steel mast maintains strong residual capacity even at full extension, making it suitable for typical low-to-medium level racking systems.

What aisle width is required for the TBD stacker?

With the platform retracted, the minimum working aisle width is approximately 2,050 mm for a 1,000 × 1,200 mm pallet (500 mm load center), and 2,100 mm for an 800 × 1,200 mm pallet (600 mm load center). The turning radius is just 1,440 mm.

Is the stacker battery-powered?

Yes. The TBD is fully electric, driven by a permanent magnet synchronous motor (PMSM) for both traction and hydraulic lifting. It produces zero onsite emissions, operates quietly and requires minimal routine maintenance.

What safety features are included?

Standard safety equipment includes an emergency reverse switch on the tiller handle, automatic braking, low mast chain guard and a multifunctional instrument panel that alerts operators to fault codes and low battery status.
