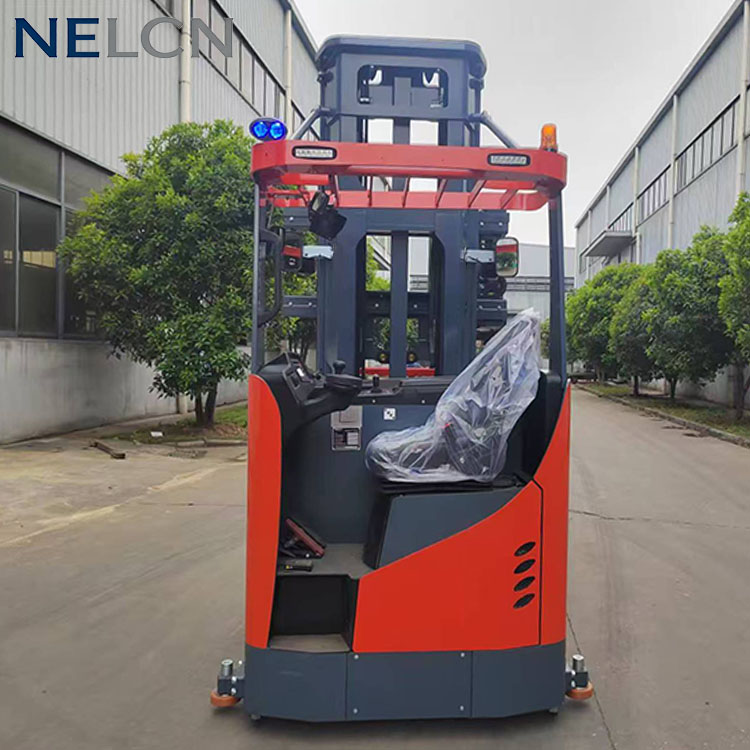

Electric Three-Way Stacker for High-Density Narrow Aisle Storage
Our Three-Way Stacker is a specialized warehouse handling solution designed for very narrow aisle (VNA) storage systems and high-density pallet racking applications.

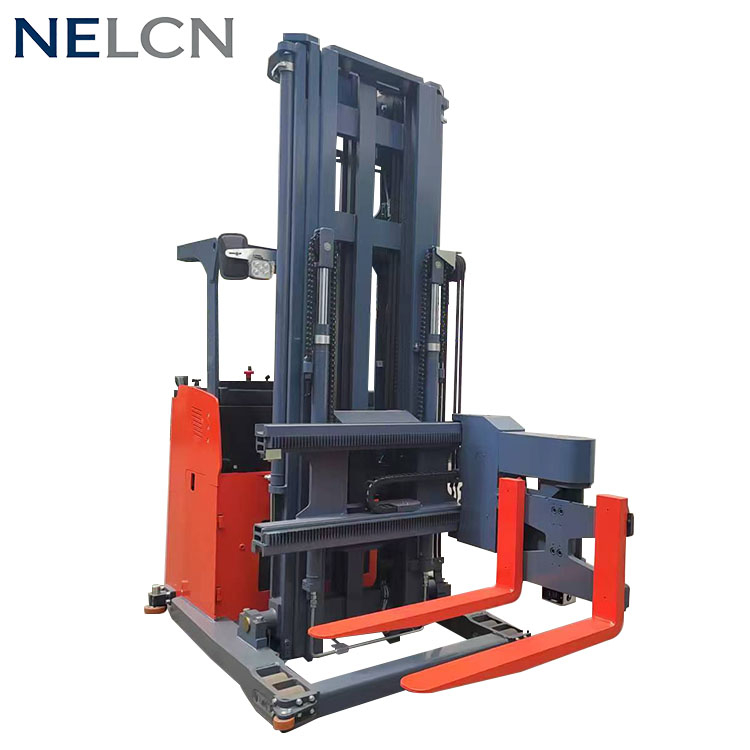

Unlike conventional forklifts that require large turning space, this three-way pallet stacker uses a rotating fork mechanism to move pallets forward, backward and sideways, allowing efficient operation in narrow aisles.
With lifting heights from 3 meters to 10 meters and compact operation capability, it helps warehouses maximize vertical storage capacity while reducing space requirements.
Technical Specifications
Parameter | Standard Specification |
Equipment Type | Electric Three-Way Stacker |
Application | VNA Narrow Aisle Warehouse |
Load Capacity | 1000kg / 1500kg / 2000kg |
Lifting Height | 3000mm - 8000mm |
Maximum Lift Height | Up to 10000mm |
Minimum Aisle Width | Approx. 1500mm |
Fork Rotation | 180° |
Battery Options | Lead-acid / Lithium Battery |
Drive Motor | 1.5kW / 2.2kW |
Controller | Curtis Controller |
Certification | CE / ISO9001 |
Key Benefits
1. Three-Way Fork Movement for Narrow Aisle Operation

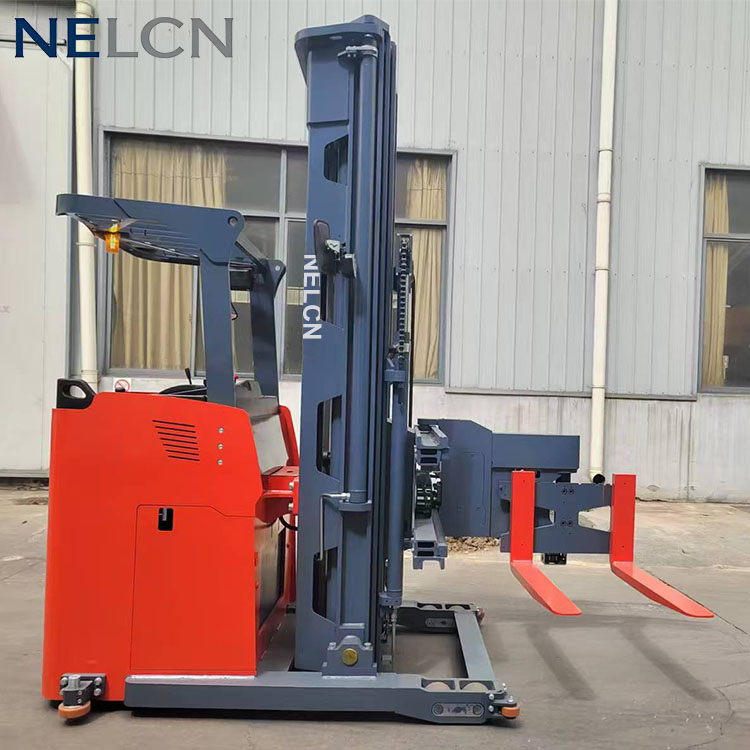

The 180° rotating fork system enables pallet handling in three directions:
This design eliminates the need for large turning movements, making it suitable for warehouses with limited aisle space.
The minimum aisle requirement can reach approximately 1.5 meters, depending on pallet dimensions and rack configuration.
2. High Lift Performance for Vertical Storage
Designed for high-density storage environments, the electric three-way stacker supports lifting heights from 3m up to 10m.
It allows warehouses to:
Increase storage capacity
Reduce floor space requirements
Improve warehouse utilization
It is especially suitable for high-bay racking systems where vertical space needs to be fully utilized.
3. Efficient Electric Drive System
The advanced electric drive system provides:
Available battery options include:
The lithium battery version provides faster charging and longer operating endurance for intensive warehouse operations.
4. Stable Structure for Heavy-Duty Warehouse Use
The reinforced mast and high-strength frame ensure stable lifting performance at greater heights.
Key components include:
The structure is designed for continuous warehouse operation with reduced maintenance requirements.
Application Scenarios
This electric three-way stacker is the optimal solution for high-density storage and narrow space handling, widely applied to:
Automated Warehouses & Logistics Distribution Centers
Pharmaceutical & Food Cold Storage
Retail & E-Commerce Warehousing
Industrial Workshop Material Handling
High-Rise Shelf Storage Systems
Frequently Asked Questions
What is a three-way stacker?
A three-way stacker is an electric warehouse truck equipped with rotating forks that allow pallet handling in three directions without turning the entire machine.
What is the advantage of a VNA stacker?
A VNA stacker allows warehouses to operate in narrower aisles and increase storage density compared with traditional forklifts.
Can it reach 10 meters lifting height?
Yes. Depending on configuration, the equipment can support lifting heights up to approximately 10 meters.
What aisle width is required?
The minimum aisle width depends on pallet size and rack design, but some configurations can operate in aisles around 1.5 meters.
Can lithium batteries be used?
Yes. Lithium battery options are available for customers requiring longer operating time and faster charging.
