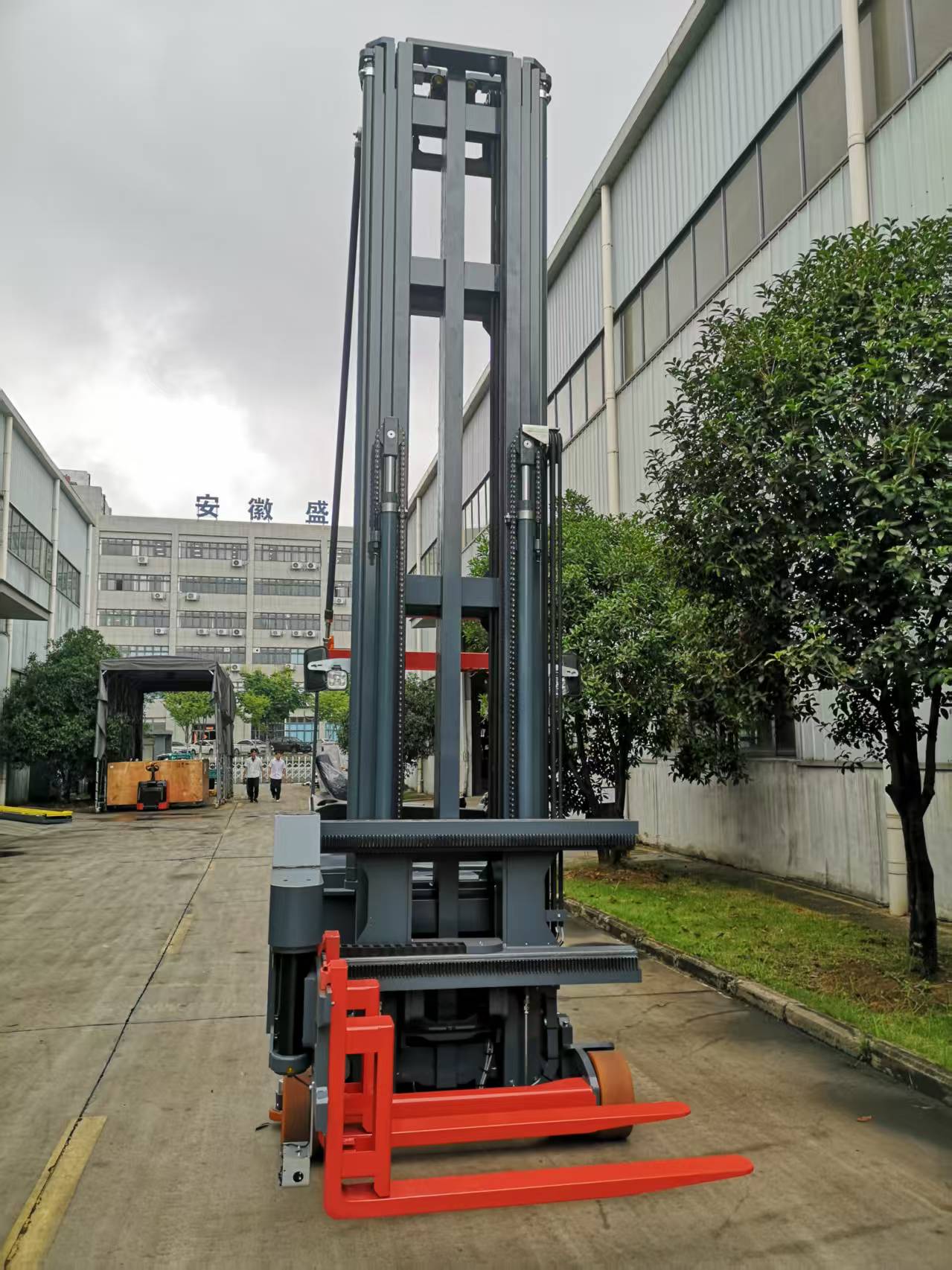

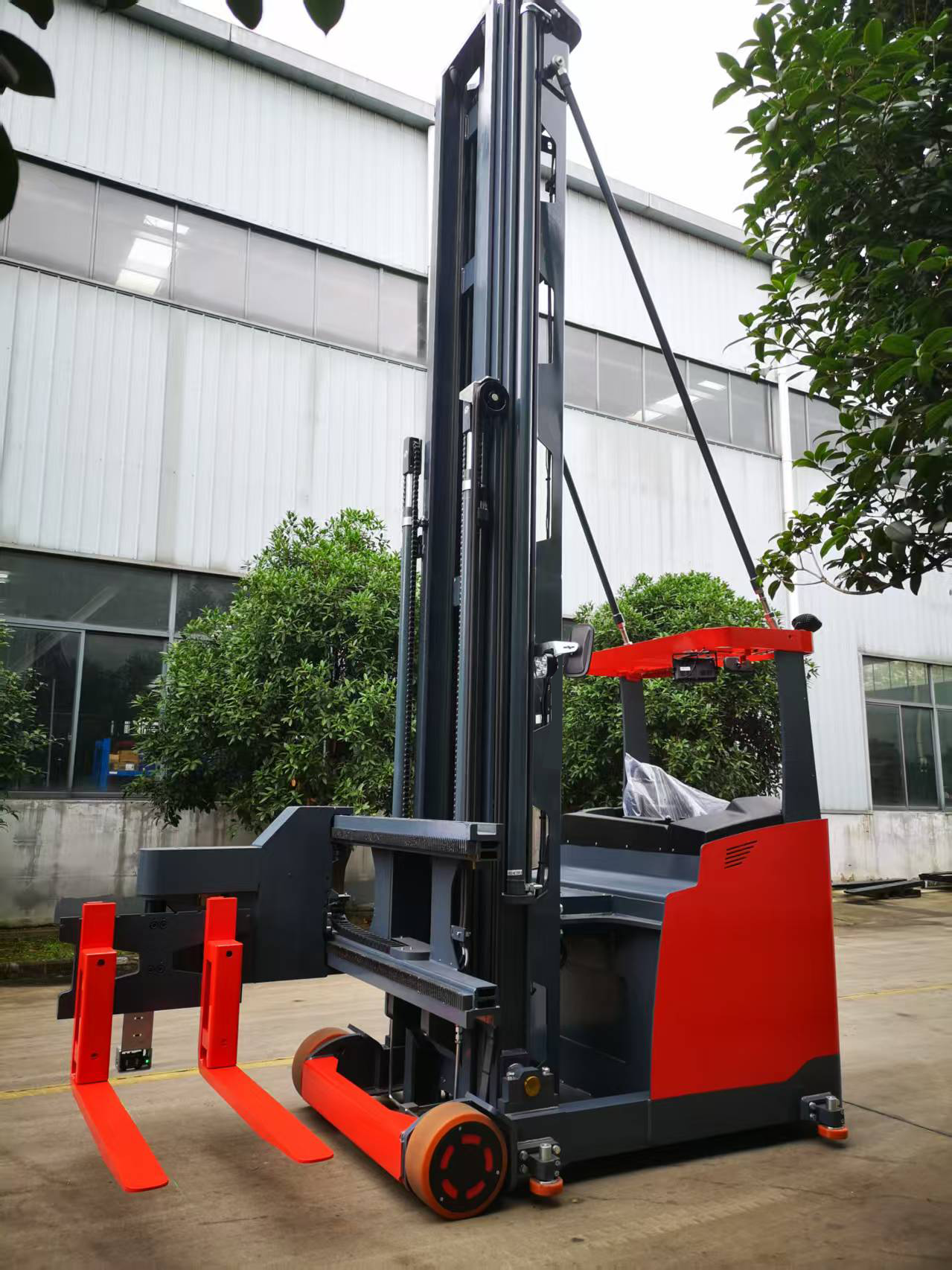

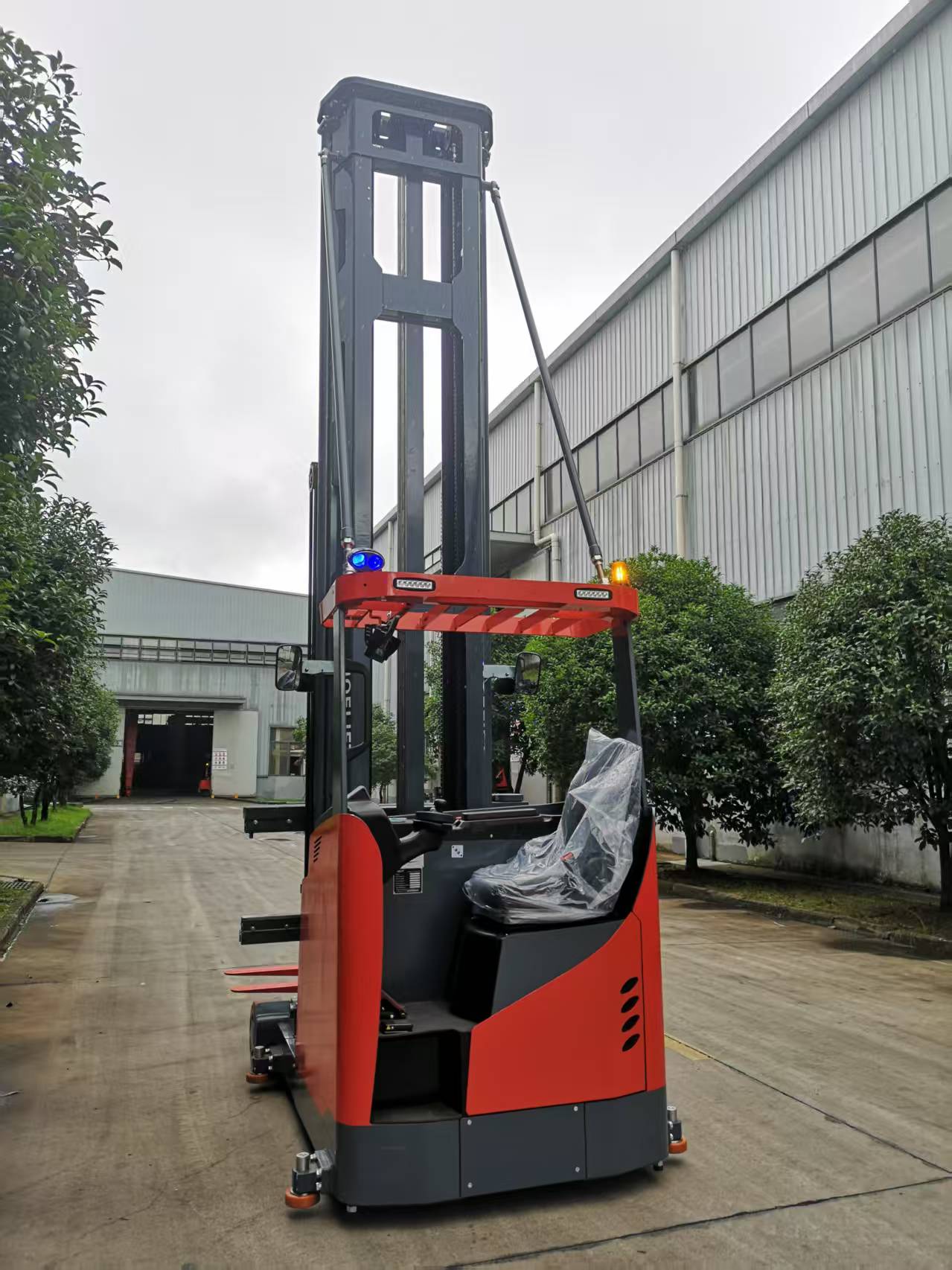

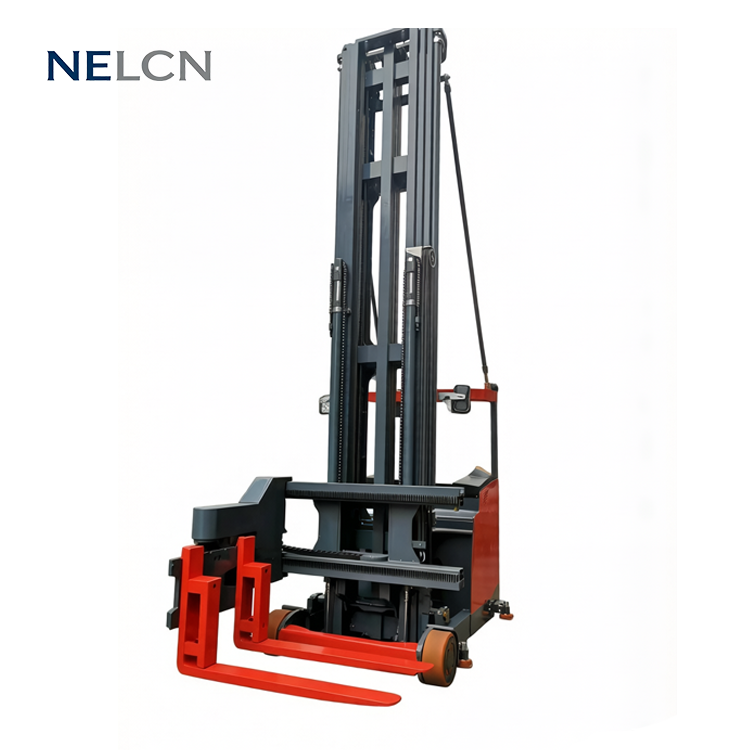

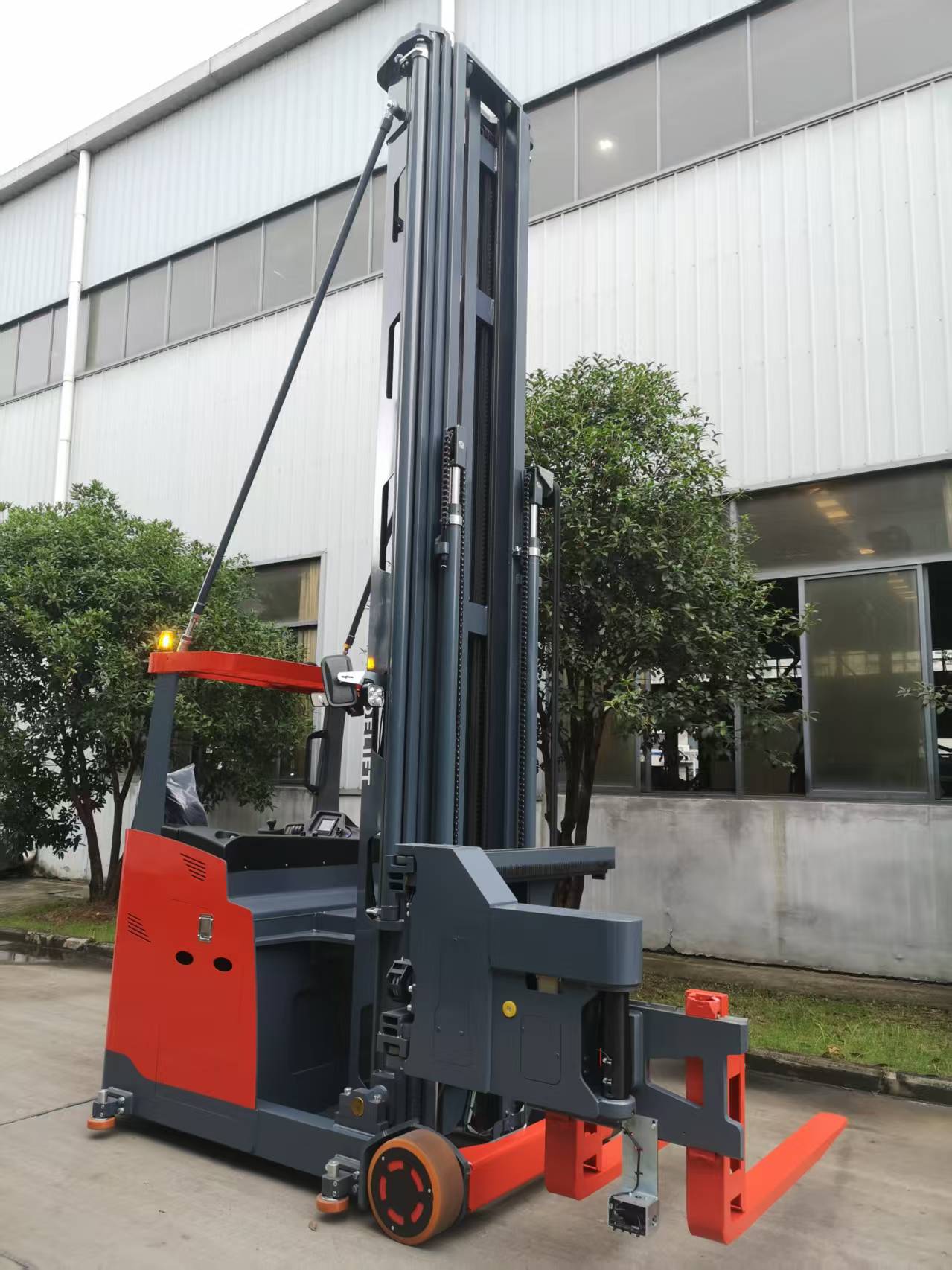

Explosion-Proof Three-Way Stacker

In the chemical, pharmaceutical, and petrochemical industries, safety is non-negotiable. Our Explosion-Proof Three-Way Stacker combines high-density storage efficiency with absolute safety compliance. Designed for Zone 1 and Zone 2 hazardous areas containing explosive gases or dust, this VNA (Very Narrow Aisle) truck allows you to maximize warehouse capacity without compromising on safety standards (ATEX / IECEx).

Quantity:
Availability:





Inquire

Products Detail

Explosion-Proof Three-Way Stacker

Safe & Efficient Storage Solution for Hazardous Environments

1. Product Overview

In the chemical, pharmaceutical, and petrochemical industries, safety is non-negotiable. Our Explosion-Proof Three-Way Stacker combines high-density storage efficiency with absolute safety compliance. Designed for Zone 1 and Zone 2 hazardous areas containing explosive gases or dust, this VNA (Very Narrow Aisle) truck allows you to maximize warehouse capacity without compromising on safety standards (ATEX / IECEx).

Unlike standard forklifts, this unit features a complete anti-sparking system, allowing it to operate where flammable substances are present .

2. Key Features & Safety Highlights

Feature	Advantage
ATEX / IECEx Certified	Certified for Zone 1 & 2 gas groups, ensuring global compliance for chemical and oil industries .
Full Anti-Spark Protection	Equipped with spark-arresting exhaust systems, temperature monitoring, and flameproof electrical components .
Stainless Steel Cladding	Forks and rear sections are clad with non-ferrous materials (stainless steel/copper) to prevent friction sparks .
Temperature Monitoring	Automatic shutdown sensors prevent overheating of motors and brakes, keeping surface temperatures below ignition points .
High Lifting Capacity	Lifting heights up to 6,000 mm with capacities up to 1,500 kg, maximizing vertical storage .
Narrow Aisle Operation	Operates in aisles as narrow as 1,600 mm, significantly increasing storage density compared to standard counterbalance trucks .
AC Drive Technology	Maintenance-free AC drive motors ensure high efficiency and reliable performance in demanding 24/7 operations .

3. Technical Specifications

Here are the key parameters for our Explosion-Proof Three-Way Stacker (Model Reference: CSDB Series) :

Parameter	Standard Specification
Model	CSDB10-60S / CSDB15-60S
Power Type	Electric
Rated Capacity	1000 kg / 1500 kg
Lift Height	6000 mm (Customizable)
Battery Voltage/Capacity	48V / 400Ah (Lead-acid or Lithium option)
Drive Motor Power	6.5 kW AC
Aisle Width (Ast)	1600 mm - 1760 mm (with 1000x1000 pallet)
Min. Turning Radius	1910 mm
Travel Speed (loaded)	7 km/h
Explosion Proof Class	Ex II 2G IIB T4 (IECEx/ATEX)
Tire Type	Anti-static Polyurethane

Note: Customizations for specific chemical environments or higher lifts are available upon request.

4. Why Choose Our Explosion-Proof Stacker?

Uncompromising Safety
Our Hazardtex mobile equipment safety system isolates all ignition sources. By eliminating electrical sparks, hot surfaces, and static electricity, we ensure that the truck itself never becomes a source of ignition in a volatile atmosphere .
Space Saving Design
Traditional forklifts require wide aisles. Our three-way stacker forks rotate 180 degrees (plus side shift), allowing you to handle pallets without maneuvering the truck body in the aisle. This turns your warehouse into a high-density storage powerhouse .
Heavy-Duty Industrial Build
Built on a reinforced chassis with a side-stance operator position, it provides excellent visibility and stability. The robust masts are designed to handle heavy loads at height without deflection.
Low Maintenance
With AC motors that are brushless and maintenance-free, and high-quality European-branded hydraulic components, downtime is minimized, and productivity is maximized .

5. Application Scenarios

Chemical Warehouses: Safe handling of paints, solvents, and resins.
Oil & Gas Logistics: Storing drums and equipment in potentially explosive atmospheres.
Pharmaceutical Industry: Handling of alcohol-based or solvent materials.
Paint & Coating Facilities: Safe operation in dust and fume-heavy environments .

6. Customization & Services

We understand that every hazardous environment is unique. We offer:

Battery Options: Standard lead-acid or Lithium-ion for fast charging.
Attachments: Side shifters, fork positioners.
Certification: We provide full documentation package for local safety audits (CE, ATEX, IECEx).

7. Get In Touch

Ensure the safety of your team and efficiency of your warehouse. Contact our export department today for a detailed quotation or to discuss your specific explosion-proof requirements.
