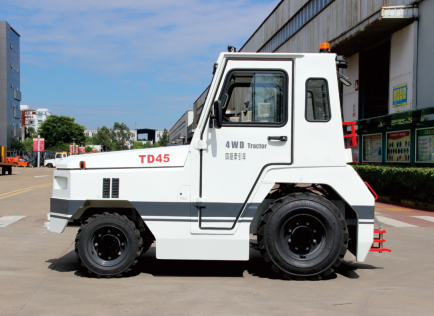

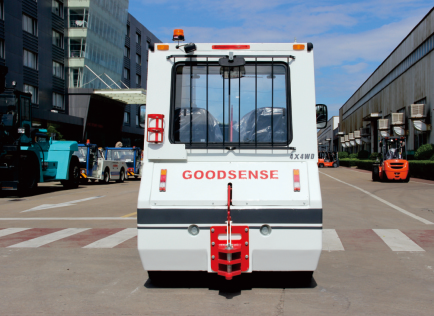

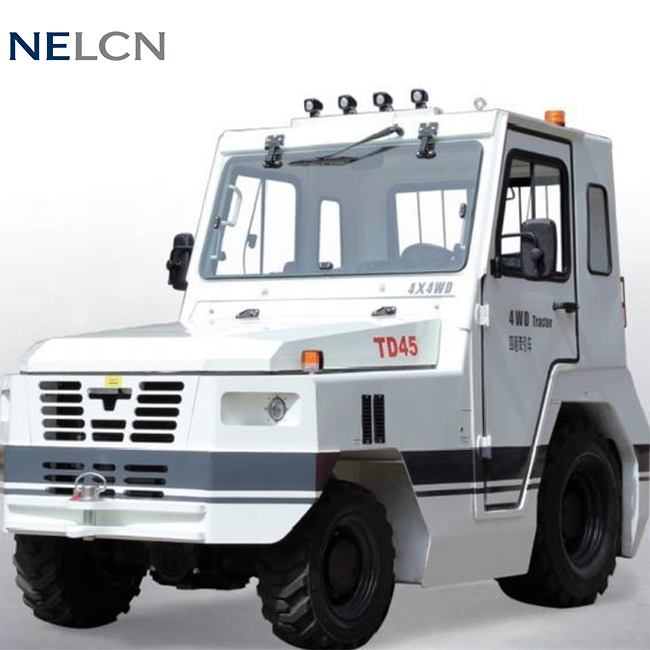

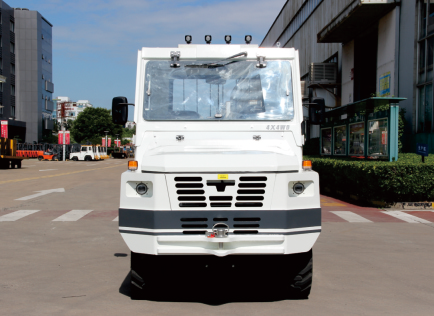

Four-wheel-drive Tow Tractor

Drivetrain: True 4-Wheel Drive (4WD) with hydraulic transmission.
Max Drawbar Pull: 45 kN – ideal for towing heavy aircraft baggage or industrial dollies.
Suspension: Plate spring + hydraulic cylinder damping for operator comfort.
Gradeability: 45% – capable of conquering steep wet ramps.

Quantity:
Availability:





Inquire

Model:
TD
Brand:
NOELIFT

Products Detail

4WD Tow Tractor: Engineered for Maximum Traction and All-Terrain Stability

When your operations move beyond the smooth warehouse floor, you need the rugged power of our 4-Wheel Drive (4WD) Tow Tractor. Designed for industrial yards, airports, and challenging outdoor environments, this tractor ensures your cargo moves safely, regardless of the surface conditions.

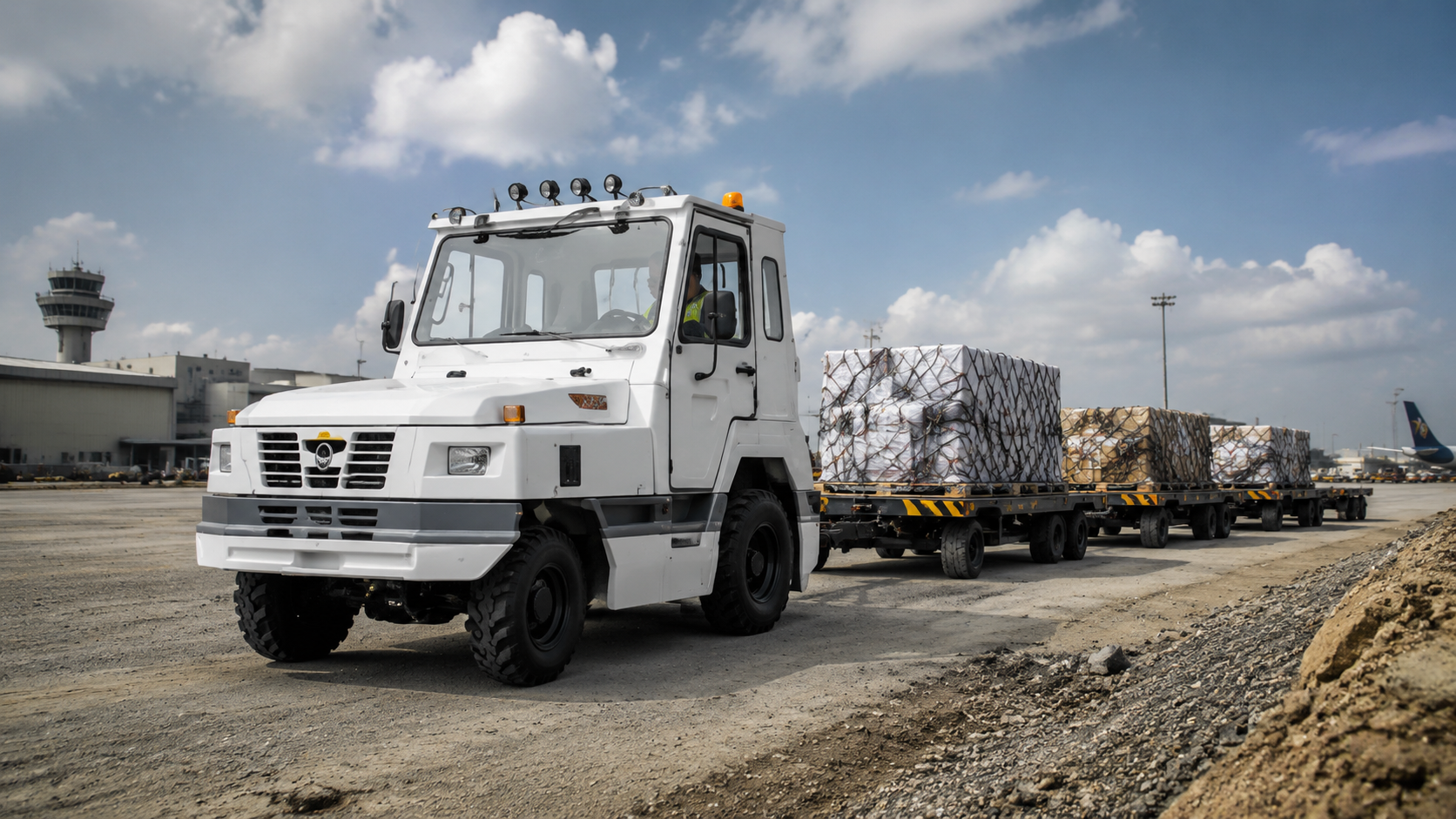

4WD tow tractor

Why the 4WD System Outperforms 2WD in Challenging Terrain

1. Superior Traction on Slippery & Uneven Surfaces

Unlike standard models where power only drives the rear axle, our full-time 4WD system distributes engine torque to all four wheels. This quadruples the friction footprint on wet mud, ice, or oily surfaces. The result? Zero slippage when starting on a 20% wet slope, ensuring the safety of both your operators and expensive cargo.

2. Hybrid Damping System (Plate Spring + Hydraulic)

Heavy loads on potholed terrain usually mean spine-jarring vibrations for the driver. Our chassis integrates plate springs with hydraulic cylinder shock absorbers. This dual-layer suspension reduces vertical impact by over 40% compared to leaf-spring-only systems, directly translating to less driver fatigue and faster shift handovers.

3. High Trafficability for Niche Applications

With a 45% gradeability and a tight 4,300 mm turning radius, the TD45 maneuvers easily in confined shipyards or congested airport aprons. The hydraulic power steering reduces steering effort by 60%, allowing pinpoint accuracy when coupling with baggage trailers.

TD45 Technical Specifications (Diesel 4WD Model)

Characteristic	Parameter	Value
Model	—	TD45
Power Type	—	Diesel
Rated Capacity	kg	48,000
Service Weight	kg	5,800
Dimension Parameter
Overall Length/Width/Height	mm	3,840 / 1,670 / 2,415
Wheelbase	mm	1,980
Ground Clearance	mm	200 (Optimal for debris clearance)
Turning Radius	mm	4,300
Performance
Travel Speed (Unloaded)	km/h	25
Max Drawbar Pull	kN	45
Max Gradeability	%	45
Engine & Transmission
Engine Model	—	KDI2504TCR
Rated Power / Torque	kW / N·m	55.4@2600 / 300@1500
Transmission Type	—	Hydraulic Power (FWD: 2/1)

Why Global Logistics Managers Trust Our 4WD Solutions

As a global industrial equipment manufacturer, we specialize in "factory-direct" solutions that solve real-world logistical problems. Our 4WD tow tractors are particularly popular in markets with high rainfall or diverse terrain, offering a more reliable alternative to standard rear-wheel-drive models.

✔ ISO 9001 & CE Certified Production Line.

✔ 24/7 Remote Diagnostics Support for Fleet Operators.

✔ 1-Year Warranty on 4WD Drivetrain Components.
