1.5–5 Ton Gasoline Forklift Truck

✅ 1.5–5 ton capacity range✅ 3–6m lift height options✅ Dual-fuel support for flexible operation

Versatile gasoline-powered forklifts with optional dual-fuel (gasoline/LPG) capability, giving you flexibility for indoor and outdoor use. 3–6m lift height fits most warehouse and loading dock needs. Smooth acceleration and low vibration keep operators comfortable during long shifts. Ideal for general warehousing, manufacturing, and retail distribution.

Quantity:
Availability:





Inquire

Products Detail

Model				FG(L)10	FG(L)15	FG(L)18	FG(L)20	FG(L)25	FG(L)30	FG(L)35
Power type				Diesel/Gasoline/LPG			Diesel/Gasoline/LPG
Rated capacity			KG	1000	1500	1750	2000	2500	3000	3500
Load center			MM	500			500
Dimension
Liftheight			MM	3000			3000
Free lift height			MM	162			140		145
Fork size			MM	920×100×40			1070×120×40	1070×120×45	1070×125×45	1070×130×45
Mast tilt angle			deg	6\12			6\12
Front overhang			MM	429			484	489	494	500
Length to fork facea			MM	2180	2235	2270	2510	2580	2720	2775
Overall width			MM	1080			1150		1225
Mast lowered heightdimension			MM	1995			2050		2080	2230
Mast extended height			MM	4042			4040		4272
Overhead guard height			MM	2075			2060		2090
Turning radius			MM	1890	1960	2000	2170	2240	2460	2540
Performance
Travel speed (full load/no load)	Hydraulic		KG/H	13.5/14.5			17/19		18/19
	Mechanical	Shift Ⅰ		5.5/6			8.5/9		8.8/9
		ShiftⅡ		13.5/14			18.5/19		18.5/20
Lift speed (full load/no load)			MM/SEC	450/510			470		430	400
Max. grade ability				20			20			15
Service weight			KG	2340	2740	2943	3550	3880	4380	4750
Chassis
Tyre		Front		6.50-10-10PR			7.00-12-12PR		28×9-12-12PR	28×9-15-14PR
		Rear		5.00-8-8PR	5.00-8-10PR		6.00-9-10PR		6.50-10-10PR
Tread		Front		890			970		1000
		Rear	MM	920			970		970
Wheelbase			MM	1400			1650		1700
Ground clearance(full load/no load)		Mast	MM	95/110	85/110		85/105		110/135
		Frame		105/115			115/120		135/140

Engine

Type

Diesel engine

Gasoline engine

Diesel engine

Gasoline engine

Model

NB485BPG

Yanmar

4TNE92

ISUZU

C240PKJ

MITSUBISHI

4G64

Nissan

K21

SUZU
C240PKJ

SUZU
4JG2PE

Yanmar
4TNE92

Yanmar
4TNE98

Mitsubish
4G64-31ZG

Nissan K21

Nissar K25

(kw/rpm)Rated output

30/2600

32.8/2450

34.5/2500

37/2500

31.2/2250

34.5/2500

44.9/2450

32.8/2450

44.3/2300

37/2500

31.2/2250

37.4/2300

(N.m/rpm)Rated torque

131/1800

149/1600

139/1800

161/1600

143/1600

139/1800

186.3/1600

149/1600

206/1700

161/1600

143/1600

176/1600

No. of cylinder

4

(mm)Bore x stroke

85×100

92×100

86×102

86.5×100

89×83

86× 102

95.4×107

92 x100

98x110

86.5× 100

89×83

89×100

(L) Displacement

2.27

2.659

2.369

2.35

2.065

2.369

3.059

2.659

3.319

2.35

2.065

2.488

Truck model

FD10/1

5/18-x

FD10/15/

18-Y

FD10/15/

18-W

FG(L)10/1

5/18-H1

FG(L)10

/15/18-H2

FD20/

25/30-W1

FD20/

25/30-W2

FD20/

25-Y1

FD30/35-Y2

FD20/2

5/30-H1

FD25/

25-H2

FD20/25

/3035-H3

Detailed specifications for all models are available. Contact us for a full catalog. Customized capacities and lifting heights are available upon request.

|

Product Description

A gasoline-powered forklift is a type of internal combustion counterbalance forklift that uses gasoline as its primary fuel. It is widely used in material handling, logistics, warehousing, manufacturing, and outdoor loading/unloading scenarios for lifting, transporting, and stacking palletized goods.

|

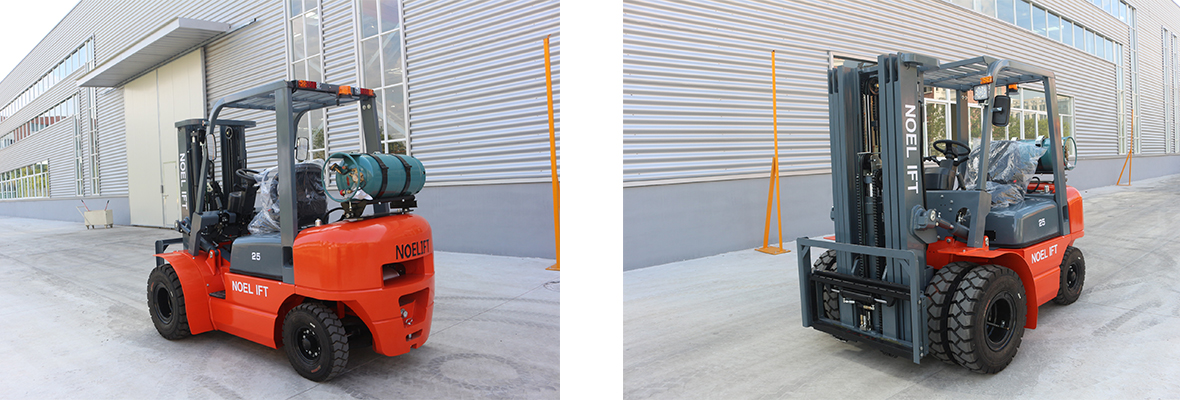

Product Showcase

未标题-1

|

Core Features

1.High Power & Fast Response

Equipped with a four-stroke gasoline engine, it delivers strong low‑speed torque, fast acceleration, and responsive lifting, ideal for heavy‑duty and continuous operation.

2.Instant Refueling

Refueling takes only a few minutes, supporting 24/7 non‑stop operation with no downtime for battery charging.

3.Excellent Versatility

Suitable for outdoor yards, construction sites, and well‑ventilated indoor areas; performs reliably in cold weather with easy starting.

4.Stable & Easy to Maintain

Simple engine structure, widely available parts, low maintenance difficulty, and long service life.

5.Ergonomic & Safe Design

Compact body, small turning radius, wide‑view mast, adjustable steering wheel, and integrated safety features including overhead guard, seat sensor, and emergency stop.

|

Advantages Summary

1.Strong power for heavy loads

2.No waiting for charging

3.Good cold‑start performance

4.Low maintenance cost

5.Flexible for indoor/outdoor use

|

Application Notes

Gasoline forklifts produce exhaust emissions, so they are mainly recommended for outdoor use or well‑ventilated indoor spaces. For closed environments, electric or LPG forklifts are more suitable.
