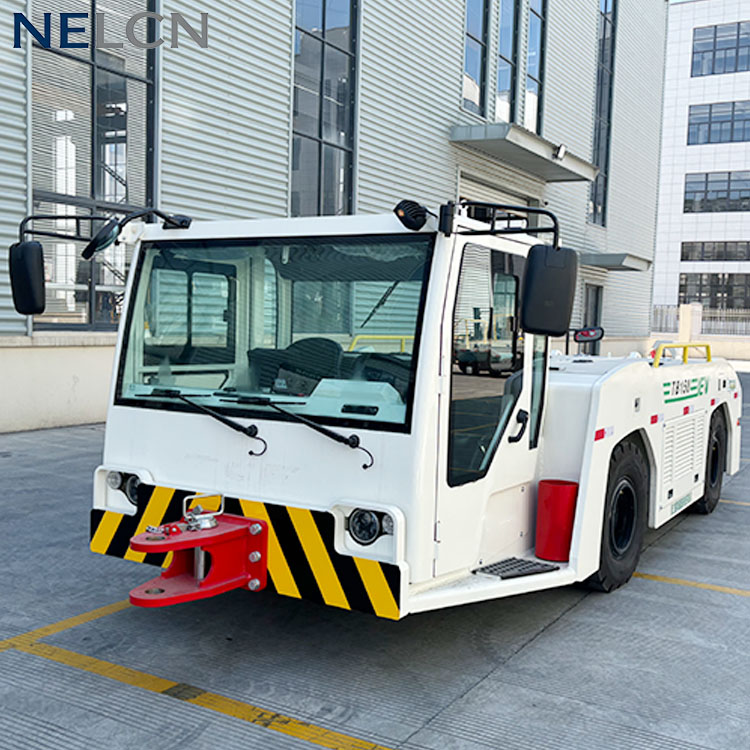

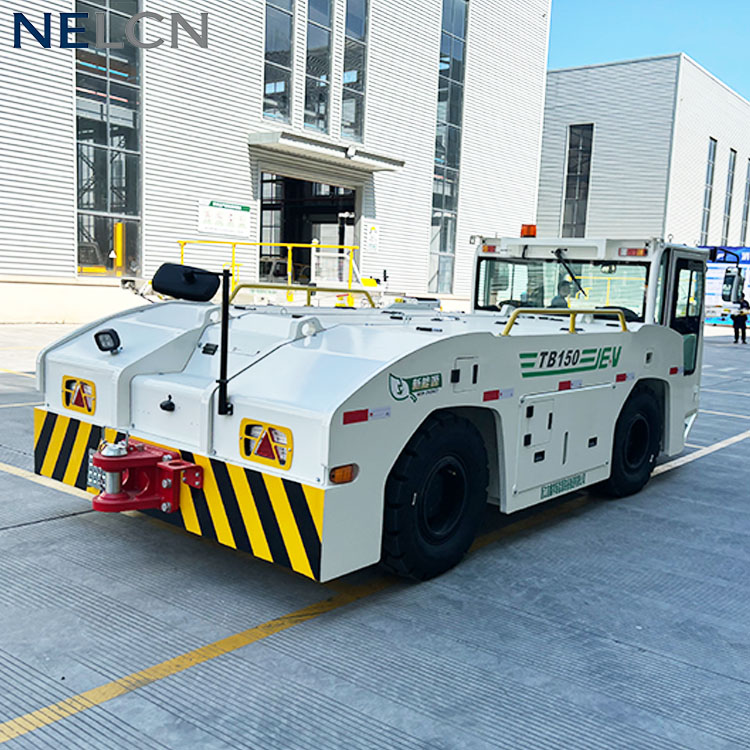

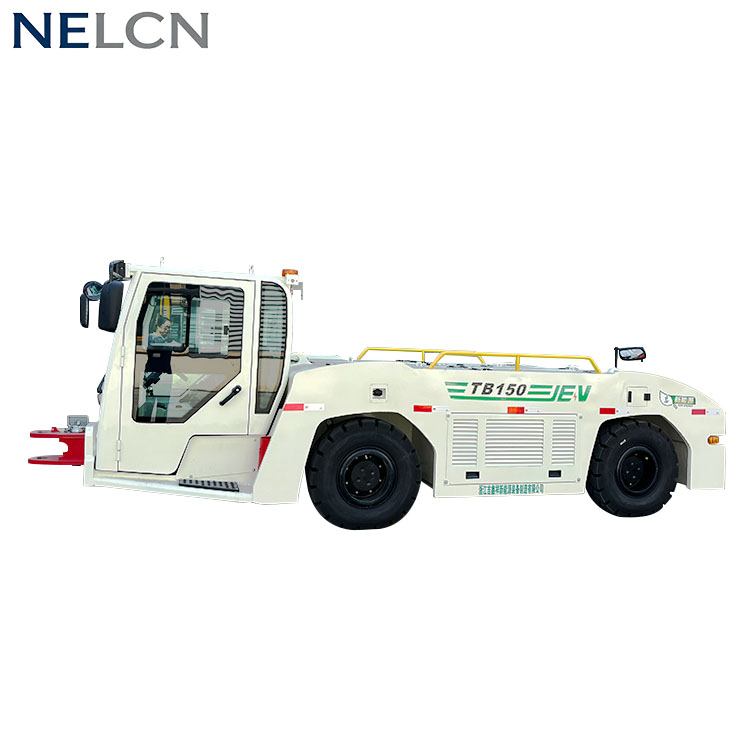

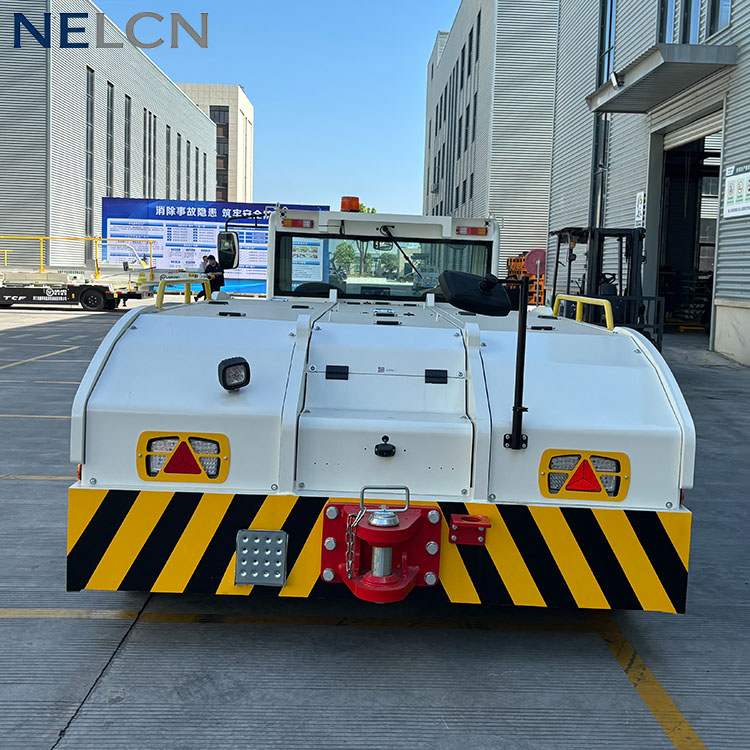

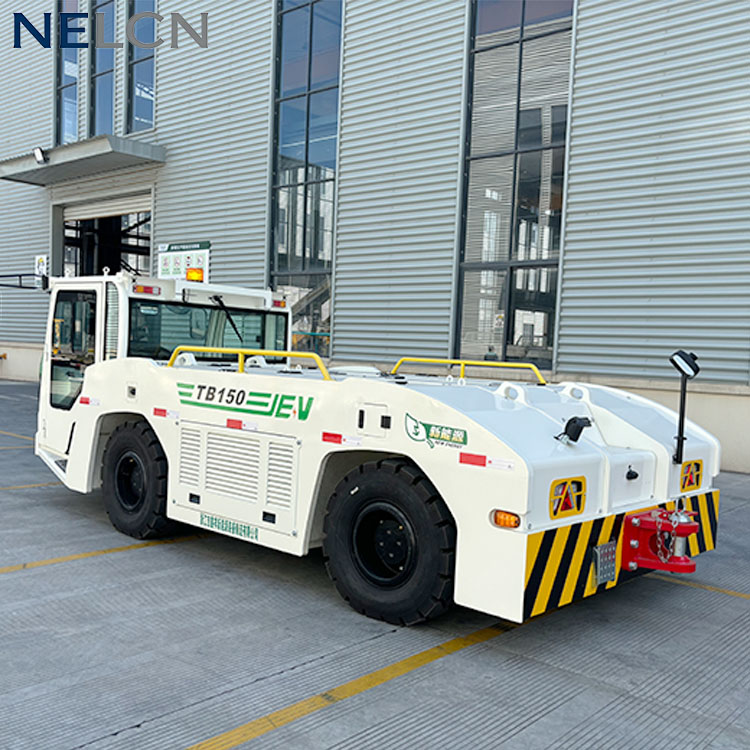

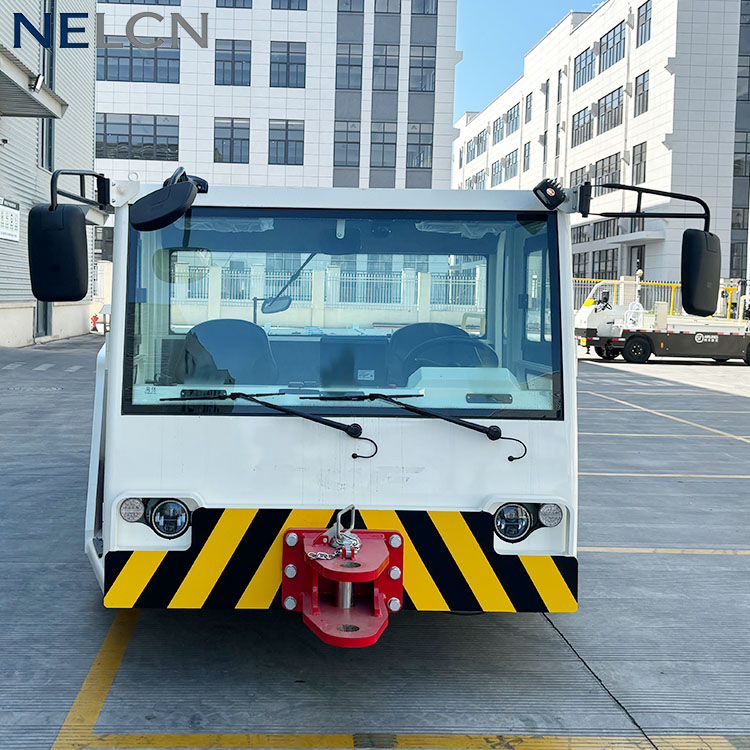

The NOELIFT heavy-duty tow tractor series represents the pinnacle of electric industrial vehicle design. Unlike standard forklifts or light-duty tugs, these machines are built with reinforced chassis, high-capacity axles, and industrial-grade AC drive systems to handle continuous operation in ports, airports, and heavy manufacturing facilities.
Available in capacities from 10 to 50 tons (with custom options up to 100 tons), our tractors provide a clean, quiet, and cost-effective alternative to diesel terminal trucks. Whether you need to move aircraft, shipping containers, or mining equipment, NOELIFT has the solution.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model Series | NOELIFT Series | Drive Type | AC Induction Motor |
| Towing Capacity | 10T / 20T / 30T / 50T (Custom up to 100T) | Battery Voltage | 48V / 72V / 80V |
| Max Travel Speed (Loaded) | 10 - 25 km/h (depending on model) | Battery Type | Lead-acid / LiFePO4 (Lithium) |
| Gradeability (Loaded) | 8% - 15% | Turning Radius | 2500mm - 4500mm |
| Operator Position | Sit-down / Stand-up (custom) | Tire Type | Pneumatic / Solid / Super Elastic |
| Overall Length | 2500mm - 4000mm | Overall Width | 1200mm - 2000mm |
| Service Weight | 3000kg - 8000kg | Certifications | CE, ISO |
Our tractors feature a high-strength steel frame and industrial-grade drive axle, capable of withstanding the shock loads and continuous stress of heavy towing. The tow pin is forged and reinforced to handle sudden starts and stops with multi-ton loads.
Equipped with a heavy-duty AC traction motor from leading global suppliers, our tractors deliver instant torque at low speeds for smooth starts, even with maximum loads. The regenerative braking system recovers energy during deceleration, extending operating time by up to 20%.
For operations requiring 24/7 uptime, we offer lithium-ion (LiFePO4) battery integration. Benefits include:
Opportunity charging | Charge during breaks
5x longer life than lead-acid
No maintenance | No water refilling
Lightweight | More efficiency
Every industry has different towing needs. We offer custom tow hitch designs to match your existing trailers, carts, or aircraft tugs. Options include:
Pintle hook
Pin-type coupler
Automatic coupling
Height-adjustable hitches
Dual-circuit braking system | Hydraulic + electromagnetic
Blue spot light / strobe light | Pedestrian warning
360° visibility | Operator sight lines optimized
Reverse camera (optional) | For large loads
Emergency stop button | Easily accessible
| Industry | Application |
|---|---|
| ✈️ Airports | Baggage trains, cargo dollies, aircraft pushback |
| Ports & Terminals | Container movement, RoRo operations |
| ⛏️ Mining | Heavy equipment transport, material hauling |
| Heavy Industry | Steel coil movement, large part transfer |
| Railways | Railcar spotting, yard shunting |
| Large Warehouses | Multi-trailer train pulling |
With over 20 years of experience in electric vehicle manufacturing, [Your Brand] has delivered thousands of heavy-duty tow tractors to clients worldwide. We don't just sell machines; we provide complete logistics solutions.
✅ CE, ISO, SGS Certified - International quality standards
✅ Factory Direct Pricing - No middleman, best value
✅ OEM/ODM Available - We build to your specifications
✅ Global Shipping - Safe packing, fast delivery
✅ 24/7 After-Sales Support - Remote diagnosis + spare parts
*"We purchased 6 units of NOELIFT 30-ton electric tractors for our airport ground operations. They have replaced our old diesel tugs and reduced our fuel costs by 80%. The lithium batteries allow us to run 24/7 with opportunity charging."*
— Head of Ground Support, International Airport
Contact our engineering team today for a custom quote and technical consultation. We'll help you select the right model and tow hitch configuration for your specific application.
