High-Level Three-Way Stacker

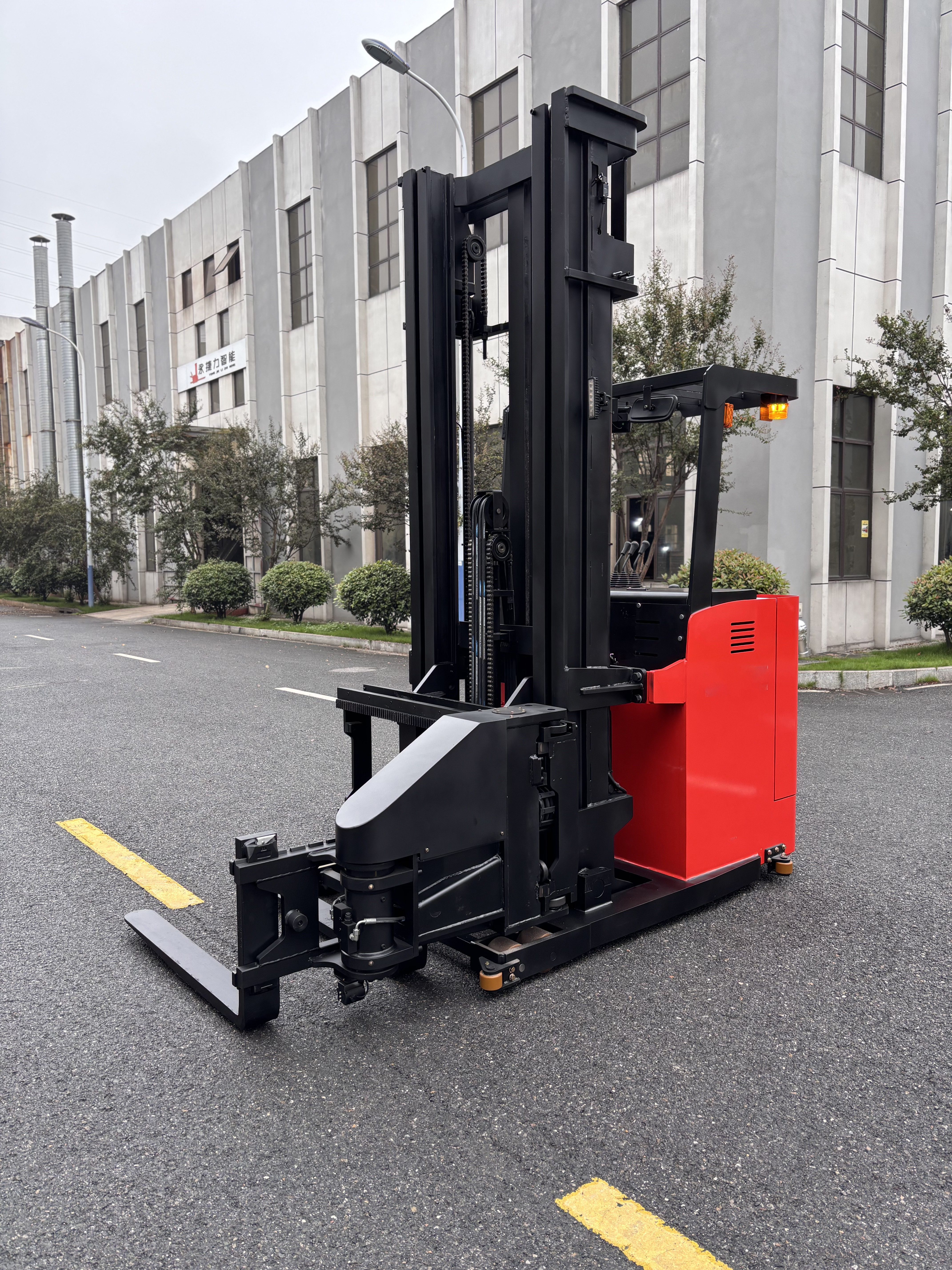

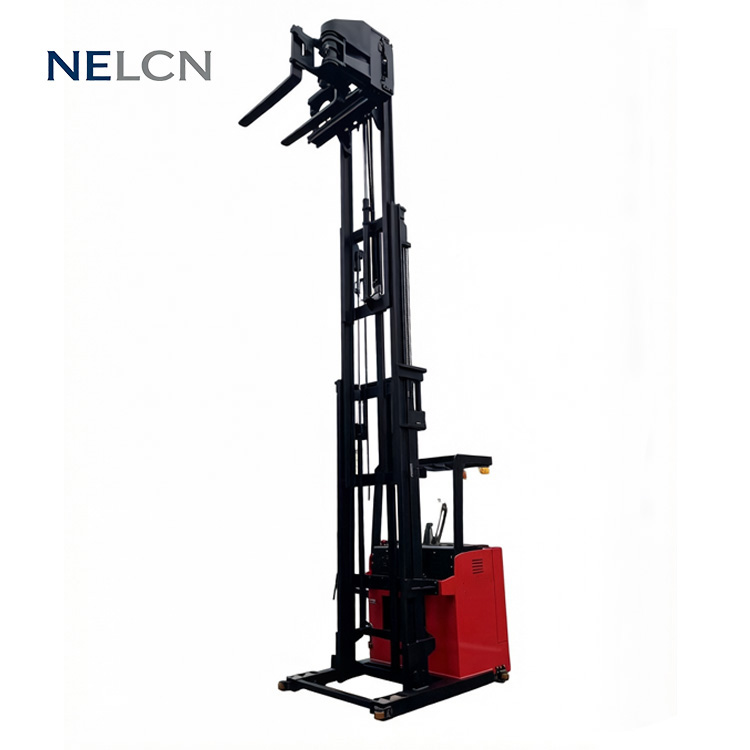

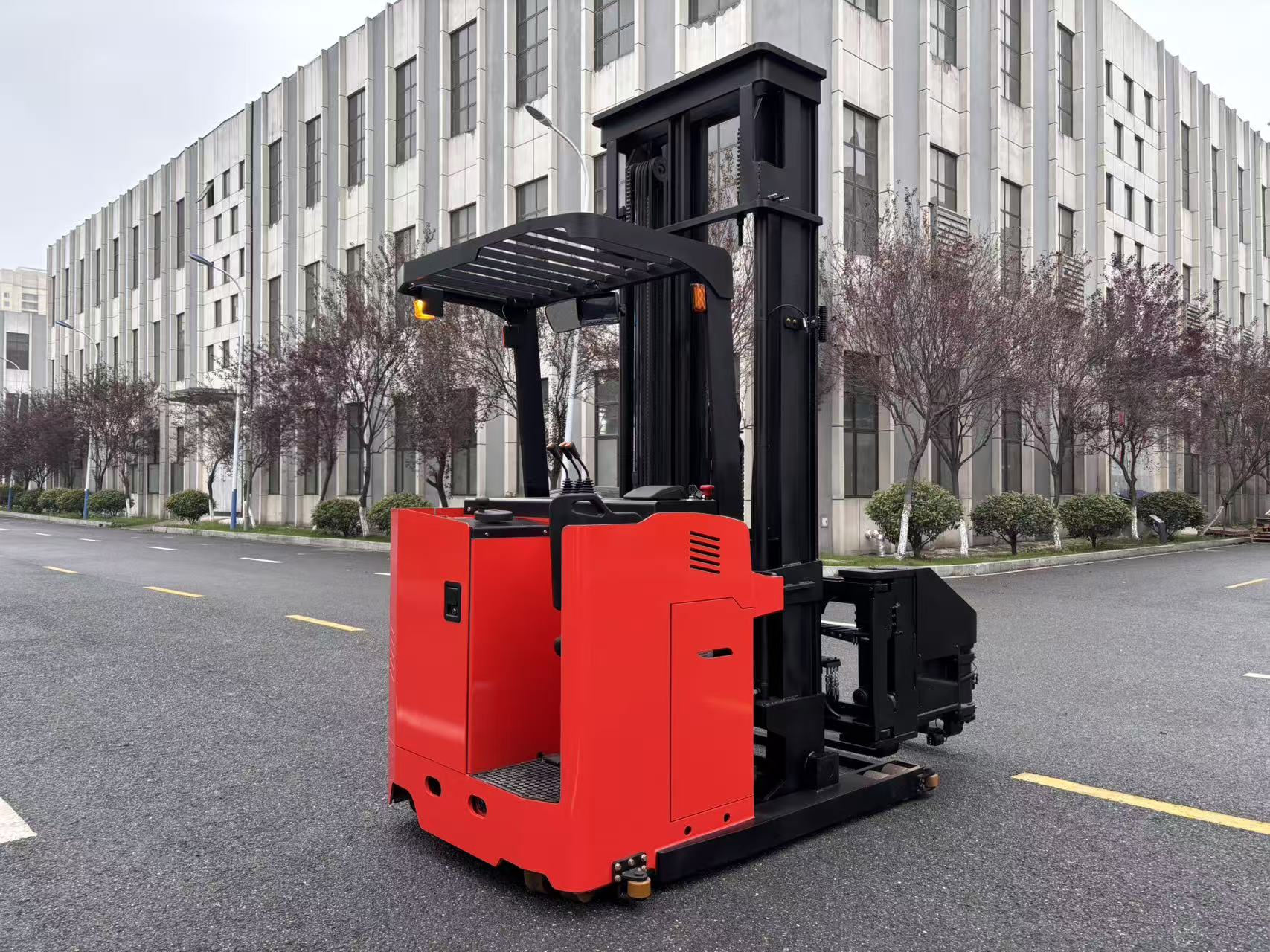

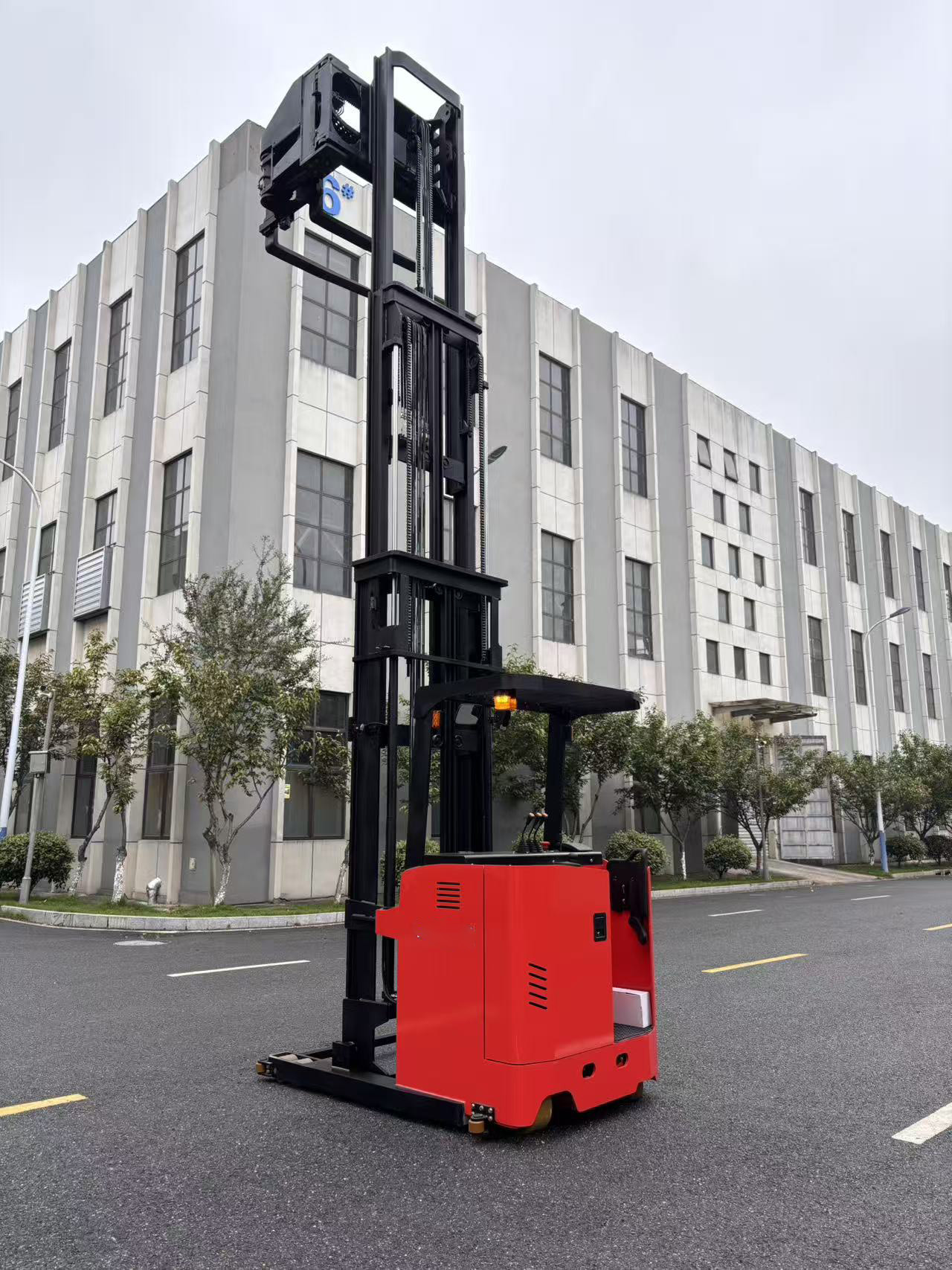

The TC Series Three-Way Narrow Aisle Forklift is designed for high-density warehouse storage applications. With 180° rotating forks and side shifting function, it enables efficient pallet handling in narrow aisles without forklift turning. Suitable for medium and high-level racking systems with lifting heights from 3 to 10 meters.

Quantity:
Availability:





Inquire

Products Detail

High-Level Three-Way Stacker - Leading Manufacturer for Narrow Aisle Warehouse Storage

The TC Series VNA (Very Narrow Aisle) 3-Way Forklift is engineered for high-density warehousing, maximizing storage capacity in ultra-narrow spaces. Featuring a 180-degree rotating and side-shifting fork mechanism, the truck eliminates the need for the body to turn within the aisle, enabling seamless stacking and retrieval on both sides.

Technical Specifications

Model	TC12	TC16
Rated load capacity (kg)	1200	1600
Fork size (L×W×T) (mm)	100 / 122 / 40	1200 / 125 / 50
Overall length (mm)	2960	3000
Overall width (mm)	1370	1470
Lifting height (mm)	3 – 9	3 – 10
Minimum turning radius (mm)	1910	1980
Battery (lithium optional)	Lead acid 48V 390AH	Lead acid 48V 480AH
Right angle stacking aisle width (for 1100×1100 pallet) (mm)	1500	1600
Right angle stacking aisle width (for 1200×1200 pallet) (mm)	1600	1600
Fork outer spacing (mm) (adjustable range)	762 – 262	765 – 265

Key Benefits & Solutions

Maximizes Storage Density: Operates efficiently in aisles as narrow as 1.5 meters, significantly increasing warehouse storage capacity compared to standard reach trucks.
Boosts Operational Efficiency: The forks rotate 180° and side-shift, allowing rapid multi-position handling without repositioning the entire vehicle.
Flexible Navigation Options: Supports multiple guidance systems, including electromagnetic navigation, permanent magnet navigation, and mechanical rail guidance, to suit diverse warehouse infrastructures.
Extended Reach: Offers a flexible lifting height ranging from 3 meters to 10 meters, perfectly suited for medium-to-high rack storage environments.

Ideal Applications

Medium-to-high rack warehousing systems
High-density storage in very narrow aisles
Pallet handling and stacking requiring high precision and speed

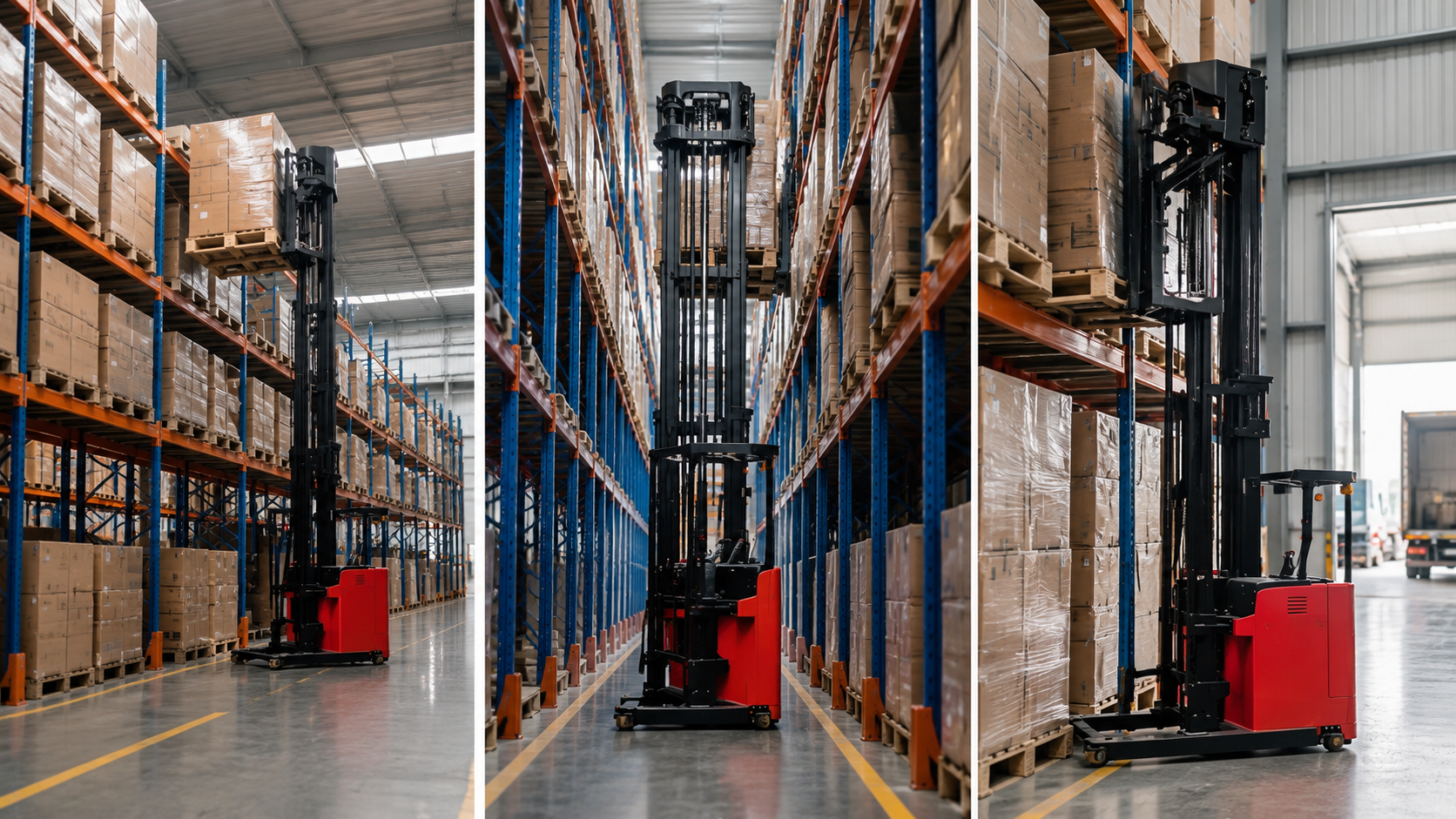

3-Way Forklift

Frequently Asked Questions (FAQ)

1. What is the main advantage of the TC Series VNA 3-Way Forklift?

The TC Series is designed for ultra-narrow aisles (as narrow as 1.5 meters). Its 180-degree rotating and side-shifting forks allow the forklift to handle goods on both sides without turning the vehicle body, significantly maximizing warehouse storage density and operational efficiency.

2. What guidance or navigation modes are supported?

The TC Series supports multiple navigation and guidance options, including electromagnetic navigation, permanent magnet navigation, and mechanical rail guidance, making it adaptable to various warehouse layouts.
