Views: 1 Author: Site Editor Publish Time: 2026-08-13 Origin: Site
Choosing an electric forklift is not simply about selecting a lifting capacity or comparing prices. The right forklift needs to match the load, working environment, lifting height, battery requirements, operating hours and application.
This guide explains the key factors to consider before purchasing an electric forklift.
Before requesting a quotation from a forklift supplier, define the following requirements:
Load capacity and load center
Working environment
Forklift type
Required lifting height
Aisle width and maneuverability
Battery type and charging requirements
Operating hours and shift patterns
Drive and braking system
Operator comfort and safety
Maintenance and total cost of ownership
Understanding these requirements first can make it easier to compare different forklift models and configurations.
Before looking at any model, look at what the forklift actually needs to lift every day.
Rated load capacity is the maximum weight a forklift can safely carry at a specified load center. For most general warehouses, loads typically fall within the 1,500 to 2,500 kg range.
A few practical guidelines:
Spec to the load you’ll move most often, then check it against the heaviest outliers
Buying too close to the limit can strain the truck and reduce safe handling margin
For heavier loads or oversized pallets, a higher-capacity model may be necessary

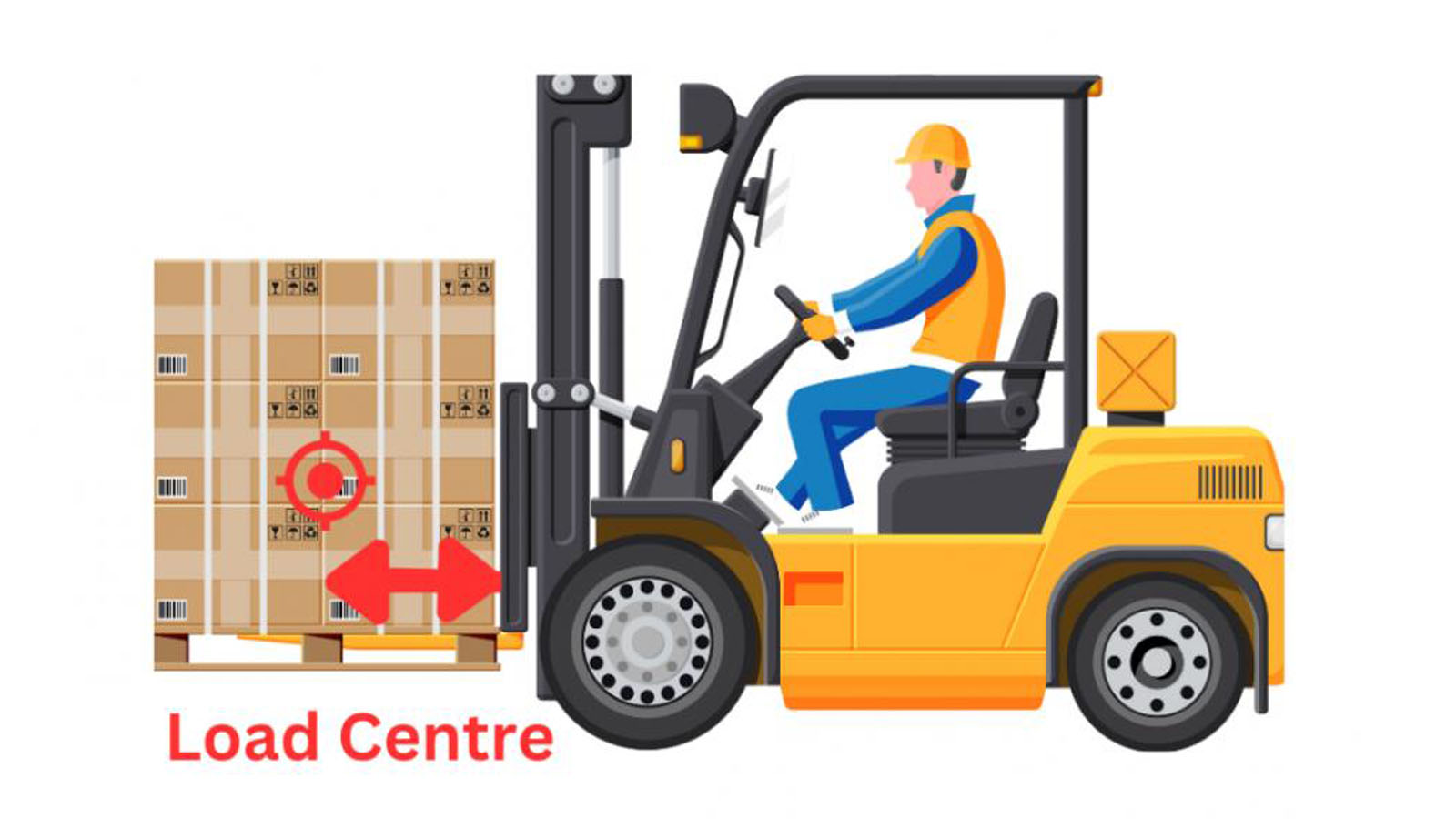

Load center is the horizontal distance from the vertical face of the forks to the load’s center of gravity. Most forklifts are rated with a standard load center of 500 mm.
This is critical because a forklift’s rated capacity should not be evaluated by capacity alone. A truck rated at 2,000 kg at a 500 mm load center won’t lift 2,000 kg at 600 mm. Capacity de-rates as the load center increases. If your pallets regularly overhang or are irregular in shape, you need a truck specified with that in mind.
Before requesting a quotation, confirm:
Average pallet weight across your most common SKUs
Maximum pallet weight for the heaviest lines you’ll handle
Load dimensions, particularly for non-standard pallets, cages, or stillages
Where the forklift operates is a core decision factor.
Electric forklifts are widely used in warehouses, manufacturing plants, retail centers, and logistics hubs due to their clean operation, lower noise, and lower maintenance requirements. However, suitability depends on the specific model and configuration.
Indoor: Most electric counterbalance forklifts are designed for indoor use, with cushion tires or smooth tread for warehouse floors
Outdoor or mixed-use: Some electric models with pneumatic or solid tires can handle outdoor docks, loading areas, and uneven surfaces
Heavy-duty outdoor: For demanding outdoor applications with heavier loads, four-wheel electric forklifts with pneumatic tires are often more suitable
This is one of the most overlooked factors in forklift selection. Before choosing a forklift, confirm:
Aisle width
Turning radius
Rack layout
Doorway clearance
Working space
Counterbalance forklifts typically need aisles of 3.5 to 4 metres to turn and stack. If your aisles are narrower, you may need a reach truck or a three-wheel forklift.
A three-wheel forklift typically has a turning radius about 10% smaller than a comparable four-wheel model. This makes a significant difference in tight warehouse layouts.
Smooth warehouse floors are easier on electric equipment. Rougher areas, uneven transitions, and frequent dock use may call for a more stable setup. Floor loading capacity should also be checked against the truck’s laden weight, particularly for heavier counterbalance models.
Different forklift types serve different applications.
Forklift Type | Key Strength | Typical Applications |
|---|---|---|

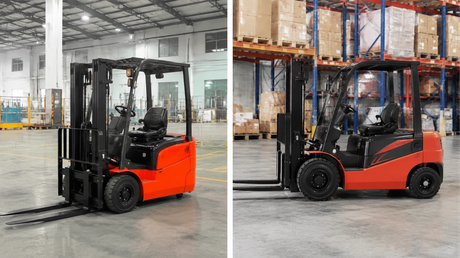

3-Wheel Electric Forklift | Maneuverability, tight turning | Narrow aisles, tight indoor spaces, picking operations |
4-Wheel Electric Forklift | Stability, versatility | Warehouses, industrial applications, heavier loads, longer travel paths |
Reach Truck | High-level storage, narrow aisles | Racking applications, narrow-aisle warehouses |
Maximum lifting height is not the only specification that matters.
When evaluating lift height, consider:
1)Maximum Lift Height
This is the height to which the forks can be raised. For electric forklifts, lift heights typically go to about seven metres, with load capacities ranging from one to eight tonnes.
2)Overall Lowered Height
The mast height when fully lowered must clear doorways, ceilings, and low-clearance areas. A duplex mast might suit a single-tier pallet store, but multi-tier racking above six metres usually calls for a triplex mast.
3)Residual Capacity at Height
A forklift may lift a load at low height but lose usable capacity at higher elevations. This is one of those small details that can create big problems once the truck is already on site. Always check the residual load capacity at your required lift height.
Most modern electric forklifts use AC (alternating current) drive systems rather than older DC (direct current) systems. AC motors offer several advantages:
Lower maintenance: Brushless design—no carbon brushes or commutators to replace
Higher efficiency: Conversion efficiency exceeds 90%, compared to about 80% for DC motors
Smoother operation: More sensitive and quicker response
Better heat dissipation: Less internal heat generation, improving longevity
Regenerative braking: Recovers energy during deceleration, extending battery life
Don’t just compare maximum travel speed. Consider:
Load condition: Speed varies with load weight
Acceleration: How quickly the truck reaches operating speed
Speed control: Precision in tight spaces
Maneuverability: Turning performance in your aisle width
Regenerative braking uses the electric motor to slow the truck, minimizing wear on mechanical brakes and reducing maintenance. Many modern electric forklifts also feature automatic speed reduction when cornering.
Choosing an electric forklift should begin with your application requirements, not simply the equipment price.
Looking for an electric forklift for your warehouse, factory, logistics operation, or other material handling application? Contact NELCN with your load, lifting, working environment, and operating requirements to discuss a suitable electric forklift configuration.
