Product Features

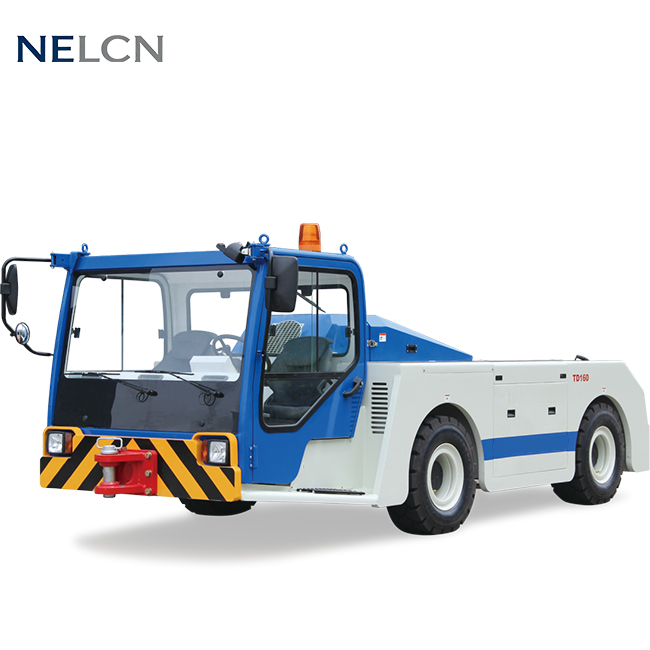

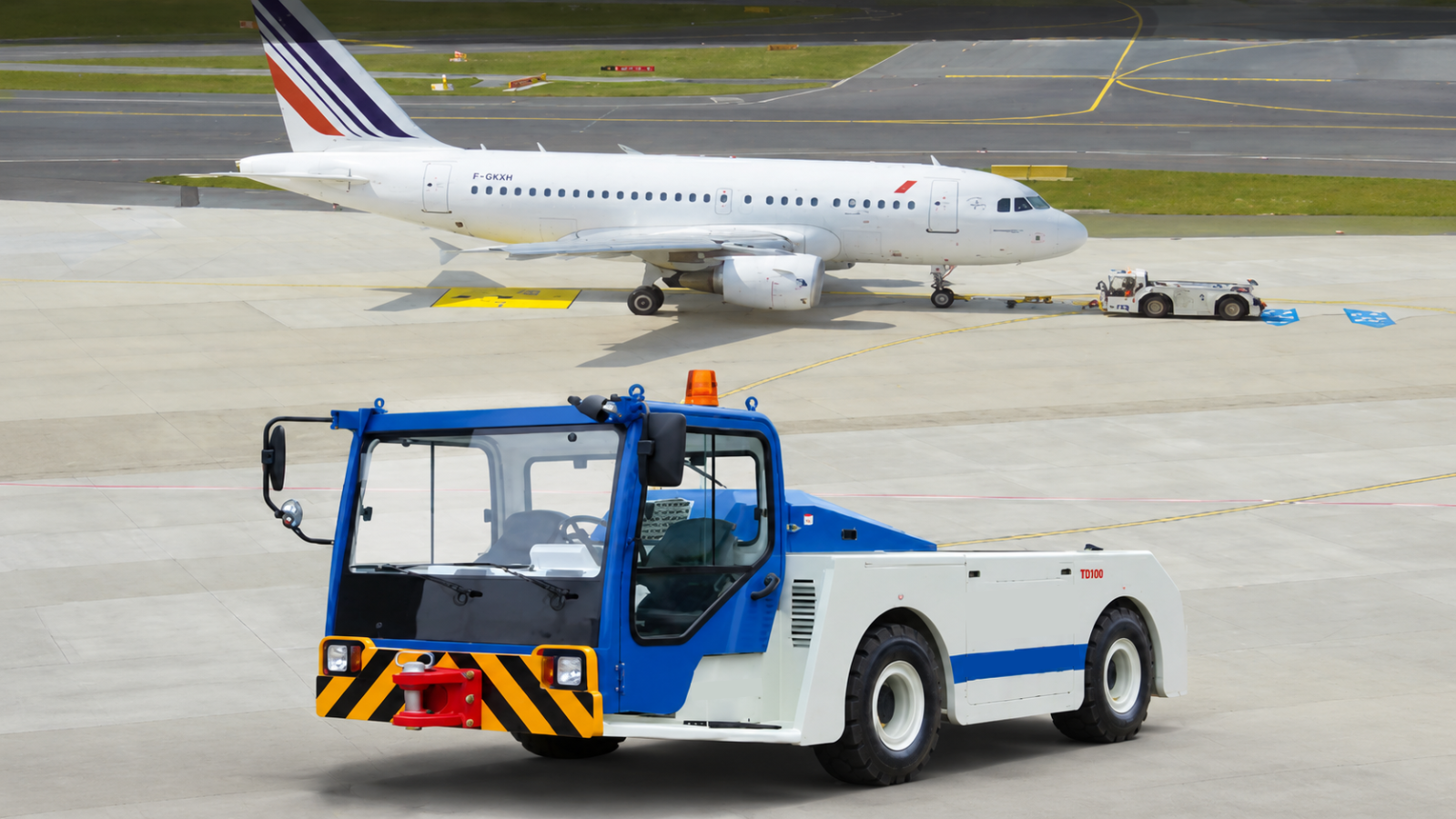

TD160 aircraft tow tractor is designed for towing small and medium sized airplane.The TD160 is the ideal tractor for handling towing operations of B767 and lower weight aircraft.Four steering modes provide optimum maneuverability in tight places and ensure aircraft safety.Four wheel drive ensure the most efficient towing operation inall kinds of environment and conditions.Application of dual circuit hydraulic brake system and wet disk brake system assure safety operation in any conditions.
Humanism design reach a perect embodiment in the TD160 tractor.Comfortable cabin,excellent operator visibility,and visual imaging system providing exceptional safety and easy operations.Easy access to all major components obtain lower maintenance costs.
Internal Combustion Aircraft Tow Tractor Technical Specification
Characteristic
| Model | Unit | TD160 |
| Power Type | - | Diesel |
| Rated Capacity | kg | 200,000 |
| Service weight | kg | 16,500 |
Dimension Parameter
| Overall Length | mm | 5660 |
| Overall Width | mm | 2200 |
| Height | mm | 2110 |
| Wheelbase | mm | 2300 |
| Wheel Tread F/R | mm | 1870 / 1870 |
| Tire - Front/Rear | - | 315/70R15 |
| Ground Clearance | mm | 230 |
| Turning Radius | mm | 5000 / 3500 |
Performance Parameter
| Travel Speed | km/h | 23 |
| Max Drawbar Pull | kN | 120 |
Motor
| Engine Model | - | QSF3.8T4C120 |
| Rated Power | kW | 89 / 2200 |
| Rated Torque | N·m | 488 / 1600 |
| Emission Standard | - | Tier 4 Final |
Transmission
| Transmission Model | - | DANA T12000 |
| Type | - | Hydraulic Power |
| FWD Stage | - | 4/3 |
| Operating Type |
| Hydraulic Transmission |
