Internal Combustion Towing Tractor: Product Details & Key Features

Engineered for Performance, Built for Comfort

Our latest series of Internal Combustion Towing Tractors is designed to handle the most rigorous industrial and airport environments. Beyond raw pulling power, we prioritize operator efficiency and safety through advanced engineering.

1. Premium Cabin Experience: Four-Seat Sealed Design

We understand that operator fatigue impacts productivity. That’s why our sealed four-seats cabin is built to provide an automotive-grade environment.

• All-Weather Comfort: The cabin is equipped with a front openable windshield and a ventilating double insulating ceiling, ensuring a cool, comfortable driving feeling even during long shifts in hot or humid climates.

• High Capacity: The spacious 4-seat configuration allows for efficient personnel transport alongside towing tasks.




2. Effortless Maneuverability & Steering

Navigating a busy airport apron or a crowded warehouse requires precision.

• Our hydraulic power recirculation ball type steering system provides an easy and flexible steering operation.

• With its nice return-ability, the tractor responds instantly to operator input, making it simple to position trailers accurately in tight spaces.




3. Superior Ride Stability (Advanced Suspension)

Say goodbye to the bumps of uneven industrial yards.

• The spiral spring hydraulic cylinder type absorption system is a core feature of our chassis design.

• It provides a stable and convenient driving and sitting experience, protecting both the operator and the towed cargo from excessive vibration and shock.




4. Advanced Dual Braking for Maximum Safety

Safety is non-negotiable in ground support operations.

• Our tractors feature a vacuum booster hydraulic dual re-circulation four-wheel braking system.

• This dual-circuit design is reliable and safe, ensuring short stopping distances and consistent braking power even when pulling maximum loads on wet or sloped surfaces.




5. Versatile Powertrain Options

To meet different global emission standards and operational needs:

• Various Engines and transmissions are available, ranging from high-performance diesel to efficient gasoline/LPG options.

• These configurations are engineered to be high economic and dynamic, offering low fuel consumption without sacrificing the torque required for heavy-duty hauling.

Engine Model and Main Specification for Option

TD25/30Internal Combustion Towing Tractor Technical Specification

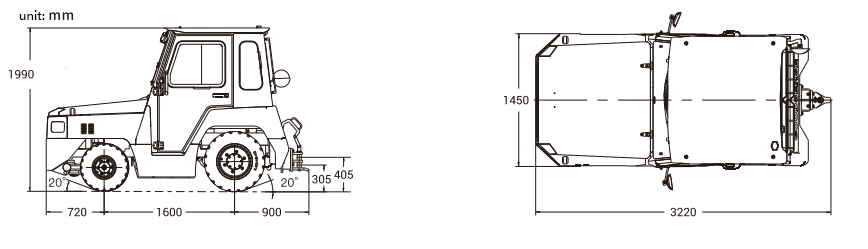

Vehicle Dimensions
