Lithium Battery Reach Stacker

Brand: NOELIFT

Load Capacity: 45 Ton

MOQ: 1 Unit

Warranty: 12 Months

Quantity:
Availability:





Inquire

Brand:
NOELIFT

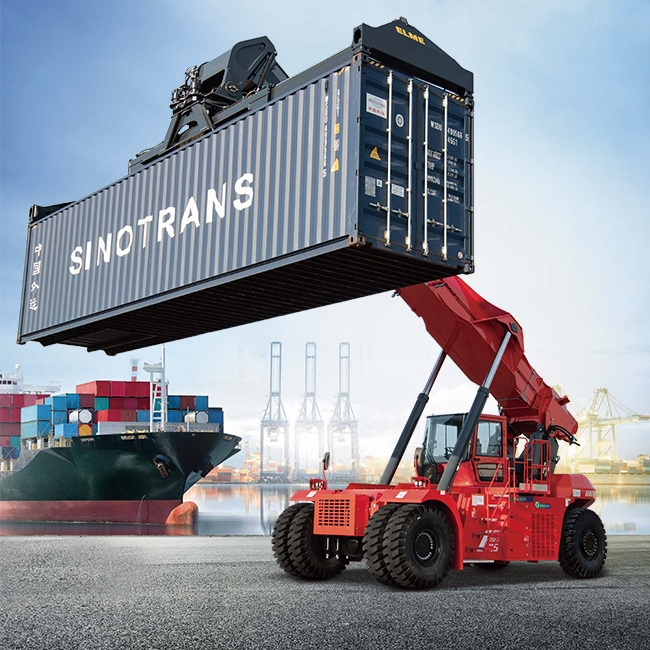

45 Ton Electric Reach Stacker for Heavy-Duty Container Handling

NOELIFT 45 ton lithium battery reach stacker is a high-performance electric container handling solution designed for ports, terminals, logistics parks, freight stations and industrial applications.

Powered by a high-capacity lithium iron phosphate (LFP) battery system, this electric reach stacker delivers powerful lifting performance, long operating hours and zero-emission operation compared with traditional diesel-powered container handlers.

Why Choose Our 45-Ton Lithium-Ion Reach Stacker?

1. Long Range and Fast Charging

The equipment utilizes a high-capacity lithium battery system designed specifically for high-intensity, continuous operations.

The standard battery provides more than 8 hours of working endurance under normal operating conditions.

With a 300kW charging system and dual charging ports, the battery can be fully charged in approximately 1.5 hours.

Optional battery capacities up to 521kWh are available according to different working environments.

2. Highly Reliable Heavy-Duty Design

The equipment features:

High-efficiency drive system
Permanent magnet synchronous motor
High efficiency and rapid response
Low energy consumption
Liquid cooling protection for the motor and controller
Premium core components
Imported Kessler drive axle
Wet braking system
Maintenance-free design
High load-bearing capacity
High transmission efficiency

3. Intelligent Safety Protection System

The equipment integrates multiple intelligent safety technologies.

Real-time monitoring system
Automatic height and angle detection
Intelligent temperature management
Fire suppression system
High-voltage safety monitoring

4. Comfortable and Eco-Friendly Operation

Features include:

Spacious cab design
Fully enclosed sliding cab
Low-noise operation
Wide field of view
Comfortable operating experience
Adjustable suspension seat
Hydraulic power steering
Ergonomic control layout
Climate control system
Standard dual-function A/C (heating and cooling) ensures comfortable operation in all weather conditions.

5. Lower Operating Costs Compared to Diesel Reach Stackers

Based on an 8-hour workday:

Lower energy consumption
Reduced maintenance costs
No diesel fuel expenses
Reduced carbon emissions

Technical Parameters

Parameter	Specification
Model	RSHD4527-A19LLiG2 / RSHD4531-A19LLiG2
Capacity	45,000kg
Container Size	20ft / 40ft / 45ft
Maximum Lifting Speed	420mm/s
Maximum Travel Speed	21km/h
Gradeability	15%
Wheelbase	6000mm
Spreader Model	ELME 817 INN
Battery Type	Lithium Iron Phosphate (LFP)
Battery Capacity	422.9kWh Standard / 507kWh Optional
Charging Time	Approx. 90 minutes with 300kW charger
Vehicle Weight	Approx. 72,000kg

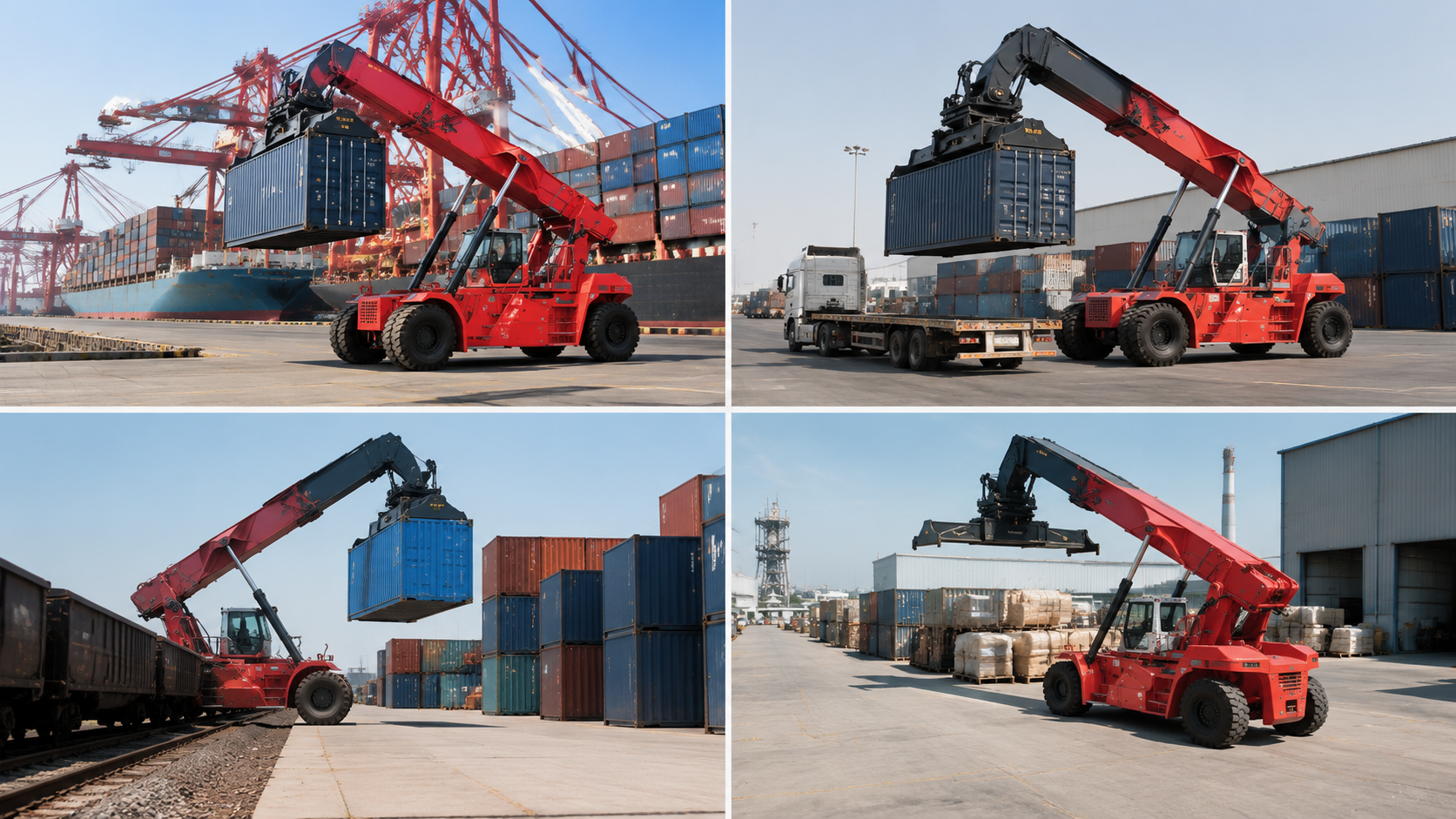

Where Can Lithium Battery Reach Stackers Be Used?

1. Ports & Terminals

Container loading, unloading and stacking operations.

2. Logistics Centers

Heavy cargo transportation and container management.

3. Industrial Enterprises

Large material handling and oversized cargo movement.

4. Freight Stations

Efficient container transfer and storage.

lithium battery reach stacker

FAQ

Q1: What is a lithium battery reach stacker?

A lithium battery reach stacker is an electric container handling machine powered by lithium-ion batteries instead of diesel engines. It is designed for container stacking, transportation and heavy cargo handling.

Q2: How long can a lithium battery reach stacker work?

The NOELIFT 45 ton electric reach stacker can operate for more than 8 hours under normal working conditions depending on workload and operating environment.

Q3: What industries use electric reach stackers?

Electric reach stackers are widely used in:
