Looking for a reliable manual scissor lift platform? Our ergonomic hydraulic lift tables offer load capacities from 150kg to 1000kg. Perfect for warehouse material handling, assembly lines, and ergonomic workstation setups. Durable, safe, and CE certified.

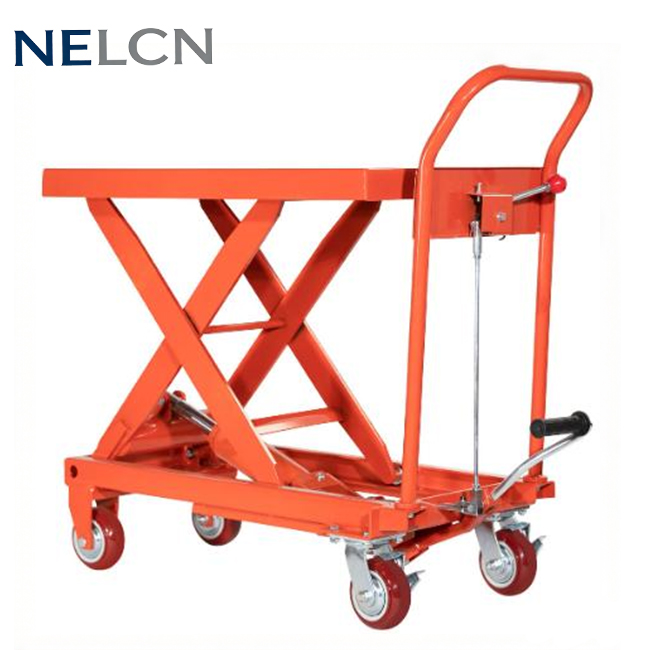

Our Manual Scissor Lift Platform (also known as a hydraulic lab jack or mobile lift table) is the ultimate solution for lifting and transporting heavy loads in warehouses, factories, and retail environments. Designed with high-quality steel and a precision hydraulic system, it minimizes manual labor and prevents workplace injuries by providing an ergonomic working height.
High-Strength Steel Construction: Built with heavy-duty manganese steel for maximum durability and long-term industrial use.
Precision Hydraulic Pump: Features a high-quality foot-pedal operated hydraulic pump for smooth lifting and a hand-lever for controlled lowering.
Safety First Design: Equipped with a safety velocity fuse to prevent the platform from dropping in case of hose failure, and an integrated overload valve.
Ergonomic Operation: Reduces repetitive bending and lifting, significantly lowering the risk of back strain for operators.
Superior Mobility: Heavy-duty polyurethane (PU) casters with brakes ensure easy movement and stable positioning on various floor types.
Load | Standard specifications | Fork height (lowest ~ highest) | Default configuration |
150 | 700*450 | 290-900 | Single scissor lift, maximum table height of 720mm, self-weight of 40kg, wire-pull unloading |
300 | 810*500 | 290-900 | Single scissor lift, with a maximum table height of 900, |
500 | 810*500 | 290~900 | Single scissor lift, with a maximum table height of 900, |
1000 | 1000*512 | 430~1000 | Single scissor lift, maximum table height of 1000, descent method: wire pulling for unloading |
350D | 900*540 | 410-1500 | Double scissor lift, maximum table height of 1500, lowering method: handle unloading |
500D | 900*540 | 410~1500 | Double scissor lift, maximum table height of 1500, lowering method: wire pulling unloading |
500 | 900*600 | 295~1020 | Single scissor lift, with a maximum table height of 1020 |

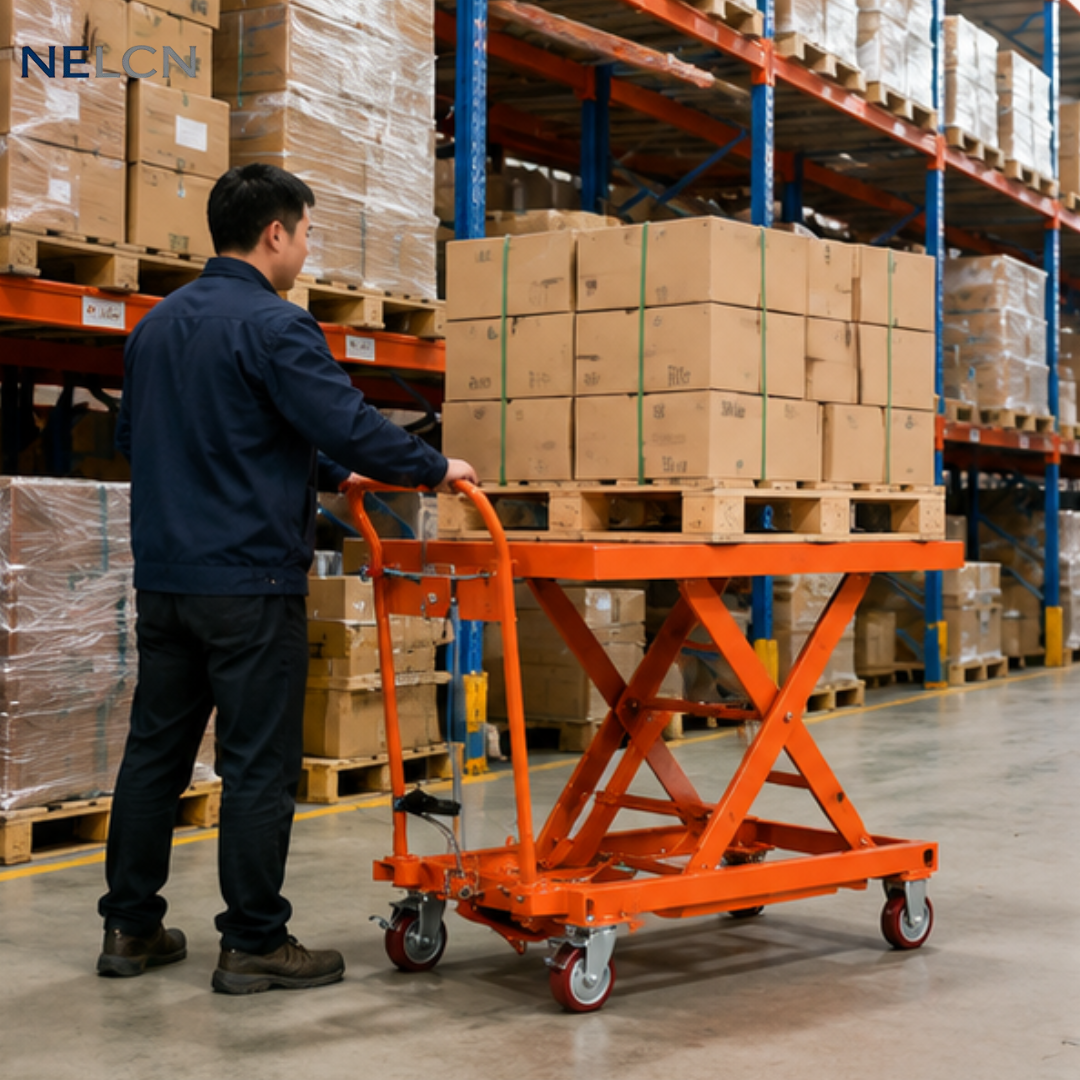

Warehouse Material Handling

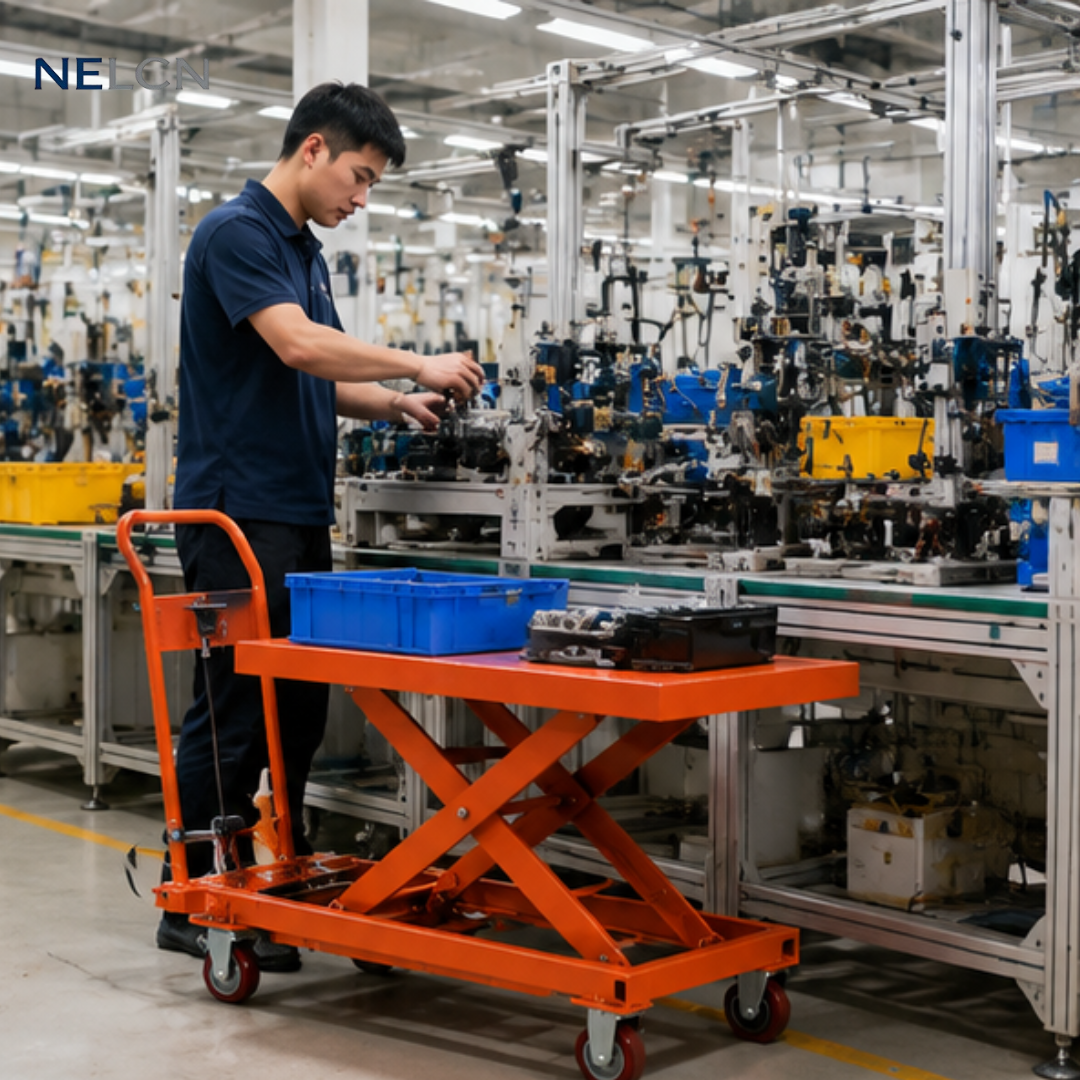

Manufacturing Assembly Lines

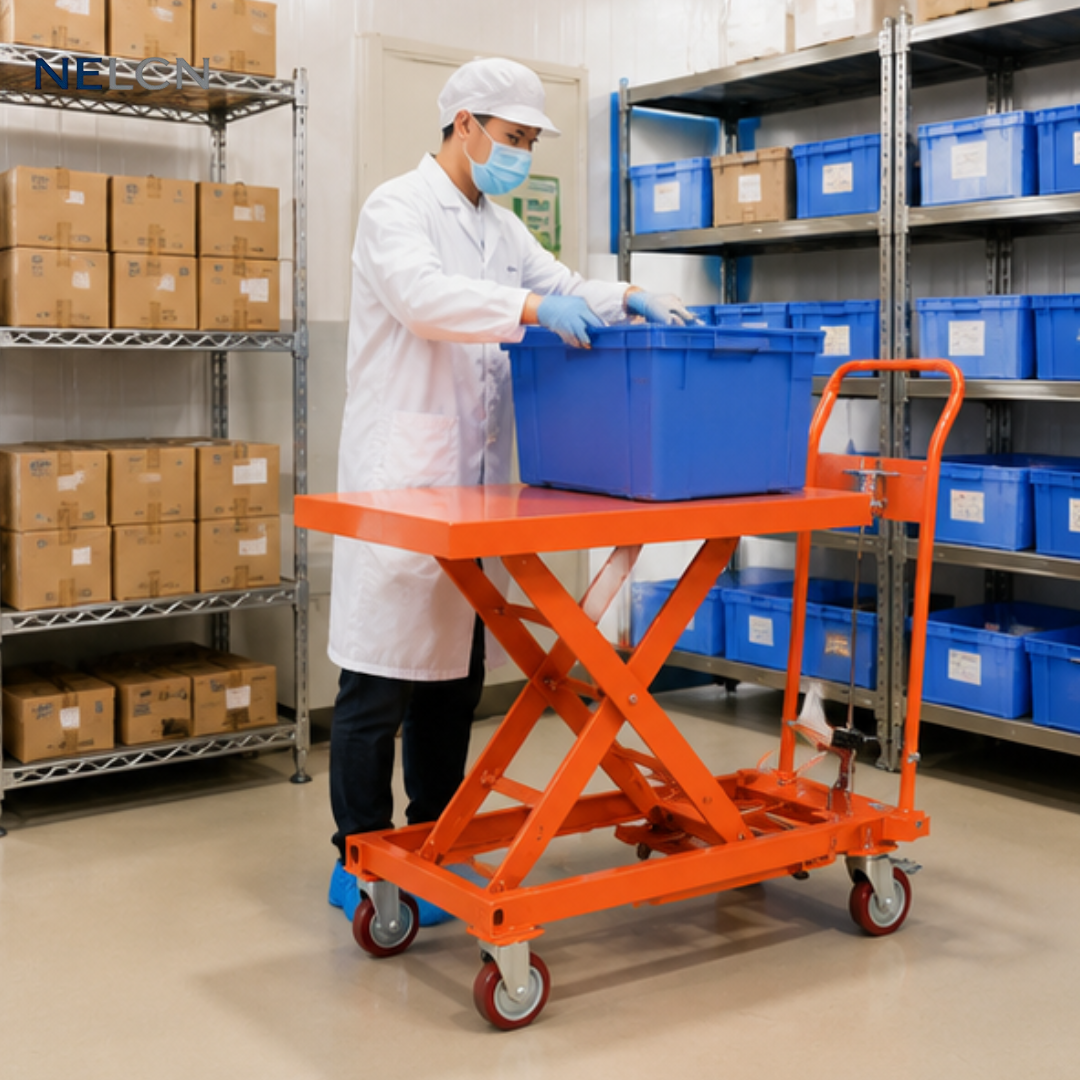

Food and Pharmaceutical Industries
As a professional manufacturer of material handling equipment, we understand that reliability is everything. Our manual lift platforms undergo rigorous quality testing before shipment.
Low Maintenance: The simplified hydraulic system requires minimal upkeep compared to electric alternatives.
Versatility: Ideal for use as a work bench, mobile cart, or pallet positioner.
Customization: We offer customized platform sizes and specialized finishes (e.g., stainless steel for food/pharma industries).
1. What is a manual scissor lift platform?
A manual scissor lift platform is a hydraulic lifting device used to raise and lower materials manually. It helps improve workplace ergonomics and reduce physical handling effort.
2. What load capacities are available?
Our manual hydraulic lift tables are available from 150kg to 1000kg, with customized options available for special requirements.
3. Can a manual lift table replace a forklift?
For lightweight material handling and height adjustment applications, a manual lift table can replace some forklift operations. However, forklifts are still required for heavy transportation and pallet movement.
4. Is the hydraulic lift table easy to operate?
Yes. The foot pedal hydraulic system allows smooth lifting, while the lowering mechanism provides controlled platform movement.
5. Can the platform size be customized?
Yes. Customized platform dimensions, lifting heights, and materials are available according to customer application requirements.
6. Does the product require electricity?
No. Manual scissor lift platforms operate through a hydraulic pump system and do not require electrical power.
7. Are CE certified models available?
Yes. CE-certified options are available according to customer requirements and export standards.
