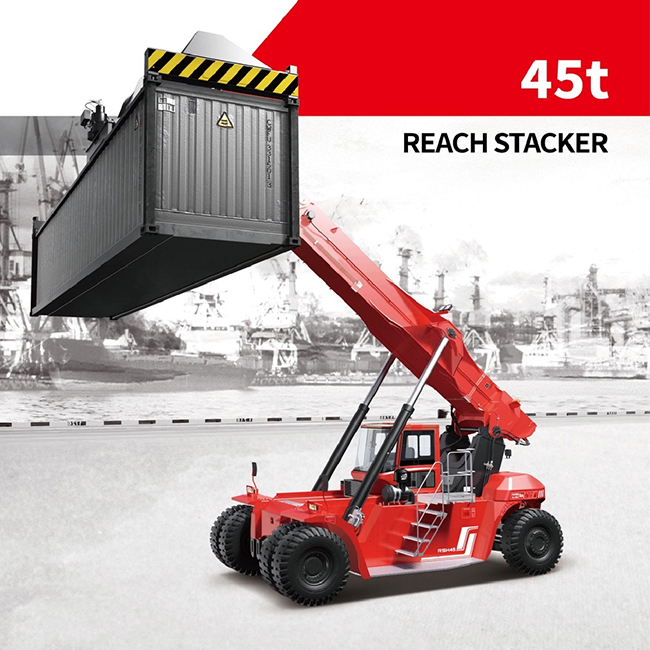

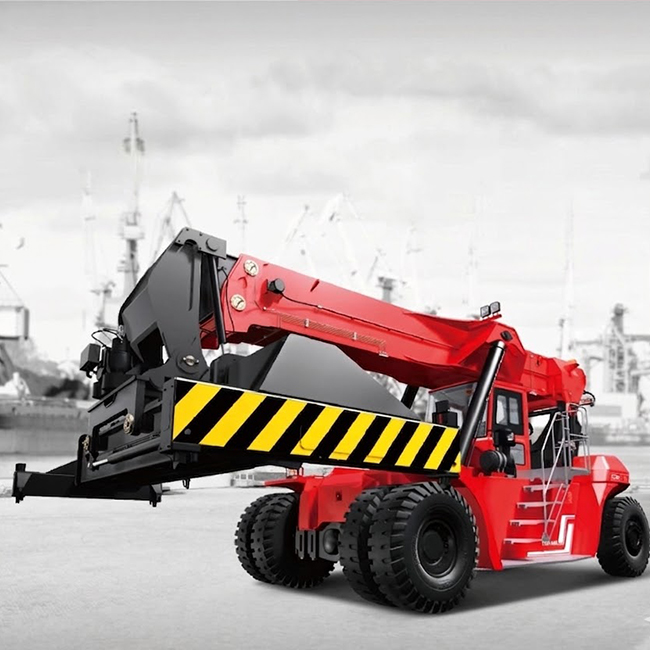

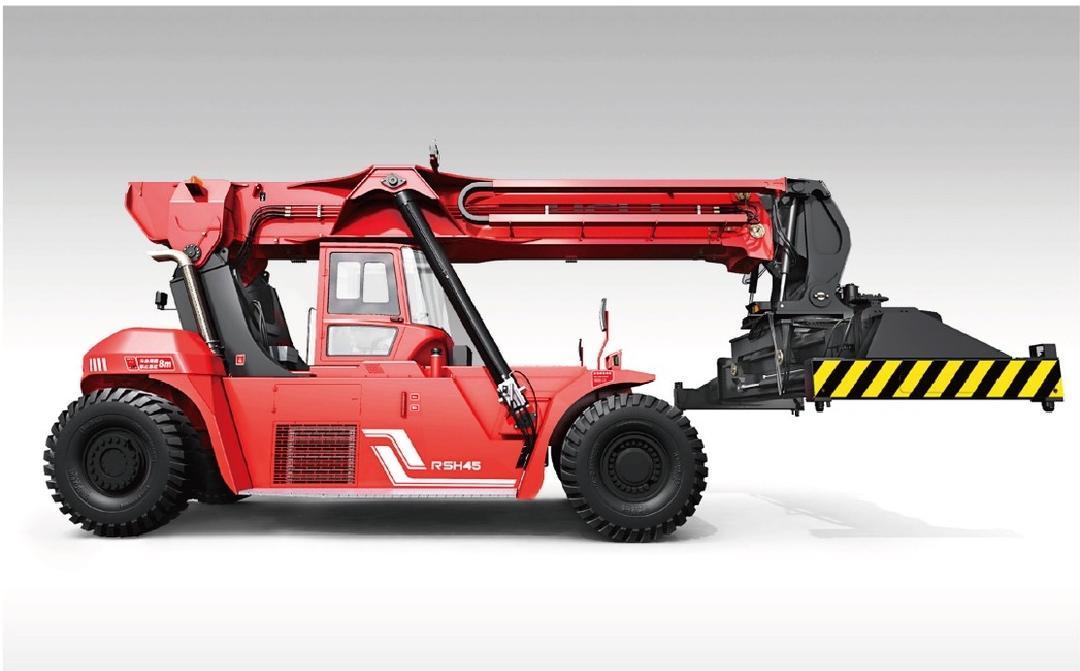

Reach Stacker Container Handler

NOELIFT offers heavy-duty reach stacker container handlers with up to 45 tons lifting capacity and 5-high stacking capability. Designed for ports, container terminals, and intermodal yards. Features include panoramic visibility, efficient hydraulics, and marine-grade corrosion protection. Contact us for a quote.

Quantity:
Availability:





Inquire

Products Detail

The company uses Noelift as its brand, relies on its strong technical team and patent accumulation, and implements the corporate business philosophy of "quality first, customer first" in its products and services.Through 20 years of continuous technological innovation, Noelift products are widely used in medicine, food, chemicals, electronics, machinery, furniture, logistics, construction and other industries.

Our strength

1.Position in industry

Our R&D,manufacturing and sales of industrial trucks,intelligent transport equipment and the relevant core parts,having the significant advantages of large scale, strength and high economic benefits.the main economic indicators have maintained leading in the national industry.

2.Specialized in product

At present, the company's product series covers counterbalanced forklifts, pallet trucks, pallet stackers, reach forkliftspicking trucks, tow tractors, narrow aisle forklifts, four-way forklifts, multi-director forklifts, customized equipment, AGV and other series Warehouse equipment can meet the specific needs of diferent customers.

3.Capital investment and production capacity

The company have advance producing eouioment with automatic painting ine, vehicle assembly line, CNC flame plasmacutting machine, drilling machines,system intergrated coating equipment, as well as international advanced performance testing of production linewhich all are fully quanranteed our products quality and ensure the business growth.The annual output is about 13,000 units.

Product Advantages

A.High design standard

Truck performance is ensured with accurate theoretic data as design basis through CAE analysis,finite element analysis,modal analysis and dynamics simulated analysis on key parts like frame,telescopic boom and so on and full digitalized 3D software during truck development.The design scheme of the completed truck is mature and reliable and achieves same performance level as the same product in European market.Not only China design standard GB/T26474-2011 is satisfied,EN1459 and ISO 15018 design standards are also satisfied.

B.Complete series

NOELIFT co-develops reach stacker with EURO famous port machinery design company for handling and stacking 20 foot and 40 foot fully loaded container.It is widely used in port,dock,railway system, container terminal and so on.HELI reach stacker has the characteristics of complete series,reliable safety performance,good energy saving and environmental protection performance and high working efficiency.The truck is assembled with electric controlled overload protection system, automatic fire extinguishing system,backward integrated monitoring system and so on.The truck has world advanced performances and it is worth to choice.

C.Reliable quality

Electric controlled overload protection system

Intelligent overload protection system can automatically detect axle steering angle and adjust spreader state to ensure lifting within safety range.And thus working safety and working efficiency is largely improved.

Backward integrated monitoring system

Backward integrated monitoring system can monitor the safety around the truck at any time to ensure truck safety driving.

Truck fire extinguishing control system (Optional)

Powerful automatic fire extinguishing system is installed in the key position of the truck achieving fire pre-alarm,antiflaming and fire extinguishing functions.It is safe and reliable.

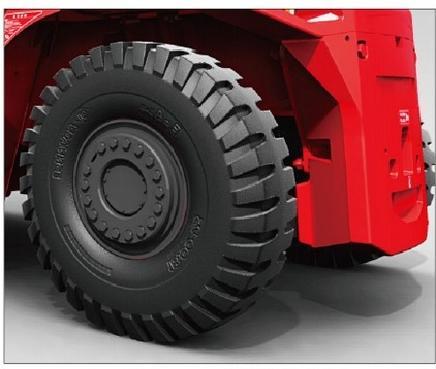

Vacuum pneumatic tyre

Vacuum pneumatic tyre with good buffering function reduces shock contact between truck and ground.It is safer and more comfortable.What is more, maintenance cost is largely reduced and structural parts service life is largely increased.

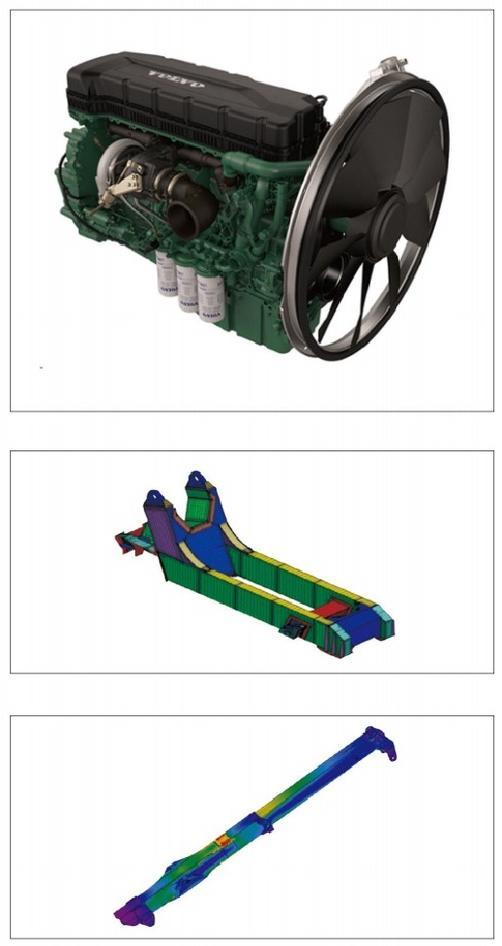

Reliable power system

Imported VOLVO/CUMMINS engine with original packing is assembled on the truck.It is powerful and reliable.Combined with advanced power matching technology and control technology,truck performance is brought into better play.

Reliable structure design

Truck performance is ensured with accurate theoretic data as design basis through CAE analysis,finite element analysis,modal analysis and dynamics simulated analysis on key parts like frame,telescopic boom and so on and full digitalized 3D software during truck development.The design scheme of the completed truck is mature and reliable and achieves same performance level as the same product in European market.Not only China design standard GB/T26474-2011 is satisfied,EN1459 and ISO 15018 design standards are also satisfied.

D.Highefficient working

Energy regenerating technology

Big arm oil cylinder overall process “energy regenerating”automatic controlling function uses the return oil in the cylinder upper cavity for lifting and thus offers faster lifting speed and higher efficiency.

Vertical lift function

Big arm stretching out and drawing backfunction and lifting and lowering function can be realized simultaneously with combined type"vertical lift"automatic control function.And thus working efficiency is improved.

Comfort operation environment

Through convenient man-machine interactive operation interface,operator can control truck real time working state. Wide view and fully suspension adjustable seat improve operator comfort,reduce operation fatigue and increase working efficiency largely.

Container stacking statistics and print system (optional)

Official configuration improves daily working management efficiency.

E.Low cost

Energy saving power system

Suitable power system matching can automatically identify dynamic power according to the change of load,adjust engine speed and bring truck high working efficiency and low oil consumption performance into full play.

Hydraulic load sensing system

Hydraulic load sensing system can adjust oil pump output flow according to actual load and achieve high precision control on flow.And thus engine load is reduced and truck oil consumption is reduced.

Vacuum pneumatic tyre

Vacuum pneumatic tyre with good buffering function reduces shock contact between truck and ground.It is safer and more comfortable.What is more,maintenance cost is largely reduced and structural parts service life is largely increased.

LED lighting system

LED lighting system which is bright and has low energy consumption offers better lighting for working and indication.

F. Easy maintenance

Centralized lubricating system

Centralized lubricating system makes maintenance easy and extends parts service life.

Worldwide spare parts store centers

No matter where you are,NOELIFT local sales network or dealers can provideyou with spare parts locally or directlyfrom NOELIFT headquarters quickly.

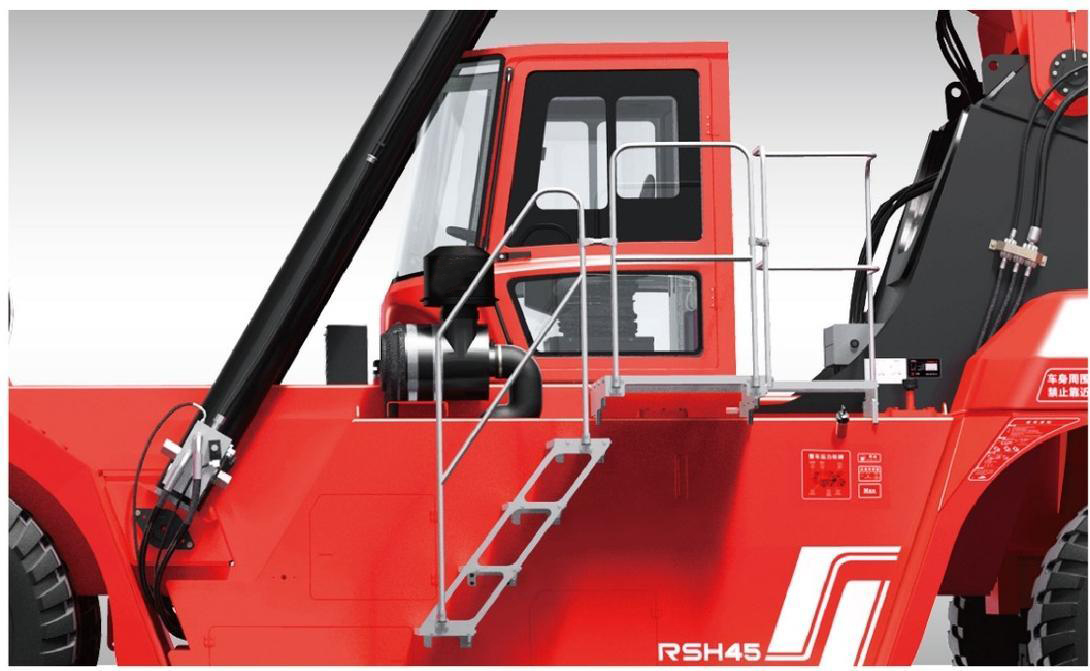

Fully surrounded anti-skidding getting on and off safety passway

You can reach to the area needs repairsafely and quickly through fully surrounded anti-skidding getting on and off safety passway and thus repair is more convenient.

Outside installed maintenance and repair check mechanism

Outside installed fuel filter,hydraulic oil filter and filter core facilitate daily maintenance,shorten maintenance time and improve truck maintenance efficiency.

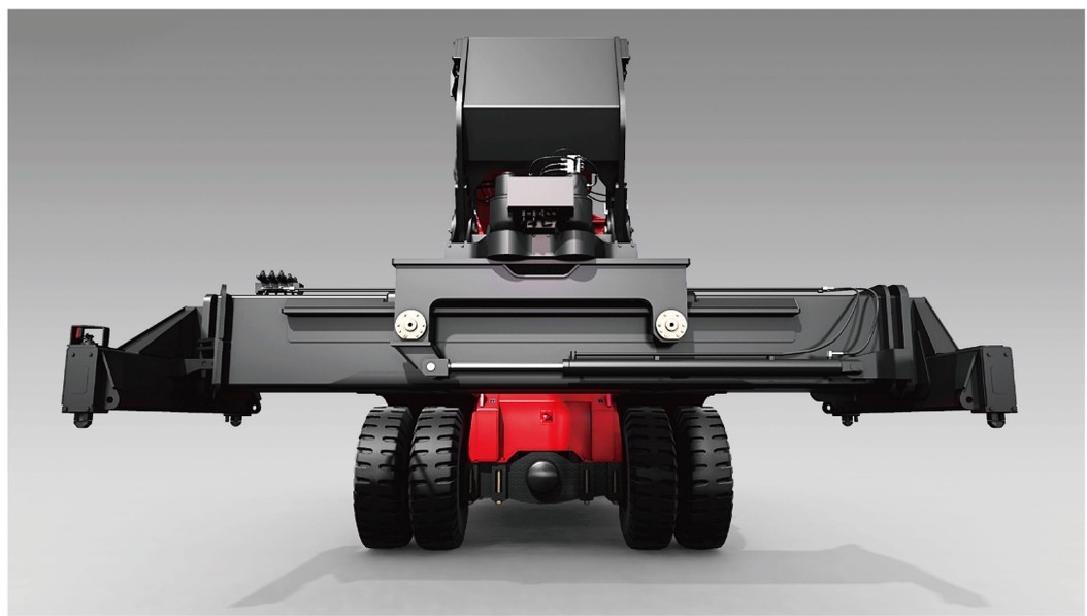

G. Spreader

The spreader is designed for reach stacker. The spreader is made by high-quality steel and it has single-cylinder type structure, high strength and good view

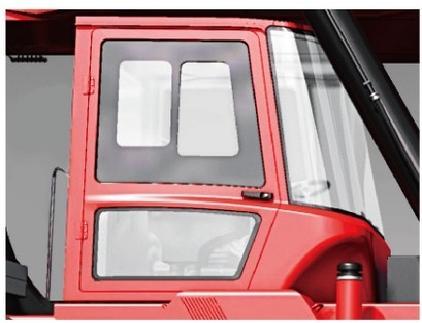

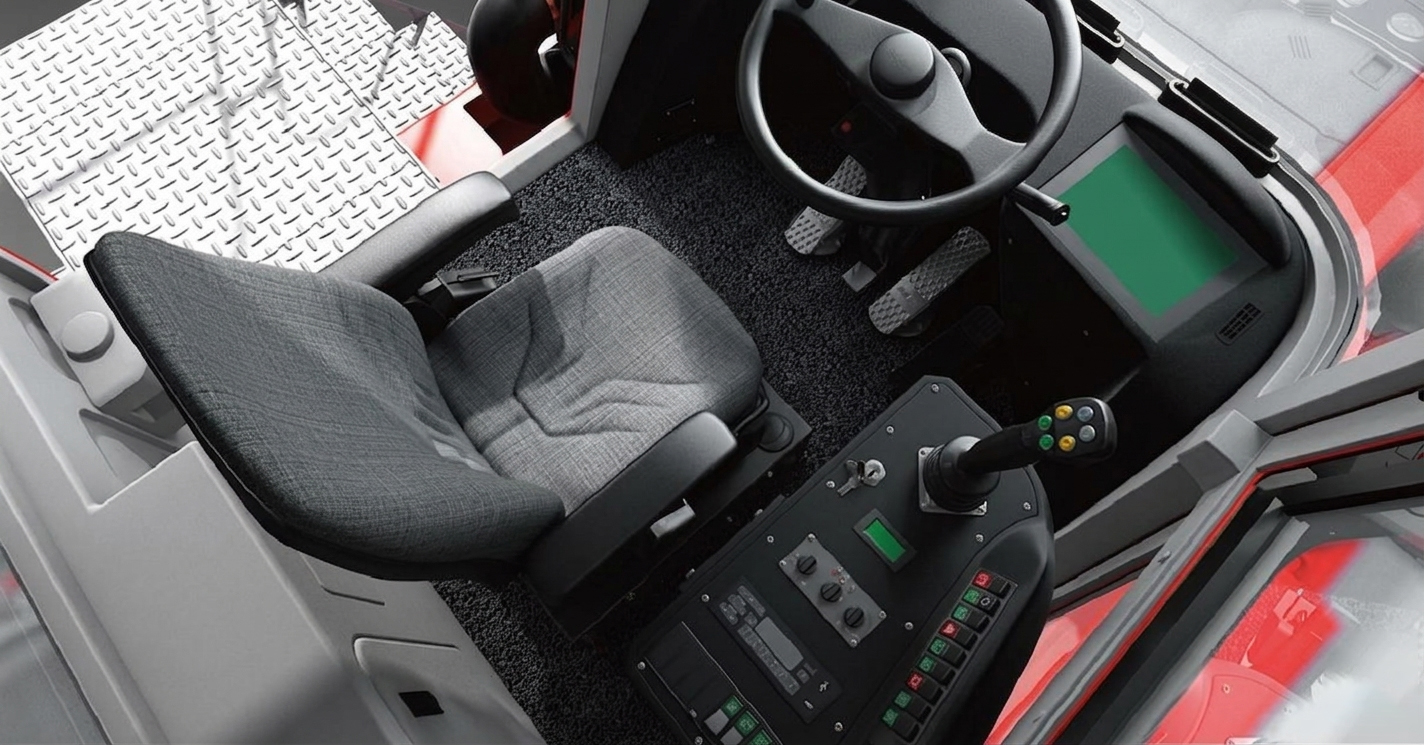

H. Improved driver's cab

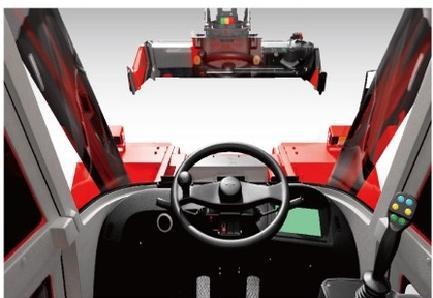

Newly designed cab is standard configuration of the reach stacker.Oversized cambered glass on the cab offers wide view.

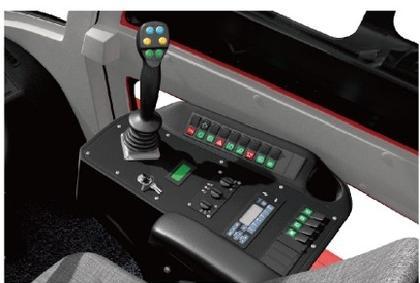

The buttons’layout on panel satisfies ergonomics requirements and ensures comfort operation space.

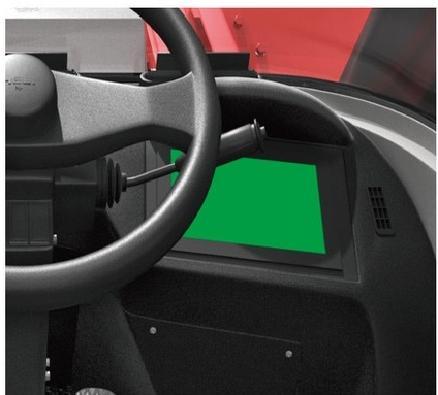

Through convenient and beautiful man-machine interactive operation

interface,operator can control truck real time working state.

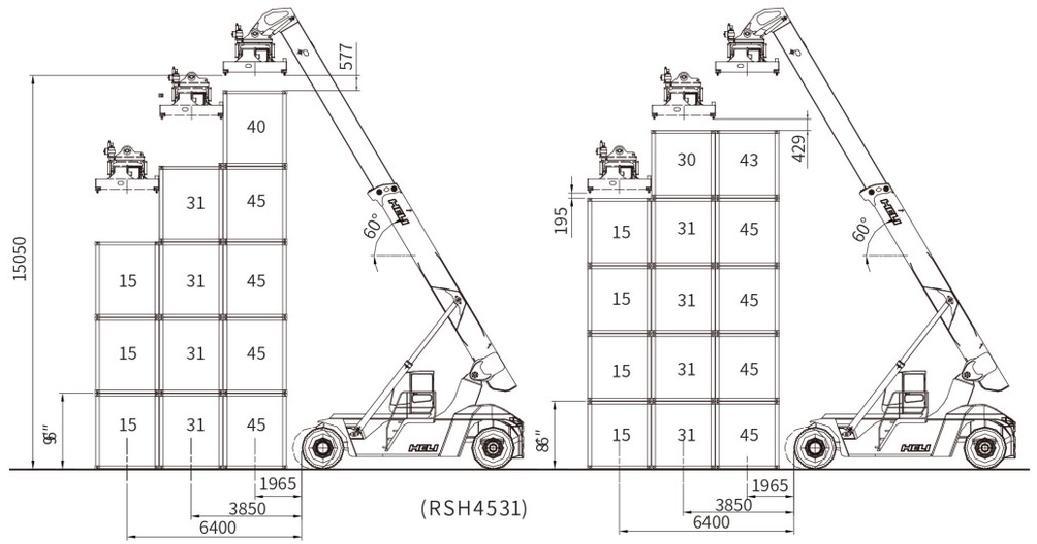

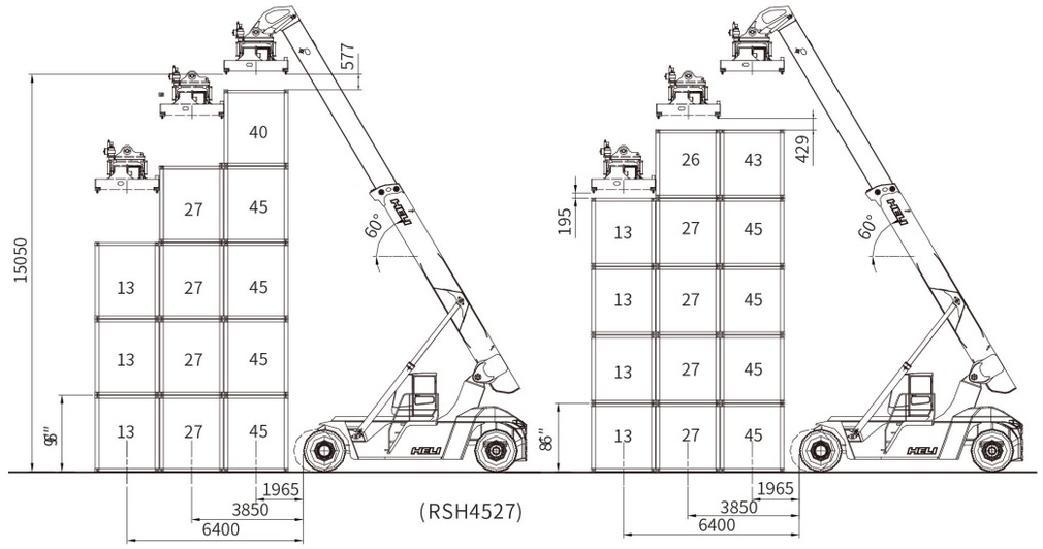

Load diagram

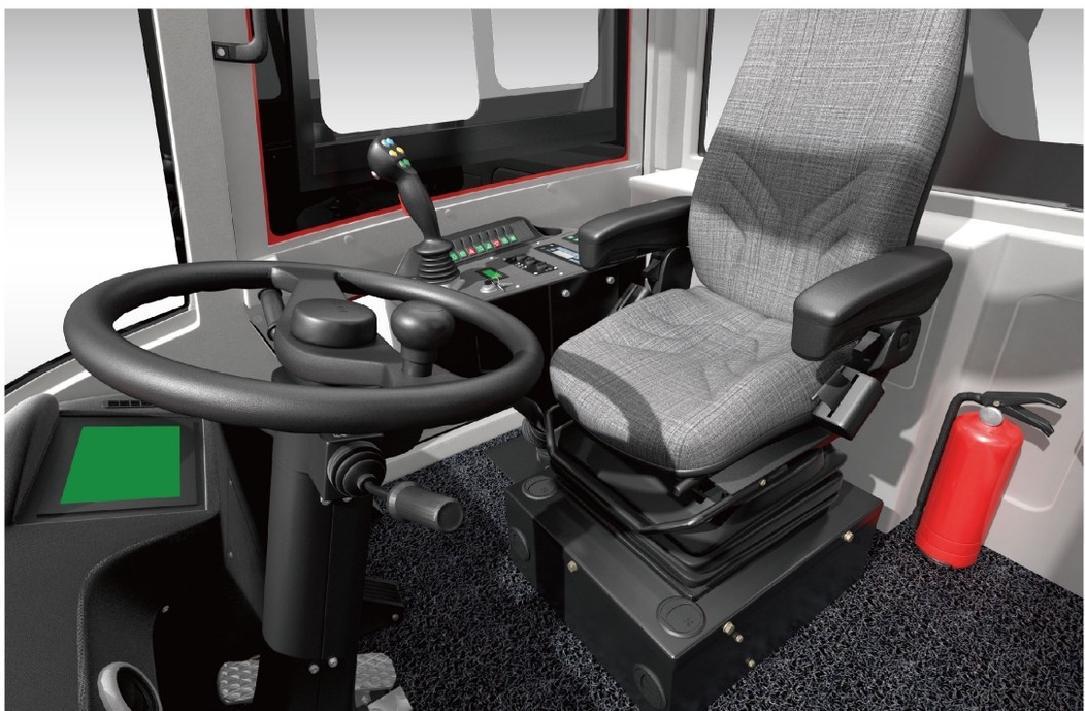

1.Fully suspended adjustable seat largely improves operator comfort,reduces operation fatigue and improves workingefficiency.

2.Fully enclosed design improves sound insulation and vibration proof performance and noise inside of the cab is reduced to 70dB.

3.Fire extinguisher is equipped in the cab to ensure safety

Performance specifications
Model			RSH4527-VO3/VO4NO5	RSH4531-VO3NO4NO5
Lifting capacity	First row/second row /third row	Kg	45000/27000/13000	45000/31000/15000
Load center	First row/second row /third row	mm	1965/3850/6400	1965/3850/6400
Max.lifting height (first row)		mm	15050	15050
speade	Side shift	mm	±800	±800
	Rotation	deg	-105~+195	-105~+195
Min.turning radius		mm	7990	7990
Spreader max.tilting angle		deg	60	60
Wheel base		mm	6000	6000
Tread(front/rear)		mm	3030/2838	3030/2838
Length		mm	11300	11300
Width		mm	4148	4148
Height		mm	4754	4754
Tyre	Specification		18.00-25-40PR	18.00-25-40PR
	(Front/rear)		4/2	4/2
Engine	Model		Volvo TAD1151	Volvo TAD1151
	Rated output/Speed	kW/rpm	265/2100	265/2100
	Rated torque/Speed	Nm/rpm	1785/1316	1785/1316
	Emissions standards		Euro StagelIA/ChinaStagellI	Euro StagelA/ChinaStagellI

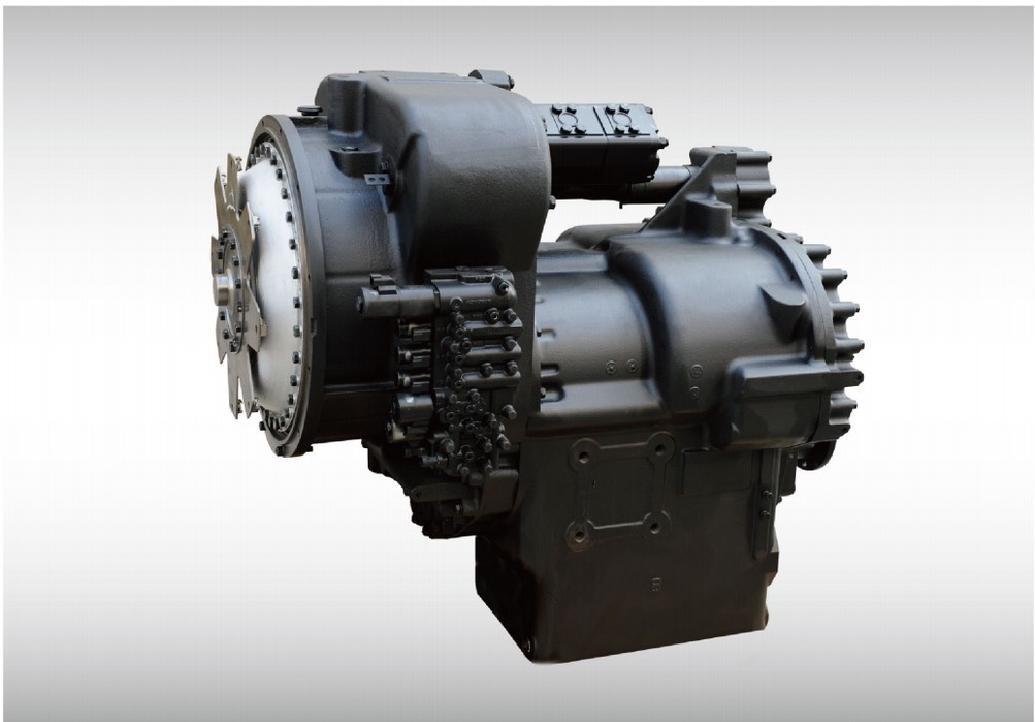

Transmission box(front/rear)			DANA36000/TE27	DANA36000/TE27
Drive axle			Kessler	Kessler

I. NOELIFT smart fleet management system

· Vehicle positioning

· Remote diagnosis

· Remote monitoring

· Maintenance reminder

· Statistical form

· Vehicle management

· Identification recognition (optional)

· Weight management(optional)

Optional
No.	lItem	Note
1	Container stacking statistics and print system	Miniprinter: it can print containerweight,numberand hoisting container quantity.
2	Automatic.fire extinguishing system	Heat sensitive dry powderextinguisher can extinguish automatically anditis safe and efficient.
3	Imported vacuum tyre	Tyre choice can be customized and imported vacuum tyre is optional.
4	Automatic lubricating system	Lubricating pumpis assembled on the truck to add lubricating grease on time with proper quantity to ensure fully lubrication of key parts and extend replace period.
5	Container weighting system	Accurate container weighting system meets relative industry's requirment and provice bettersafe protection.
6	Automaticlock when slings catching container	Sling will belocked automatically when catching container.Driving comfortandworking efficiency are improved

J.Professional service

NOELIFT provides customers with close technical support,training and service before sales,during sales and after sales adhering to the cooperation value of“Good faith cooperation and altogether wins development”.Ourobject is to reach long term cooperation relationship with customers.

Correct maintenance and operation is an important precondition to ensure truck service life and reduce truck downtime.We will provide perfect and professional technical support to ensure truck high efficient working.

Worldwide spare parts store centers

No matter where you are NOELIFT local sales network or dealers can provide you with spare parts locally or directly from NOELIFT headquarters quickly.

Worldwide service network

As China advanced forklift truck manufacturer, NOELIFT sales network and dealerallover the world meet customers'need with sincere service.

Customer service

"Customer first"is our market value.Customers can receive sincere service from HELI network or dealers who will provide fast, flexible and professional service.

Technical support to satisfy your need

We can provide professional service when you need.Through our worldwide network or dealers or headquarter,we can satisfy your need through our technical experts ortechnicians with rich experience.

Training

Through our worldwide network or dealers,we will provide you with customized professional driving and repair trainings according to different truck models.
