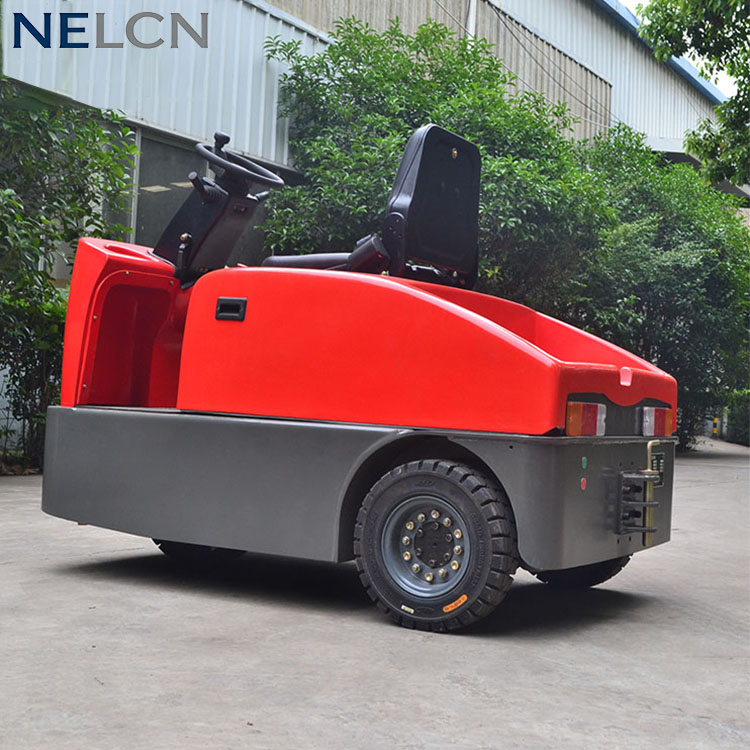

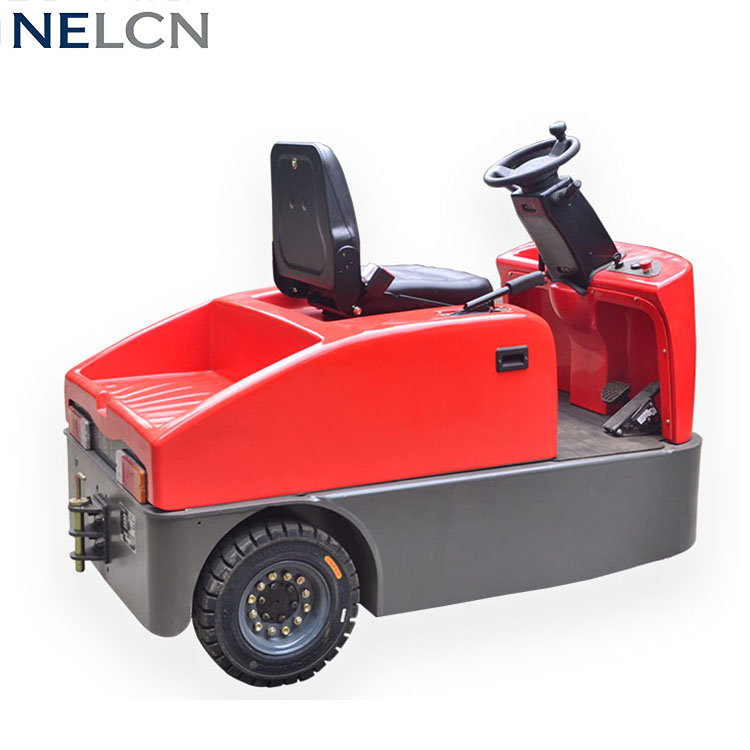

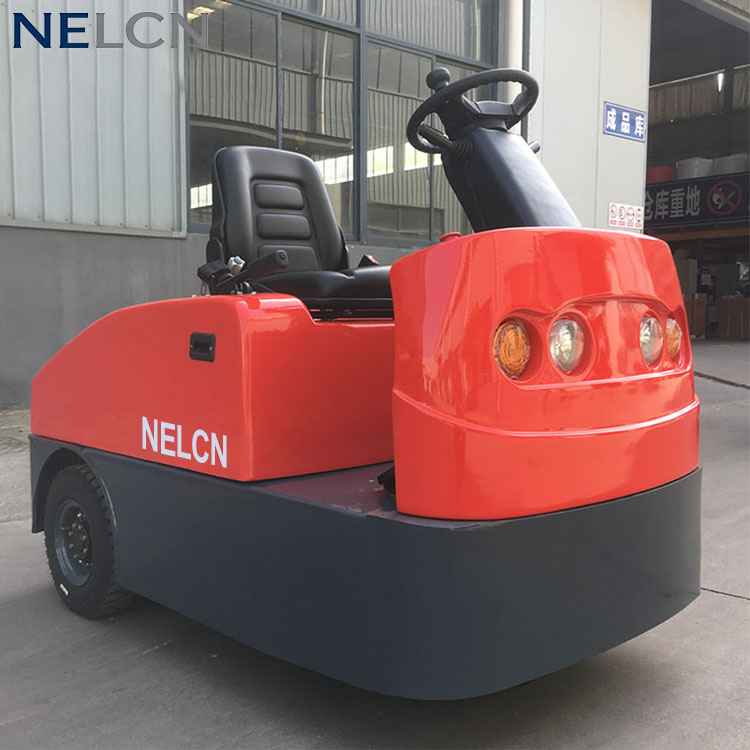

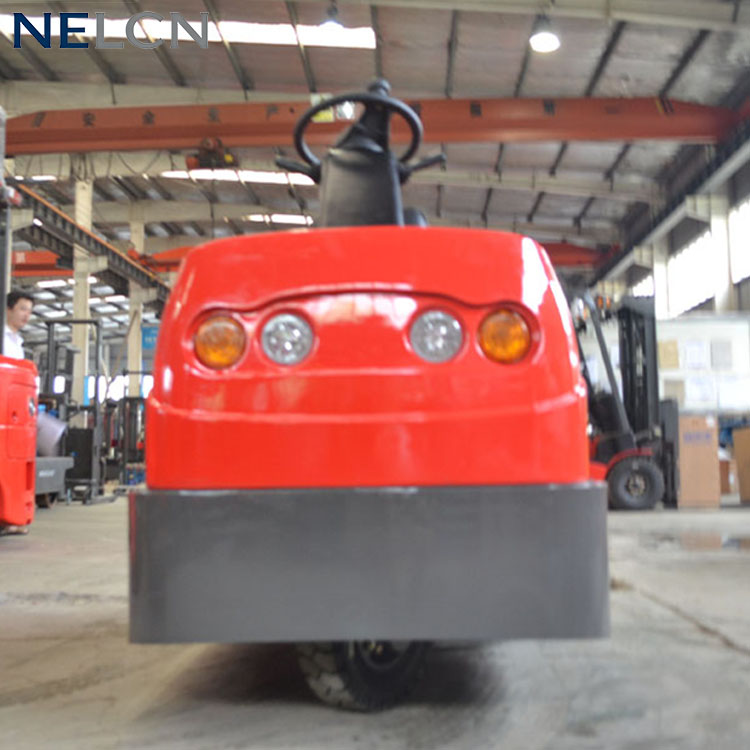

Ride-on Electric Tow Tractor

Our CE and ISO-certified ride-on electric tow tractors feature rated towing capacity from 4 tons to 6 tons. Powered by maintenance-free AC drive systems and CURTIS controllers, they deliver zero emissions, ultra-low noise (≤66dB), and exceptional energy efficiency. Ideal for horizontal towing in automotive assembly lines, airport baggage handling, and warehouse logistics.

Quantity:
Availability:





Inquire

Model:
MGA
Brand:
NOELIFT

Products Detail

Built for Real-World Factory & Airport Logistics

Indoor logistics are evolving. With tightening emission regulations and growing demand for quieter workplaces, the era of diesel tugs in assembly plants and baggage halls is ending. The MGA Series was developed in close collaboration with automotive manufacturers and airport ground handlers who needed a zero-emission, low-noise, high-efficiency alternative that wouldn't compromise on towing power or maneuverability.

electric tugger

Why Choose Our Ride-on Electric Tow Tractor?

1. Maintenance-Free AC Drive System – Lower Total Cost of Ownership

Traditional DC motors require periodic carbon brush replacement, a process that is both time-consuming and costly. Our AC drive system completely eliminates this requirement. Optimized power matching between the motor and controller extends runtime per charge, meaning fewer battery swaps and increased operational efficiency on-site.

2. Precision CURTIS Control – Ensuring Smooth and Safe Operation

Every unit comes standard with the CURTIS AC control system—an industry benchmark in electric vehicle control. This system delivers exceptionally smooth acceleration, precise inching control for trailer hitching, and regenerative braking that recovers energy while reducing brake pad wear. An integrated display provides operators with real-time feedback on battery status and system performance.

3. Ultra-Low Center of Gravity – Tangible Stability

By mounting the heavy battery deep within the chassis, we have achieved an ultra-low center of gravity. This design significantly reduces the risk of tipping during sharp turns—a common safety hazard for electric tow tractors with higher centers of gravity. This ensures both operator safety and the integrity of the load.

4. Compact Design – Agile Maneuverability in Tight Spaces

With an overall width of just 990 mm and a turning radius of only 1650 mm, these models navigate easily through narrow factory aisles and congested baggage handling areas where larger tractors cannot fit. A three-point suspension system and electronic power steering further reduce operational strain, ensuring operators remain productive throughout the day without excessive fatigue.

Technical Specifications

Parameter	MGA40	MGA60
Rated Drawbar Pull	800 N	1200 N
Service Weight (with battery)	920 kg	1000 kg
Overall (L×W×H)	1790×990×2045 mm	1790×990×2045 mm
Turning Radius	1650 mm	1650 mm
Travel Speed (laden / unladen)	8 / 14 km/h	7 / 17 km/h
Max. Tractive Force (S2-5min)	3800 N	4500 N
Drive Motor Rating	3 kW	4.5 kW
Battery (Voltage / Capacity)	24V / 490 Ah	48V / 280 Ah
Battery Weight	390 kg	475 kg
Brake System	Hydraulic + Regenerative	Hydraulic + Regenerative
Noise Level	≤66 dB(A)	≤66 dB(A)

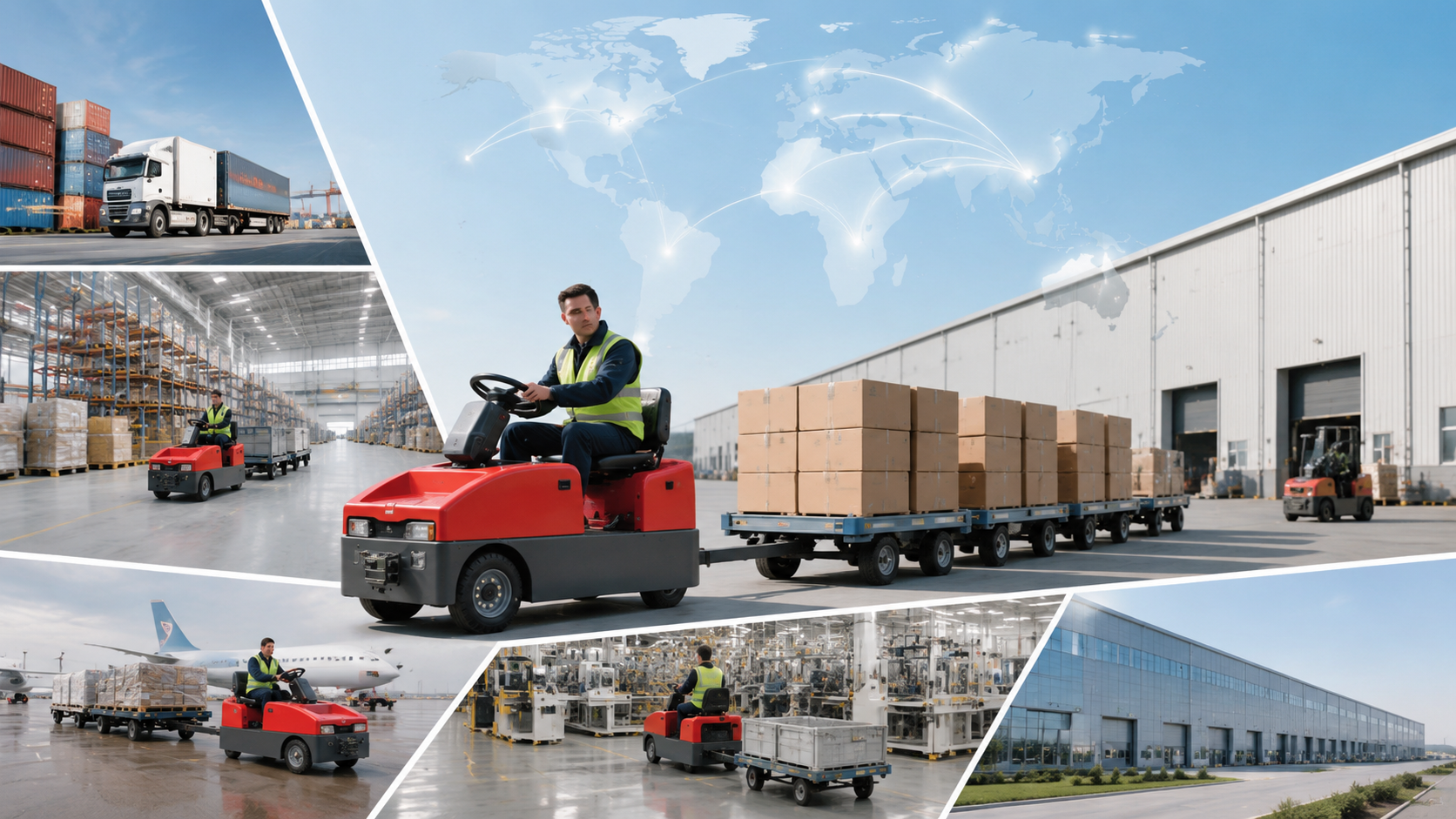

Wide Application Scenarios

Our ride-on electric tow tractors are highly versatile and provide efficient towing solutions across a wide range of industries:

Warehouses & Logistics Centers: Efficiently tow pallets, containers, and goods trolleys to optimize material handling workflows.
Airports & Railway Stations: Transport luggage, cargo, and equipment with zero emissions and low noise, suitable for indoor and outdoor operations.
Factories & Workshops: Move production materials, semi-finished products, and equipment between workshops, improving operational efficiency.
Ports & Terminals: Light-duty cargo towing ensures smooth and timely logistics operations.
Hospitals & Commercial Buildings: Safely transport medical supplies, cleaning equipment, and other goods, supporting quiet and environmentally friendly operations.

Our Factory Strength

With over two decades of experience in electric vehicle engineering, we are more than just component assemblers; we are dedicated to designing specialized towing solutions for the world's most demanding logistics environments. Every towing unit undergoes a rigorous 48-hour full-load burn-in test—including simulated load cycles—before leaving the factory.

✔ ISO 9001 and CE certified manufacturing processes.

✔ Authorized CURTIS system integrator—providing comprehensive controller calibration support.

✔ 24/7 remote diagnostic services for fleet operators.

✔ 1-year warranty on AC drive motors.

FAQ

1. What is the delivery time for your ride-on electric tow tractor?

Sample order: 7-10 working days; Bulk order: 15-30 working days, depending on order quantity and customization requirements.

2. Can you provide OEM/ODM service?

Yes, we accept OEM/ODM customization, including logo printing, product size, traction capacity, battery type and color, to meet your brand and operational needs.

3. What payment terms do you accept?

We accept T/T, L/C, Western Union, PayPal, etc. For bulk orders, 30% deposit in advance, 70% balance before delivery.

4. Do your products meet CE/ISO standards?

Yes, all our ride-on electric tow tractors have passed CE, ISO 9001 and ISO 14001 certifications, complying with international quality and environmental standards, and can be exported to all countries in the world.

5. What are the typical applications for this tow tractor?

It is suitable for the horizontal towing and transport of bulk goods within or between workshops. Typical applications include transporting materials from warehouses to assembly lines in automotive manufacturing, airport baggage transport, and internal logistics within manufacturing plants.
