Product Overview
Unlock Peak Warehouse Efficiency
Stop wasting time with walkie pallets for long-distance transport. Our [Brand Name] Ride-on Pallet Jack is engineered for high-intensity multi-shift operations. Featuring an ergonomic foldable platform and robust AC drive system, it ensures your operators stay productive and fatigue-free throughout the day.
|

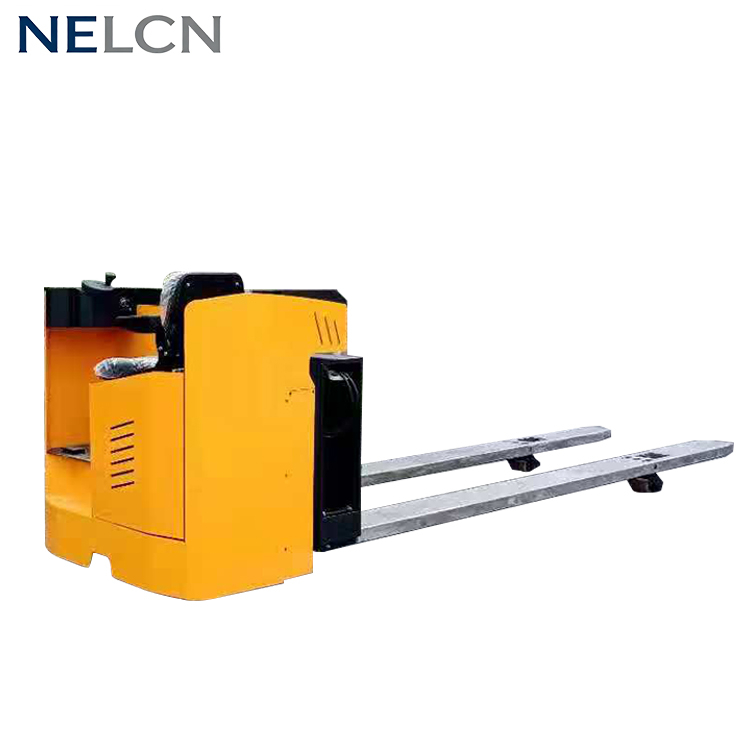

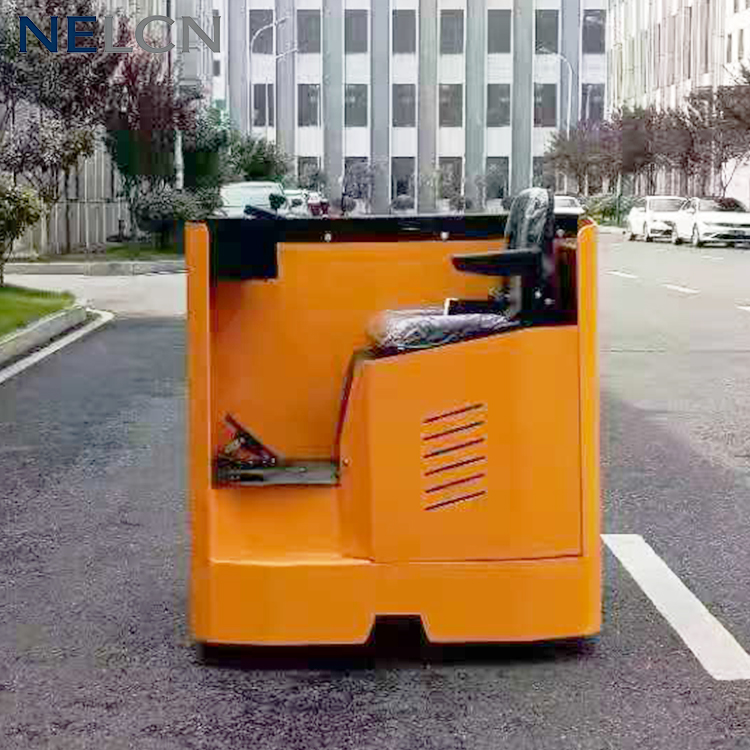

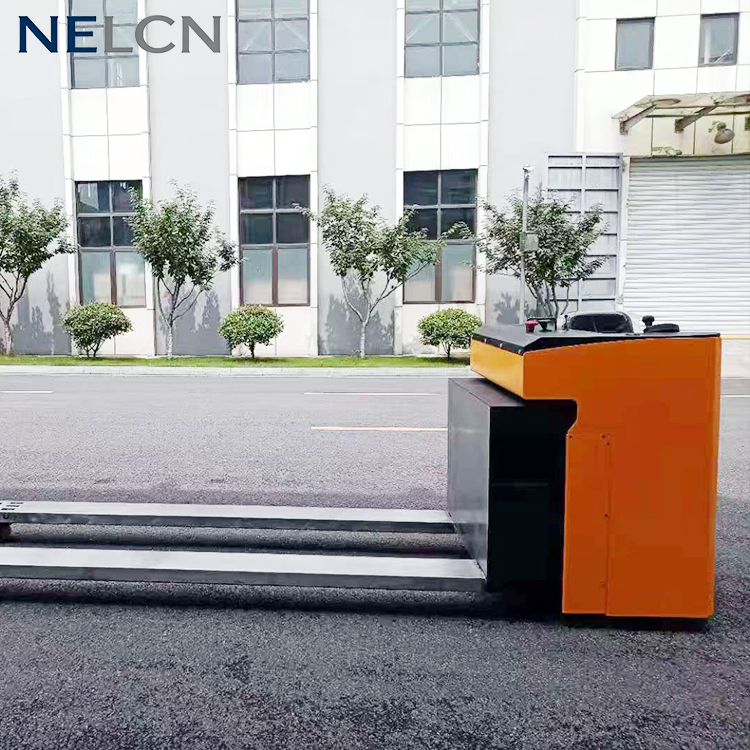

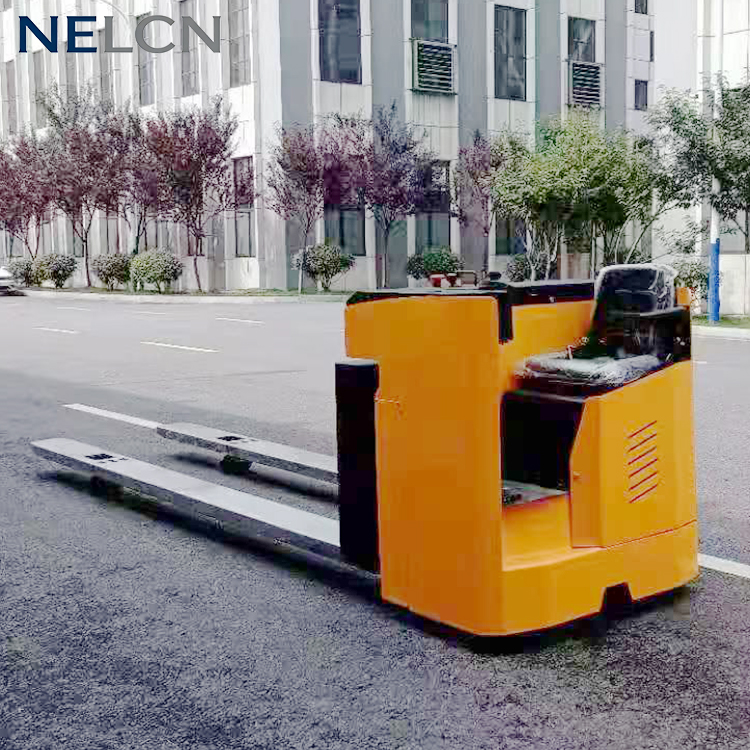

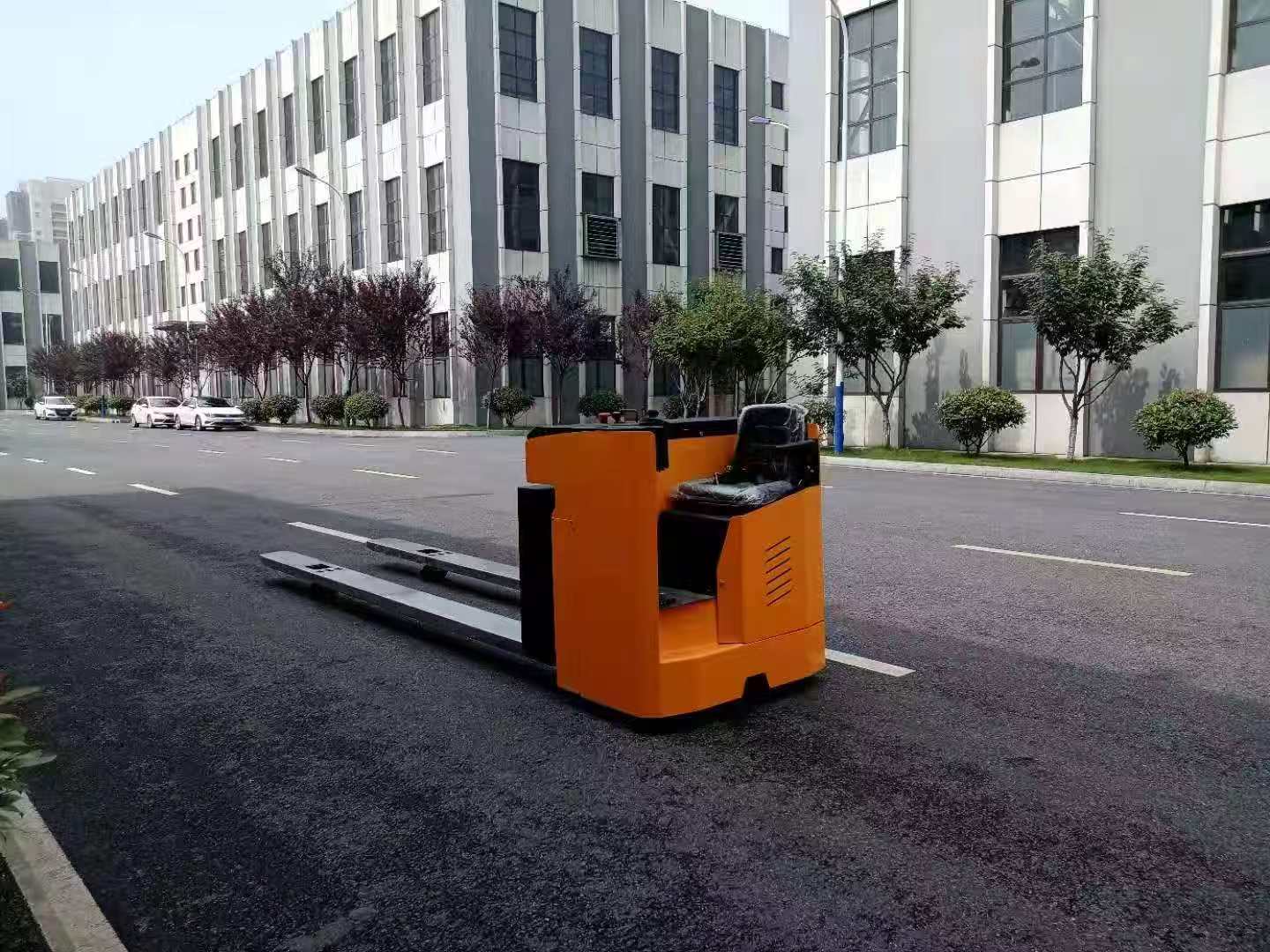

Product Display

|
Key Benefits
Ergonomic Design for Operator Comfort: It mentions the Foldable Platform and Protective Arms.
Maintenance-Free AC Drive Motor: Emphasizes brushless motor to reduce maintenance costs.
Advanced Safety Features: Automatic speed reduction in curves and emergency power-off switch.
Long-lasting Battery Life: Compatible with lead-acid or lithium battery (Lithium-ion option) solutions.
|
Why Choose Our Ride-on Electric Pallet Truck?
�� Optimized Productivity for Long-Distance Handling
Standard walkies slow down your workflow in large warehouses. Our RT-Series Ride-on Pallet Jack is engineered for speed and endurance:
High Travel Speed: Reach up to 9.0 km/h (unladen), reducing cycle times by 30% compared to pedestrian models.
Foldable Ergonomic Platform: Operators can switch between ride-on and pedestrian modes in seconds, featuring advanced vibration dampening to reduce fatigue during 8-hour shifts.
��️ Uncompromised Safety & Stability
Safety isn't just a feature; it’s a requirement. We’ve integrated intelligent systems to protect your staff and cargo:
Automatic Speed Reduction: The smart control system automatically slows down the truck during turns to prevent tipping.
Robust Protective Arms: High-strength steel guard rails ensure the operator stays securely on the platform during high-speed maneuvers.
Emergency Disconnect: One-touch power cutoff and anti-roll back braking on ramps.
⚡ Lower TCO (Total Cost of Ownership)
We design our trucks to stay on the floor, not in the repair shop:
Maintenance-Free AC Drive Motor: No carbon brushes to replace. The brushless AC technology provides consistent torque and reduces energy consumption by 15%.
Lithium-Ion Ready: Our trucks support Opportunity Charging. A quick 30-minute charge during a lunch break provides enough power to finish the shift, eliminating the need for spare batteries.
Sideway Battery Exchange: Fast and easy battery swaps for multi-shift operations.
��️ Built for Harsh Industrial Environments
Reinforced Fork Structure: Made from heavy-duty grade steel to prevent bending under maximum loads (up to 3000kg).
Waterproof Electrical System: Rated for reliable performance even in humid or dusty warehouse conditions.
|
Comparison Table
Feature | Our Ride-on Model | Standard Walkie |
Max Speed | 9.0 km/h | 4.5 km/h |
Operator Fatigue | Very Low (Cushioned Platform) | High (Continuous Walking) |
Travel Distance | Long (50m+) | Short (<20m) |
Safety | Side Guard Rails Included | None |
|
Technical Specifications
Feature | Specifications |
Model | RT-25 Series |
Load Capacity | 2T-25T |
Travel Speed (Laden/Unladen) | 7.5 / 9.0 km/h |
Battery Voltage | 24V / 210Ah (Lead-acid or Lithium) |
Turning Radius | 1650mm |
Fork Dimensions | 540/685mm x 1150mm |
|
Application
Cold Storage Logistics: It is mentioned that a cold storage version is optional.
Large-scale distribution centers: Long-distance handling.
Manufacturing Plants: Heavy material turnover.
|
FAQ Section
Q: What is the lead time for a bulk order of ride-on pallet jacks?
A: Typically 15-30 days depending on customization requirements.
Q: Can this electric pallet truck be customized with Lithium batteries?
A: Yes, we offer high-performance Li-ion battery upgrades for fast charging and zero maintenance.
Q: Do you provide OEM/ODM services for global distributors?
A: Absolutely. We support custom branding and color schemes for our global partners.
