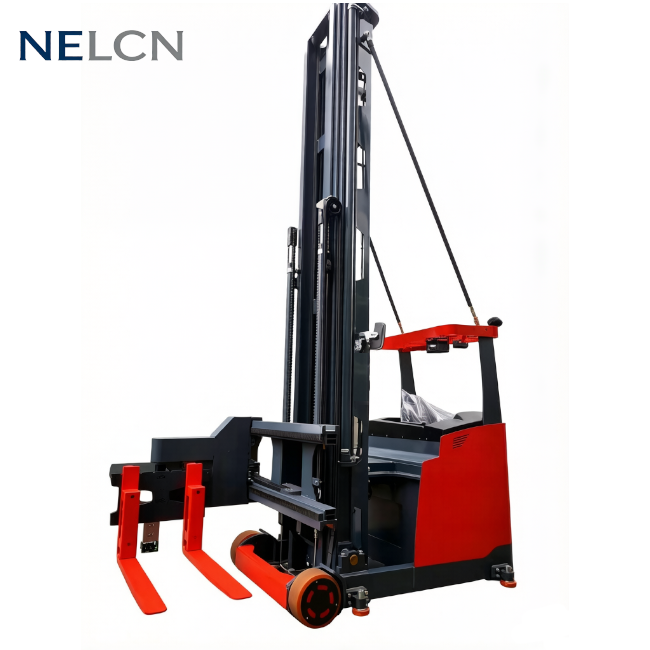

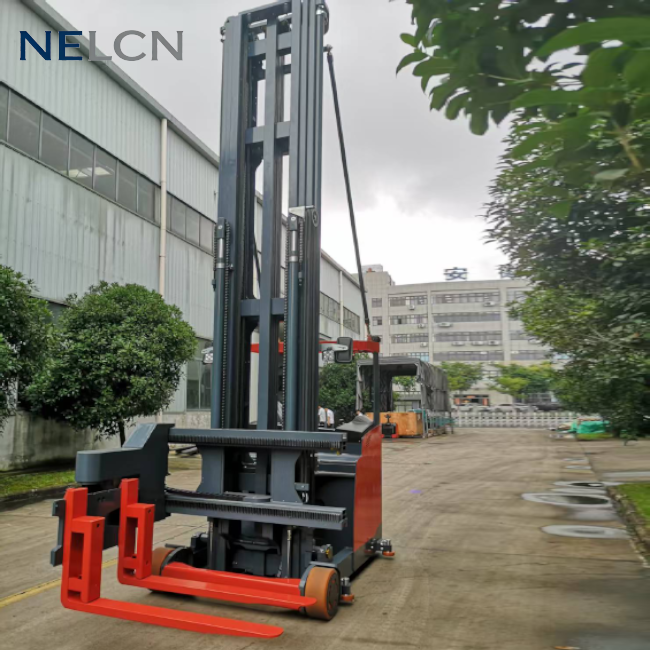

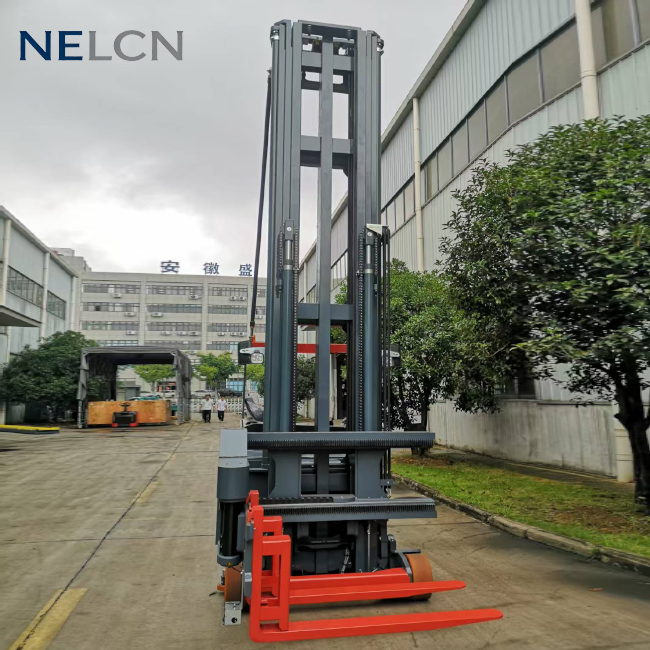

Ride-on Three-Way Stacker

What is a Ride-on Three-Way Stacker?

A ride-on three-way stacker (also known as a tri-lateral stacker or VNA forklift) is a specialized material handling vehicle designed for very narrow aisle (VNA) warehouses . Unlike conventional forklifts that require wide aisles to turn, the three-way stacker features forks that can rotate 180° and shift side-to-side without the truck body moving .

This unique design allows the operator to:

• Stack and retrieve pallets from both sides of the same aisle




• Operate in aisles as narrow as 1.6 meters




• Achieve lift heights up to 9 meters or more




• Maximize warehouse storage density by reducing aisle width

The ride-on configuration provides operator comfort during long shifts, with an ergonomic compartment, adjustable seat, and intuitive controls for precise handling at height.

Technical Specifications

Why Choose NOELIFT Ride-on Three-Way Stackers?

① 180° Fork Rotation & Side Shift - Three-Way Stacking Function

The defining feature of our three-way stacker is the patented fork carriage mechanism that allows:

• 180° fork rotation: Forks rotate left and right to access pallets on both sides of the aisle without turning the truck

• Integrated side shift: Forks move laterally for precise positioning in rack openings

• Simultaneous operation: Rotate and shift smoothly for efficient stacking cycles

• Soft landing function: Fork descent speed automatically reduces when approaching ground level, protecting goods and reducing noise

This three-way stacking function makes it the first choice for intensive storage in logistics, medicine, food, and low-temperature cold storage applications .

② Very Narrow Aisle (VNA) Capability

By eliminating the need to turn the truck body, our three-way stackers operate in aisles as narrow as:

• 1500 mm - 1600 mm with 1000mm x 1000mm pallets

• Up to 30-50% reduction in aisle width compared to counterbalance forklifts

• Significant increase in warehouse storage density without expanding building footprint

The guide roller system ensures stable and precise navigation within the aisle, with guide wheels contacting rails or floor guides for smooth operation .

③ High Lift Height with Excellent Stability

Reach new heights with confidence:

• Lift heights up to 9,000 mm (9 meters) for high-bay warehouses

• High residual capacity even at maximum lift height

• Rear axle stability design: Locking device on rear axle enhances rigidity during lifting and side-shifting operations

• Optimized mast design: Minimizes vibration during lifting and lowering for comfortable operation

• Low center of gravity: Battery positioned low in chassis for maximum stability

④ Powerful AC Drive System

Equipped with full AC drive technology :

• AC drive motor: Powerful acceleration and high efficiency

• AC pump motor: Fast lifting speeds for productivity

• Regenerative braking: Recovers energy during deceleration, extending battery life

• Multiple power modes: Adapt to different working conditions

• CAN-BUS communication technology: Real-time monitoring and diagnostics

The AC system delivers stronger power, higher efficiency, and lower maintenance costs compared to DC systems.

⑤ Advanced Operator Ergonomics

Designed for operator comfort during long shifts:

• Ride-on platform: Comfortable standing or seated operation options

• Ergonomic controls: All operations can be completed with one hand

• Adjustable components: Seat with adjustable backrest angle, front/rear position, and shock absorption

• Excellent visibility: Optimized mast provides clear view of forks and load at all heights

• Low step-in height: Easy access to operator compartment

• Wheel display and camera: Standard above 4.5m for clear, convenient operation

⑥ Lithium Battery Options

For operations requiring maximum uptime, we offer lithium-ion (LiFePO4) battery integration:

• Fast charging: Full charge in 1-2 hours

• Opportunity charging: Charge during breaks for 24/7 operation

• Long cycle life: 4,000+ cycles with 80% capacity retention

• Zero maintenance: No water refilling, no acid fumes

• Integrated BMS: Battery Management System for optimal performance and safety

Also available with high-capacity lead-acid batteries for extended shift operation .

⑦ Comprehensive Safety Features

• Load-dependent speed control: Speed automatically adjusts based on lift height

• Curve speed reduction: Automatic speed reduction when turning

• Electromagnetic brake: Short braking distance, no inertia impact

• Ramp anti-slide: Prevents rolling on inclines

• Emergency stop button: Easily accessible for instant shutdown

• Multi-level security alarm system: Laser anti-collision sensor, audible and visible alarms

• Interlock control: Between height and speed during traveling

⑧ Easy Maintenance

• Sideway moving battery: Easy access for maintenance and replacement

• One-piece upper cover: Fully open housing for convenient maintenance

• Integrated electrical components: Easy diagnostics and repair

• On-board diagnostic system: Ensures relevant maintenance and prompt repair

 Applications

 Three-Way Stacker vs. Conventional Forklifts

 Why Choose NOELIFT?

With over 20 years of experience in material handling equipment manufacturing, [Your Brand] has delivered thousands of three-way stackers and VNA forklifts to clients worldwide. We combine German engineering standards with cost-effective manufacturing to provide the best value in the market.

• ✅ CE, ISO Certified - International quality standards

• ✅ 2006/42/EC Compliance - EU safety standards

• ✅ Factory Direct Pricing - No middleman markup

• ✅ OEM/ODM Available - Custom colors, batteries, attachments

• ✅ Customization Options - Fork dimensions, lift heights, battery capacities

• ✅ Cold Storage Packages - Specialized components for freezer environments

• ✅ Global Shipping - Safe packing, fast delivery

• ✅ 24/7 After-Sales Support - Remote diagnosis + spare parts network

• ✅ English-Speaking Engineers - 24 hours online service

Success Stories

*"We installed [Your Brand] ride-on three-way stackers in our 30,000 sqm distribution center. The result? We increased pallet positions by 40% without expanding the building. The 180° fork rotation allows us to access both sides of the aisle efficiently, and the lithium batteries enable 24/7 operation with opportunity charging."*
— Warehouse Operations Manager, European Logistics Company

*"The [Your Brand] three-way stackers perform flawlessly in our -25°C freezer warehouse. The cold storage package ensures reliable operation, and the guide roller system keeps us stable in narrow aisles. Highly recommended for anyone looking to maximize freezer space."*
— Cold Storage Facility Manager, North America

Ready to Maximize Your Warehouse Storage Density?

Contact our VNA storage solutions team today for a free warehouse layout consultation and custom quote. We'll help you select the right three-way stacker model and configuration for your specific application.

Frequently Asked Questions

Q: What is a ride-on three-way stacker?
A: A ride-on three-way stacker (tri-lateral stacker) is a specialized VNA (Very Narrow Aisle) forklift that features forks capable of rotating 180° and shifting side-to-side, allowing it to stack and retrieve pallets from both sides of an aisle without turning the truck body .

Q: What are the typical load capacities for three-way stackers?
A: Three-way stackers typically range from 1,000 kg to 1,500 kg (1.0 to 1.5 tons), with some models available up to 2.0 tons .

Q: How high can three-way stackers lift?
A: Most models can lift loads from 6,000 mm up to 9,000 mm (6 to 9 meters), with some models reaching 10+ meters .

Q: What aisle width is required for three-way stackers?
A: Three-way stackers can operate in very narrow aisles as small as 1,500 mm to 1,600 mm (1.5-1.6 meters) when handling standard 1000mm x 1000mm pallets .

Q: What is the difference between a three-way stacker and a reach truck?
A: A reach truck requires the entire truck to turn to access pallets on either side of an aisle. A three-way stacker can rotate its forks 180° without turning the truck, allowing operation in much narrower aisles and increasing storage density .

Q: Can three-way stackers be used in cold storage?
A: Yes, three-way stackers are commonly used in cold storage and freezer warehouses. Special cold storage packages with low-temperature lubricants, seals, and materials are available for operation down to -30°C .

Q: What is the 180° fork rotation feature?
A: The 180° fork rotation allows the forks to face left or right without the truck turning. This enables the operator to pick up or deposit pallets on either side of the aisle while the truck remains centered in the aisle .

Q: What batteries are available for three-way stackers?
A: Both lead-acid and lithium-ion (LiFePO4) batteries are available. Lithium batteries offer fast charging (1-2 hours), opportunity charging for 24/7 operations, and zero maintenance .

Q: What safety features do three-way stackers have?
A: Key safety features include load-dependent speed control, automatic speed reduction when turning, electromagnetic braking, ramp anti-slide, emergency stop, and optional laser anti-collision sensors .

Q: Are three-way stackers suitable for automated warehouses?
A: Yes, three-way stackers can be integrated into automated warehouse systems and are available with AGV (Automated Guided Vehicle) configurations for fully autonomous VNA operations .
