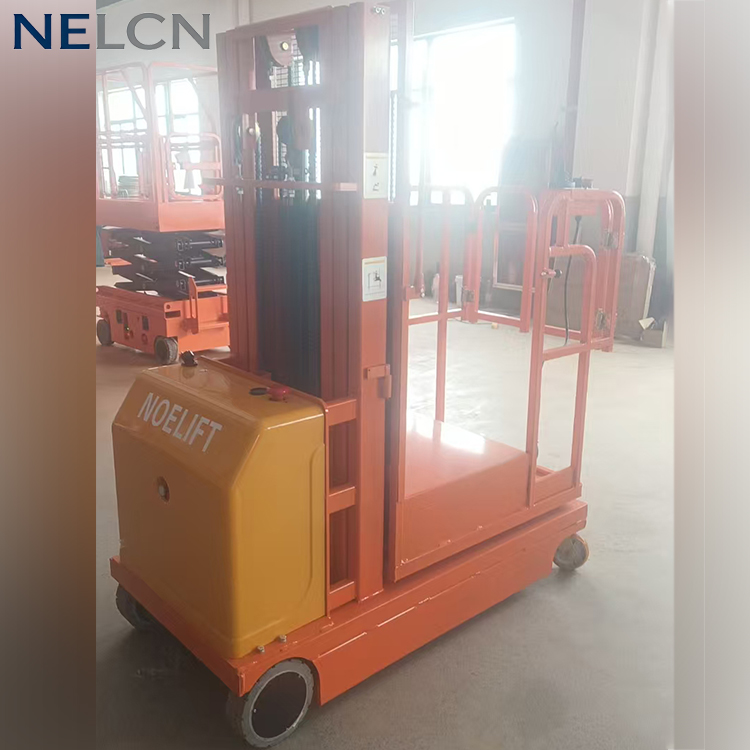

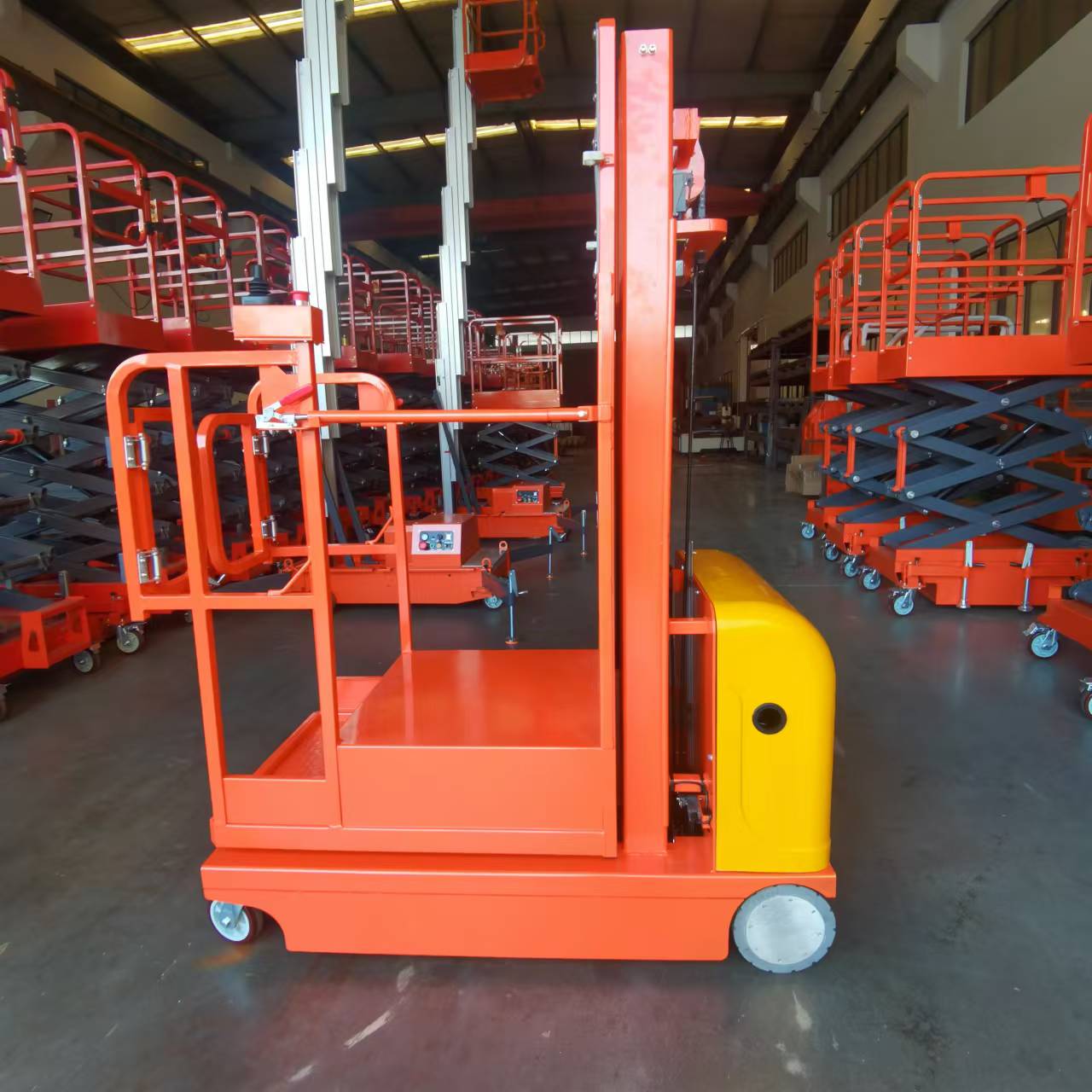

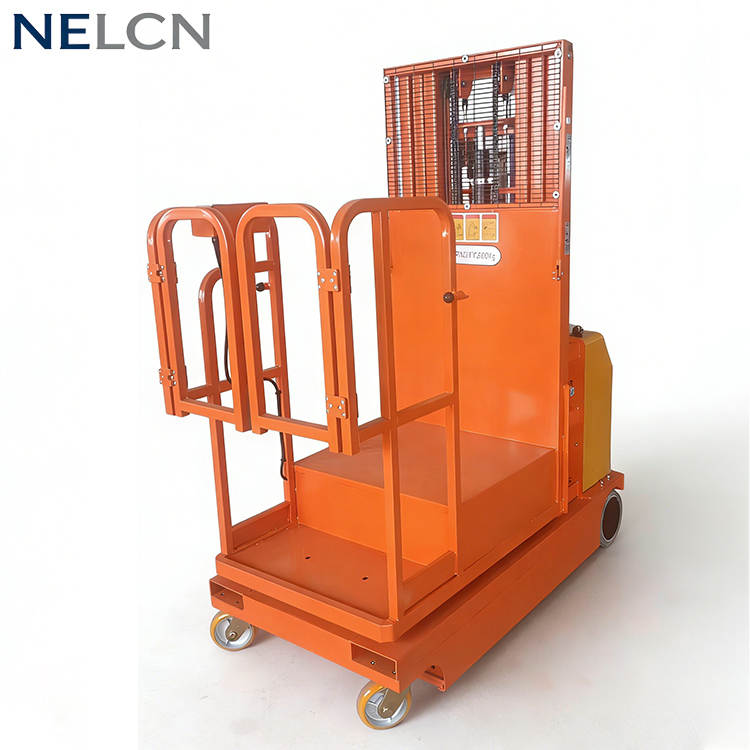

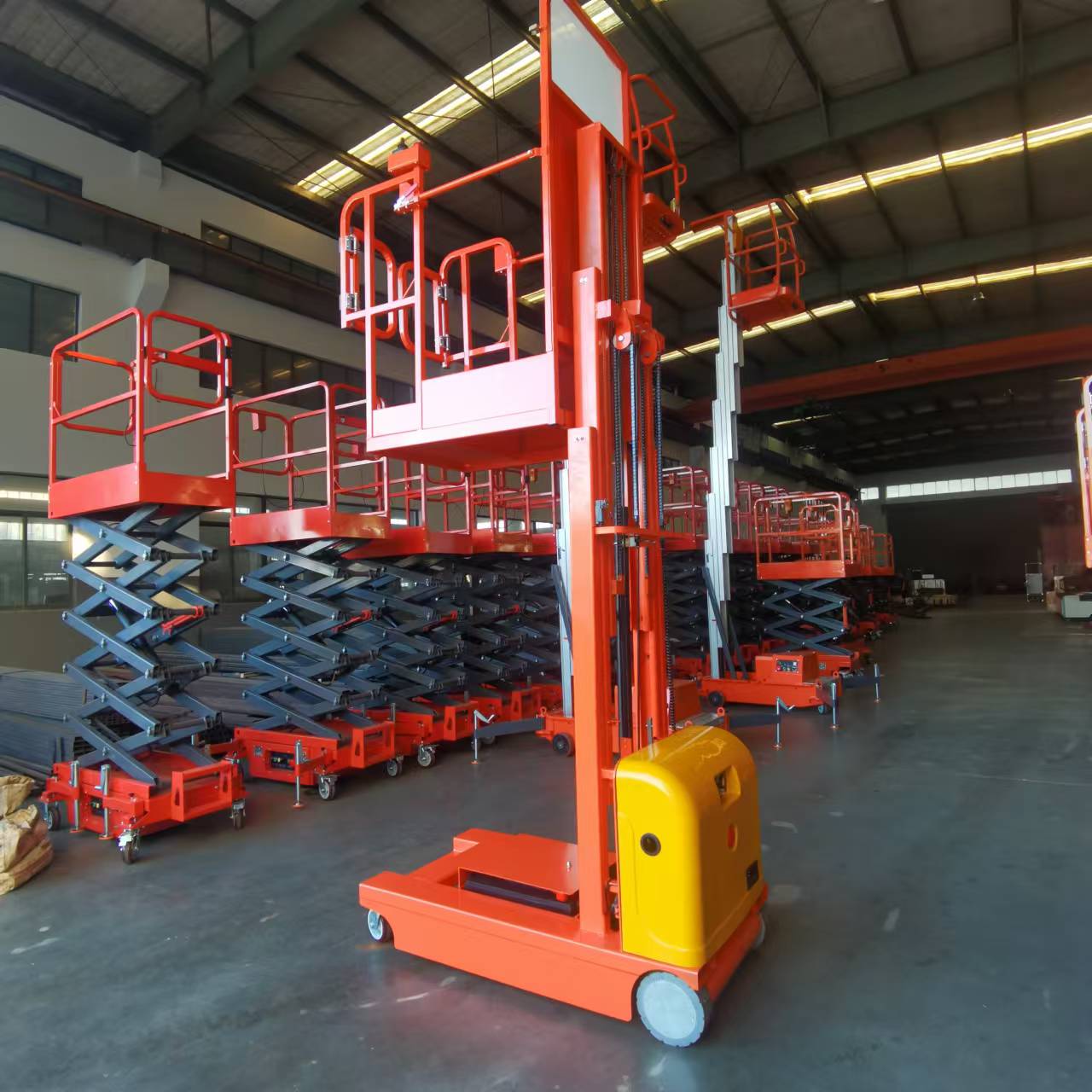

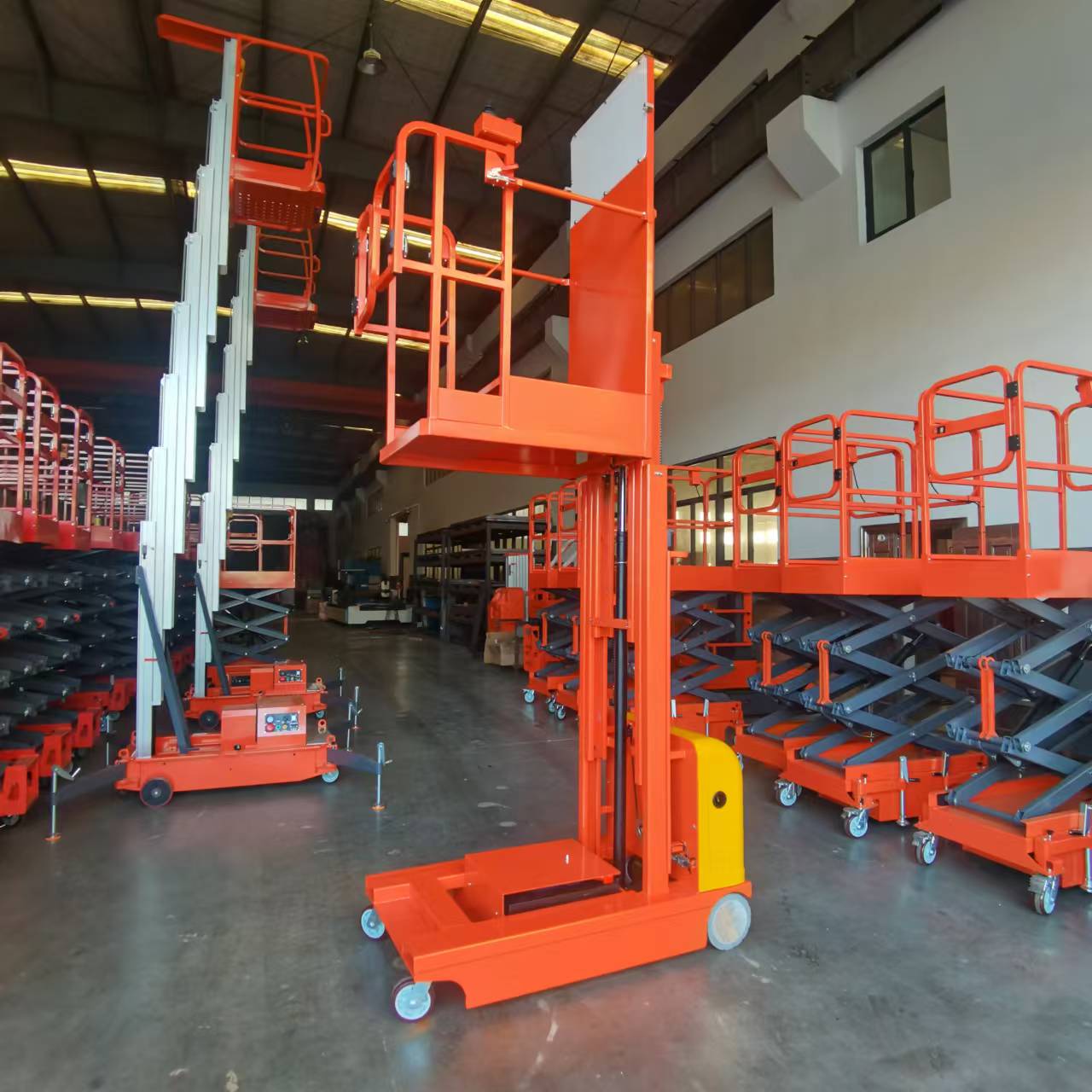

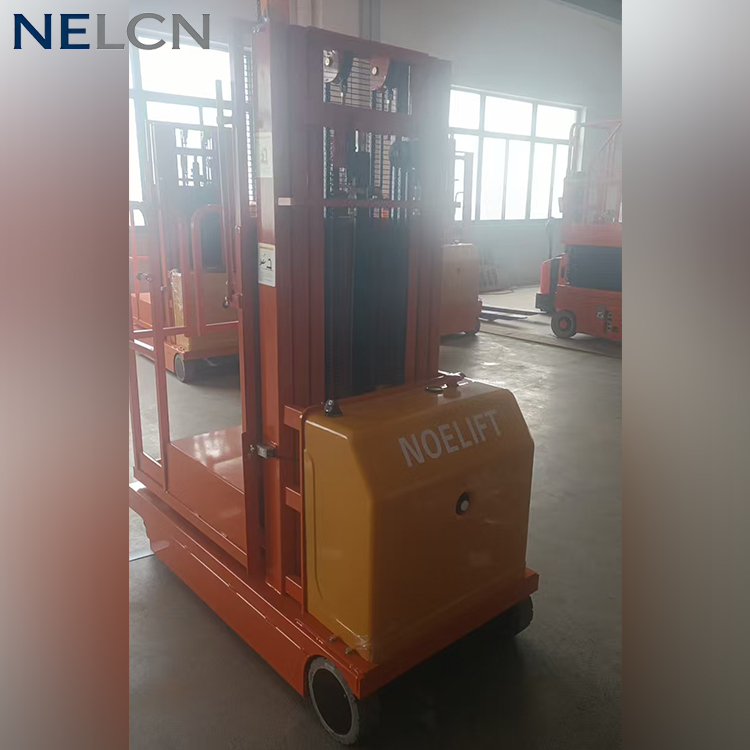

self propelled stock order picker

*With a compact design, can be transported in a passenger elevator.
*Non-marking tires are better for indoor work.
*Multiple automated safety configurations.
*Deep cycle battery, low voltage protection, automatic charging

Quantity:
Availability:





Inquire

Products Detail

Self-Propelled Stock Order Picker: Redefine Your Picking Productivity

Why Choose Self-Propelled over Manual?

Unlike semi-electric models, the Self-Propelled Stock Order Picker allows the operator to drive, steer, and lift simultaneously from the platform.

Zero Downtime: No need to descend and push the machine to the next rack.
Single-Operator Efficiency: One worker can do the job of three manual pickers.
Safety at Height: Advanced stability sensors keep the machine steady even at full extension.

Key Performance Specifications

Specification	T2-2.7	T2-3.3	T2-4	T2-4.5
Max.platform Height	2700	3300	4000	4500
Max.machine Height	4000	4900	5400	6200
Overall Length	1300
Overall Width	840
Overall Height	1760	2040	1810	1980
Platform length	630
Platform width	645
Height of guardrail	1070
Support foot expansion size	No support leg		1230 X 1310
Max load	200
Lifting Motor	12/1.6
Time of rise	19	22	21	24
Time of descent	20	22	18	21
Charger	12/15
Battery voltage/capacity	12V/120Ah
Tire size（ mm）	front wheel：Φ125*50		front wheel：Φ150*50
Tire size（ mm）	rear wheel：Φ150*50		rear wheel：Φ150*50
Overall Net Weight（Kg）	320	350	410	450

Elite Features & Engineering

1. "Zero-Turn" Maneuverability

The compact chassis and tight steering angle allow for a minimal turning radius, making it the perfect tool for "micro-fulfillment" centers and crowded retail floors.

2. Intelligent Integrated Control

Joystick Navigation: Simple, one-handed control for driving and lifting.
Proportional Drive: The harder you push, the faster it goes—smooth acceleration with no jerks.
Battery Indicator: On-board LED display with low-voltage protection to ensure you never get stuck at height.

3. Safety & Stability (CE Certified)

Automatic Pothole Protection: Mechanical "skirts" deploy when the platform rises to prevent tipping on uneven floors.
Tilt Sensor & Alarm: Audible warnings if the machine is on an unsafe slope.
Deadman Switch: Dual-hand/foot sensing to ensure the operator is fully inside the cabin.

Industrial Applications

"One Machine, Multiple Environments"

E-Commerce Warehousing: Perfect for high-density "pick-and-pack" workflows.
Retail & Supermarkets: Move stock during opening hours safely and quietly.
Maintenance & Facilities: Changing LED lights or repairing HVAC in narrow hallways.
Archives & Libraries: Managing heavy document boxes in vertical storage.

Why Buy From Our Factory?

OEM & ODM Service: Custom branding, colors, and specific platform dimensions available.
Component Reliability: We use international standard hydraulic pumps and Curtis/Zapi controllers.
Export Ready: Each unit undergoes a 48-hour continuous load test before shipping.
Fast Lead Times: Stock available for standard models; custom orders in 15–20 days.

What's Included in the Box?

Self-Propelled Stock Picker Unit
Built-in Smart Charger (Universal Voltage)
Operation Manual & Maintenance Guide
Warranty Certificate (12-Month Structural & Electrical)
