Efficient Handling · Stable Performance · Flexible Warehouse Solution

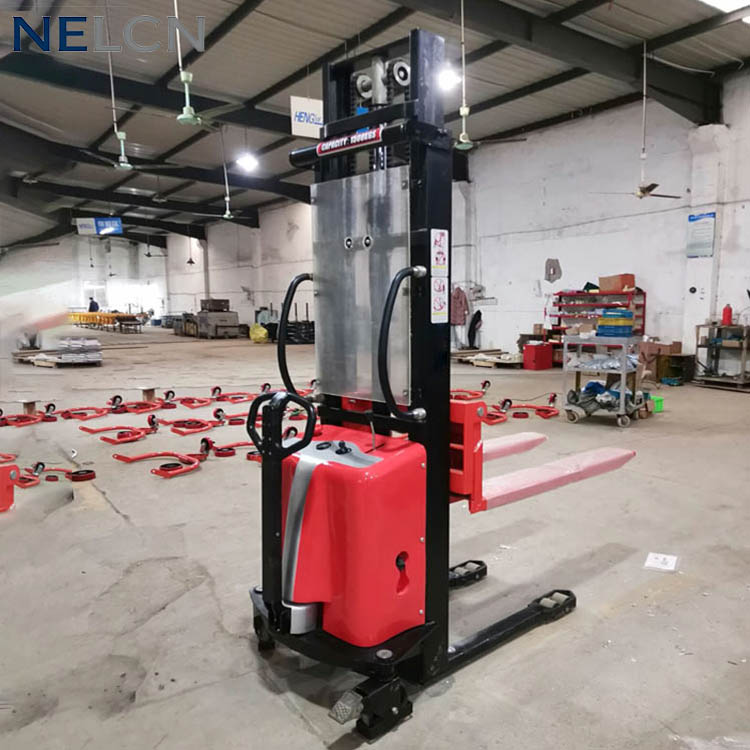

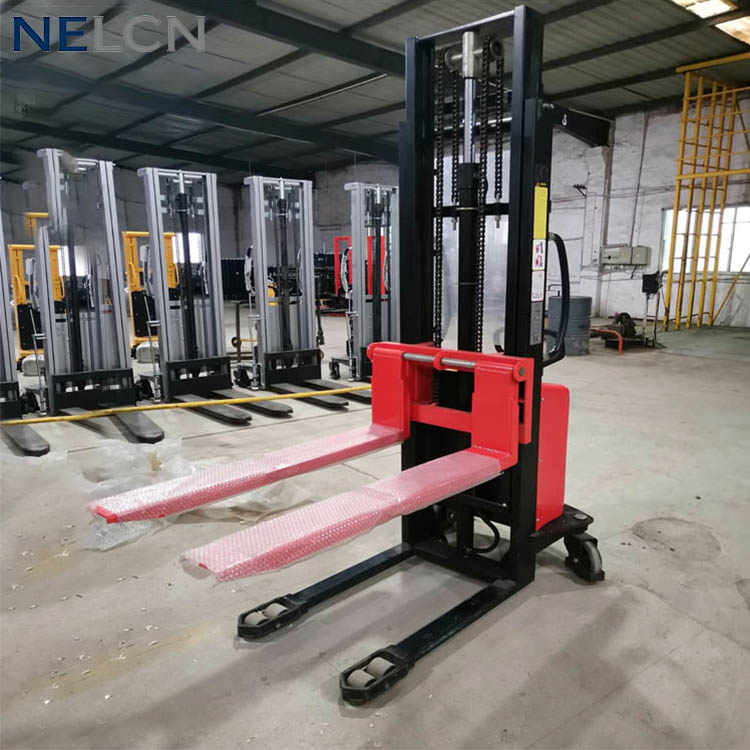

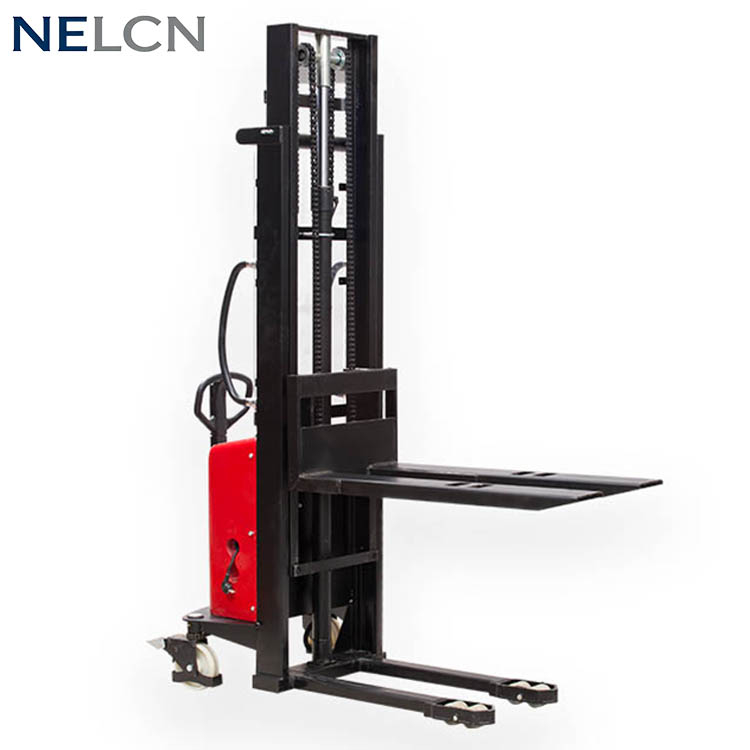

Designed for small to medium-sized warehouses, workshops, logistics centers, and distribution operations, the Noelift SPN Series semi-electric stacker combines electric lifting with manual travel to offer a cost-effective solution for pallet handling, stacking, and short-haul transport. Its high-strength mast, ergonomic control handle, and reliable battery-powered lift system ensure excellent stability, intuitive operation, and extended durability.
Product Features
1. High-Strength U-Shaped Mast Design
The reinforced U-shaped mast structure provides higher rigidity and stability, ensuring safe and reliable operation during high-level stacking.
2. Ergonomic Control Handle
The ergonomic handle design offers comfortable operation, easy control, and reduced operator fatigue during long working hours.
3. Electric Lifting System
Equipped with an electric lifting system, the stacker improves working efficiency compared with traditional manual lifting equipment, making it ideal for frequent stacking operations.
4. Multiple Load Capacity Options
Available in different capacities to meet various material handling requirements:
1000kg capacity
1500kg capacity
2000kg capacity
5. External Charger Design
The external charger allows convenient charging and easy maintenance, improving overall user experience.
6. Adjustable Fork Options
Various fork configurations are available to meet different pallet sizes:
The adjustable fork design provides better compatibility with different pallet standards.
Product Specifications
Item | Specification |
Model | SPN |
Load Capacity | 1000kg / 1500kg / 2000kg |
Min. Fork Height | 85mm |
Max. Lifting Height | 2000mm / 2500mm / 3000mm / 3500mm |
Fork Length | 1150mm |
Fork Width | 330-850mm Adjustable |
Leg Width | 620/510/510mm |
Turning Radius | 1450mm |
Battery | 12V/20Ah |
Charger | 12V/15A |
Motor Power | 12V/1.6kW |
Load Wheel | Φ80×50mm |
Front Wheel | Φ80×93mm |
Overall Height | Approx. 1580-2260mm |
Net Weight | 390-460kg |
Applications
The SPN Series Semi Electric Stacker is suitable for:
✔ Warehouses
✔ Manufacturing workshops
✔ Logistics and distribution centers
✔ Storage areas
✔ Supermarkets
✔ Light industrial material handling applications
FAQ – Semi Electric Stacker SPN Series
Q1: What is a semi electric stacker?
A: A semi electric stacker is a material handling machine that uses electric power for lifting and manual pushing for traveling. It combines the advantages of manual stackers and electric stackers, offering high efficiency, easy operation, and lower operating costs.
Q2: Can the fork width be adjusted?
A: Yes. The SPN Series supports adjustable fork options. The fork width can be adjusted from 330mm to 850mm, allowing compatibility with different pallet sizes.
Q3: What type of battery does the stacker use?
A: The SPN Series is equipped with a 12V/20Ah battery, providing reliable power for daily warehouse handling operations.
Q4: Does the stacker include a charger?
A: Yes. The machine is equipped with an external charger (12V/15A), making charging convenient and maintenance easier.
Q5: Is the SPN Series suitable for narrow spaces?
A: Yes. Thanks to its compact structure and 1450mm turning radius, the SPN Series is suitable for operation in limited warehouse spaces and narrow aisles.
