Solve Your Material Handling Pain Points Efficiently
Are you tired of high labor costs and low efficiency in warehouse handling? Our semi-electric pallet truck combines electric lifting and manual steering, balancing cost-effectiveness and work efficiency. It is the perfect solution for medium-intensity material handling scenarios, helping you reduce labor intensity by 50% and improve work efficiency by 40% compared with manual pallet trucks.
Key Advantages at a Glance
•Load Capacity: 1.5T / 2T / 2.5T / 3T (Customizable)
•Power Mode: Electric Lifting + Manual Steering (No Driving License Required)
•Battery: 24V/48V Lead-Acid or Lithium Battery (Long battery life, Optional Extra Battery)
•Certifications: CE, ISO9001, FDA (Meet Global Export Standards)
•Application: Warehouse, Factory, Supermarket, Logistics Center, Cold Storage
Why Choose Semi-Electric Pallet Truck? Solve These Pain Points for You
High Labor Cost Manual pallet trucks require 2-3 workers to complete heavy loading and unloading, which increases labor costs. Our semi-electric pallet truck only needs 1 person to operate, greatly reducing labor input and saving enterprise costs. | Low Work Efficiency Manual lifting is slow and easy to cause fatigue. The electric lifting system of our semi-electric pallet truck can complete lifting in 3-5 seconds, and the moving speed can reach 4-5 km/h, which significantly improves handling efficiency. | Limited Application Scenarios Full-electric pallet trucks are expensive and not suitable for small and medium-sized enterprises. Our semi-electric model has a cost 50% lower than full-electric ones, and is flexible in small spaces, suitable for various scenarios such as narrow warehouses and small workshops. |

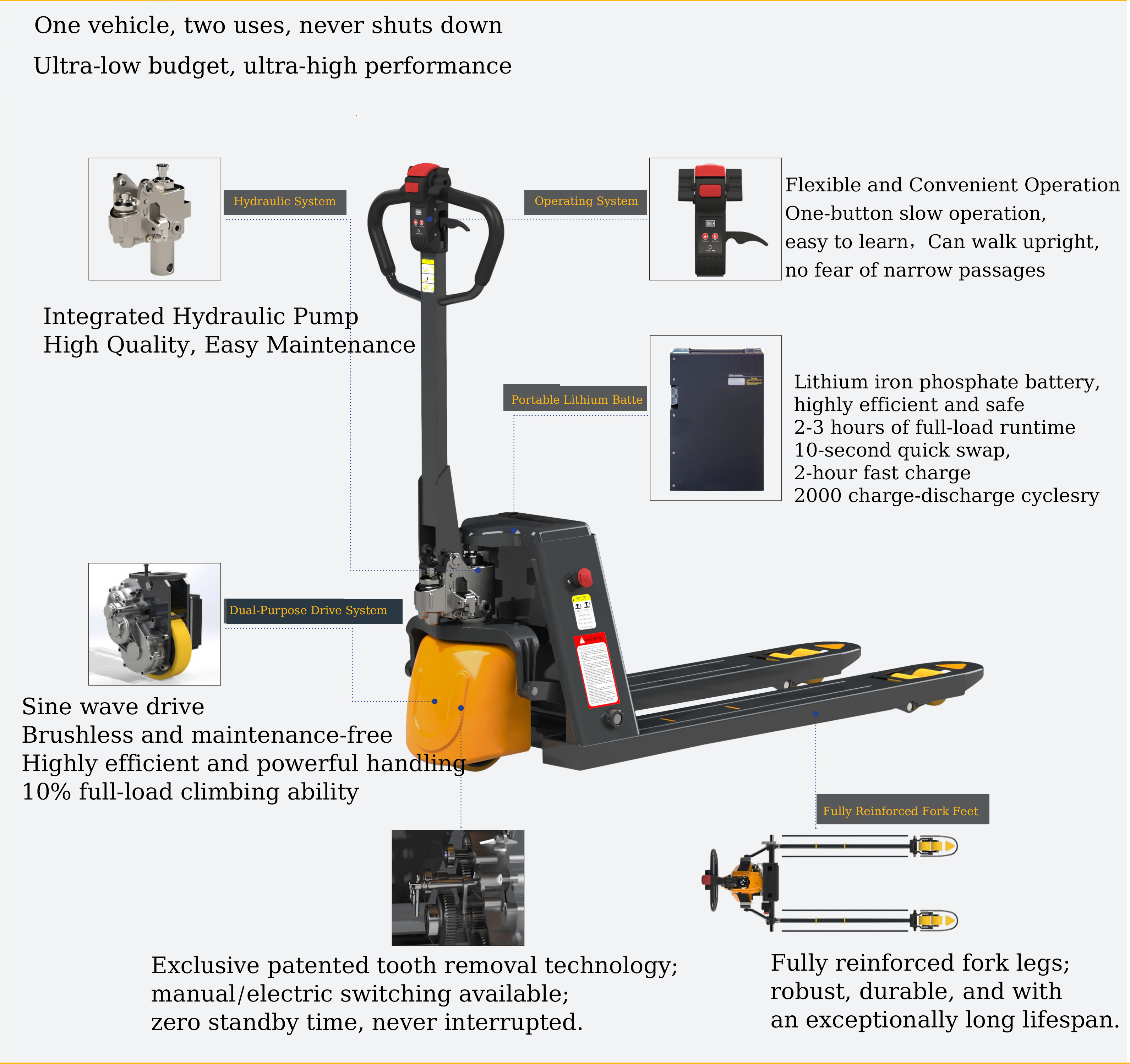

Powerful Performance: Equipped with a 0.65-1.0kW DC motor, supporting stable lifting for loads between 1.5T and 3T.
Reliable Hydraulics: Features high-quality leak-proof cylinders that ensure smooth operation and minimize maintenance costs.
User-Friendly: Simple button-style controls allow even new operators to master the equipment instantly.
Narrow Space Mastery: A tight turning radius of 1350-1540mm allows for effortless maneuvering in confined aisles.
Labor-Saving: The low-pedal design reduces pushing resistance by 40%.
Safety Tiller: Ergonomic handle with auto-return, integrated emergency stop, and horn for maximum operator security.
Dual Options: Choose between cost-effective Lead-Acid or fast-charging, long-life Lithium batteries (24V/48V).
All-Day Productivity: Supports 800+ lifts on a single charge. Optional swappable batteries enable 24/7 operation.
Eco-Friendly: Energy-saving motor reduces power consumption by 20% compared to industry standards.
Heavy-Duty Build: Forged from high-quality Q235 steel, offering a lifespan 3x longer than standard manual trucks.
Floor Protection: Non-marking PU wheels provide a quiet, anti-slip grip suitable for warehouses and supermarkets.
Full Protection: Fully compliant with international safety standards, featuring overload protection and emergency power-off switches.
Low Upkeep: With no drive motor to service, maintenance is simpler and significantly cheaper than full-electric models.
High ROI: At only 50% of the price of a full-electric truck, it offers a rapid return on investment for small and medium enterprises.
Detailed Technical Parameters of Semi-Electric Pallet Truck
| Model | T20 | |
| Drive Type | Electric/Manual | |
| Lifting Type | Manual | |
| Driving Type | Walking | |
| Load | Q | 2000kg(44001bs) |
| Load Center | C | 600mm(24") |
| Wheelbase | Y | 1202mm/1272mm(47.3"50.1") |
| Task Weight (including battery) | 135/140kg(297/308lbs) | |
| Overall Height | h1 | 517mm(20.4") |
| Fork Height (Lowered) | h2 | 80mm(3.15") |
| Lifting Height | h3 | 200mm(8") |
| Handle Height | h4 | 560mm~1280mm(22"~50.4") |
| Ground Clearance | h5 | 27mm(1.1") |
| Overall Length | L1 | 1546mm/1616mm (60.8"/63.6") |
| Overall Width | b1 | 540mm/680mm(21"/27") |
| Fork Size | L | 1150mm/1220mm(45"/48") |
| S | 53mm(2.1") | |
| e | 160mm(6.3") | |
| Minimum Turning Radius | Wa | 1352mm/1422mm(53.2"/56") |
| Pallet Aisle Width, 1000×1200 Pallet | AST | 1980mm(78") |
| Pallet Aisle Width, 800x1200 Pallet | AST | 1880mm(74") |
| Drive Motor | 0.75kw (brushless) | |
| Travel Speed (Full Load/Unloaded) | 4.5/4.8km/h(2.8/3.0mph) | |

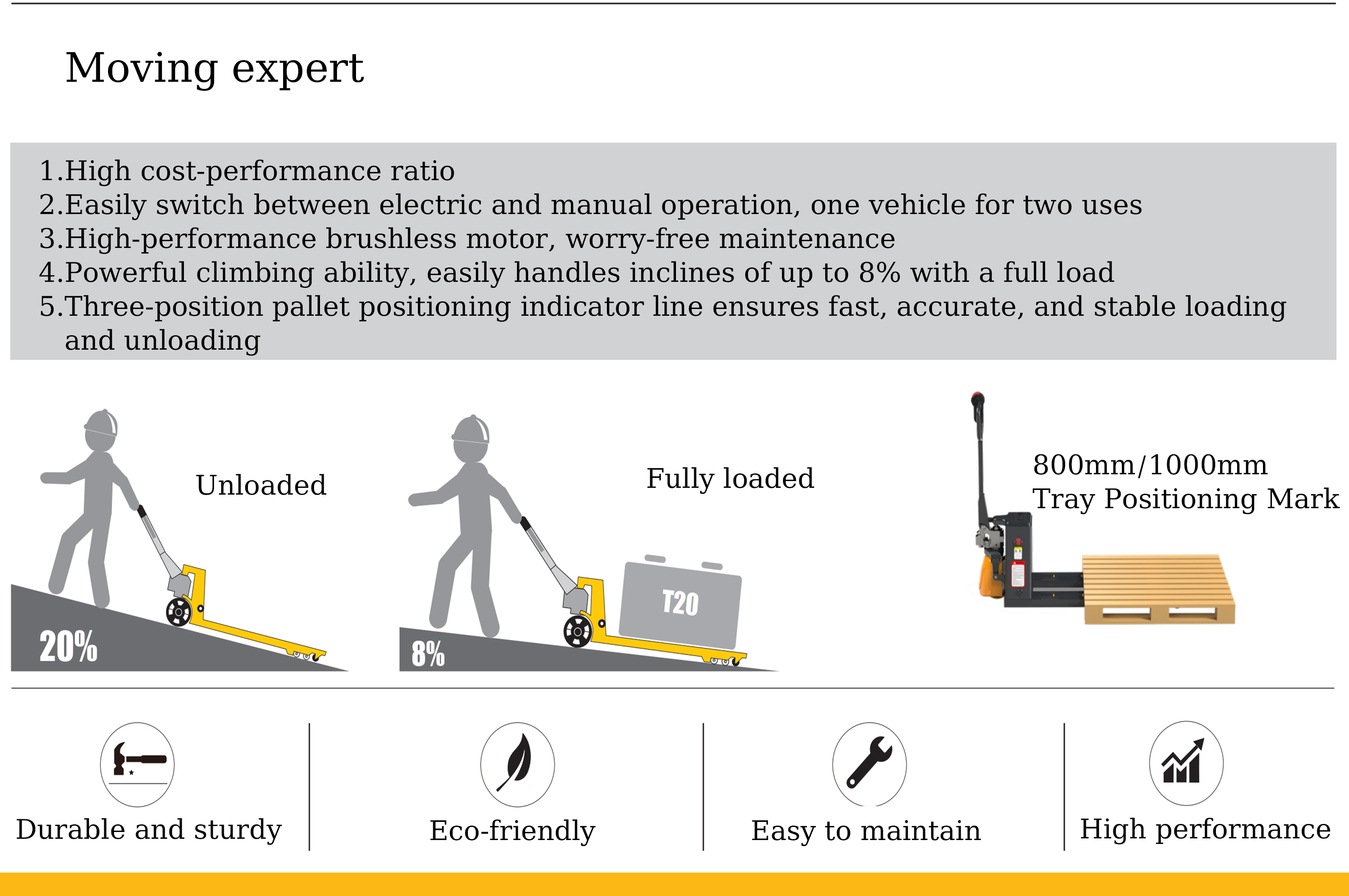

| Maximum Gradeability (Full Load/Unloaded) | % | 8%/20% |
| Brake Type | Electromagnetic braking | |
| Lifting Motor | N/A | |
| Controller | Weak power i50 | |
| Battery Type and Capacity | V/Ah | 48V/10Ah Lithium iron phosphate batteries |
| Charger | A | 48V/5A |
Note: All parameters can be customized according to your specific needs. Please contact us for detailed customization solutions.
Wide Application Scenarios of Semi-Electric Pallet Truck
Our semi-electric pallet truck is designed for medium-intensity material handling, and is widely used in various industries and scenarios, bringing efficient and labor-saving handling solutions to enterprises.
Warehouse & Logistics Center Suitable for loading, unloading and transferring goods in warehouses and logistics centers, especially for narrow aisles and large quantities of goods handling, improving handling efficiency and reducing labor intensity. | Factory Production Line It is used to transfer raw materials, semi-finished products and finished products on the production line, realizing seamless connection between production processes and improving production efficiency. | Supermarket & Retail Store Suitable for goods replenishment, unloading and transferring in supermarkets and retail stores, with quiet operation and non-marking wheels, which will not damage the ground and shopping environment. | Cold Storage & Refrigeration Warehouse The special anti-low temperature design can adapt to the low temperature environment of -20℃ to 5℃, and is suitable for handling frozen and refrigerated goods, ensuring the safety and efficiency of handling. |
Why Choose Us? Trusted Semi-Electric Pallet Truck Manufacturer
We are a professional manufacturer of semi-electric pallet trucks with 10+ years of export experience, serving 5000+ customers in 80+ countries, including the United States, Germany, the United Kingdom, Australia, and Southeast Asia. Our products have passed CE, ISO9001, FDA and other international certifications, and meet the import standards of various countries, ensuring smooth customs clearance. |
Strict Quality Control From raw material procurement to product delivery, we have 5 inspection procedures to ensure that each semi-electric pallet truck meets quality standards. We use high-quality components from well-known brands to ensure product durability and stability. The product pass rate is as high as 99.8%. | Customization Service According to your specific needs, we can customize load capacity, lifting height, battery type, fork size and other parameters to provide you with the most suitable material handling solution. The minimum order quantity (MOQ) is 1 unit, supporting small batch orders. | Fast Delivery & After-Sales Service We have a large inventory, and the delivery time is 3-7 days for standard products and 15-25 days for customized products. We provide 1-year warranty service, and 24-hour online technical support to solve your after-sales problems in a timely manner. We also provide spare parts supply service to ensure the normal operation of your equipment. |
Customer Reviews & Feedback
John Smith | Logistics Manager from USA "We bought 10 units of 2-ton semi-electric pallet trucks last year. They are very easy to operate and save a lot of labor. The battery life is very good, which can support a full day's work. The after-sales service is also very responsive. We will buy more in the future." | Anna Muller | Warehouse Supervisor from Germany "The semi-electric pallet truck is very flexible, which is suitable for our narrow warehouse. The quality is very reliable, and there is almost no maintenance problem in half a year. It meets the CE standard and passes the customs clearance smoothly. Highly recommended!" | David Lee | Purchasing Manager from Australia "We customized 5 units of 2.5-ton semi-electric pallet trucks with lithium batteries. The charging speed is fast, and the weight is light, which is very convenient to move. The price is very competitive compared with local suppliers. It's a great purchase!" |
Frequently Asked Questions (FAQs) About Semi-Electric Pallet Truck
• Q: What is the difference between semi-electric pallet truck and full-electric pallet truck?
A: The semi-electric pallet truck adopts electric lifting and manual steering, which is cost-effective and flexible, suitable for medium-intensity handling. The full-electric pallet truck adopts electric lifting and electric steering, which is more efficient but more expensive. Our semi-electric model has a cost 50% lower than full-electric ones, and is more suitable for small and medium-sized enterprises.
• Q: How long is the battery life of the semi-electric pallet truck?
A: The lead-acid battery can be used for 1-2 years, and the lithium battery can be used for 3-5 years. The service life also depends on the frequency of use and maintenance. We provide battery maintenance tips to help you extend the battery life.
• Q: Do I need a driving license to operate the semi-electric pallet truck?
A: No, the semi-electric pallet truck is a manual steering equipment, which is easy to operate and does not require a professional driving license. We will provide operation instructions and video tutorials to help your employees get started quickly.
• Q: Can the semi-electric pallet truck be used in cold storage?
A: Yes, we have a special cold storage model, which is equipped with anti-low temperature battery and sealant, and can adapt to the low temperature environment of -20℃ to 5℃, suitable for handling frozen and refrigerated goods.
• Q: What is the delivery time and payment terms?
A: The delivery time is 3-7 days for standard products and 15-25 days for customized products. We accept T/T, L/C, PayPal and other payment terms. For large orders, we can provide a 30% deposit and 70% balance before delivery.
Get Your Semi-Electric Pallet Truck Quote Now
Whether you need standard products or customized solutions, we can provide you with high-quality semi-electric pallet trucks and professional services. Fill in the form below to get the latest price list, technical parameters and free sample consultation. Our professional team will reply to you within 24 hours.
