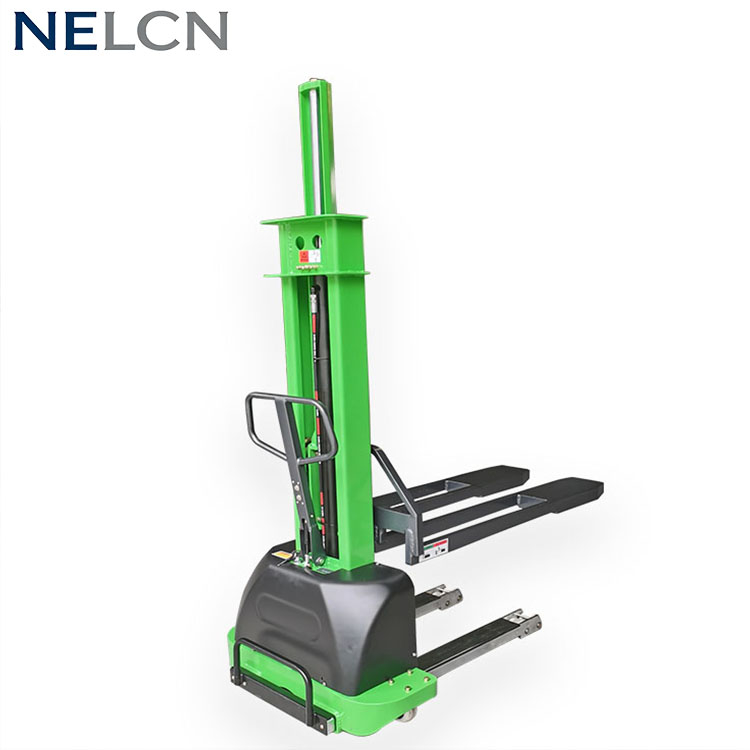

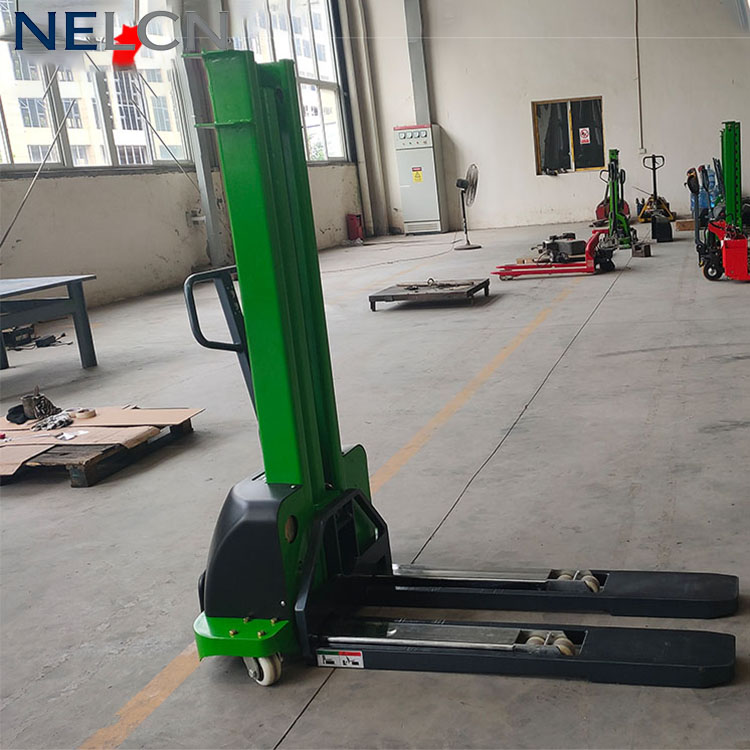

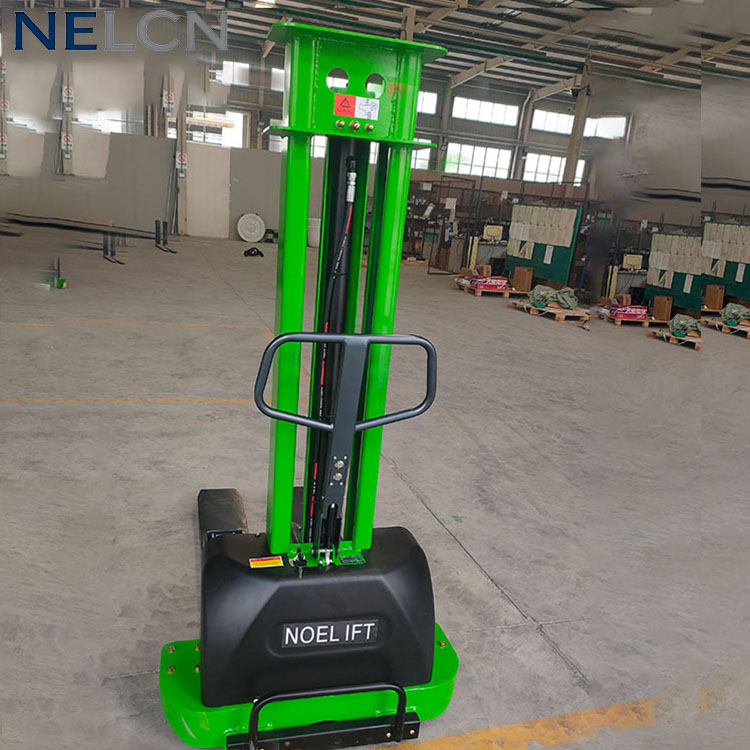

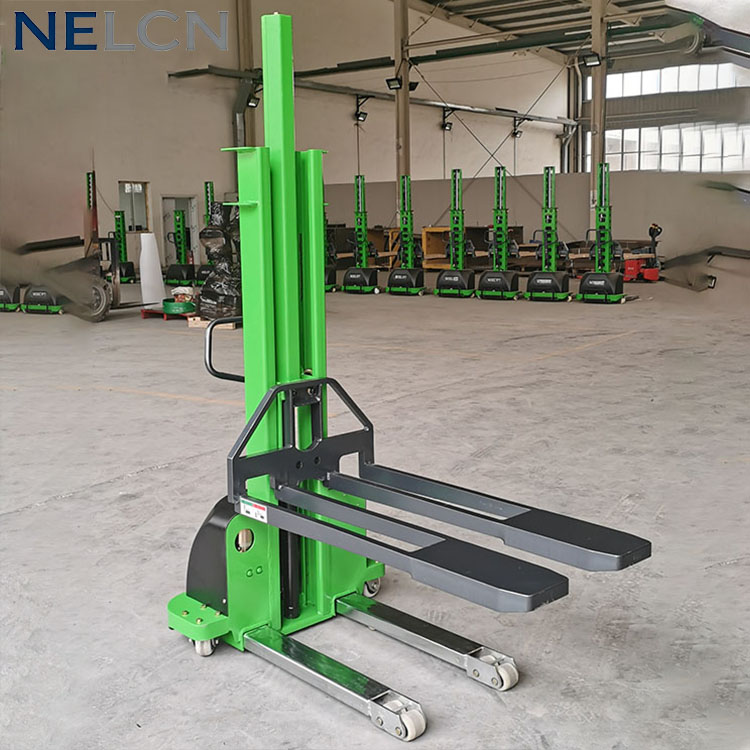

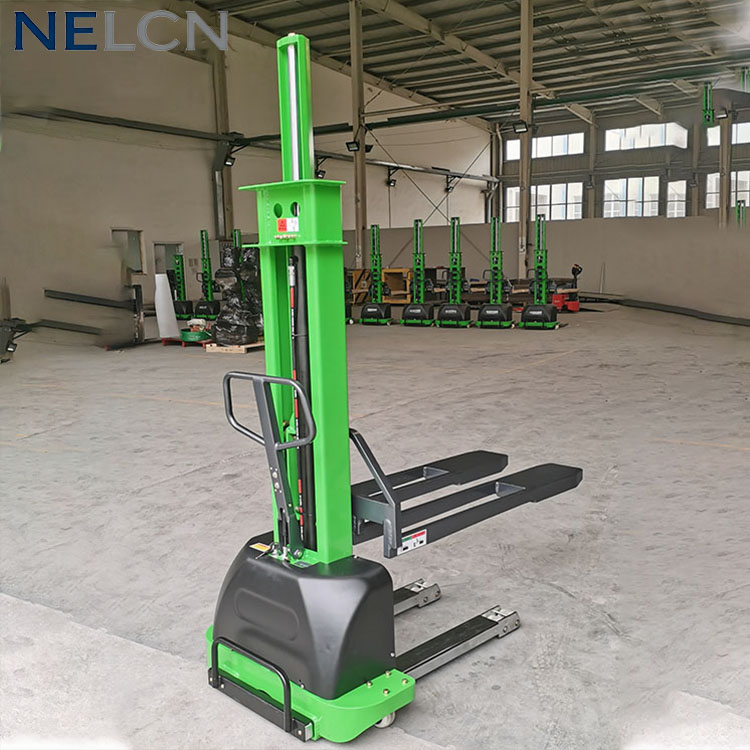

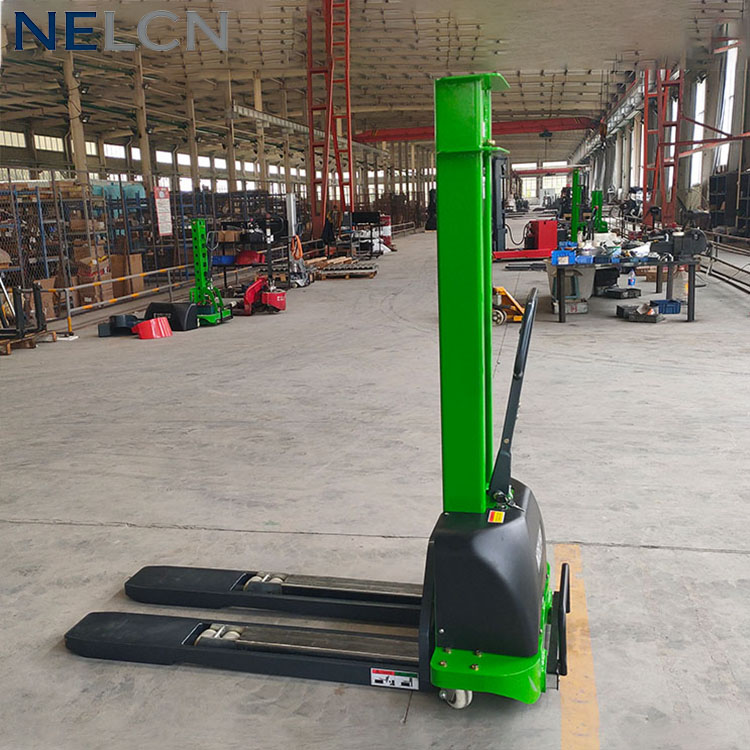

Semi Electric Stacker CDD Series – Reliable Lifting Solution for Light Material Handling
The CDD Series Semi Electric Stacker is designed for efficient and reliable material handling applications where compact size, easy operation, and cost-effective lifting performance are required. It combines electric lifting assistance with manual movement, making it an ideal solution for warehouses, workshops, production lines, and storage areas that need flexible pallet handling.
Product Specifications
Model | CDD Series |
Product Type | Semi Electric Stacker |
Rated Load Capacity | 300kg / 500kg / 700kg / 1000kg |
Fork Width | 565mm / 685mm |
Fork Length | 1150mm |
Overall Width | 835mm / 955mm |
Lifting Height | 800mm - 1600mm |
Key Features and Advantages
1. Strong Alloy Steel Structure for Better Durability
The entire frame is constructed with high-strength alloy steel, providing excellent rigidity and structural stability during lifting operations. The robust design helps the stacker maintain reliable performance under regular material handling conditions.
2. Hydraulic Lifting System for Reliable Operation
The CDD Series uses a hydraulic lifting system, which offers a more reliable and durable lifting method compared with traditional mechanical lifting structures. The hydraulic design provides smooth lifting performance and helps reduce wear during operation.
3. Lightweight Design for Flexible Handling
With a lightweight and compact structure, the semi electric stacker is easy to operate and maneuver in limited working spaces. This design helps improve handling efficiency, especially in warehouses and production environments where flexibility is important.
4. Energy-Efficient Hydraulic Power System
The stacker is equipped with an efficient gear pump and motor, helping optimize hydraulic system performance and reduce energy consumption during lifting operations.
5. Dual Control Downward Movement for Longer Battery Life
The lowering function features separate controls for powered lowering and gravity lowering. When gravity lowering is selected, no electrical power is consumed, helping extend operating time and improve energy efficiency.
6. Chrome-Plated Support Legs for Improved Service Life
The support legs are treated with a chrome plating process, providing better corrosion resistance, higher surface hardness, and improved wear resistance. This helps reduce wear during repeated use and keeps the support legs smooth and flexible for longer-term operation.
Applications of Semi-Electric Self-Loading Stacker
The CDD Series Semi-Electric Self-Loading Stacker is specifically designed for versatile, light-to-medium material handling workflows. For global procurement buyers and distribution networks, it addresses key operational environments including:
Last-Mile Delivery & Transport Vehicles: Ideal for delivery trucks, vans, and commercial trailers. Because the stacker can lift itself along with cargo into a vehicle, it eliminates the need for external loading docks, tail-lifts, or ramps.
Narrow Aisles & Confined Warehouses: With compact body widths (835 mm / 955 mm) and a lightweight alloy steel profile, it maneuvers seamlessly in tight retail backrooms, small workshops, and crowded storage aisles.
Light Manufacturing & Distribution Centers: Suited for intermittent pallet stacking, workshop component transfers, and ground-level inventory organization where heavy full-size forklifts are impractical.
Frequently Asked Questions (FAQ)
Q1: What makes a "self-loading" stacker different from a standard semi-electric stacker?
A: Unlike standard stackers that require a separate dock or loading bay, a self-loading stacker features a unique lifting mechanism that allows the machine to hoist itself (along with its payload) directly into a delivery vehicle or transport van. This removes destination unloading hurdles for mobile delivery teams.
Q2: How does the dual-mode descent system save battery power?
A: The CDD series separates powered descent from gravity descent. During standard lowering operations, gravity descent is utilized without drawing electrical energy from the battery. This preserves battery charge, maximizes working cycles per charge, and lowers overall operational energy costs.
Q3: What maintenance advantages do the chrome-plated outriggers provide?
A: The outriggers undergo an advanced chrome-plating process that delivers high hardness and strong corrosion resistance. This minimizes surface friction and physical wear during daily push-and-pull operations, ensuring long-term structural integrity and smooth slide adjustments over years of intensive warehouse use.
Q4: What are the primary capacity and lifting height options available for procurement?
A: The CDD series supports diverse operational demands with rated load capacities ranging from 300kg, 500kg, 700kg, to 1000kg, and customizable lifting heights between 800mm and 1600mm, matched with standard fork and body dimensions tailored for standard industrial pallets.
Q5: Why choose a semi-electric model over a full-electric stacker for certain buyers?
A: Semi-electric models combine manual travel with electric hydraulic lifting. They offer a more cost-effective initial investment, fewer complex electrical components to maintain, and an optimized lightweight build ideal for sporadic or medium-frequency stacking environments.
