NOELIFT

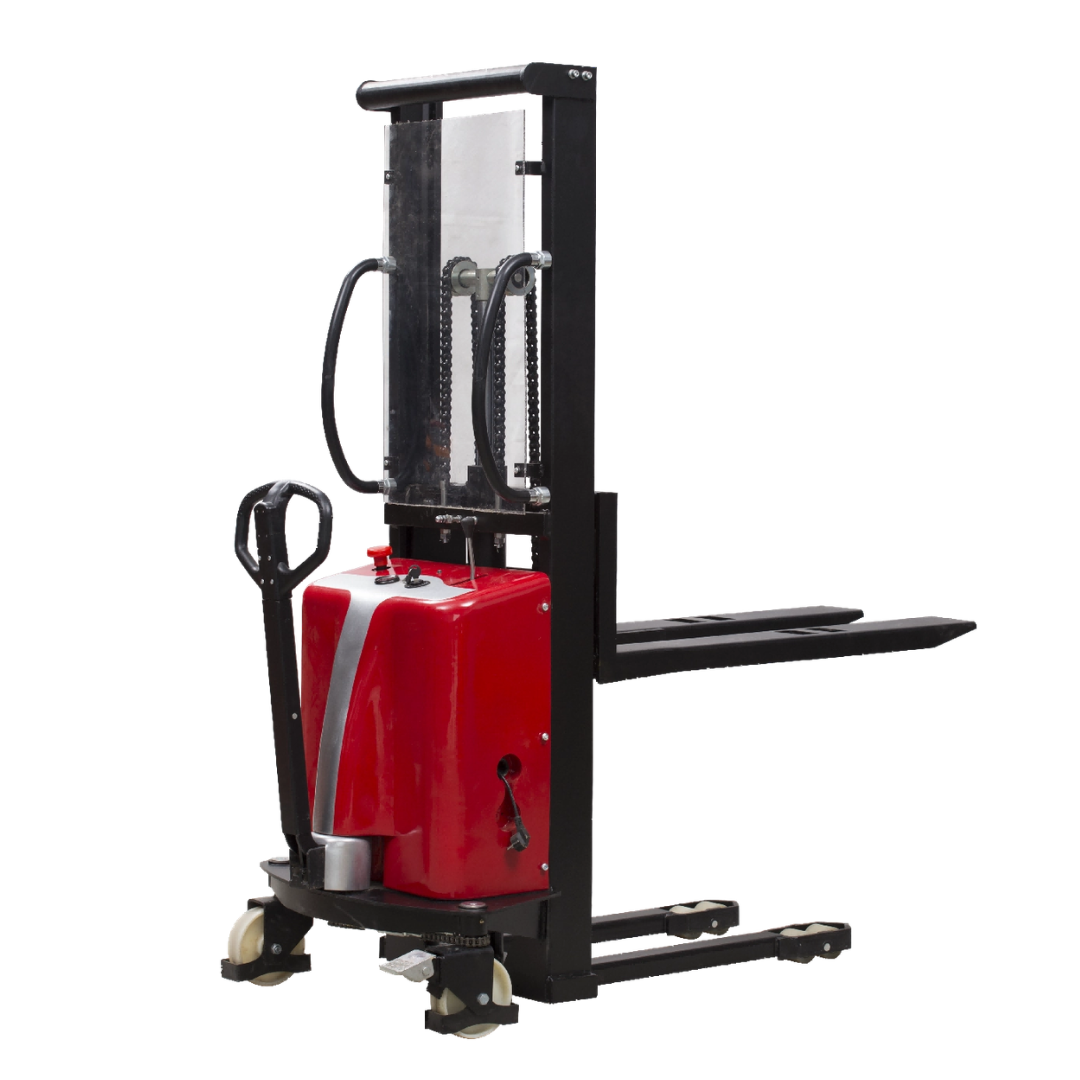

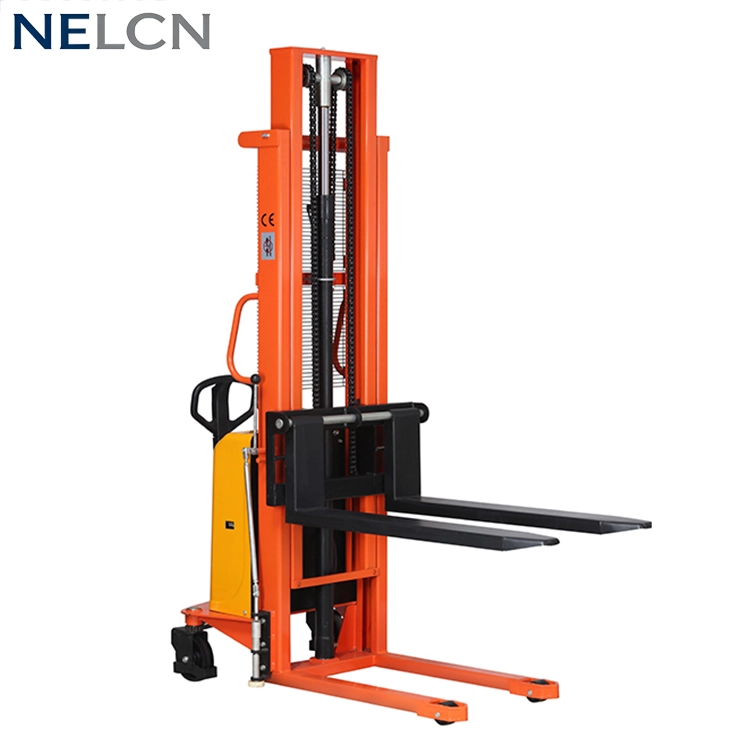

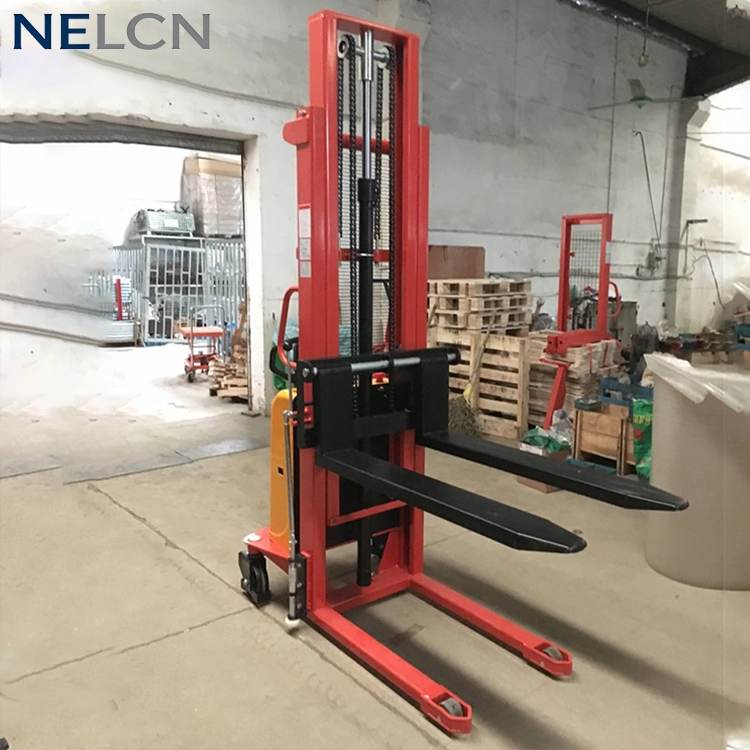

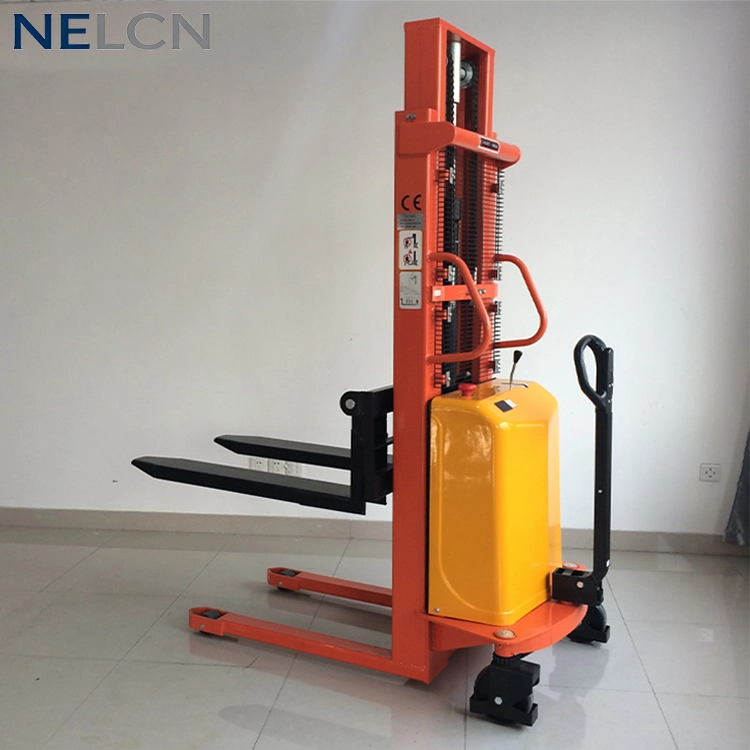

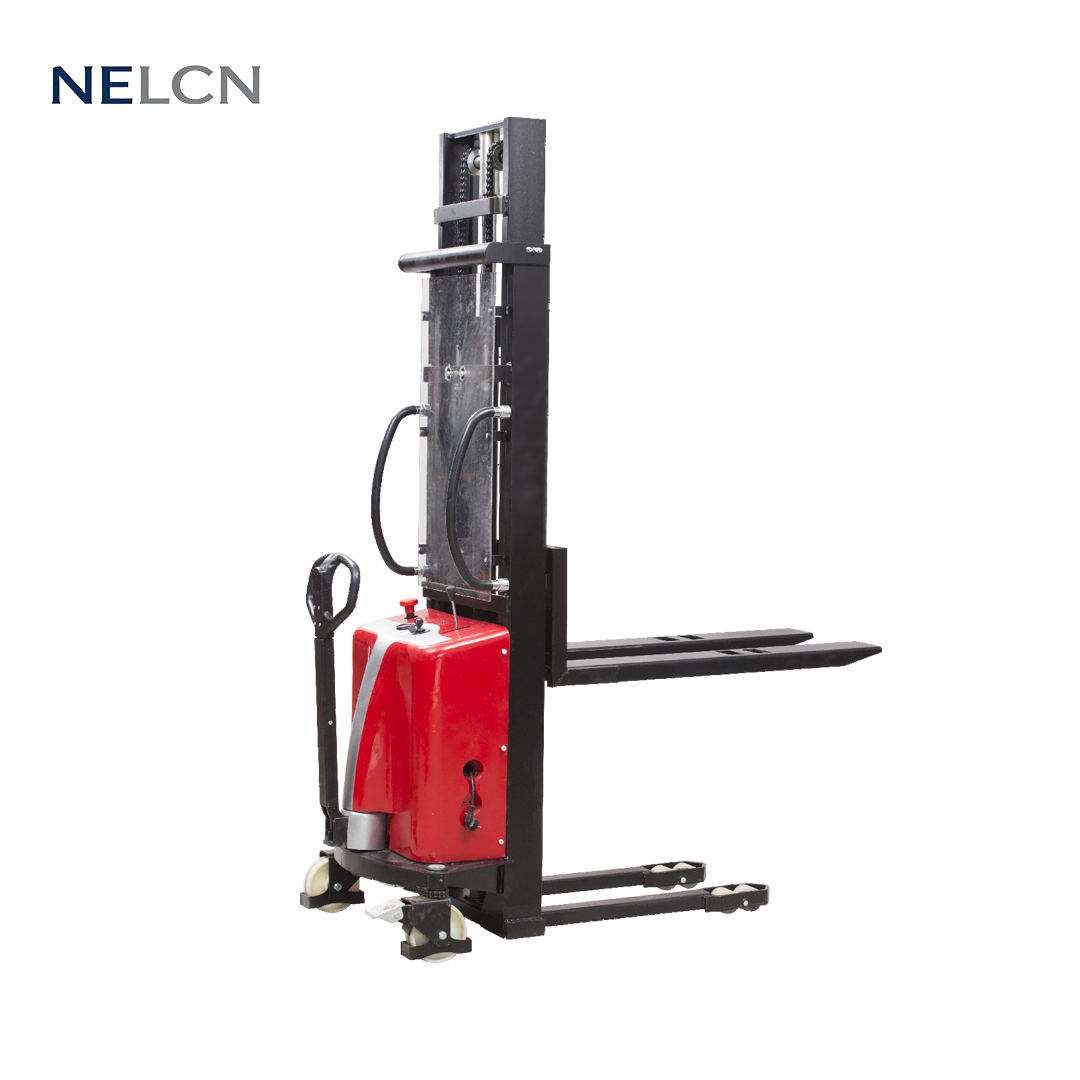

The semi electric stacker is designed for businesses that need a practical lifting solution between a manual stacker and a fully powered forklift.
By combining electric lifting with manual movement, this equipment helps operators handle pallets more efficiently while keeping operating costs lower than a full electric model.
With different load capacities from 1000kg to 2000kg and lifting heights up to 3.5 meters, it is suitable for warehouses, workshops, production areas, and distribution facilities where frequent pallet stacking is required.
Capacity | 1000kg / 1500kg / 2000kg |
Lifting Height | 1.6m - 3.5m |
Fork Length | 1150mm Adjustable |
Battery | 12V / 120Ah |
Lifting Motor | 1.6kW |
Load Center | 500mm |
Turning Radius | 1350mm |
Drive Method | Manual Push |
Wheels | Nylon / PU |
The integrated hydraulic lifting system provides smooth and reliable pallet lifting.
Operators can raise loads by using the electric control system, reducing the effort required compared with traditional hand-operated equipment.
The system is suitable for daily tasks such as:
Loading pallets onto racks
Moving goods between storage levels
Handling production materials

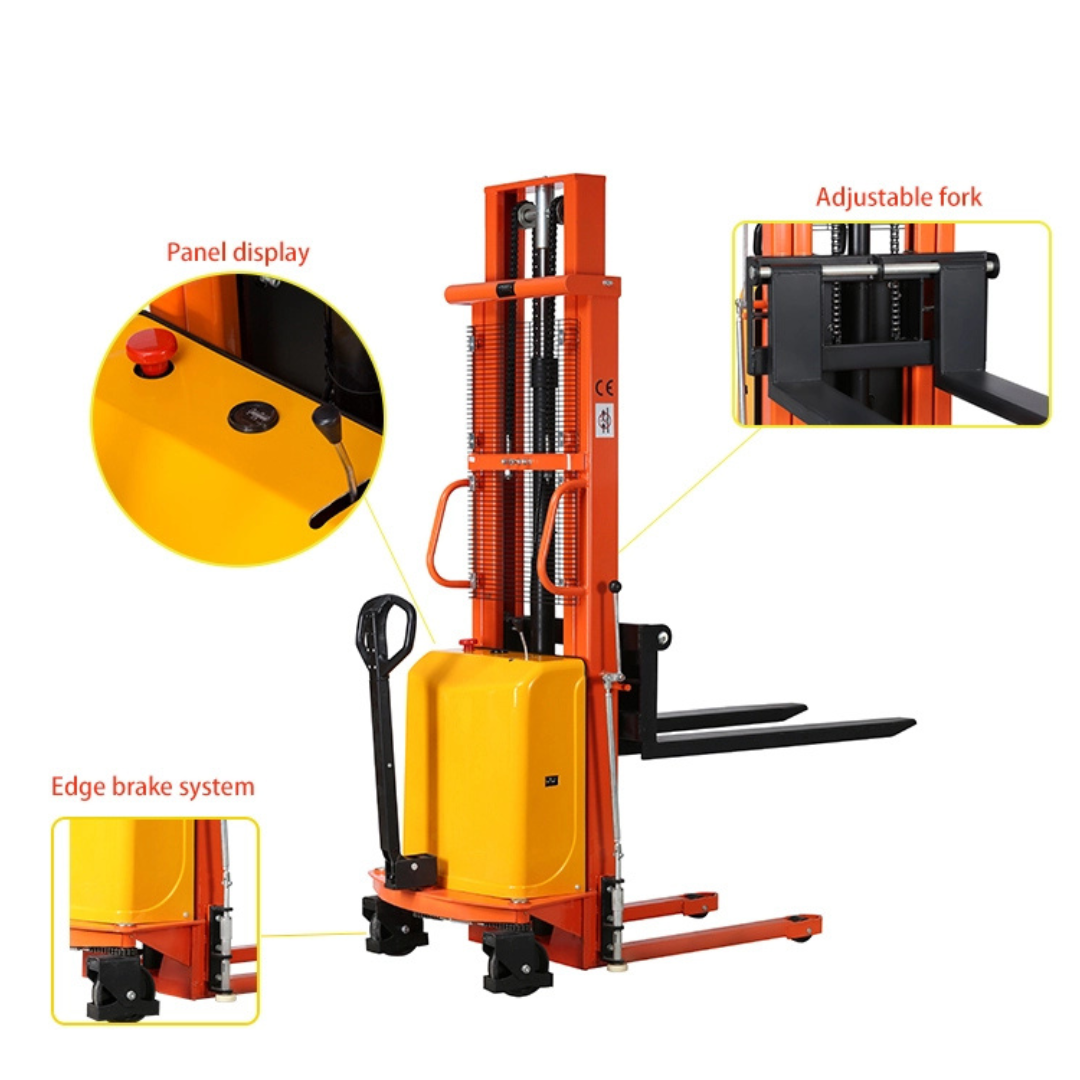

The 1150mm adjustable forks allow compatibility with various pallet dimensions.
This flexibility makes the stacker suitable for:
Standard warehouse pallets
Euro pallets
Different load configurations
Large forklifts are not always practical in small storage spaces.
The compact design and 1350mm turning radius allow easier operation in:
Narrow warehouse aisles
Small workshops
Stock rooms
Production areas

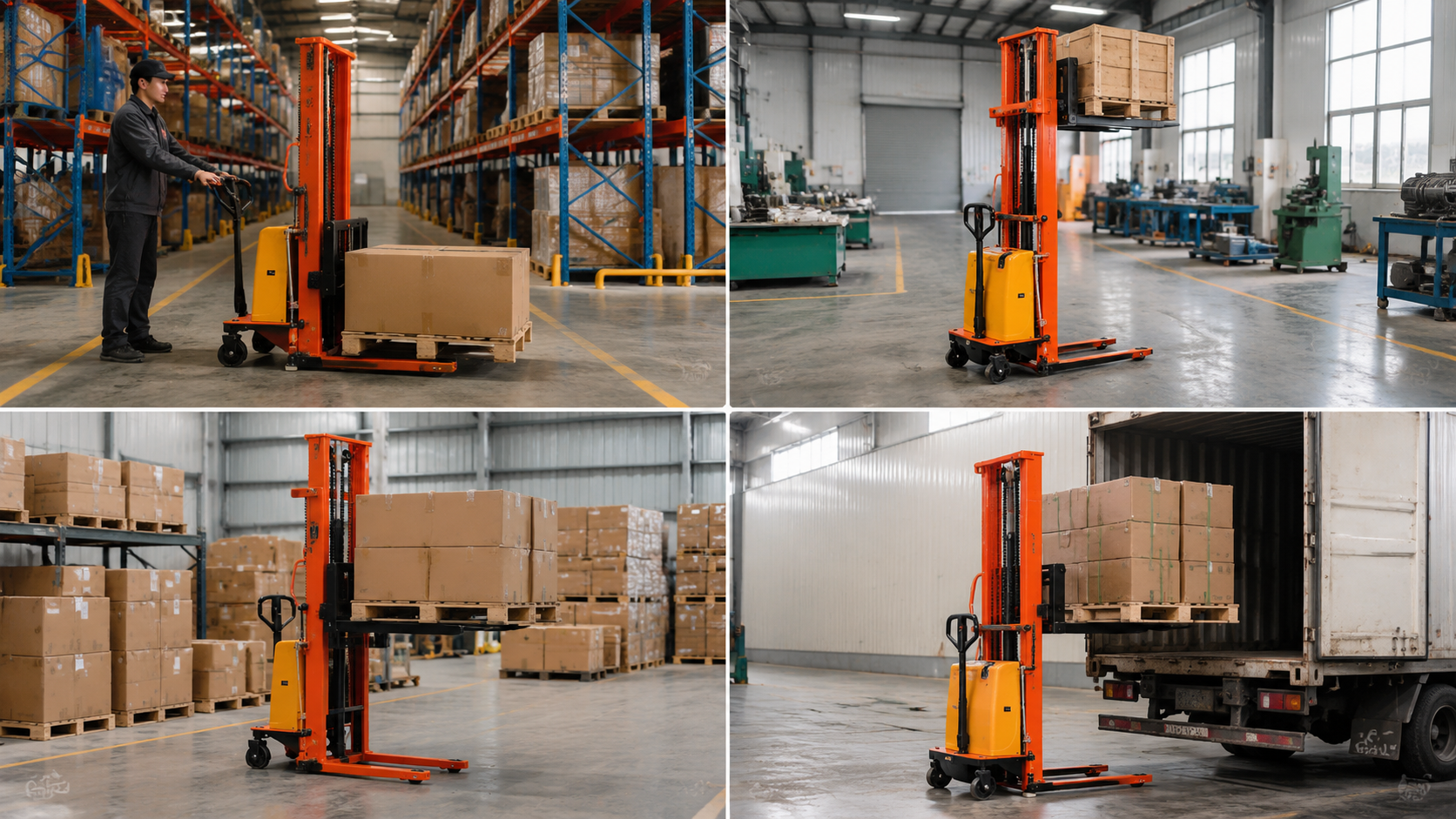

Our stackers are versatile and widely used in:
Warehouse Racking: Ideal for standard pallet stacking in narrow aisles.
Loading/Unloading: Moving goods from trucks to the floor level.
Manufacturing: Supplying raw materials to production lines.
Plug-and-Play Charging: Integrated charger compatible with standard 110V/220V outlets.
Easy Component Access: The rear cover opens fully for quick inspection of the battery and pump.
Warranty: 12-month warranty on core components (Motor, Battery, Structure).
Q1: What is the difference between a Semi-Electric and a Full-Electric Stacker?
A: A semi-electric model uses electricity for lifting but requires manual pushing for movement. It is more cost-effective and lighter, making it ideal for facilities that don't require long-distance travel.
Q2: Can the fork width be adjusted?
A: Yes, our stackers feature adjustable forged forks to accommodate various pallet sizes (GMA, Euro, etc.).
Q3: How long does the battery last on a single charge?
A: Under normal usage, the 120Ah battery supports 4-6 hours of continuous lifting operations.
