Small Reach Forklift

Model: TFA
Load Capacity: 1.5–2 tons
Lift Height: Up to 5.5 m
Reach Distance: 570–685 mm
Overall Width: 1,105 mm
Minimum Turning Radius: 1,760 mm
Lithium Battery: Optional
Stand-On Design + Forward-Reaching Mast
Warranty: 1 year
Minimum Order Quantity: 1 unit

Quantity:
Availability:





Inquire

Model:
TFA
Brand:
NOELIFT

Products Detail

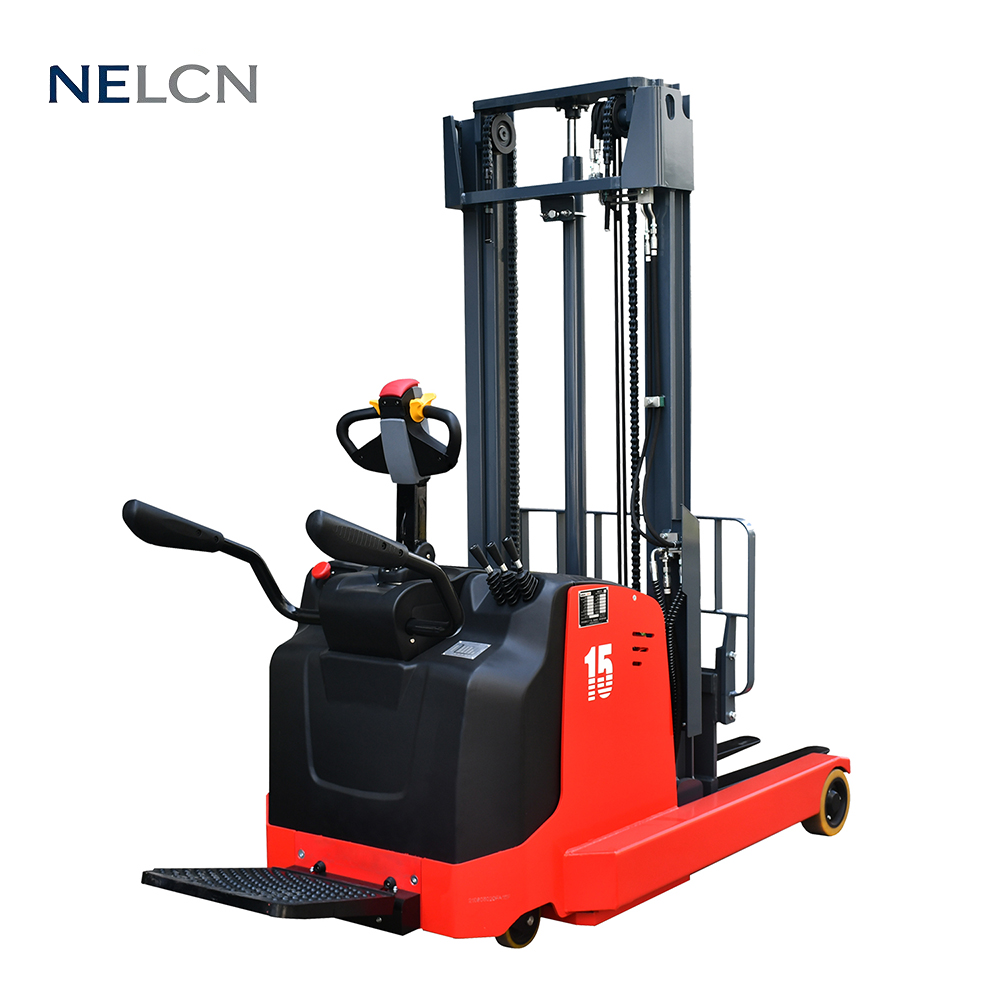

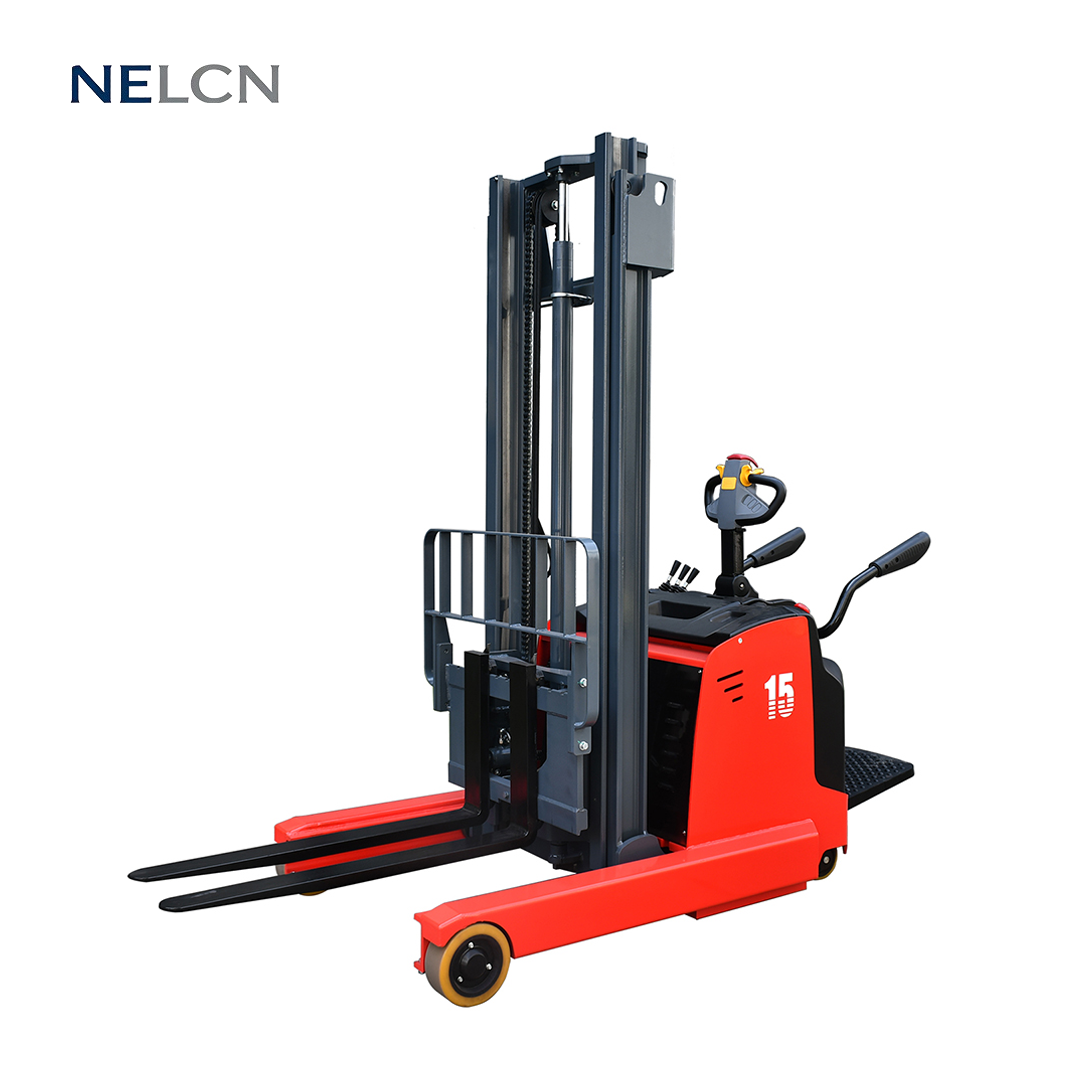

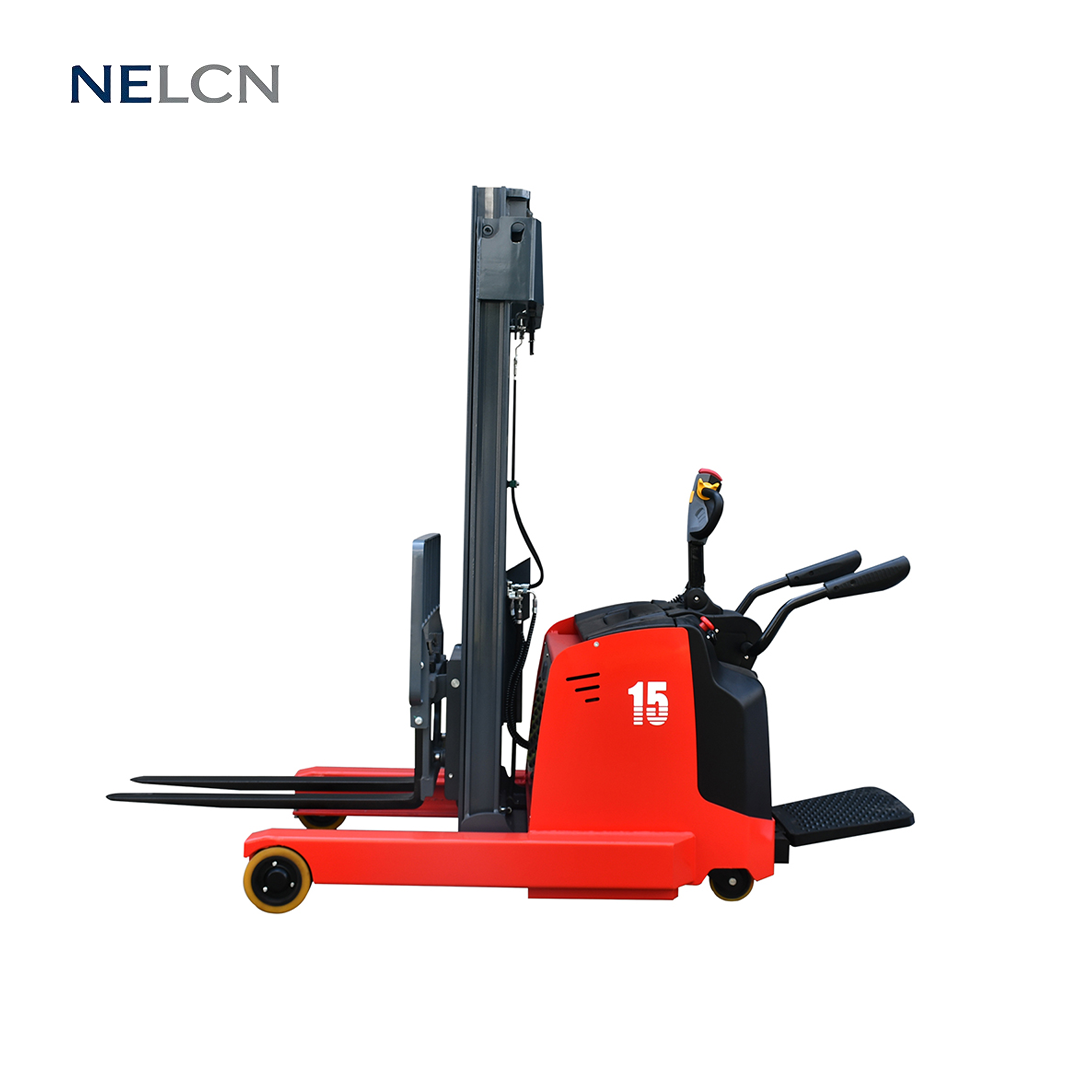

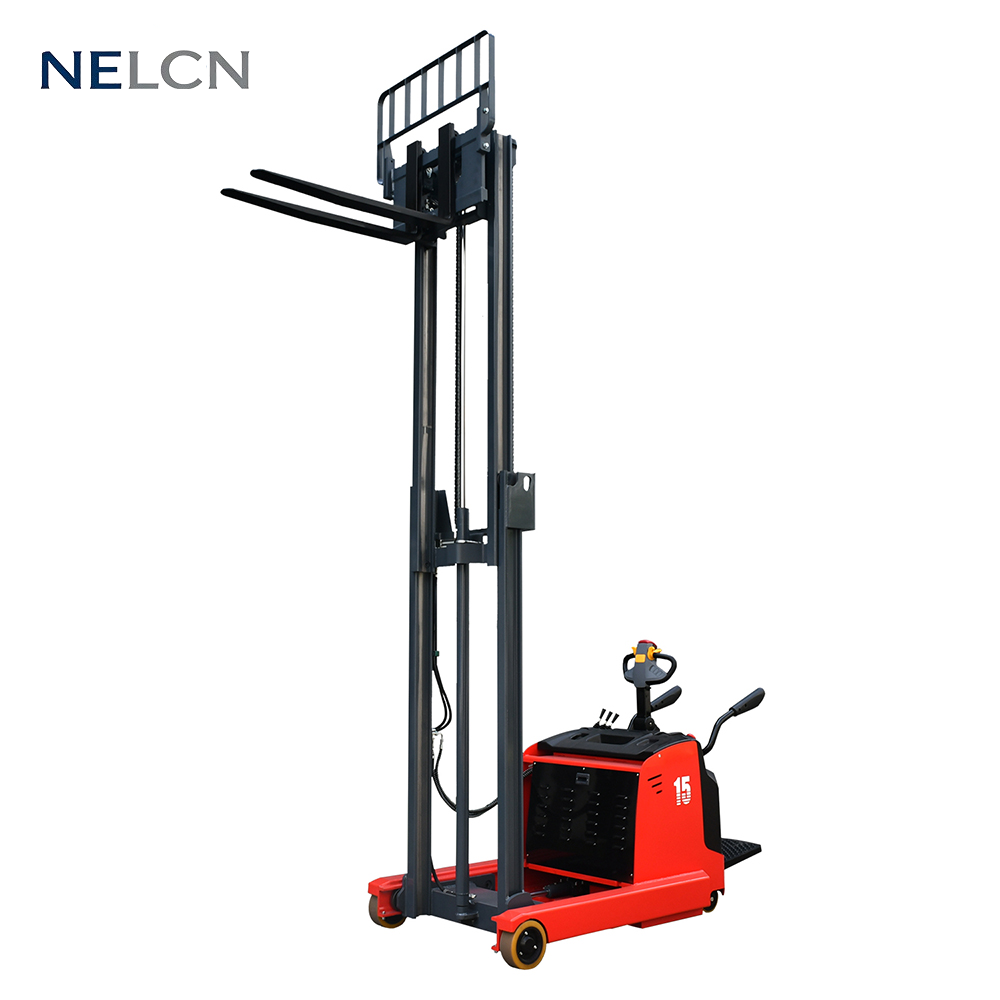

1.5–2 Ton Stand-On Small Reach Forklift

The NELCN TFA15/20 series reach truck features a rated load capacity of 1500kg/2000kg and a maximum lifting height of up to 5500mm. Designed for closed pallets, low ground-clearance pallets, and racking systems with no under-clearance space. With an overall mast reach and retraction mechanism, large reach stroke, and narrower aisle experience, it is ideal for medium-to-long distance handling, stacking, and single/double-sided pallet operations.

Technical Specifications

pecification	TFA15	TFA20
Model	TFA15	TFA20
Rated Capacity	1,500 kg	2,000 kg
Fork Dimensions (L × W × T)	1070 × 100 × 35 mm	1070 × 122 × 40 mm
Overall Length, Platform Retracted	≤ 2,400 mm	≤ 2,530 mm
Overall Width	1,105 mm	1,105 mm
Lift Height	1.6–5.5 m	1.6–5.5 m
Minimum Turning Radius, Platform Retracted	1,760 mm	1,760 mm
Standard Battery	24V 210Ah Lead-Acid	24V 210Ah Lead-Acid
Lithium Battery	Optional	Optional
Reach Distance	570 mm	685 mm
Right-Angle Stacking Aisle Width*	2,690 mm	2,790 mm
Fork Outside Spacing	220–710 mm	242–732 mm

Key Features & Advantages

Superior Space Adaptability: The overall forward and backward moving mast perfectly handles closed pallets and bottom-rack constraints.
Narrow Aisle Operation: Features a compact turning radius, significantly saving warehouse space and maximizing storage utilization.
High-Efficiency Long-Distance Handling: Built specifically for medium-to-long-distance material transfers and high stacking, boosting daily productivity.
Flexible Power Options: Equipped with a premium lead-acid battery as standard, with optional high-performance lithium-ion batteries available to meet diverse operational needs.

Ideal Applications

Modern intelligent warehouses and logistics distribution centers
Supermarkets and retail storage facilities
Indoor and outdoor material transfer and high-level stacking
Short-to-medium distance cargo transport

Certifications

Our Services

1. Pre-sales: One-on-one engineer customized solutions, free product manuals and operation videos provided;

2. During sales: Logistics tracking updated every 2 days, supporting multiple trade terms such as FOB/CIF/CFR;

3. After-sales: 1-year warranty on the whole machine, free parts delivered within 7 days during the warranty period, 24-hour uninterrupted technical support, and on-site debugging by local engineers worldwide.
