1. Product Introduction
The Ultimate Solution for Cleanrooms & Corrosive Environments

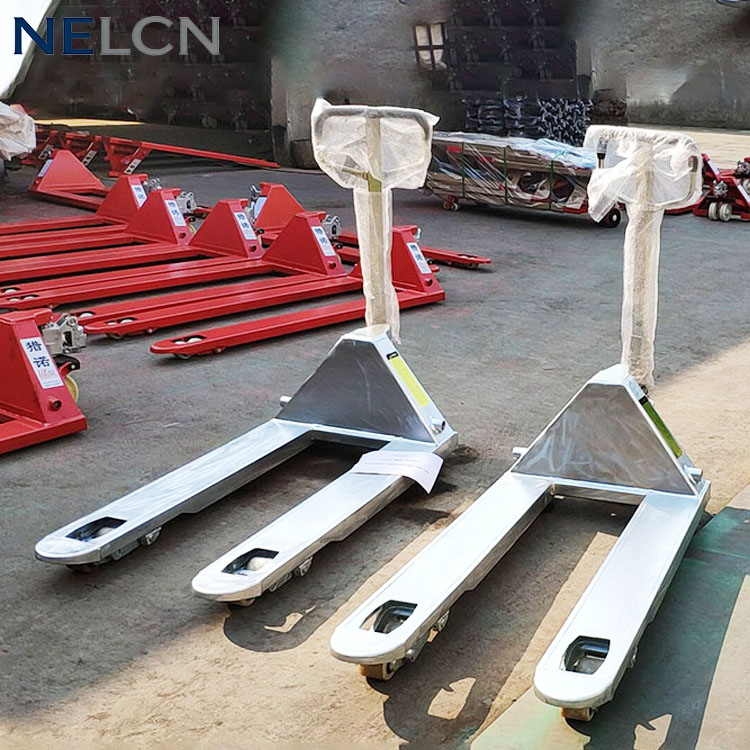

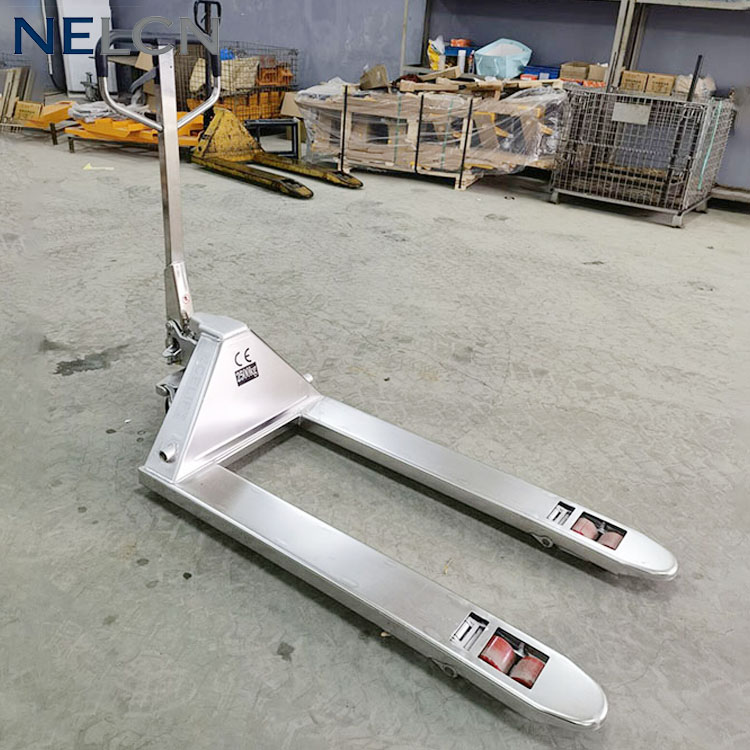

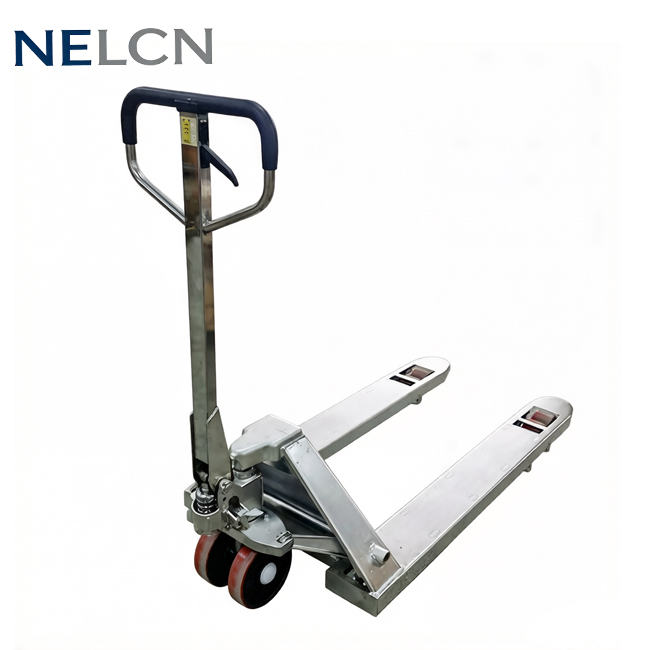

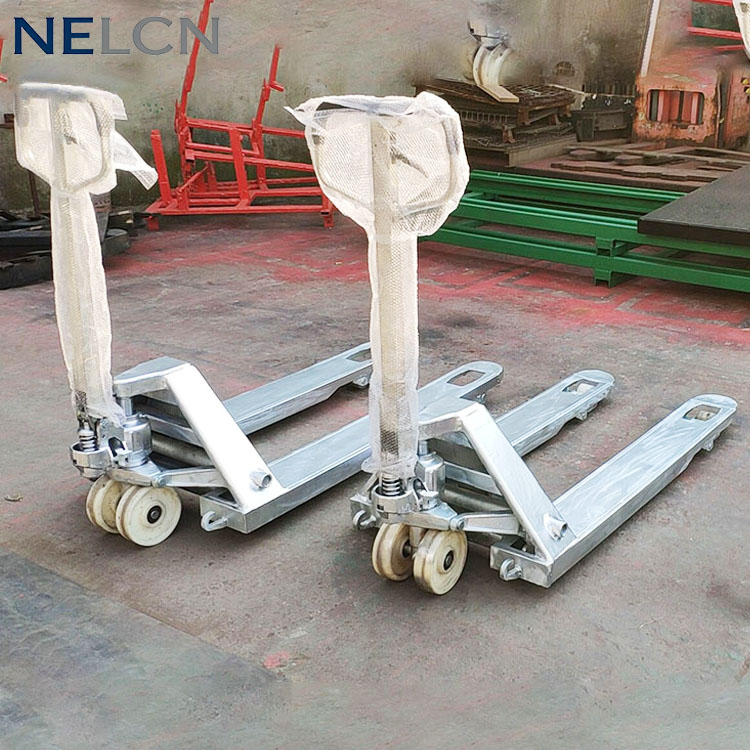

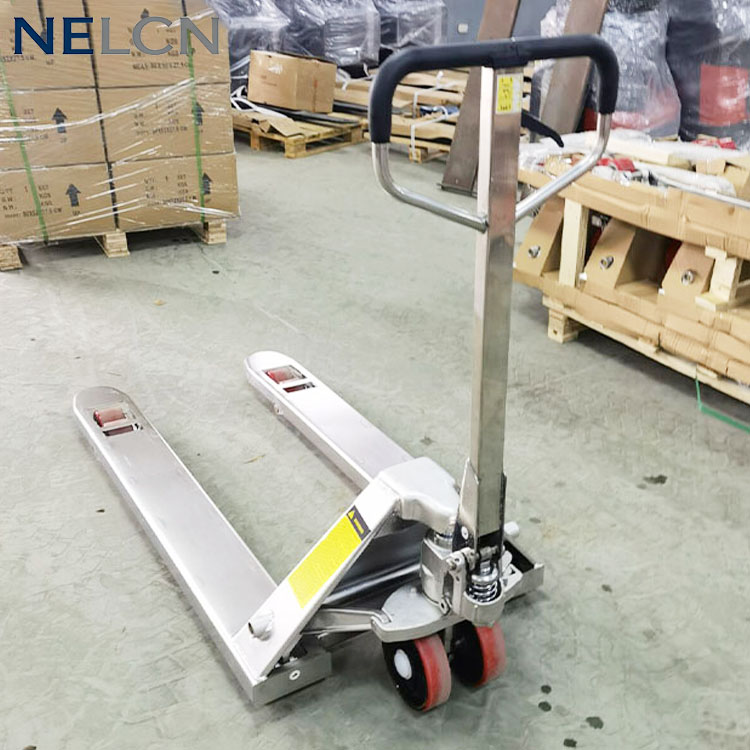

Our Stainless Steel Pallet Truck is specifically designed for environments where hygiene is the top priority and moisture or chemicals are ever-present. Unlike galvanized or painted jacks, our 100% stainless steel construction ensures zero rust and easy sterilization.
Whether you are working in a meat processing plant, a pharmaceutical laboratory, or a seafood cold storage, this pallet jack stands up to rigorous washdown procedures and harsh cleaning agents.
2. Product Highlights
304/316 Grade Stainless Steel: Every component—from the frame and pump to the handle and pushrods—is made of high-quality stainless steel.
Sealed Hydraulic System: Features a cold-resistant, leak-proof pump designed for high-frequency use in damp conditions.
Superior Hygiene Design: Open-fork design and smooth surfaces eliminate "bacteria traps," making it easy to pressure-wash and sanitize.
Food-Grade Lubricants: We use H1-grade food-safe hydraulic oil and grease to prevent contamination in food production lines.
Nylon/Polymer Wheels: Non-marking wheels with stainless steel bearings for smooth movement on wet floors.
3. Technical Specifications
Specification | Details |
Material Grade | SUS 304 (Standard) / SUS 316 (Acid-Resistant) |
Load Capacity | 2000kg / 2500kg |
Fork Dimensions | 550x1150mm / 685x1220mm (Customizable) |
Lowered/Raised Height | 85mm / 200mm |
Pump Type | Fully Sealed Integrated Stainless Steel Pump |
Operating Temp. | $-20^{\circ}C$ to $+40^{\circ}C$ (Ideal for cold storage) |
4. Industry Applications
"Engineered for the Toughest Sanitary Standards"
Food & Beverage: Dairy, meat, and poultry processing where daily washdowns are required.
Pharmaceuticals: Sterile cleanroom environments requiring high-grade non-contaminating equipment.
Chemical Industry: Handling corrosive substances that would destroy standard steel trucks.
Marine & Fisheries: Saltwater environments where standard paint would peel and rust within weeks.
5. Why Our Brand?
True Stainless Construction: We don't just "zinc plate" parts. Our bolts, pins, and bearings are all genuine stainless steel for long-term ROI.
Rust-Free Longevity: Lower your TCO (Total Cost of Ownership) by investing in equipment that lasts 3-5 times longer than carbon steel in wet areas.
Compliance Ready: Our trucks help your facility meet HACCP and GMP certification requirements.
Customization: We offer narrow forks, extra-long forks, and low-profile versions for specialized pallets.
6. FAQ
Q: Can I use this pallet truck in a cold storage at -25 degrees Celsius?
A: Yes. We use low-temperature hydraulic oil that maintains consistent viscosity, preventing the pump from freezing or becoming sluggish in freezers.
Q: What is the difference between 304 and 316 stainless steel for pallet jacks?
A: 304 is the industry standard for food and general wet areas. 316 contains molybdenum, making it significantly more resistant to salt (marine) and aggressive acids or chlorides.
Q: Are the bearings also stainless steel?
A: Absolutely. We use waterproof, sealed stainless steel bearings in all wheels to ensure smooth rolling even after repeated high-pressure cleaning.
Keep Your Operations Clean and Compliant
Contact our engineering team for a detailed quote or to request a customized technical drawing.
