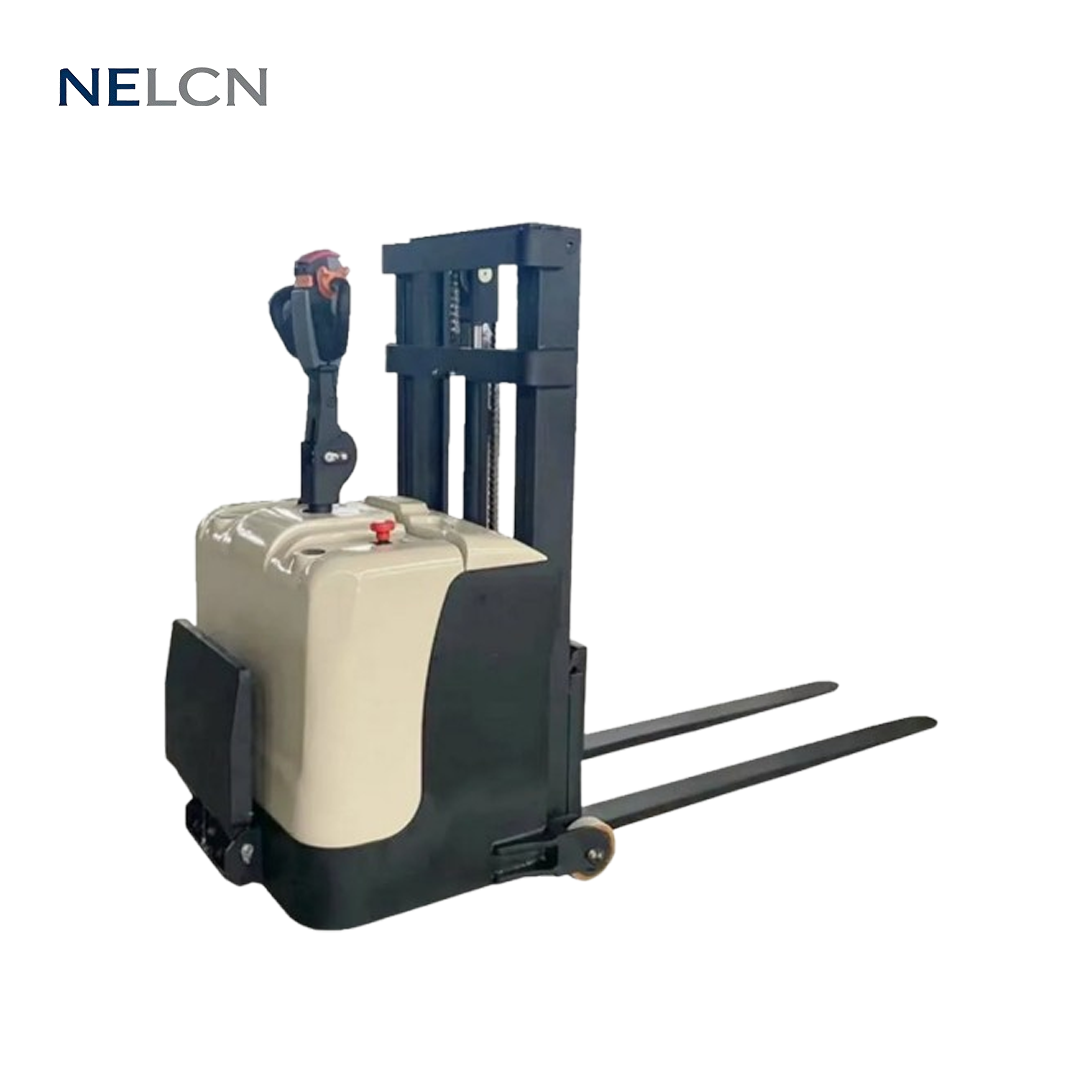

Stand-on Electric Pallet Stacker

Model: CDD
Load Capacity: 1,500 kg – 2,500 kg
Lift Height: 3,000 mm (Standard, Customizable on Request)
Mast Options: Wide View Mast (Two-Stage)
Drive Type: AC Electric Drive
Operator Type: Stand-On
Power Options: 24 V / 210 Ah Battery (Optional Lithium Battery)
Minimum Order Quantity: 1 unit
Warranty Period: 1 year

Quantity:
Availability:





Inquire

Model:
CDD
Brand:
NOELIFT

Products Detail

High-Performance 1.5 Ton & 2.5 Ton Stand-On Electric Pallet Stacker

Boost warehouse efficiency and operator safety with our Stand-on Stacker. Engineered for demanding material handling environments, this electric pallet stacker combines a robust 1500kg to 2500kg load capacity, a 3000mm standard lifting height, and advanced ergonomic features. Powered by maintenance-free AC drive technology and featuring a reliable Curtis control system, it is the ideal solution for single-sided pallet handling, narrow aisles, and high-throughput warehousing.

Key Features & Advantages

Configuration & Performance

Dual Cylinders & Wide-View Mast: Offers exceptional upward visibility for safer, more precise load placement.
Curtis Drive Control System: Premium American-engineered control system for smooth, responsive acceleration and precise handling.
Multifunctional Integrated Handle: Keeps all critical controls within easy reach to minimize operator fatigue.
Electronic Power Steering (EPS): Provides effortless, lightweight maneuvering in tight spaces.
Bucher Hydraulic Pump: High-efficiency, low-noise German hydraulic technology for quiet and reliable lifting operations.
Maintenance-Free AC Drive Motor: Brushless design reduces downtime and lowers long-term operational costs.
Advanced Braking: Features both electromagnetic and regenerative braking systems to optimize energy recovery and safety.
Durable Limit Switches & Suspension: Long-life inductive proximity switches combined with integrated body/pedal damping systems ensure a smooth ride over rough warehouse floors.

Technical Specifications

Specification	CDD15-30	CDD25-30
Power Type	Electric	Electric
Operation Type	Stand-on	Stand-on
Rated Load Capacity	1,500 kg	2,500 kg
Load Center	500 mm	500 mm
Tire Type	Polyurethane	Polyurethane
Wheel Configuration	4/1x+2	4/1x+2
Mast Type	Duplex Mast	Duplex Mast
Standard Lift Height	3,000 mm	3,000 mm
Free Lift Height	0 mm	0 mm
Mast Lowered Height	2,000 mm	2,000 mm
Mast Extended Height	3,490 mm	3,490 mm
Minimum Fork Ground Clearance	85 mm	85 mm
Overall Length (Platform Extended / Retracted)	2,515 / 2,115 mm	2,525 / 2,215 mm
Wheelbase	1,390 mm	1,390 mm
Overall Width	850 mm	850 / 1,230 mm
Track Width (Front / Rear)	490 / 604 mm	505 / 1,100 mm
Fork Dimensions (L × W × T)	1,150 × 190 × 65 mm	1,150 × 200 × 65 mm
Fork Outside / Inside Width	685 / 560 mm	715 mm
Turning Radius (Platform Extended / Retracted)	2,125 / 1,715 mm	2,125 / 1,720 mm
Travel Speed (Loaded / Unloaded)	4.8 / 5.0 km/h	4.0 / 5.0 km/h
Lifting Speed (Loaded / Unloaded)	100 / 150 mm/s	80 / 125 mm/s
Lowering Speed (Loaded / Unloaded)	150 / 105 mm/s	160 / 105 mm/s
Gradeability (Loaded / Unloaded)	6% / 8%	5% / 8%
Drive Motor Type	AC	AC
Drive Motor Power	1.5 kW	2.2 kW
Lift Motor Type	DC	DC
Lift Motor Power	3 kW	3 kW
Battery Voltage / Capacity	24 V / 210 Ah	24 V / 210 Ah

Applications

These electric stand-on stacker trucks are suitable for a wide range of material handling applications, including:

Warehouse pallet stacking and retrieval
Distribution centers and logistics facilities
Manufacturing plants and production lines
Supermarkets and commercial storage areas
Loading and unloading operations
Indoor material transportation and inventory handling

Certifications

Our Services

1. Pre-sales: One-on-one engineer customized solutions, free product manuals and operation videos provided;

2. During sales: Logistics tracking updated every 2 days, supporting multiple trade terms such as FOB/CIF/CFR;

3. After-sales: 1-year warranty on the whole machine, free parts delivered within 7 days during the warranty period, 24-hour uninterrupted technical support, and on-site debugging by local engineers worldwide.
