TE60
NOELIFT

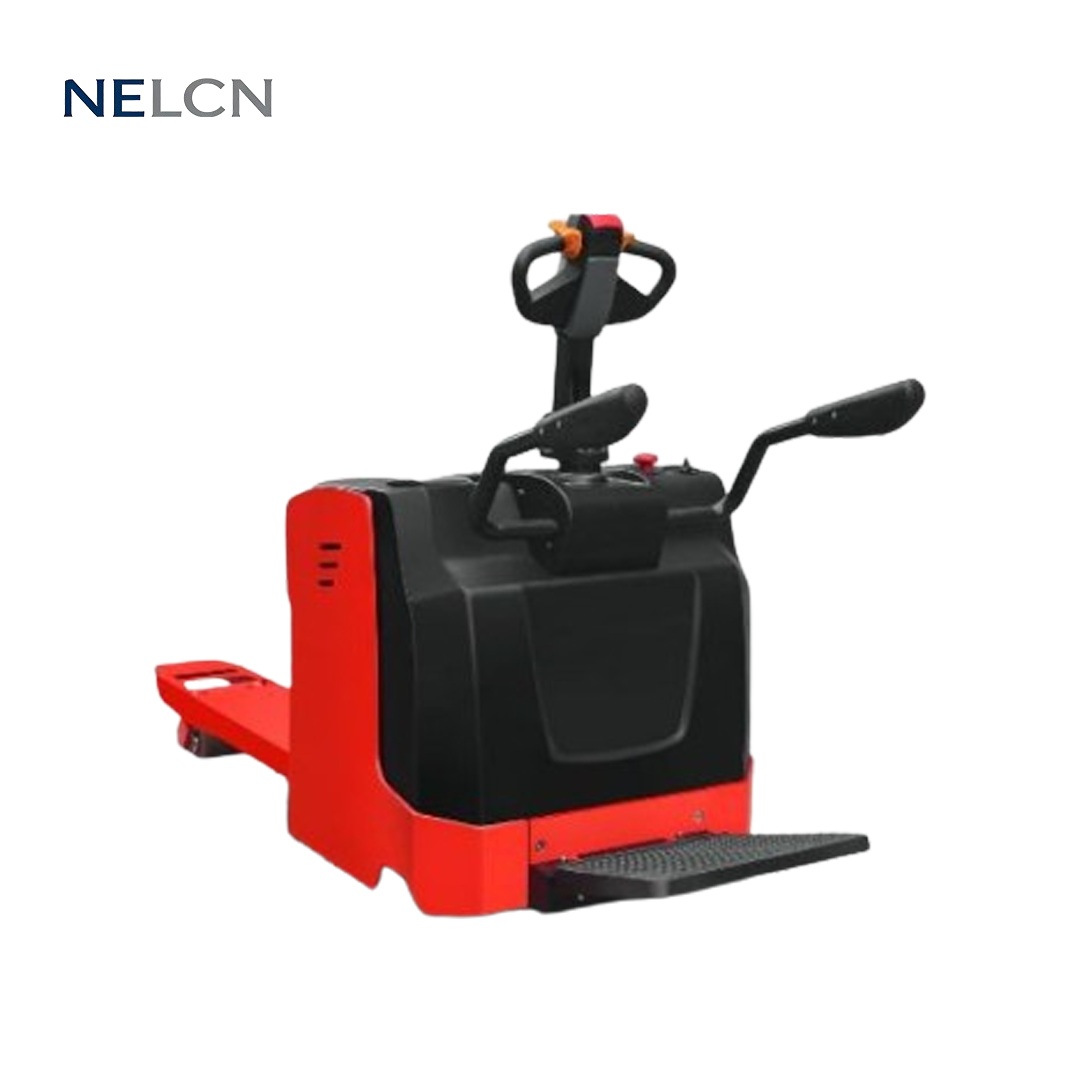

The Stand-On Pallet Truck is engineered for high-capacity, point-to-point horizontal transport in demanding industrial environments. Featuring a robust 6,000 kg (6.0-ton) load capacity and an ergonomic stand-on design, this heavy-duty electric pallet jack maximizes operator efficiency and safety during medium-to-long-distance material handling tasks.
Foldable side guards: Enhance safety during operation; when deployed, the maximum travel speed can reach 4.5 km/h.
Superior traction: The stand-on operator platform features a unique floating suspension system, ensuring the drive wheel maintains constant contact with the ground for exceptional traction.
Shock-absorbing platform: An ergonomically designed, shock-absorbing platform provides a more comfortable and safer operating experience.
Model | — | TE60 |
Power type | — | Battery |
Operation type | — | Stand-on |
Rated load capacity | kg | 6,000 |
Load center distance | mm | 600 |
Service weight, including battery | kg | 1,480 |
Tyre material, operator/load side | — | Polyurethane |
Load wheel size | mm | Ø90 × 80 |
Drive wheel size | mm | Ø254 × 100 |
Auxiliary wheel size | mm | Ø125 × 50 |
Number of wheels, front/rear (x = driven) | — | 8/1X+4 |
Drive wheel tread (b10) | mm | 630 |
Load wheel tread (b11) | mm | 460 |
Overall height (h1) | mm | 1,420 |
Lifting height (h3, as supplied) | mm | 205 |
Maximum fork lift (h3, as supplied) | mm | 110 |
Pedal height (h7) | mm | 180 |
Tiller arm height (h14) | mm | 1,090–1,360 |
Fork height, lowered (h13) | mm | 95 |
Overall length, stand-up / alternative configuration | mm | 1,945 / 2,390 |
Overall width (b1) | mm | 850 |
Fork dimensions (L × W × thickness) | mm | 1,200 × 255 × 87 |
Outside distance between forks (b2) | mm | 715 |
Ground clearance at wheelbase centre (m2) | mm | 55 |
Aisle width, 1,000 × 1,200 mm pallet, crosswise, stand-up / alternative configuration | mm | 2,250 / 2,690 |
Aisle width, 800 × 1,200 mm pallet, lengthwise, stand-up / alternative configuration | mm | 2,300 / 2,740 |
Turning radius, stand-up / alternative configuration | mm | 1,900 / 2,320 |
Travel speed, with / without load | km/h | 4.0 / 4.5 |
Lifting speed, with / without load | mm/s | 29 / 35 |
Lowering speed, with / without load | mm/s | 29 / 16 |
Maximum gradeability, with / without load (S2–5 min) | % | 4 / 8 |
The TE60 6 ton electric pallet truck is designed for horizontal pallet handling in the following environments:
Warehouses and distribution facilities
Supermarkets and storage areas
Industrial workshops
Loading and unloading operations
Medium- to long-distance transportation of heavy palletized goods
Movement of palletized materials between workstations or storage locations
The NOELIFT stand-on electric pallet truck is designed for efficient horizontal pallet transport in warehouses, distribution centers, factories, loading docks, and logistics operations.
1. Pre-sales: One-on-one engineer customized solutions, free product manuals and operation videos provided;
2. During sales: Logistics tracking updated every 2 days, supporting multiple trade terms such as FOB/CIF/CFR;
3. After-sales: 1-year warranty on the whole machine, free parts delivered within 7 days during the warranty period, 24-hour uninterrupted technical support, and on-site debugging by local engineers worldwide.
