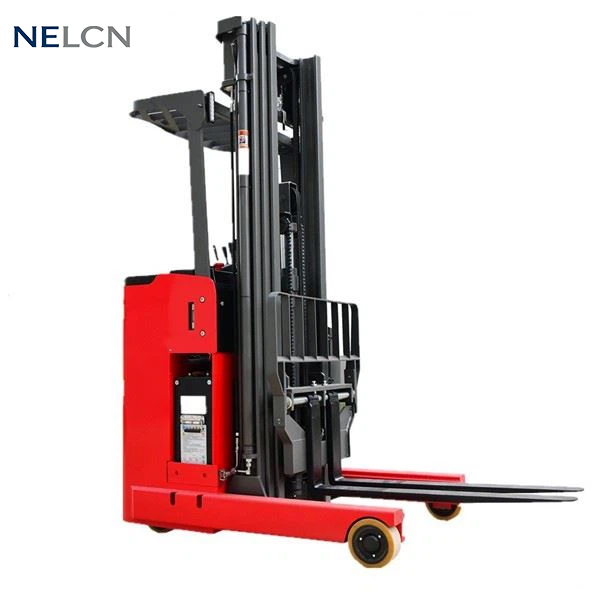

Stand-Up Reach Forklift

Need high stacking heights but stuck with narrow warehouse aisles? Our stand-up reach forklift is built to maximize your vertical storage without expanding your floor space.✅ 1.2–3 ton capacity + telescopic reach mast → stack pallets higher in tight aisles✅ Stand-up design for fast entry/exit, ideal for high-volume picking and putaway✅ Forward-moving mast improves load stability and operator visibility✅ Compact footprint cuts aisle width requirements by 30% vs. counterbalance forklifts✅ Low step-in height and intuitive controls reduce operator fatiguePerfect for high-density racking, multi-level warehouses, and fast-paced distribution centers — turn narrow aisles into valuable storage space!

Quantity:
Availability:





Inquire

Products Detail

Stand-Up Reach Forklift 1.2-3t | High-Lift, Space-Saving for Narrow Aisle Warehouses

Standing Up Reach Forklift Description

Safety

Three braking systems. They can provide the necessary protection to machine or operator whatever the forklift is running or not. Ramp assist control system. It will provide reverse force on the tire immediately to prevent the vehicle backward when it starts on the ramp.
Comfortable

Buffering technology can reduce the vibration when the mast lifts up to the top or down to the bottom, and make goods less damaged and operator feel more comfortable.

Man-machine engineering design for the small steering wheel coordinating with the panel can provide a comfortable, safe and high efficiency environment for operators.

Energy save

Optimized structure and matching degree with standard AC driving and EPS(save the energy 20%) to make the forklift with better life time.

Electric reach truck, reach forklift, reach truck parts, warehouse forklift, forklift truck for sale

Important parameters

Model Number	TF25	Type of tyres	PU
Color	Red	Load center	500mm
Rated Loading Capacity	3000kg	Front	267x114mm
Max. Lifting Height	7200mm	Rear	343x108mm
Drive motor	AC	Fork Length	1070mm
lift motor	DC	MOQ	1 Piece
Battery	48/400 V/Ah	Turning radius	1965mm
Controller	American CURTIS	Travel speed(full load/no load)	7.5/8.5 km/h
