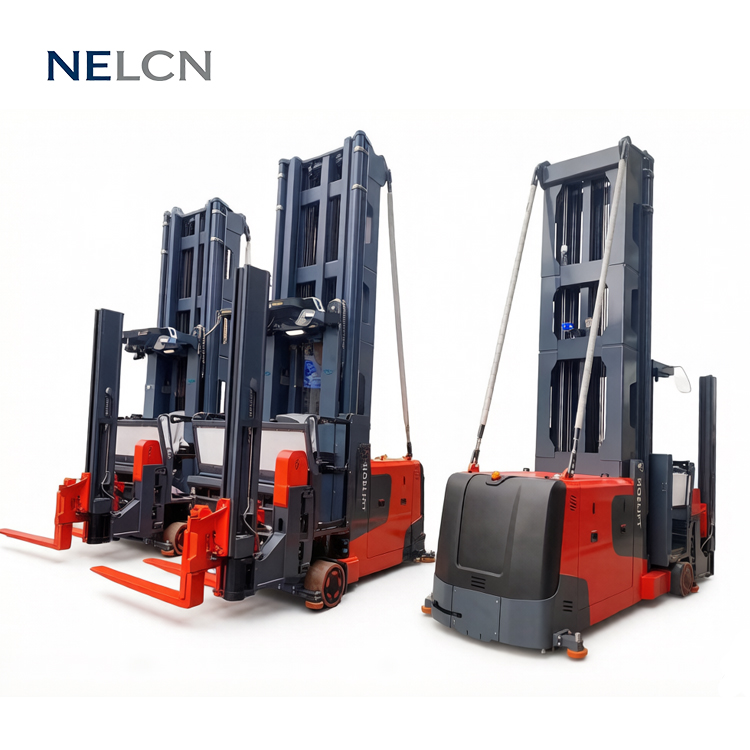

Very Narrow Aisle Forklifts

In modern logistics, warehouse space is the most expensive asset. Our Very Narrow Aisle (VNA) Forklifts are specifically engineered to help you store more in less space. By reducing operating aisle widths to as little as 1.6 meters , these specialized trucks allow you to convert wasted aisle space into productive racking areas, increasing storage capacity by up to 50% without expanding your building footprint .

Quantity:
Availability:





Inquire

Products Detail

Very Narrow Aisle (VNA) Forklifts – Maximize Your Warehouse Storage Capacity by 50%

Transform Tight Spaces into High- Profit Storage

In modern logistics, warehouse space is the most expensive asset. Our Very Narrow Aisle (VNA) Forklifts are specifically engineered to help you store more in less space. By reducing operating aisle widths to as little as 1.6 meters , these specialized trucks allow you to convert wasted aisle space into productive racking areas, increasing storage capacity by up to 50% without expanding your building footprint .

Whether you need a man-up turret truck for case picking at height or an articulated forklift for versatile indoor/outdoor operation, our VNA series offers the perfect solution for high-density warehouses, cold storage facilities, and distribution centers.

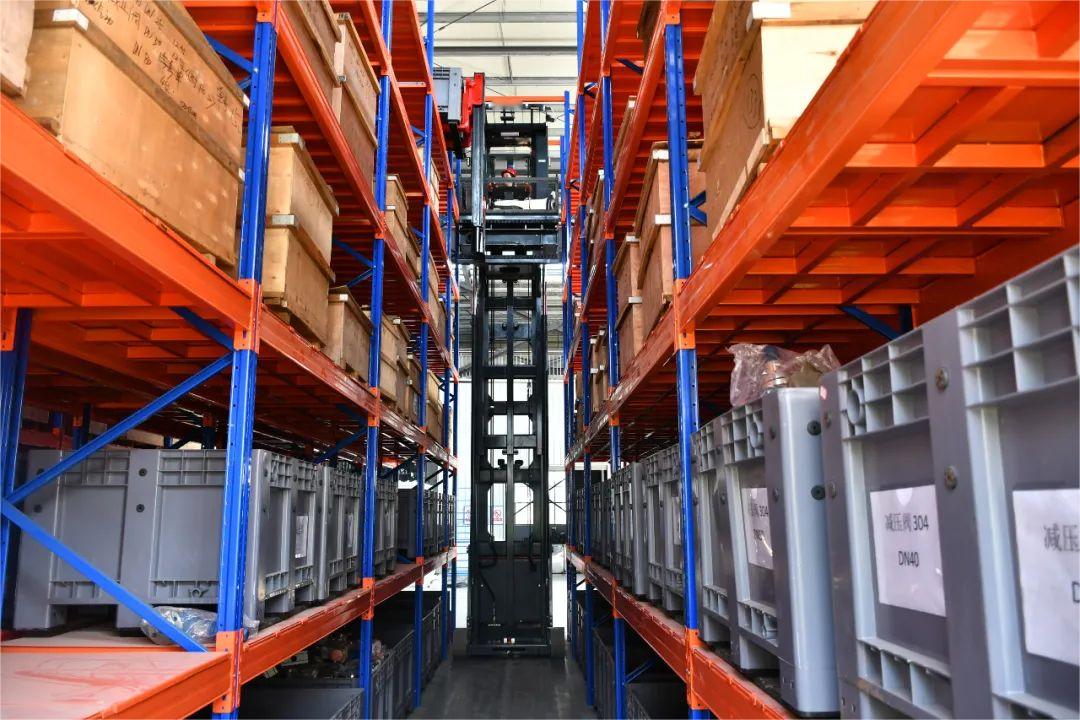

微信图片_20220321094726

VNA Forklift Configurations

Type	Operator Position	Best Application	Aisle Width
Turret Truck	Man-Up or Man-Down	High-bay pallet stacking & order picking	From 1.6 m
Articulated Forklift	Seated	Combined indoor/outdoor, multi-purpose use	From 1.9 m
Three-Way Stacker	Man-Up	Very narrow aisle, 180° fork rotation	From 1.6 m

Key Technical Specifications

Parameter	Range / Value
Load Capacity	1,000 kg – 3,500 kg
Lift Height	Up to 14,500 mm (14.5 m / 47.5 ft)
Minimum Aisle Width	1,600 mm – 1,900 mm
Battery Options	48V / 72V Lithium-Ion or Lead-Acid
Drive Motor	AC Traction Motor (up to 19.5 kW)
Fork Rotation	180° / 210° articulated or turret head
Guidance Systems	Wire guidance / Rail guidance / Magnetic tape

Why Choose Our Very Narrow Aisle Forklifts?

Maximize Storage Density: Operate in 1.6m Aisles

Traditional forklifts require 3-4 meter aisles, wasting valuable floor space. Our VNA trucks feature articulated frames or rotating turret heads that allow pallet handling on both sides of the aisle without turning the truck body. This technology enables operation in aisles as narrow as 1.6 meters , increasing racking density and potentially boosting storage capacity by 40-50% .

2. Man-Up vs. Man-Down: Choose Your Configuration

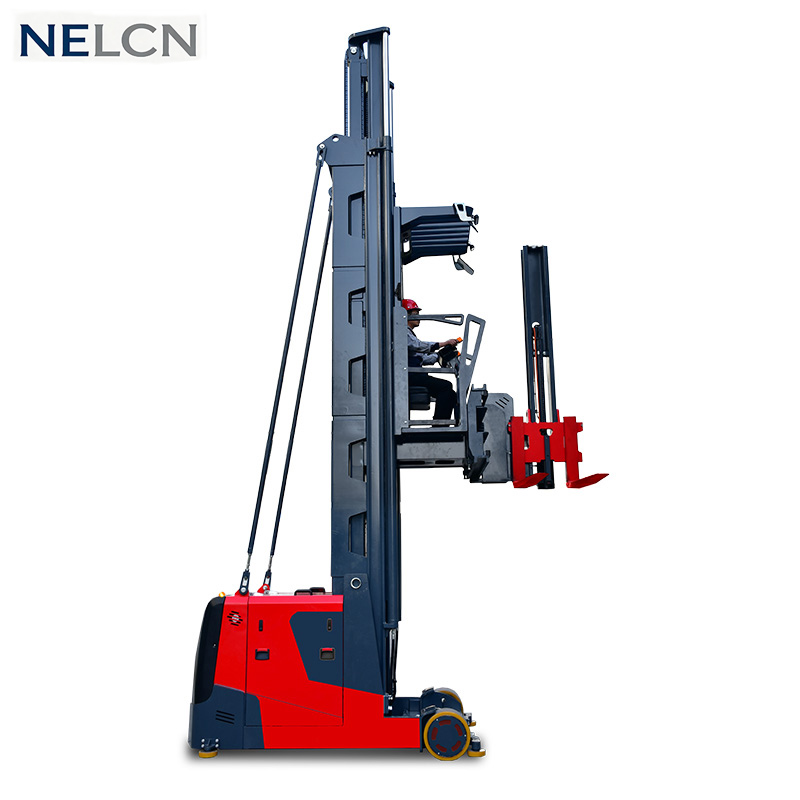

Man-Up (Operator Rising) Turret Trucks: The operator cab ascends with the forks, providing perfect visibility for both pallet stacking and case picking at heights exceeding 12 meters. Ideal for mixed-use warehouses where operators need to pick individual items from high racks .
Man-Down VNA Trucks: The operator remains at floor level, offering higher travel speeds and maximum productivity for pure pallet-in/pallet-out operations .

3. Versatile Applications: One Truck, Multiple Roles

Unlike traditional VNA trucks that are confined to guided aisles, our articulated VNA forklifts can work both inside and outside the warehouse. They can unload trucks in the yard, transport loads through standard doorways, and enter very narrow aisles for high-bay storage—all with a single machine. This eliminates double handling and saves labor costs .

4. Advanced AC Drive & Lithium-Ion Power

High-Efficiency AC Motors: Our trucks feature advanced AC drive systems (up to 19.5 kW) for smooth acceleration, regenerative braking, and lower energy consumption .
Lithium-Ion Battery Options: Fast opportunity charging, zero maintenance, and longer cycle life compared to traditional lead-acid batteries. Perfect for multi-shift operations .

5. Precision Control & Operator Comfort

Proportional Lift Control: Enables precise load positioning at height, reducing product and rack damage .
Ergonomic Cab Design: Fully adjustable seats/armrests, intuitive joystick controls, and excellent visibility reduce operator fatigue during long shifts .
Camera Monitor System: Provides clear view of forks and load beams at maximum lift heights, eliminating blind spots .

6. Guidance Systems for Maximum Productivity

To achieve the narrowest possible aisles, VNA trucks typically operate with guidance systems:

Wire Guidance: Embedded wire in the floor guides the truck precisely through the aisle .
Rail Guidance: Side guide rollers run along floor-mounted rails for perfect alignment .
Magnetic/Optical Guidance: Flexible alternative for retrofitted warehouses.

Technical Specifications Comparison

Model Series	VNA-T15 (Turret)	VNA-A20 (Articulated)	VNA-T20 (Man-Up)
Load Capacity	1,500 kg	2,000 kg	2,000 kg
Max Lift Height	13,000 mm	12,500 mm	14,500 mm
Min. Aisle Width	1,680 mm	1,900 mm	1,740 mm
Battery Voltage	48V Li-Ion	80V Lead-Acid	72V Li-Ion
Travel Speed	10.5 km/h	16 km/h	11 km/h
Operator Position	Man-Down	Seated	Man-Up

Specifications may vary by configuration. Customization available.

Application Scenarios

Our Very Narrow Aisle Forklifts are trusted by warehouses worldwide for:

High-Bay Warehouses: Maximize vertical storage in facilities with racking heights over 10 meters .
Cold Storage & Freezer Facilities: Specialized cold-protection packages for -30°C operation .
Food & Beverage Distribution: Hygienic design with easy-clean components .
E-commerce Fulfillment Centers: High-speed picking and put-away operations.
Manufacturing Plants: Raw material storage and work-in-progress handling.
3PL Warehouses: Flexible storage solutions for diverse client needs.

Why Partner with Us?

Factory Direct Pricing: No middlemen—get competitive pricing with OEM quality.
Customization Available: Tailored lift heights, battery configurations, and cold storage protection.
Global Export Experience: Shipped to 80+ countries with robust export packaging .
Comprehensive Warranty: 1-2 year warranty on all components, with extended options available.
After-Sales Support: Remote troubleshooting and global spare parts network.
