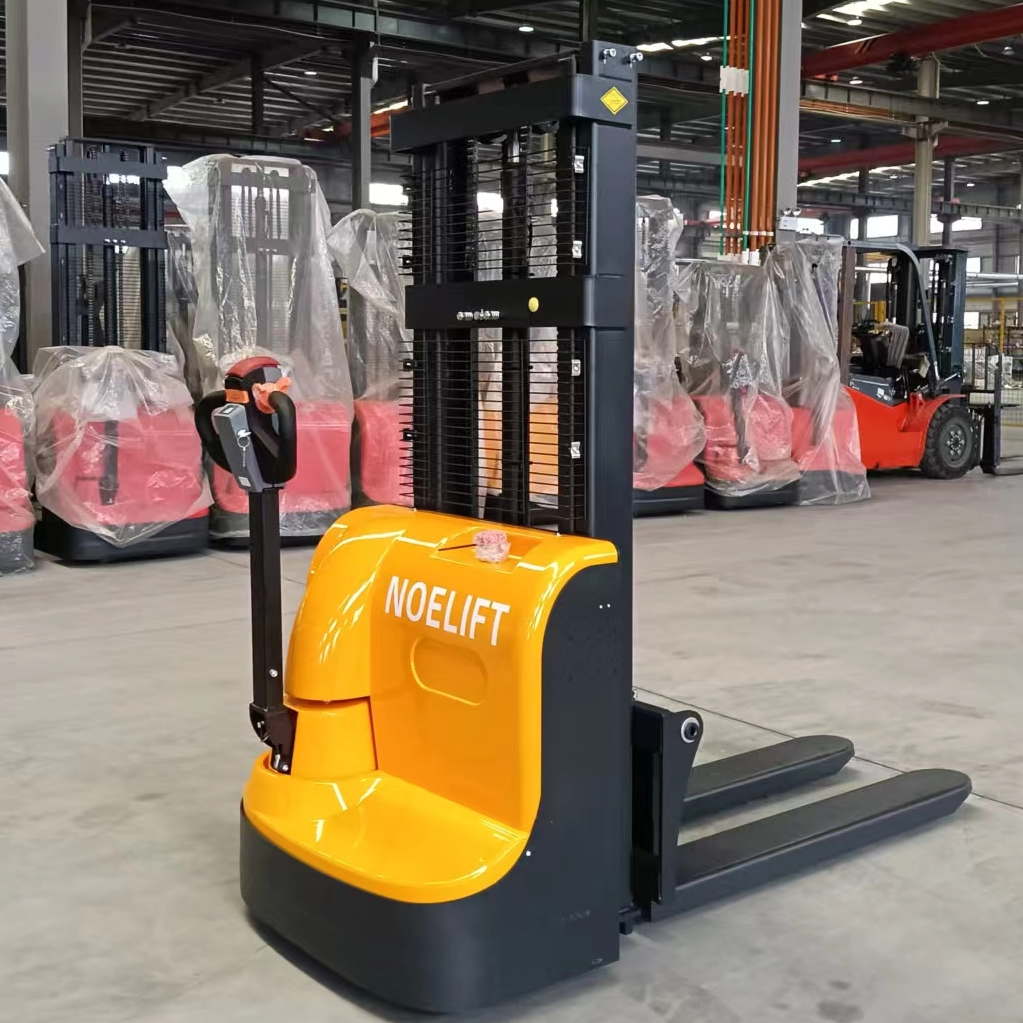

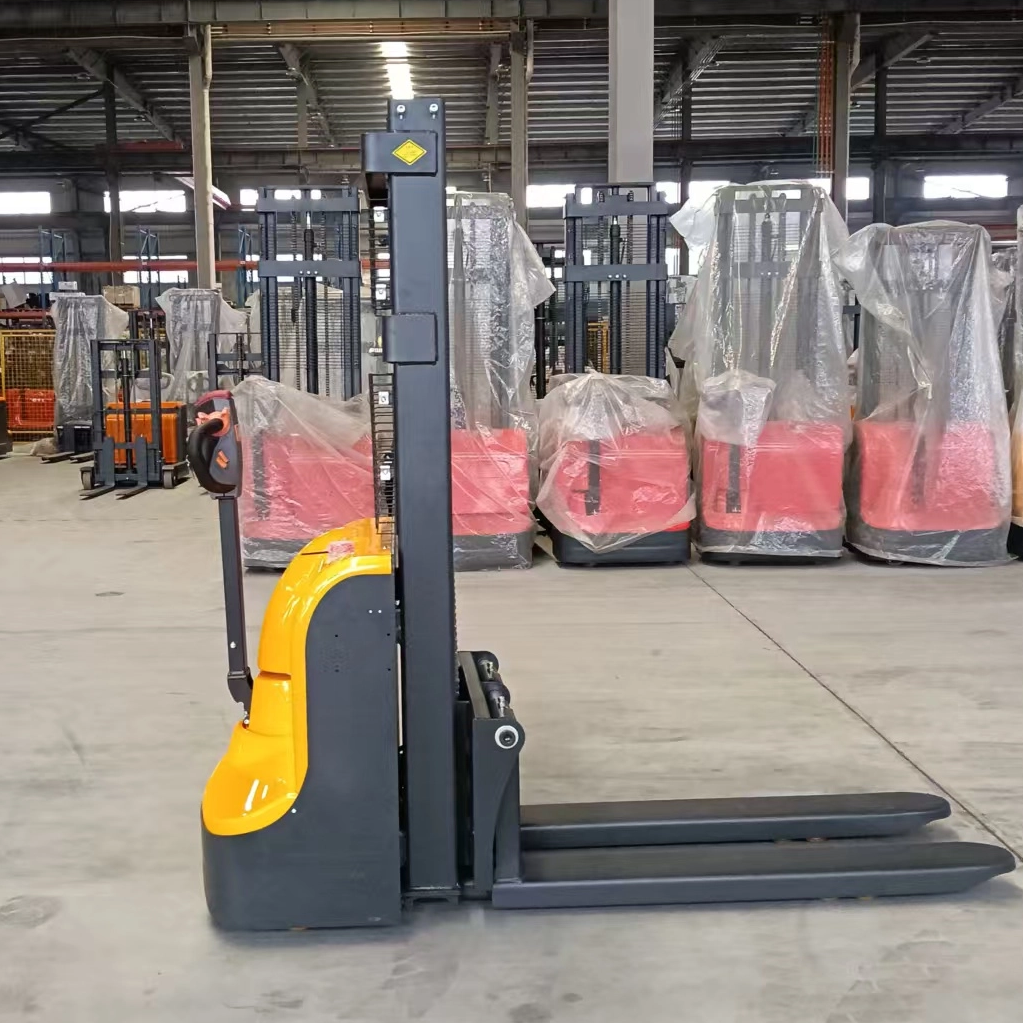

Walkie Electric Pallet Stacker 1.5-2T

Struggling with tight warehouse aisles or looking to boost stacking efficiency? Our walkie electric stacker delivers reliable performance with 1.5-2 ton capacity and 1.6-4m lifting height, designed for busy warehouses.✅ Ultra-compact build navigates narrow aisles with ease✅ Simple controls & stable operation reduce operator training time✅ Built-in safety features prevent tipping and operator accidents✅ Zero emissions, ideal for indoor usePerfect for high-volume stacking, multi-level storage, and fast-paced logistics environments — get more done in less space!

Quantity:
Availability:





Inquire

Products Detail

Walkie Electric Pallet Stacker 1.5-2T | Compact, Safe & Easy-to-Operate for Narrow Aisle Warehouses

Product characteristics

Safety design, quality assurance
■ Fully passed the stability test: fully pass
■ National Security and stability test standard GB / T26949.1~2012

Easy to operate, control a wider space
■ Vertical walking function: suitable for narrow channel stacking;
■ Long handle with light steering;
■ Good offset vision;
■ Wide body can stand to drive;

Hardcore drive, reliable quality
■ Main department sets: the annual use of more than 100,000 sets;
■ Torsion-resistant robot cable: imported waterproof connector;
■ Brake protection: autonomous design

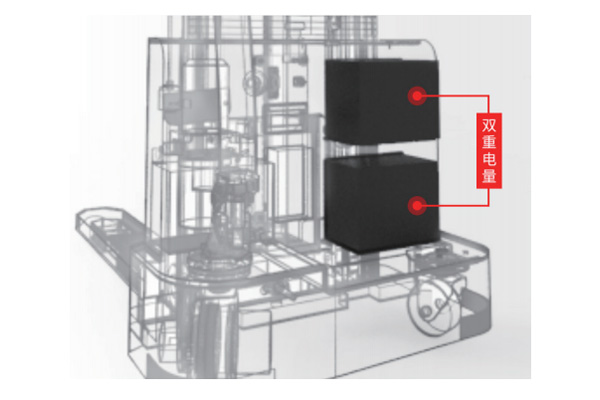

■ Maintenance-free battery: long cycle life maintenance-free

Very well designed, well made

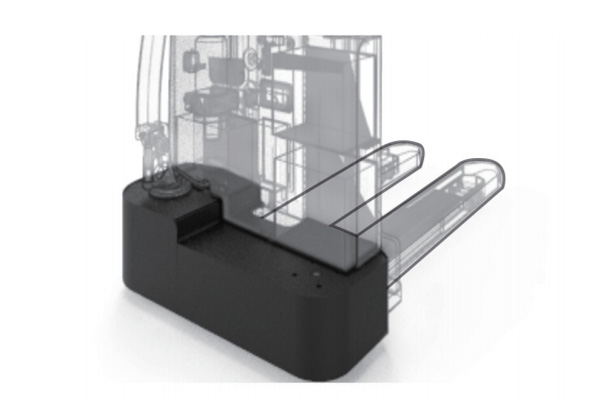

■ Special mechanical design of the high-strength chassis: through the plate, beam, The comprehensive configuration of the box structure greatly reduces the deformation of the heavy load of the chassis
few;
■ Special designed door frame beam structure: through the finite element stability, Qualitative test of the key points of the gantry strength, and use the frame, The structure strengthens it, greatly improves the rigidity of the door frame;

Key Features (Short Version)

100% electric operation for effortless lifting & moving
Lithium battery: 4-hour fast charge, maintenance-free
Energy-saving AC drive motor with regenerative braking
Walkie or stand-on design for flexible operation
Ergonomic tiller with thumb controls & emergency reverse
Full safety package: brake, curve speed control, overload & anti-rollback protection
Compact body for narrow aisles, vans & containers
Heavy-duty steel frame with long service life
LCD display with battery, speed and fault diagnostics

Product Certifications

All our Electric Pallet Movers are manufactured to the highest international standards:

CE Certified – Compliant with European safety directives (EN 1757-1, EN 1175)
ISO 9001:2015 – Quality management system certified
RoHS Compliant – Environmentally friendly materials
SGS / BV Verified – Audited manufacturing facility available for inspection
IP54 Rated – Dust and water protection for battery and electronics

微信图片_20240328140805

Product Parameter

Feature
1.2	Model designation			ESC
1.4	Operator type			walking style
1.5	Rated capacity	Q	kg	2000
1.6	Load center distance	c	mm	500
1.8	Load distance	x	mm	801
1.9	Wheelbase	y	mm	1204
Weight
2.1	Service weight (include battery)		kg	510
2.2	Axle loading, laden driving side/loading side		kg	760/1250
2.3	Axle loading, unladen driving side/loading side		kg	380/130
Tires, Chassis
3.1	Tyre type driving wheels/loading wheels			polyurethane
3.2	Tyre size, driving wheels(diameter×width)		mm	Ф210x70
3.3	Tyre size, loading wheels(diameter×width)		mm	Ф74x88
3.4	Tyre size, caster wheels(diameter×width)		mm	Ф130x55
3.5	Wheels , number driving ,caster/loading (x=drive wheels)		mm	1x , 1 / 4
3.6	Track width, front ,driving side	b10	mm	616
3.7	Track width,rear,loading side	b11	mm	400
Size
4.0	Maximum lifting height of mast	H	mm	2513
4.2	Minimum height after the mast is lowered	h1	mm	1817
4.3	Free lifting height	h2	mm	-
4.4	Lift height	h3	mm	2430
4.5	Mast height at highest lifting point	h4	mm	3032
4.6	Fork leg lifting height	h5	mm	-
4.9	Height drawbar in driving position min./max	h14	mm	760 / 1140
4.10	Wheel arm height	h8	mm	-
4.15	Lowered height	h13	mm	90
4.19	Overall length	l1	mm	1708
4.20	Length to face of forks	l2	mm	558
4.21	Overall width	b1/ b2	mm	882
4.22	Fork dimensions	s/ e/ l	mm	60/170/1150
4.24	Outer width of shelf	b3	mm	680
4.25	Distance between fork-arms	b5	mm	570
4.32	Ground clearance, center of wheelbase	m2	mm	23
4.34.1	Aisle width for pallets 1200 × 1000 crossways	Ast	mm	2295
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	2228
4.35	Turning radius	Wa	mm	1463
Performance Parameters
5.1	Traveling speed, full/unloaded		km/h	3.7/4.0
5.2	Fork lifting speed, full/unloaded		m/ s	0.085/0.13
5.3	Also the descending speed, full load/unloaded		m/ s	0.085/0.13
5.8	Maximum gradeability, full/unladen		%	3/10
5.10	Brake type			Electromagnetic
Electric motor, Power source
6.1	Drive motor rating S2 60 min		kW	0.75
6.2	Lift motor rating at S3 15%		kW	2.2
6.4	Battery voltage/nominal capacity K5		V/ Ah	24/80
6.5	Battery weight		kg	38
6.6	Energy consumption values according to DIN EN 16796		kWh/h	0.79
6.7	Transshipment volume according to VDI 2198		t/h	36
6.8	Transport efficiency according to VDI 2198		t/kWh	46.15
Other Data
8.1	Type of drive control			AC
10.5	Steering type			Mechanical
10.7	Sound pressure level at the driver's ear		dB (A)	74
15.1			A	10

The above content is the product introduction, the chart shown may include non-standard configuration, if there is any improvement in appearance, technical parameters or configuration, we will try to update the data in time, but in some cases these information may still be different from the latest situation, please contact the business manager for confirmation before placing an order.

Why Buy From Us?

Factory Direct Manufacturer – No middlemen, competitive prices
20+ Years Experience – Specialized in material handling equipment
Global Exports – Shipped to 40+ countries worldwide
Custom Orders Welcome – OEM & ODM services available
Strict Quality Control – Each unit tested before shipment
Comprehensive Warranty – 2-year warranty on main components
After-Sales Support – Technical assistance and spare parts globally
Samples Available – Test before bulk order

Frequently Asked Questions

Q: What is an electric pallet mover?

A: An electric pallet mover (also called electric pallet jack or powered pallet truck) is a battery-powered material handling device used to lift and transport pallets. Both travel and lifting are powered by electricity – no manual pushing or pumping required .

Q: What is the difference between walkie and stand-on models?

A: Walkie models require the operator to walk alongside – ideal for short distances and frequent stops. Stand-on models feature a foldable platform allowing the operator to ride during longer travel distances, reducing fatigue .

Q: What capacities are available?

A: Standard capacities range from 1500kg to 2000kg . Special heavy-duty models are available for up to 6800kg .

Q: What type of battery is best?

A: Lithium-ion batteries offer fast charging (4 hours), maintenance-free operation, and long cycle life (2,000+ cycles) . Lead-acid batteries are more economical upfront but require regular maintenance . We offer both options.

Q: How long does the battery last on a single charge?

A: Runtime depends on usage intensity. A standard 20Ah lithium battery provides approximately 5-6 hours of continuous use . Larger capacity batteries and lithium options are available for extended runtime.

Q: Can it be used in cold storage?

A: Yes. With our cold storage package (special lubricants and thermal management), electric pallet movers operate reliably in temperatures down to -30°C . Lithium batteries perform better in cold conditions than lead-acid .

Q: What maintenance is required?

A: Very low maintenance. For lead-acid batteries: regular watering and equalization charges. For lithium batteries: zero maintenance – just keep charged. AC drive motors are maintenance-free . Regular checks of hydraulic oil and wheel condition recommended.

Q: Do you offer spare parts support?

A: Yes. We maintain comprehensive spare parts inventory and ship globally via DHL, UPS, FedEx, or sea freight.

Q: What is your warranty policy?

A: Standard warranty is 2 years on main components (motor, controller, hydraulic system). Battery warranty varies by type – lithium typically 2-3 years, lead-acid 1 year. Extended warranty options available.
