Walkie Pallet Truck

Model: CBD-B
Rated Load Capacity: 2000kg / 2500kg / 3000kg
Drive System: Full AC Electric Drive (Curtis Controller)
Steering: Mechanical Steering, Portable
Braking System: Electromagnetic Regenerative Braking
Battery Options: Lead-Acid (24V/210Ah)
Tire Type: Polyurethane (PU) Wear-Resistant
Warranty: 12 Months
Minimum Order Quantity: 1 Unit

Quantity:
Availability:





Inquire

Model:
CBD-B
Brand:
NOELIFT

Products Detail

Heavy-Duty Electric Walkie Pallet Truck (2000kg - 3000kg Capacity) | AC Drive Material Handling Equipment

Boost your warehouse productivity and material handling efficiency with our heavy-duty Electric Walkie Pallet Truck. Engineered for superior performance, reliability, and operator safety, this motorized pallet jack comes in flexible capacities ranging from 2000kg to 3000kg. Featuring advanced AC drive technology and high-grade components, it is the ultimate solution for industrial warehouses, logistics centers, and manufacturing plants.

Looking for customized dimensions or features? We offer professional non-standard OEM/ODM customization services to match your exact warehouse operational requirements.

Key Advantages & Features

High-Performance AC Drive System: Powered by an advanced, brushless AC drive motor that eliminates carbon brush replacements, significantly reducing maintenance costs and downtime.
World-Class CURTIS Controller: Equipped with a genuine USA Curtis brand drive control system for precise speed regulation, smooth acceleration, and multi-layer automatic protection.
Ergonomic Multi-Function Handle: Features an integrated control handle designed for effortless operation, featuring responsive buttons, emergency reverse, and emergency braking.
Dual Cylinder Hydraulic Design: Built with an integrated low-noise hydraulic pump and a dual-cylinder structure for stable lifting and extended service life.
Regenerative Braking & Safety Systems: Includes electromagnetic regenerative braking, lifting electric limit switches to protect the motor and battery life, and Omron inductive micro-switches for ultimate safety and precision.
Lightweight Mechanical Steering: Ensures agile maneuvering even in tight aisle spaces and heavy load conditions.

Technical Specifications

Model	—	CBD20B	CBD25B	CBD30B
Rated Load	kg	2,000	2,500	3,000
Lift Height	mm	205	205	205
Overall Length	mm	1,792	1,792	1,792
Overall Width	mm	776	776	776
Fork Dimensions (T/W/L)	mm	55(70)/175/1,150	55(70)/175/1,150	55(70)/175/1,150
Battery Voltage / Capacity	V/Ah	24/210	24/210	24/210
Drive Motor Power	kW	1.5	1.5	1.5
Lift Motor Power	kW	0.8	0.8	0.8
Turning Radius	mm	1,645	1,645	1,645
Load Center	mm	600	600	600
Travel Speed, Full Load / No Load	km/h	3.5/4	3/4	3/4
Lifting Speed, Full Load / No Load	mm/s	40/50	40/50	40/50
Gradeability, Full Load / No Load	%	6/8	4/8	4/8
Braking Type	—	Electromagnetic	Electromagnetic	Electromagnetic

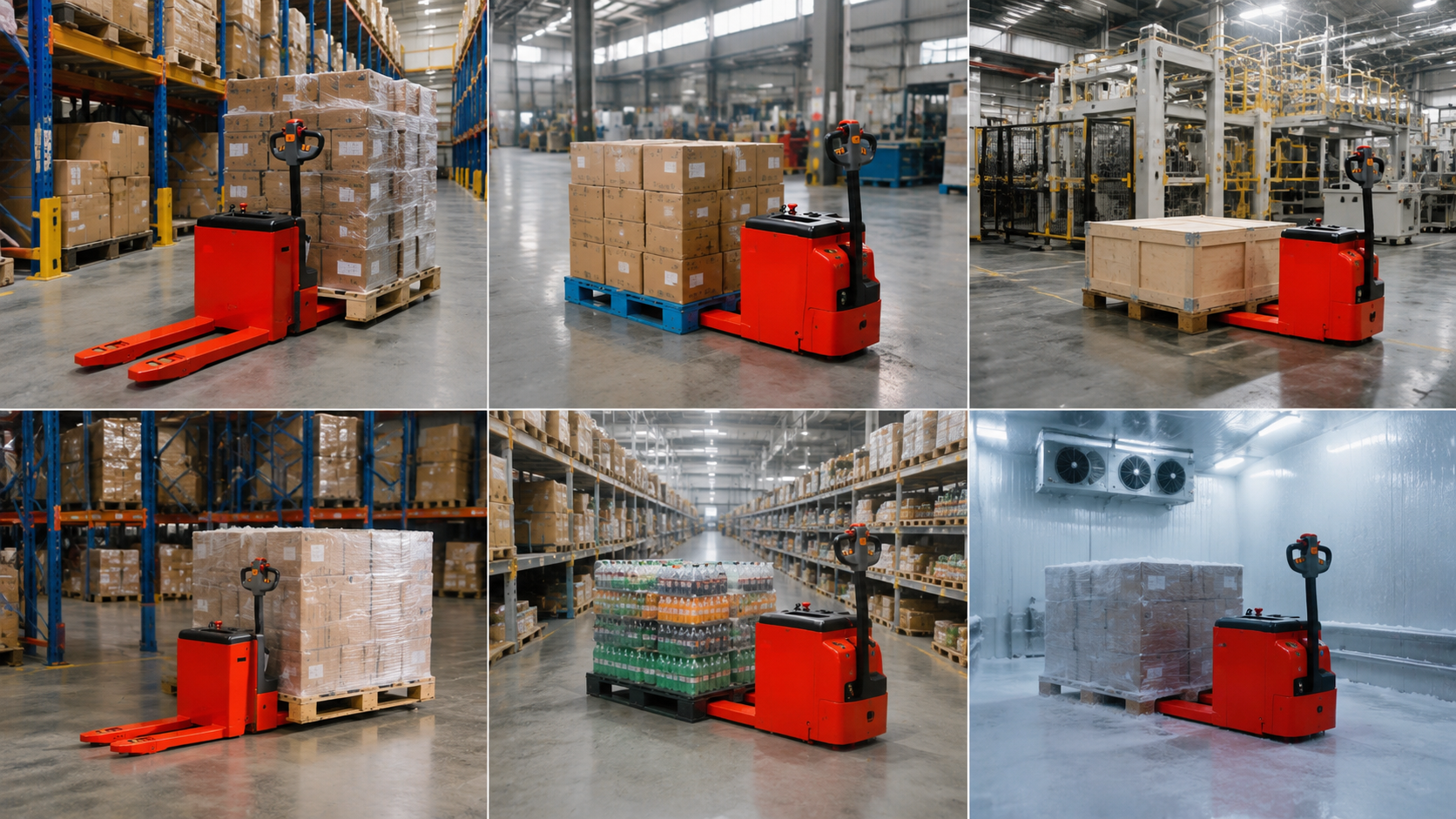

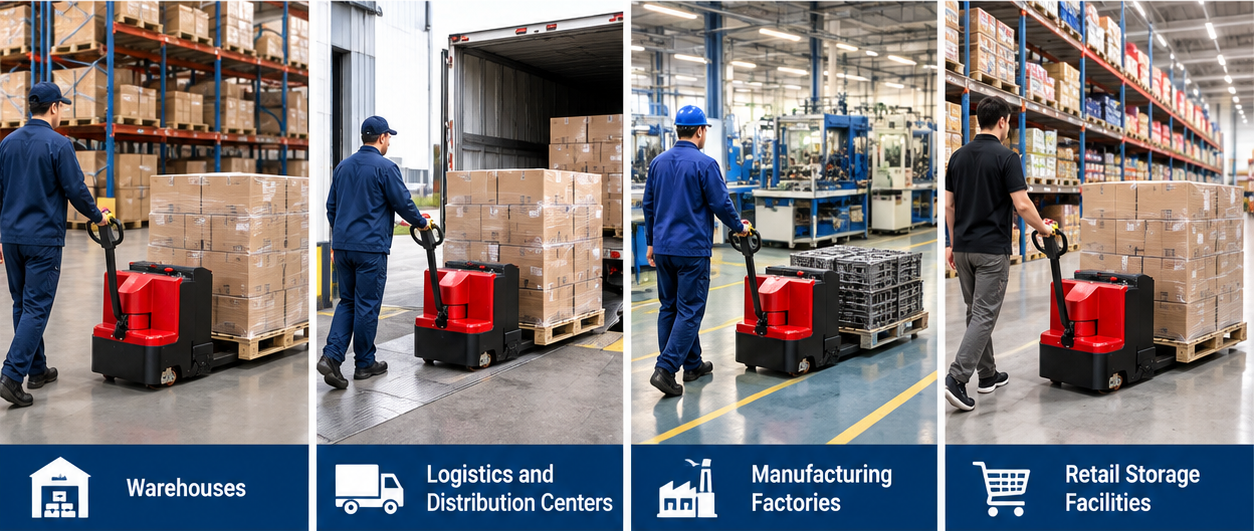

Applications

The Electric Walkie Pallet Jack is widely used in:

Warehouses
Logistics and distribution centers
Manufacturing factories
Retail storage facilities
Food and beverage industries
Cold storage warehouses
Loading and unloading operations

electric walkie pallet truck

Certifications

Our Services

1. Pre-sales: One-on-one engineer customized solutions, free product manuals and operation videos provided;

2. During sales: Logistics tracking updated every 2 days, supporting multiple trade terms such as FOB/CIF/CFR;

3. After-sales: 1-year warranty on the whole machine, free parts delivered within 7 days during the warranty period, 24-hour uninterrupted technical support, and on-site debugging by local engineers worldwide.
