3-Wheel vs. 4-Wheel Electric Forklifts: Which Should You Choose?

As the warehousing and logistics industry accelerates its shift toward electrification, more and more businesses are replacing traditional internal combustion forklifts with electric models. Zero emissions, low noise levels, and reduced maintenance costs make electric forklifts a preferred investment for warehouses, distribution centers, and industrial facilities worldwide.

However, when purchasing an electric forklift, one common question inevitably arises:

Should you choose a 3-wheel or a 4-wheel electric forklift?

Both types offer the core advantages of electric forklifts—clean operation, quiet and comfortable performance, and low operating costs. Yet, they differ significantly in terms of maneuverability, stability, load capacity, and suitability for specific applications.

This article compares 3-wheel and 4-wheel electric forklifts across various dimensions to help you make the best decision based on your specific warehousing needs.

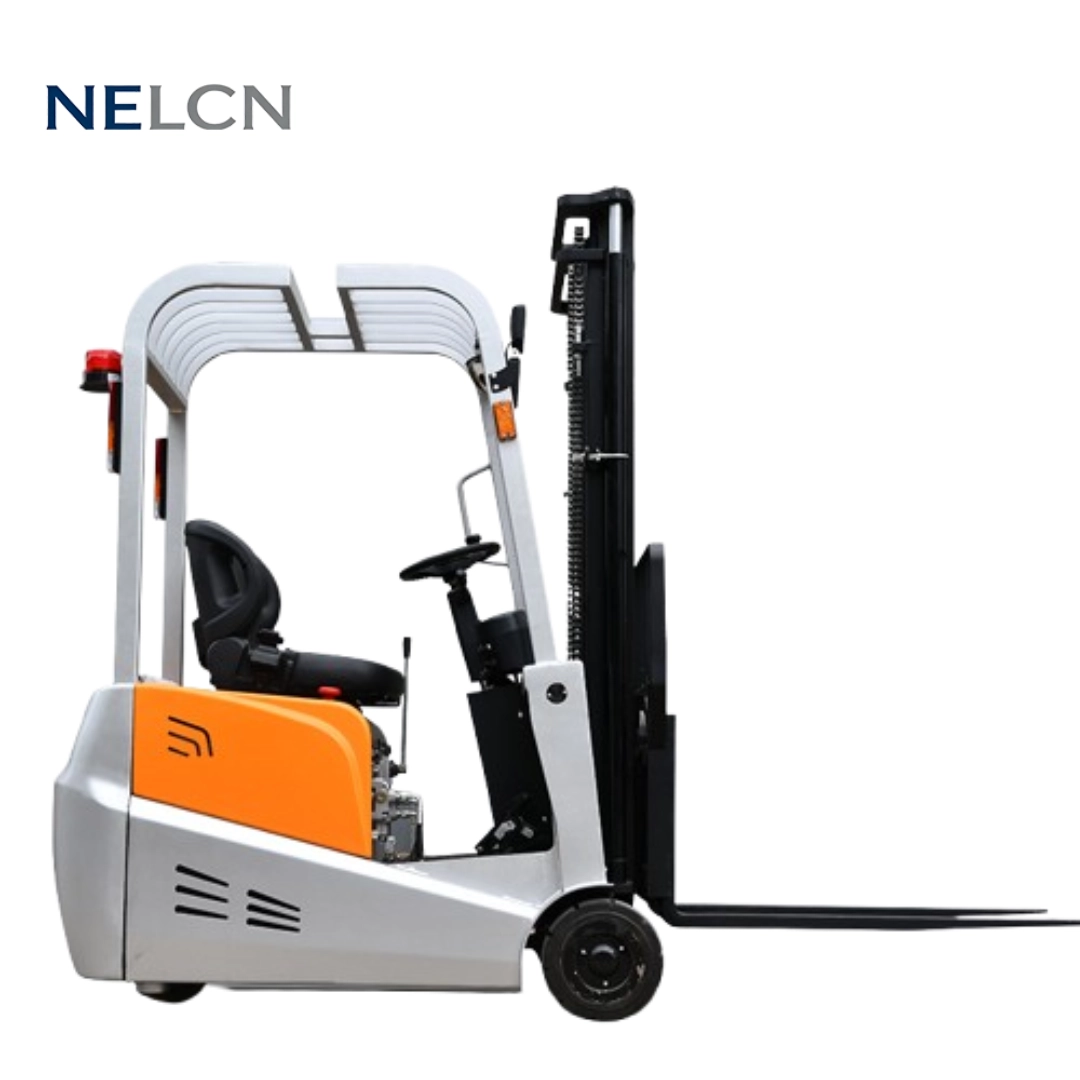

What is a three-wheel electric forklift?

A three-wheel electric forklift is a type of electric counterbalanced forklift featuring a triangular wheel configuration: a single steerable wheel (or dual-wheel unit) at the rear serves as the steering axle, while two drive wheels are located at the front, creating a three-point structural layout.

Key Features:

• Extremely tight turning radius: The rear steering wheel can rotate up to 90° in either direction; compared to similarly sized four-wheel forklifts, the turning radius is reduced by approximately 30–40%, typically allowing for a pivot turn within a narrow radius of 1.5 to 2 meters.

• Compact footprint: A small chassis size results in a reduced overall footprint, making it ideal for indoor facilities with limited space.

• Excellent visibility: The streamlined front-end design provides the operator with a clear field of view.

• Energy-efficient and eco-friendly: Electric drive ensures zero emissions and low noise levels, resulting in low operating costs.

• Load capacity: Typical lifting capacities range from 1.0 to 2.0 tons, meeting the requirements of medium-sized warehouse operations.

Typical Application Scenarios:

• Indoor warehouses with narrow aisles and distribution centers (high-density storage)

• Retail stores and retail distribution centers

• E-commerce fulfillment centers and other locations requiring frequent maneuvering and turning

• Food and beverage industry, cold chain warehouses, and cold storage facilities

• Industries requiring cleanliness and low noise levels, such as pharmaceuticals and healthcare

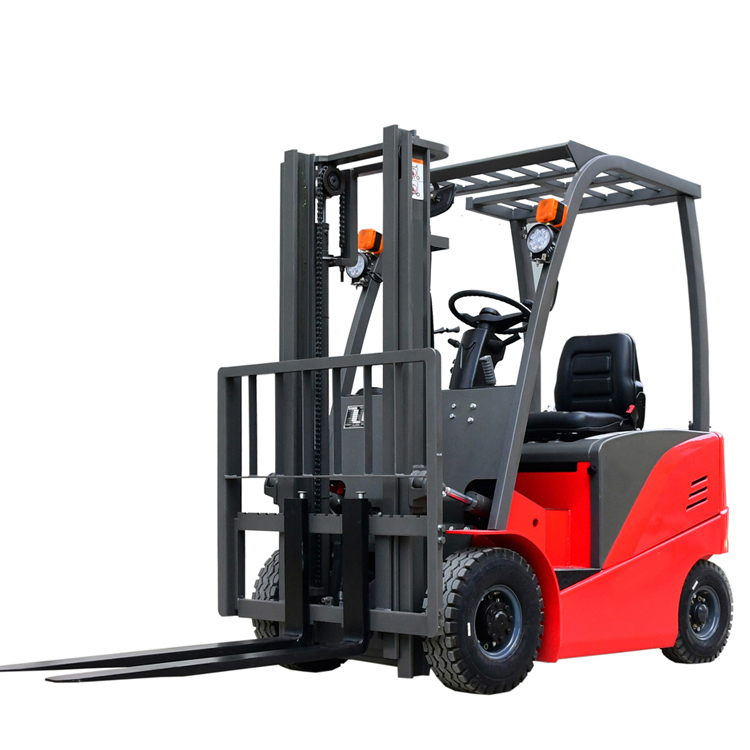

What is a four-wheel electric forklift?

Four-wheel electric forklifts feature a quadrilateral layout with two front wheels and two rear wheels. This four-point support configuration provides superior stability and weight distribution.

Key Advantages

• Enhanced Stability: The four-wheel layout offers approximately 45% greater lateral stability than three-wheel models; a low center of gravity makes it suitable for uneven terrain and outdoor operations.

• High Load Capacity: Rated capacities range from 1 to 5 tons, meeting the needs of medium-to-heavy material handling.

• Zero Emissions & Low Noise: Pure electric drive ensures no pollution and quiet operation, making it ideal for industries with strict environmental standards, such as pharmaceuticals and food processing.

• Advanced Technology: Typically equipped with brushless AC motors, ZAPI/Curtis controllers, CAN-bus communication, regenerative braking, and intelligent stability systems; features long maintenance intervals and high energy efficiency.

• Versatile Operation: With an IP54 protection rating and 220mm ground clearance, it can operate in light rain and on uneven surfaces; some models offer all-wheel steering, reducing the turning radius by approximately 37%.

Typical Application Scenarios

• Large warehouses and logistics centers

• Manufacturing plants and construction material handling

• Industries with strict cleanliness or environmental requirements (e.g., pharmaceuticals, food)

• Mixed indoor/outdoor use, uneven ground, and open-air sites

Flexibility Comparison: Which Forklift is More Maneuverable?

In terms of maneuverability, the three-wheel electric forklift is the clear winner.

Its single-rear-wheel steering design allows it to turn within a much smaller footprint than four-wheel models. Operators notice the difference immediately: there is no need for repeated back-and-forth adjustments or reversing to reposition, making navigation through densely packed racking aisles much smoother.

When warehouse aisle widths are less than 3 meters, three-wheel electric forklifts significantly boost space utilization. Their compact chassis allows for the installation of additional racking and increased storage density without the need to expand the facility.

Of course, modern four-wheel electric forklifts have seen major improvements in steering technology; some models feature advanced steering axles that bring their turning radius close to that of three-wheelers. Nevertheless, in compact spaces where every centimeter counts, the three-wheel forklift remains the preferred choice.

Stability and Load Capacity Comparison

Four-wheel electric forklifts have a clear advantage in terms of stability and load capacity.

The four-wheel configuration provides a more balanced weight distribution, making the forklift more stable when lifting heavy loads or performing high-level lifting operations. This enhanced stability is especially important in the following applications:

• Lifting heavy or oversized loads to high-level storage racks

• Operating on uneven or rough surfaces

• Handling irregularly shaped loads with an unstable center of gravity

Typical Load Capacity Range:

Three-wheel electric forklifts provide reliable stability on smooth and flat indoor floors. However, when handling heavy loads or operating on uneven terrain, their triangular wheel configuration cannot match the stability and balance offered by four-wheel forklift designs.

Lithium Battery vs. Lead-Acid Battery: How Big Is the Difference?

The choice between lithium batteries and lead-acid batteries directly affects five key aspects: driving range, service life, weight and portability, operating costs, and safety. Below are the core differences:

Range and Energy Density

Lithium batteries have an energy density of 120–200 Wh/kg, while lead-acid batteries only have 30–50 Wh/kg.

With the same capacity, lithium batteries can provide 15%–20% longer range, and for the same amount of energy, lithium batteries weigh only about one-third of lead-acid batteries.

This means lithium batteries can be designed to be lighter while delivering longer operating time.

Service Life

Lithium Battery:

• Cycle life: 2,000–8,000 cycles

• Actual service life: 4–6 years (or even longer)

Lead-Acid Battery:

• Cycle life: 300–600 cycles

• Actual service life: around 2–3 years

Lead-acid batteries often last less than half as long as lithium batteries. Over long-term use, lithium batteries can actually be more cost-effective due to their longer lifespan.

Charging Speed and Efficiency

Lithium Battery:

• Full charging time: 1–5 hours

• Charge/discharge efficiency: >97%

• Minimal energy loss

Lead-Acid Battery:

• Charging time: 6–12 hours

• Efficiency: around 80%

• Approximately 15% of energy is lost during charging and discharging

Lithium batteries offer a significant advantage in fast charging, making them more convenient for daily operations.

Cost: Higher Initial Price, Lower Long-Term Cost

In 2025, rising lead prices and declining lithium battery material costs have further narrowed the price gap between the two.

Safety

Lead-Acid Battery:

• Chemically stable

• Less likely to catch fire or explode

• Excellent high-current discharge performance

• However, it contains lead and has potential environmental pollution risks

Lithium Battery:

• Has a risk of thermal runaway under conditions such as poor-quality chargers or overcharging

• Requires a reliable Battery Management System (BMS) for protection

• High-quality LiFePO₄ (Lithium Iron Phosphate) batteries have significantly improved safety performance

Environmental Impact

Lead-acid batteries contain heavy metal lead, creating higher pollution risks if improperly handled.

Lithium batteries do not contain lead and are generally considered more environmentally friendly.

Low-Temperature Performance

A common misconception is that lead-acid batteries perform better in cold environments.

In reality:

• Lead-acid batteries: Capacity can drop sharply in low temperatures, sometimes falling below 60%

• Lithium batteries: Can still maintain around 60%–70% capacity at -20°C

• Ternary lithium batteries: Can maintain over 70% capacity under similar conditions

Overall, lithium batteries generally provide better low-temperature performance than lead-acid batteries.

Key Safety Considerations for Model Selection

Safety is always the top priority. When selecting a model, consider the following:

Load Stability

Four-wheel forklifts offer greater stability when handling heavy loads or lifting to heights, resulting in a lower risk of tipping. While three-wheel forklifts are reasonably stable on level ground, they require greater operator caution when handling heavy loads.

Visibility

Some three-wheel forklifts feature a more open front-end design, providing better visibility of the fork tips and pallet edges, which helps reduce the risk of collisions when working near racking.

Operating Environment

• Smooth indoor floors: Both types are safe.

• Uneven or outdoor surfaces: Four-wheel forklifts offer superior stability and traction.

• Narrow aisles: Three-wheel forklifts reduce the risk of scraping against racking.

Key Safety Features

Modern electric forklifts offer optional features such as:

• Operator presence detection

• Load weight indication and overload alarms

• Stability control systems

• Regenerative braking (for smoother braking)

• Ergonomic operator cabins (to reduce fatigue)

Summary

NELCN (NOELIFT EQUIPMENT) specializes in providing customized electric forklift solutions for warehousing and logistics clients worldwide. Whether you require the agile maneuverability of a three-wheel model or the safety and stability of a four-wheel model, our technical team can precisely match the optimal vehicle to your specific operational environment, aisle width, and load handling requirements.

We offer:

✅ High-quality indoor and outdoor electric forklifts, with the entire range undergoing rigorous testing

✅ Flexible battery options (Lithium-ion or Lead-acid) to suit various budgets and runtime needs

✅ Personalized configuration: mast height, attachments, tires, and more tailored to your needs

✅ Rapid global shipping and localized technical support for worry-free after-sales service

Contact NELCN today for free model selection advice and a personalized quote—let us provide the perfect forklift to drive your operational efficiency.
