How to Choose the Right Forklift for Your Warehouse Operations

Forklifts are essential material handling equipment in logistics, warehousing, and manufacturing. Choosing the right forklift directly impacts operational efficiency, safety performance, and long-term operating costs (TCO).

Many buyers fall into common traps:

• Focusing on price over performance — buying cheap equipment that doesn't fit the job

• Ignoring warehouse layout — forklifts that can't navigate aisles or turn corners

• Miscalculating load requirements — overloading equipment or paying for capacity you don't need

• Overlooking long-term costs — maintenance and energy expenses that far exceed the purchase price

This guide provides a step-by-step forklift selection framework to help buyers make informed purchasing decisions.

Step 1: Understand Your Warehouse Application Scenario

The first step in forklift selection is not to look at technical specifications, but to clearly understand your operational needs.

What Type of Goods Are You Handling?

Different cargoes have vastly different requirements for forklifts:

• Standard palletized goods (most common) – Fork length should be selected based on pallet dimensions (Euro pallet 800×1200 mm / 1000×1200 mm; fork length typically 1150 mm).

• Extra-heavy industrial equipment – The weight per pallet/unit must be assessed, while also accounting for the derating factor at maximum lift height. Lifting capacities range from 1 ton to 20 tons.

• Fragile or high-value goods – Electric forklifts are recommended, as they offer smooth operation, low vibration, and reduce the risk of product damage.

• Long or irregularly shaped cargo – The load center distance must be evaluated (rated capacity is generally based on a 500 mm or 600 mm load center). Extra-long loads will reduce the actual lifting capacity.

Indoor or outdoor operation?

The working environment is the primary factor in determining power type:

• Indoor warehouses / workshops – Electric forklifts are preferred due to zero emissions and low noise.

• Outdoor construction sites / ports – Internal combustion forklifts (diesel / gasoline / LPG) are preferred for their strong power and suitability for uneven ground.

• Mixed environments – Lithium battery forklifts or highly adaptable models are recommended.

Industry-specific requirements

Different industries have different operational needs:

Step 2: Determine Load Capacity Requirements

Load capacity is a core parameter in forklift selection. When determining the rated capacity, it should be calculated based on the maximum cargo weight + pallet weight, and a forklift model with a rated capacity higher than this total load should be selected accordingly.

At the same time, it is recommended to include a safety margin above the basic requirement. This helps accommodate uncertainties during operation, such as load center shift, uneven loading, or temporary weight increases, thereby providing a greater safety buffer for both equipment performance and operator safety.

In addition, the impact of the load center distance must be fully considered. If the actual load center of the cargo exceeds the forklift’s standard load center (typically 500 mm or 600 mm), the rated capacity must be proportionally derated and cannot be used directly based on the nominal value.

It is particularly important to emphasize that any overloading will significantly increase the risk of mast deformation, hydraulic system damage, and even forklift overturning. Therefore, forklift selection and actual operation must strictly comply with the load chart and rated capacity limits to ensure long-term safe and stable equipment performance.

Step 3: Select the Appropriate Power Source

The type of power source determines the forklift’s application scenarios, operating costs, and maintenance requirements.

1. Electric Forklifts

Advantages: zero emissions, low noise, and low operating costs

Compared with internal combustion forklifts, both energy consumption and maintenance costs are lower

Suitable for: indoor warehouses, food and pharmaceutical industries, and areas with strict environmental regulations

2. Diesel Forklifts

Advantages: strong power, high load capacity, and long operating runtime

Disadvantages: high noise, emissions pollution, and higher maintenance costs

Suitable for: ports, construction sites, and heavy-duty outdoor operations

3. LPG Forklifts (Liquefied Petroleum Gas)

Advantages: relatively cleaner emissions (CO emissions reduced by about 80% compared to gasoline), lower fuel costs, and flexible use in both indoor and outdoor environments

Suitable for: mixed indoor/outdoor environments with moderate environmental requirements but needing internal combustion power

4. Lithium Battery Forklifts (Current Industry Trend)

Technical advantages:

Longer cycle life: Lithium batteries offer significantly longer lifespan, making them suitable for high-usage operations

Higher energy efficiency: Overall energy conversion efficiency can reach up to 90%, compared to 75% for lead-acid batteries

Faster charging: Some systems can be fully charged in as little as 1–2 hours

Suitable applications:

Modern warehouse and logistics environments requiring long lifespan, low maintenance, and fast charging capability.

Step 4: Select the Appropriate Forklift Type

Different operating environments and warehouse layouts require different forklift types. Proper selection not only improves operational efficiency but also directly impacts safety and space utilization.

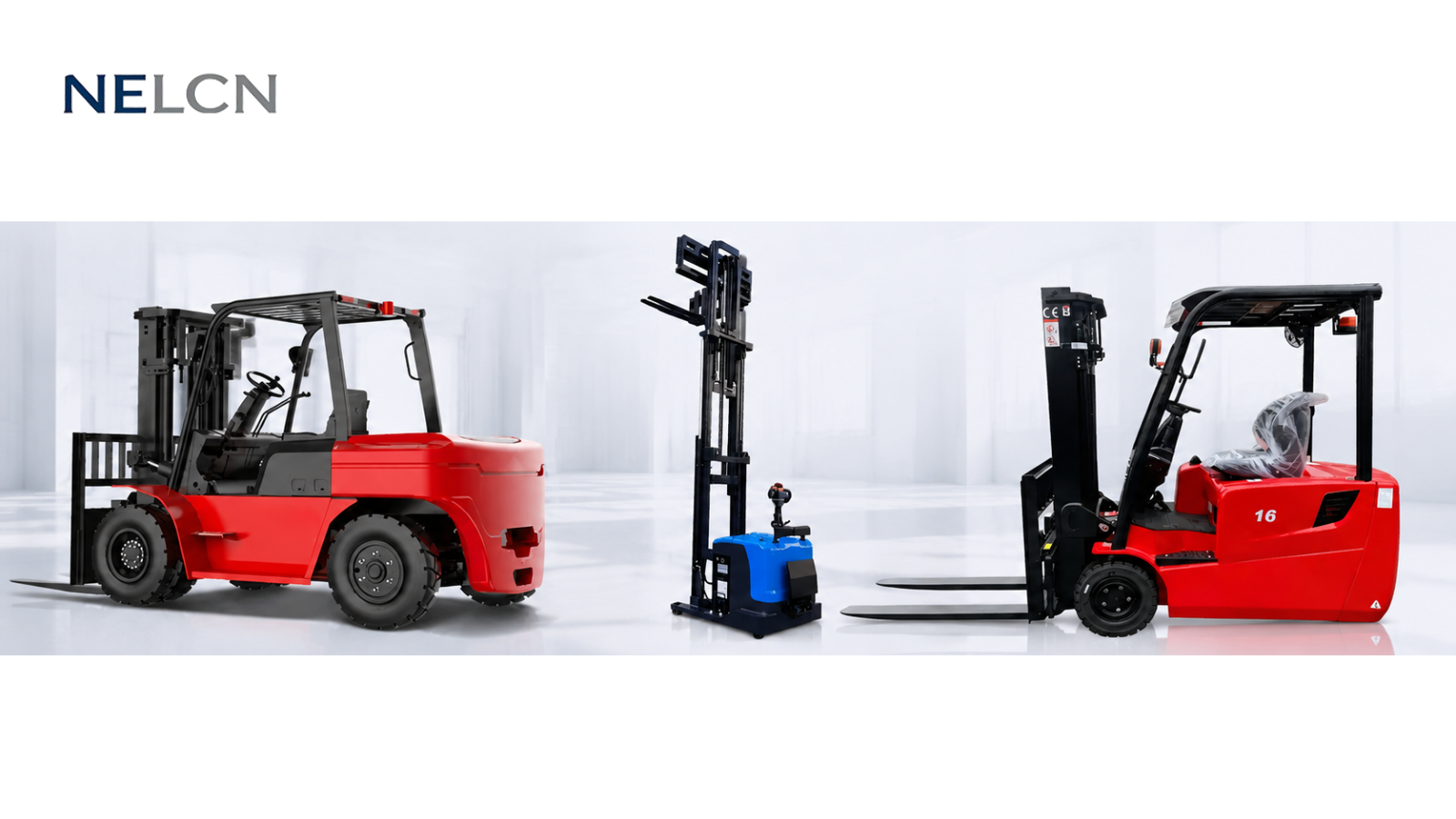

1. Counterbalance Forklift

Technical features:

• Uses a front-wheel drive and rear-wheel steering design

• Equipped with a rear counterweight to balance the forward tipping moment generated by lifted loads

• Sit-down models: maximum lift height up to 22 ft, require 12–15 ft aisle width

• Stand-up models: maximum lift height up to 20 ft, require 10–12 ft aisle width

• Accounts for approximately 52.2% of the forklift market, making it the most widely used type

Applications:

General material handling in factories, logistics centers, and mixed indoor/outdoor operations

Suitable for pallet loading/unloading and truck loading tasks

Limitations:

Relatively large turning radius

Lower space utilization in high-density storage environments compared to narrow-aisle equipment

2. Reach Truck

Technical features:

• Mast and forks can extend forward and retract during travel

• Typically achieves lifting heights of around 4 meters, suitable for high-rack storage

• Requires narrower aisle width compared to counterbalance forklifts

Applications:

• High-density warehouses, e-commerce, and third-party logistics centers

• Suitable for 5–7 level racking systems

Limitations:

• Generally limited to indoor, hardened floor surfaces

• Higher investment cost compared to counterbalance forklifts

3. Electric Pallet Jack

Technical features:

• Lift height of approximately 0.1 meters (about 3 inches), not suitable for rack storage operations

• Designed for short-distance, low-lift transport tasks

• Simple operation with low training requirements

Applications:

• Dock loading/unloading

• In-plant material transport

• Short-distance horizontal movement

• Often used alongside counterbalance forklifts for short-haul tasks

Limitations:

• No real lifting capability

• Only suitable for ground-level transportation

4. Rough Terrain Forklift

Technical features:

• Equipped with large pneumatic tires and reinforced suspension systems for uneven outdoor surfaces

• Strong off-road capability and good shock absorption

• Designed for complex ground conditions

Applications:

• Construction sites, mining areas, and agricultural operations

• Outdoor environments with unpaved or rough terrain

Limitations:

• Limited indoor usability

• Relatively high energy consumption

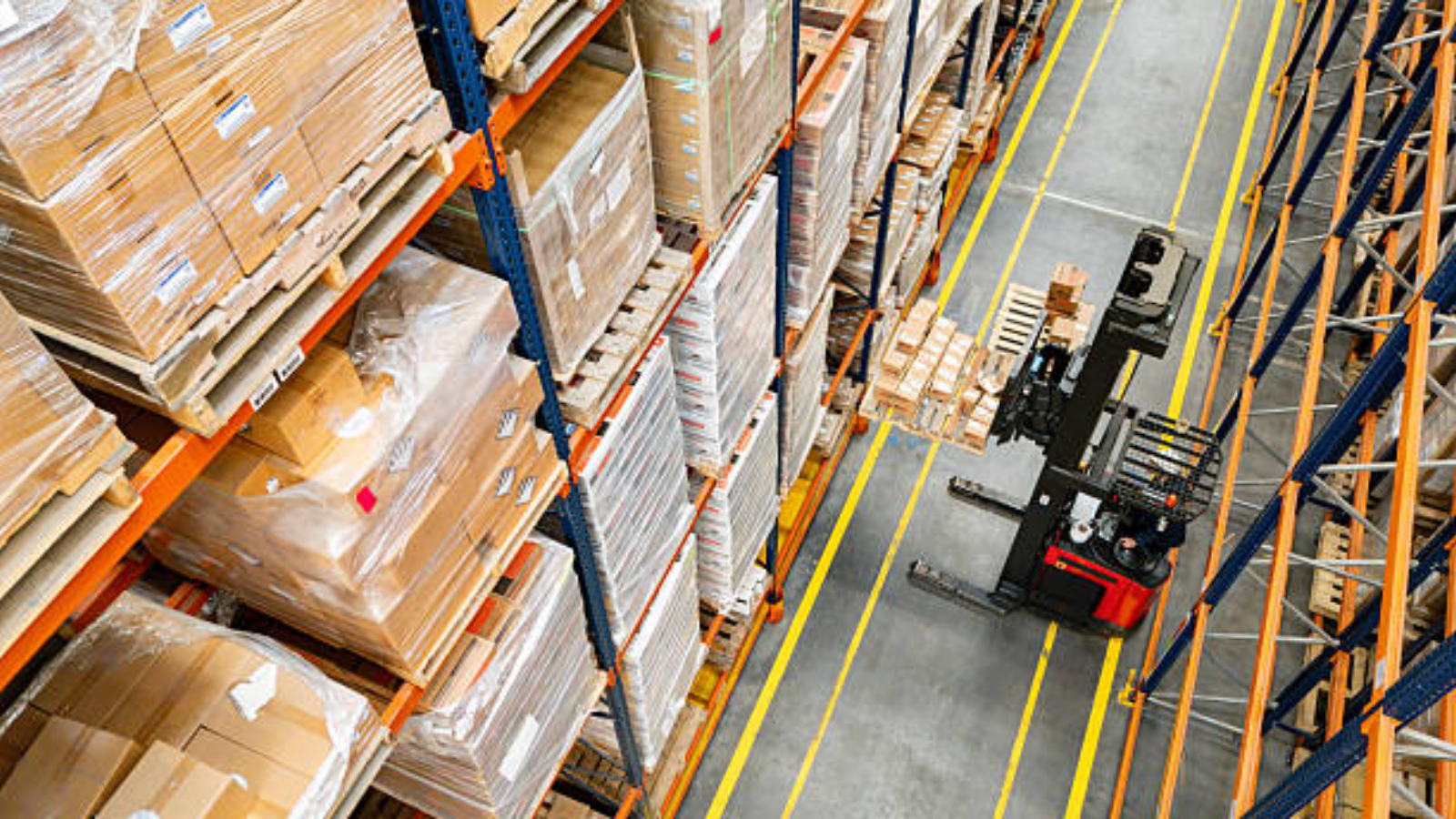

5. Narrow Aisle Three-Way Forklift

Technical features:

• Forks can shift sideways and rotate 180°, allowing picking without turning the entire vehicle

• Some models operate with ground guidance rails for safety and precision

• Enables extremely narrow operating aisles

Applications:

• Ultra-high-density storage warehouses

• High-bay racking systems with 6+ levels

Limitations:

• Higher equipment cost and operational complexity

• Requires high floor flatness and precise warehouse infrastructure

Step 5: Consider Warehouse Space and Aisle Width

Warehouse physical layout is a key constraint in forklift selection. A quantitative evaluation should be made across four dimensions: aisle width, turning radius, equipment flexibility, and stacking height.

1. Rack Aisle Width

Standard aisle (≥ 3.5 m)

Counterbalance forklifts (3–5 ton class) can be used.

Their right-angle stacking aisle width is typically 3.8–4.2 m, depending on wheelbase and steering axle design.

Narrow aisle (2.8–3.5 m)

Reach trucks (stand-up or sit-down models) are recommended.

Right-angle stacking aisle width can be reduced to 2.8–3.2 m, with strong mast reach capability.

Very narrow aisle (< 2.8 m)

Narrow aisle (VNA) forklifts or turret trucks are required.

Aisle width can be reduced to 1.6–2.0 m, but these systems require high floor flatness and special guidance systems.

2. Turning Radius and Maneuverability

• A 3-ton counterbalance forklift typically has a turning radius of 2.2–2.6 m, requiring sufficient turning space at aisle ends

• Reach trucks typically have a turning radius of 1.5–1.8 m, making them better suited for dense rack environments

If the aisle width is below the minimum right-angle stacking requirement of the forklift (see technical specifications), warehouse layout must be adjusted in advance (e.g., increasing aisle numbers or switching to drive-in racking systems).

3. Stacking Height and Rack Compatibility

For high-bay racking systems (>5 m), reach trucks are preferred.

They can achieve lifting heights of 10–12 m, with good visibility and stability compared to counterbalance forklifts.

 If the maximum stacking height is ≤4.5 m, counterbalance forklifts are more cost-effective due to higher load capacity and lower cost. Standard 3 m masts can be upgraded to 4.5 m (with optional 2-stage or 3-stage full free-lift mast).

 When aisle width is insufficient and stacking height exceeds 8 m, a man-up VNA turret truck should be considered (aisle width ≤1.8 m, lifting height up to 14 m).

Step 6: Evaluate Lifting Height Requirements

Lifting height must precisely match the racking system, with an adequate safety margin. All values below are in millimeters (mm), following standard industry specifications.

1. Standard Lift Height (Non–High-Rack Warehouses)

2-stage standard mast (basic configuration):

• Lift height: 3,000 mm

• Suitable for ground stacking and low racks below 3 m

2-stage full free-lift mast:

• Lift height: 3,000–4,500 mm (customizable)

• Free lift height: 1,200–1,500 mm

• Suitable for low warehouses (clear height ≤5 m) or container operations

3-stage full free-lift mast:

• Lift height: 4,500–6,500 mm (common: 4,500 / 5,500 / 6,500 mm)

• Suitable for medium-height racking and constrained environments requiring free lift

2. High-Rack Warehouses (Rack Height ≥5 m)

Selection should be based on the top rack level. Common lift heights include:

• 7,000 mm (for 5.5–6.5 m racks)

• 8,500 mm (for 7.5–8.0 m racks)

• 10,000 mm (for 9.0–9.5 m racks)

• 12,000 mm (for 11.0–11.5 m racks)

For warehouses exceeding 12 m, specialized high-reach forklifts or VNA systems with guide rails are required.

Step 7: Supplier Evaluation Checklist

For buyers, selecting the right supplier is just as important as selecting the right forklift.

Evaluation Criteria:

• Production Capability: Assess factory scale, production equipment, and manufacturing capacity.

• Export Experience: Check for extensive international trade experience and a track record of successful cases.

• Certification & Compliance: Verify possession of international certifications such as ISO 9001 and CE.

• After-Sales Service: Confirm the availability of timely technical support and maintenance services.

• Spare Parts Support: Ensure adequate inventory and timely supply of spare parts.

• Delivery Time: Confirm the ability to meet delivery schedules.

• Customization Capability: Check for OEM/ODM customization options.

Procurement Recommendations:

Request comprehensive technical documentation and certification records from the supplier.

Conduct a trial run with a prototype before purchasing to simulate actual operating conditions and verify that the equipment meets your requirements.

Conclusion

Selecting the right forklift is a crucial step in enhancing warehouse operational efficiency. If you are choosing forklift equipment for your warehouse, please feel free to contact us for professional selection advice.
