Reach Truck vs. Counterbalance Forklift: Which One Should You Choose?

The warehousing industry has long faced a classic "impossible triangle" challenge: narrow aisles, high racking, and heavy loads—a combination that almost no single forklift model can perfectly accommodate.

Reach Trucks: These sacrifice some all-weather outdoor load-bearing capacity to achieve exceptional maneuverability within confined indoor spaces and around high-level racking.

Counterbalance Forklifts: With their wide chassis and heavy rear counterweights, these serve as versatile all-rounders capable of handling heavy loads across mixed indoor and outdoor environments.

So, how should you choose based on specific warehouse layouts and operational requirements? This article provides a comprehensive analysis covering key differences, application scenarios, and purchasing considerations.

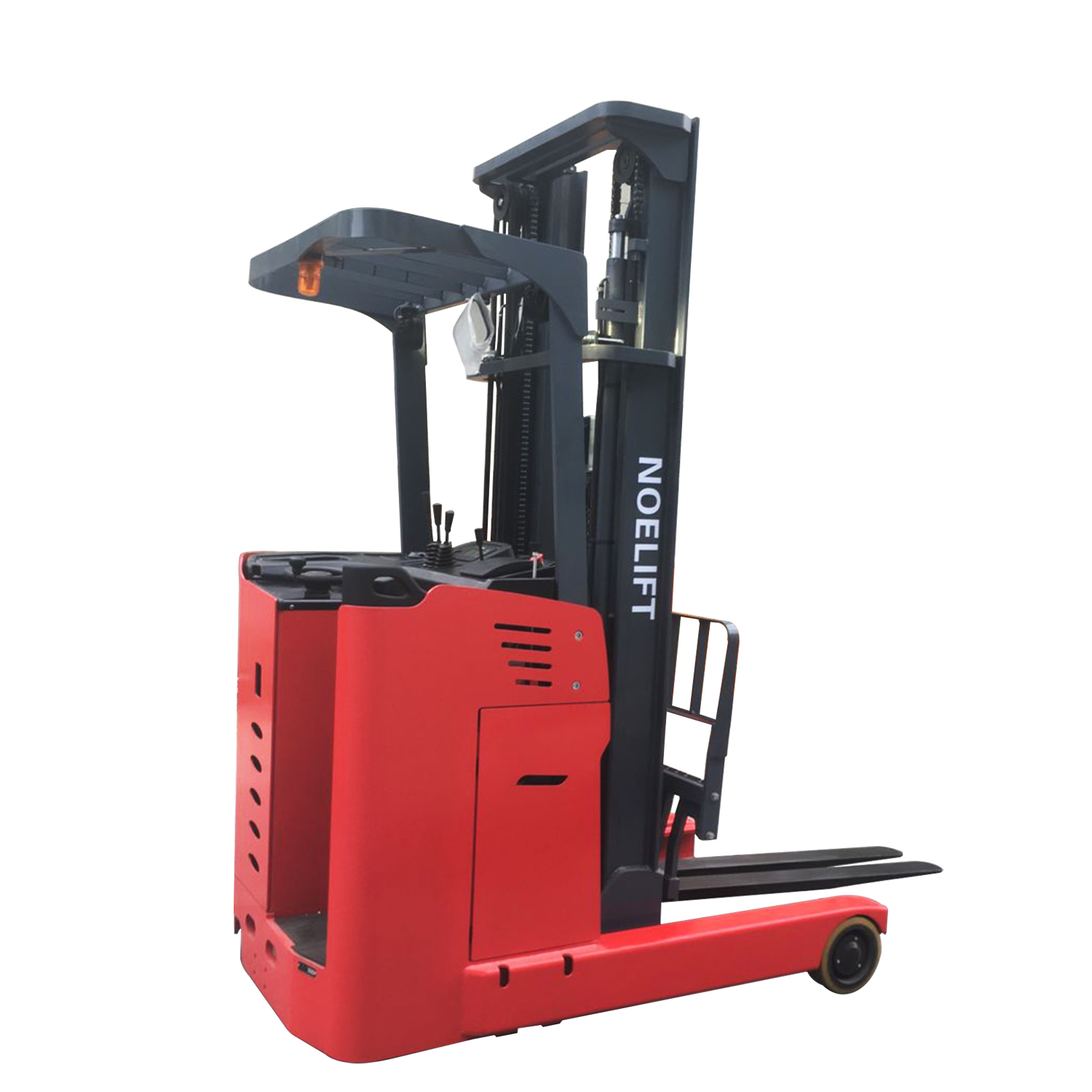

What Is a Reach Truck?

A reach truck is a specialized type of powered industrial truck designed for high-density pallet storage and narrow-aisle operation. Reach trucks are optimized for high-bay, narrow-aisle environments and for maximizing cubic storage density.

How Does a Reach Truck Work?

Unlike counterbalance forklifts that rely on a rear counterweight, reach trucks use a pair of wheeled base legs that extend beyond the front of the mast and a pantograph mechanism that lets the forks extend forward into a pallet rack. This design shortens the overall body length and allows the truck to operate in significantly narrower aisles.

The operator typically stands or sits sideways, using a steering wheel and a joystick with a dead-man pedal for safety. The extending mast enables reach trucks to lift pallets to heights of 8–12 meters.

Where Are Reach Trucks Commonly Used?

Reach trucks offer immense value when warehouse space and vertical storage capacity are key considerations during procurement. Common application scenarios include:

• High-rack warehouses

• Distribution centers

• E-commerce order fulfillment centers

• Third-party logistics (3PL) warehouses

• Cold storage facilities

• High-density pallet storage operations

In many warehousing operations, reach trucks are the preferred solution for narrow-aisle storage challenges. Typically battery-powered, they operate quietly and produce no exhaust emissions, making them ideal for indoor use.

Key advantages of reach trucks

1. Better suited for narrow-aisle operations

Reach trucks can operate in aisles as narrow as 2.5–3 meters (approx. 8 feet), whereas counterbalance forklifts typically require aisle widths of 3.5–4.5 meters.

2. Supports high-density pallet storage

By reducing aisle width, reach trucks can increase pallet storage capacity by 20%–30% compared to operations relying solely on counterbalance forklifts.

3. Designed for high-rack applications

Reach trucks are capable of servicing high-level racking; lifting heights typically range from 3 to 8 meters, with some models reaching up to 12 meters.

4. Excellent maneuverability in controlled warehouse environments

Their compact chassis design and specialized steering systems allow for precise handling in tight spaces.

5. Maximizes vertical space utilization

Reach trucks effectively utilize vertical storage space, making them particularly suitable for facilities facing high rental costs or limited land availability.

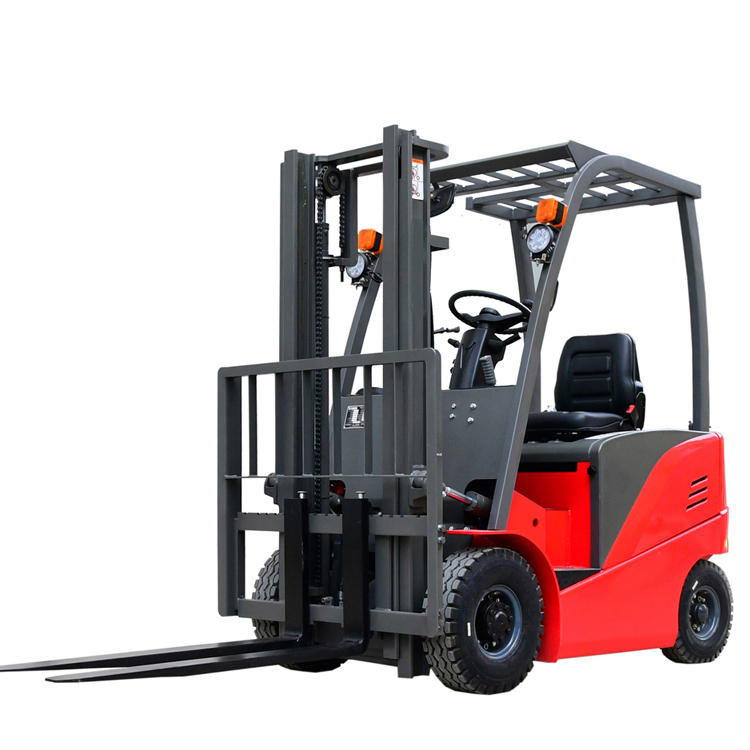

What Is a Counterbalance Forklift?

Counterbalance forklifts are the most common type of lift truck on the market. They are designed for general material handling across a wide range of applications and environments.

How Does a Counterbalance Forklift Work?

As the name implies, counterbalance forklifts rely on a heavy counterweight located behind the operator to offset the weight of the load at the front. The forks are permanently fixed to the front of the mast, and the truck drives straight up to a pallet to lift and carry it.

The operator usually sits facing forward, providing good visibility to the forks and load. Counterbalance forklifts are available in electric, LPG, diesel, and even hydrogen fuel-cell models.

Where Are Counterbalance Forklifts Commonly Used?

Counterbalance forklifts excel at general warehousing, yard work and loading docks. Common applications include:

• Loading and unloading trucks

• Warehouse floor operations

• Manufacturing facilities

• Production areas

• Loading docks

• Yard operations

• Mixed indoor/outdoor applications, depending on truck configuration

Key Advantages of a Counterbalance Forklift

1. Versatile material handling

Counterbalance forklifts can handle a wider range of loads and tasks, from pallet movement to specialized attachments.

2. Suitable for a wider range of operating environments

Available in multiple fuel types and tyre configurations, counterbalance forklifts can operate indoors, outdoors, and on various surfaces.

3. Suitable for loading and unloading

Their design and capacity make them ideal for truck loading and unloading applications.

4. Available in different power and capacity configurations

Counterbalance forklifts offer broader options for heavier-load applications, with capacities ranging from 1.5 to 5+ tonnes.

5. Better suited to operations where aisle space is less restrictive

In conventional warehouse layouts with wider aisles, counterbalance forklifts provide efficient, cost-effective material handling.

Reach Trucks vs. Counterbalance Forklifts: 7 Key Differences

1. Aisle Width

How much space is there between your racking rows?

This is often the deciding factor when choosing between a reach truck and a counterbalance forklift.

• Reach Trucks: Designed for narrow-aisle warehouses; compact and highly maneuverable. While standard counterbalance forklifts require 3.5–4.5 meters (approx. 10–12 feet) of turning space, reach trucks can operate in aisles just 2.5–3 meters (approx. 8 feet) wide; some models can even operate in "very narrow aisles" (VNA) of 1.8–2.5 meters.

• Counterbalance Forklifts: Require more operating space; better suited for traditional wide-aisle warehouse layouts.

Purchasing Tip: Don't just measure the distance between racks. Confirm pallet dimensions, load dimensions, rack specifications, turning clearance, and required operating aisle width with your supplier.

2. Lift Height

Reach trucks are purpose-built for high-level racking storage, whereas counterbalance forklifts are geared toward general stacking and material handling.

• Reach Trucks: Lift heights can reach 8–12 meters.

• Counterbalance Forklifts: Typically max out at 3–6 meters.

Important Note: Buyers should evaluate the actual rated capacity at the required lift height, rather than relying solely on the nominal capacity listed on the data plate. Actual load-bearing capacity decreases as lift height increases due to load moment limitations.

3. Load Capacity

Counterbalance forklifts offer a wider range of options for heavy-duty applications, while reach trucks are primarily used for palletized warehouse storage.

• Reach Trucks: Typical load capacity ranges from 1,000 kg to 3,000 kg.

• Counterbalance Forklifts: Typical load capacity ranges from 1.5 tonnes to over 5 tonnes.

Always consult the manufacturer's load chart—load capacity decreases non-linearly as lift height increases. For example, a forklift rated for 2 tonnes at a 500mm load center might see its actual capacity drop to 1.4 tonnes if the load center extends to 800mm.

4. Indoor vs. Outdoor Operations

• Reach Trucks: Better suited for indoor warehouses, smooth, level floors, and controlled environments. Their narrow-wheel design and precision steering require flat surfaces (gradient ≤2%).

• Counterbalance Forklifts: Better suited for warehouses, loading docks, factories, yards, and mixed indoor/outdoor environments (depending on configuration). Electric models dominate indoor use, while diesel or LPG models excel outdoors and in heavy-duty applications. Modern lithium-ion counterbalance forklifts can even operate in the rain, on gravel surfaces, and in -20°C cold storage.

Always select the appropriate model based on actual flooring, road surfaces, weather, and operating conditions.

5. Storage Density

If your primary goal is to increase pallet capacity without expanding the warehouse, reach trucks are worth serious consideration.

The logic: Narrower aisles + higher rack utilization = superior warehouse space efficiency.

Compared to solutions relying solely on counterbalance forklifts, reach trucks can increase pallet capacity by 20%–30%, or even up to 40% in some scenarios. While counterbalance forklifts typically require aisles 3.5–4.5 meters wide, reach trucks can operate in aisles as narrow as 2.5–3 meters, instantly freeing up space for more pallets.

The extent of density improvement varies by site; please evaluate based on your specific warehouse layout and racking configuration.

6. Operational Flexibility

Counterbalance Forklifts: Highly versatile—suitable for loading/unloading, horizontal transport, and multi-zone operations; compatible with a wide range of attachments (e.g., paper roll clamps, sideshifters, rotators, push-pulls).

Reach Trucks: Highly specialized—designed for rack storage/retrieval, narrow-aisle operations, and high-bay warehouses; primarily use standard forks, with limited options for additional attachments.

In short, reach trucks are specialized warehouse tools, whereas counterbalance forklifts offer a more versatile material handling solution.

7. Total Cost of Ownership (TCO)

Do not compare purchase prices alone. The purchaser should consider a comprehensive range of factors:

• Purchase price

• Battery/energy costs

• Maintenance costs

• Operator efficiency

• Warehouse space utilization

• Expected operating hours

• After-sales service and spare parts availability

• Equipment service life

• Residual value (if applicable)

The lowest purchase price does not necessarily equate to the lowest operating cost. In high-density storage scenarios, reach trucks often deliver a superior return on investment, whereas counterbalanced forklifts are typically more cost-effective for general-purpose applications.

When should you choose a reach truck?

Choose a reach truck if the following conditions apply:

• Your warehouse aisles are narrow

• You use pallet racking

• You require high-level pallet storage

• Storage density is a primary concern

• Your operations are primarily indoors

• You need to position pallets precisely within racking

• You want to maximize vertical warehouse space

A reach truck is the right choice when storage density, narrow aisles, and high-level racking are your priorities.

When should you choose a counterbalance forklift?

Choose a counterbalance forklift if the following conditions apply:

• You need a versatile, all-purpose forklift

• Your warehouse aisles are relatively wide

• You frequently load and unload trucks

• You need to handle various types of loads

• You need flexibility between indoor and outdoor use

• You need to operate across multiple areas, such as the warehouse, production zones, and yard

• Load capacity and versatility are key concerns

A counterbalance forklift is the right choice when versatility, mixed environments, and loading/unloading operations are your priorities.

Can you use both reach trucks and counterbalance forklifts?

Don't feel limited to choosing just one. In fact, many large warehouses utilize both types of equipment:

Counterbalance forklifts handle:

• Truck loading and unloading

• Loading dock operations

• Yard handling

• Ground-level transport

Reach trucks handle:

• Racking storage

• High-level pallet placement

• Narrow-aisle operations

For some warehouses, the best solution isn't choosing one over the other, but rather letting each type of truck perform the tasks it is best suited for.

6 Questions to Clarify Before Purchasing

1. What is your maximum load weight?

Determine the heaviest load you need to handle routinely; this defines the minimum load capacity requirement.

2. What is your maximum lifting height?

Measure the highest rack level you need to reach and allow for a safety margin (accounting for load sway and overhead clearance).

3. What are your pallet dimensions and load envelope dimensions?

Pallet dimensions directly impact aisle width requirements and truck configuration.

4. What is the narrowest aisle in your warehouse?

Measure the actual clear aisle width—including rack overhang—to determine whether reach trucks or counterbalanced forklifts can operate there.

5. Will the forklift operate indoors, outdoors, or both?

This determines the power source (electric vs. internal combustion) and tire selection.

6. What are the daily operating hours and shift schedules?

This influences battery capacity requirements and charging strategies.

How to Choose the Right Forklift Manufacturer?

Consider the following factors when evaluating forklift manufacturers:

1. Does the manufacturer offer the truck models you need?

If you require a mixed fleet, confirm that they offer product lines for both reach trucks and counterbalanced forklifts.

2. Can the manufacturer recommend equipment based on your warehouse layout?

A quality supplier will assess your actual aisle widths, rack heights, and load characteristics.

3. Can they provide detailed technical specifications and load charts?

Be sure to request load charts that show actual load capacities at various lifting heights.

4. Are spare parts and after-sales service reliable?

Verify the availability of spare parts, the service network, and maintenance support capabilities in your area.

5. Can they meet specific market requirements?

Consider whether the manufacturer can accommodate your specific needs regarding power source, tonnage, and configuration.

6. Can they provide OEM/private-label customization solutions (if needed)?

If you require customized or private-labeled equipment, verify their capability to provide this.

Need help choosing the right forklift?

Not sure whether a reach truck or a counterbalance forklift is better suited to your operations?

Please send us details regarding your load weight, lifting height, pallet dimensions, aisle width, and operating environment, and our team will assist you in determining the appropriate forklift configuration.
