For small warehouses, efficiently completing cargo handling, stacking, and storage within limited space has always been a real and thorny challenge.
Unlike large warehouses with wide aisles and ample operating areas, every meter of aisle, every storage location, and every inch of floor space in a small warehouse is precious. Here, standard forklifts often appear clumsy—insufficient maneuverability not only slows down efficiency but also easily scrapes racking and causes accidents, while frequent turns in cramped spaces pose a rigorous test for operator skills. However, with the right equipment, you can easily handle more goods without expanding your footprint while reducing hassle and risks.
From a macro perspective, the global material handling equipment market is experiencing strong growth: the market size was valued at approximately $215.97 billion to $261.71 billion in 2025, is projected to climb to $2304.4 billion to $2788.3 billion (note: typically $230.44B to $278.83B depending on industry reports) in 2026, and is expected to reach $489.65 billion by 2034. This explosive growth is driven by multiple forces, including manufacturing capacity expansion, warehouse modernization, booming e-commerce logistics demand, and continuously upgrading industrial safety standards.
Against this backdrop, this article systematically outlines the most suitable types of material handling equipment and core selection criteria for small warehouse operators in 2026, helping you find the ideal equipment for your needs.
Material Handling Equipment (MHE) refers to machinery used in warehouses, factories, logistics centers, distribution centers, and other locations for transporting, lifting, stacking, loading, unloading, and transferring goods.
Common warehousing material handling equipment includes:
Manual pallet jacks
Electric pallet jacks (Electric pallet trucks)
Electric handlers / Walkie pallet trucks
Electric pedestrian stackers (Walkie stackers)
Semi-electric stackers
Counterbalance forklifts
Compact electric forklifts
Reach trucks
Narrow aisle (NA) forklifts
Turret trucks (VNA trucks)
Very Narrow Aisle (VNA) forklifts
Electric tow tractors
Order pickers
Operating a warehouse in a confined space presents a unique set of challenges for operators:
Standard forklifts require wider aisles to complete turns and positioning. According to industry data, standard counterbalance forklifts need a aisle width of 3.5 to 4.5 meters (approx. 10–12 feet) to make safe turns. However, in many small warehouses, aisle widths fall well below this standard. While very narrow aisle (VNA) forklifts can operate in aisles as narrow as 1.6 meters, not all small warehouses are equipped with such specialized machinery.
In cramped spaces, the clearance between racks and goods may be only a few centimeters. When operators work in narrow aisles, even the slightest deviation can result in product damage or structural damage to the racks. Industry reports indicate that without guided assistance, minor path deviations by operators in narrow aisles can damage side-loaders, goods, racks, or guide rails.
Operators must drive at reduced speeds and frequently adjust directions in confined spaces, which naturally creates bottlenecks in picking and stacking operations. Compared to four-wheel models, three-wheel electric forklifts can boost productivity by up to 25%, demonstrating just how significant equipment selection is to efficiency.
Limited operating space demands extremely high precision from drivers. Misjudgments not only increase the risk of accidents but can also lead to personnel injuries. Strict safety regulations are continuously driving industry demand for equipment built to higher safety standards.
If vertical storage space cannot be fully utilized, the overall capacity of the warehouse will be severely constrained. Narrow aisle systems help warehouses avoid expensive rental costs and repetitive manual labor by maximizing vertical capacity and narrowing aisle widths.
Choosing the right equipment for a small warehouse comes down to matching spatial conditions, load requirements, and operational models.

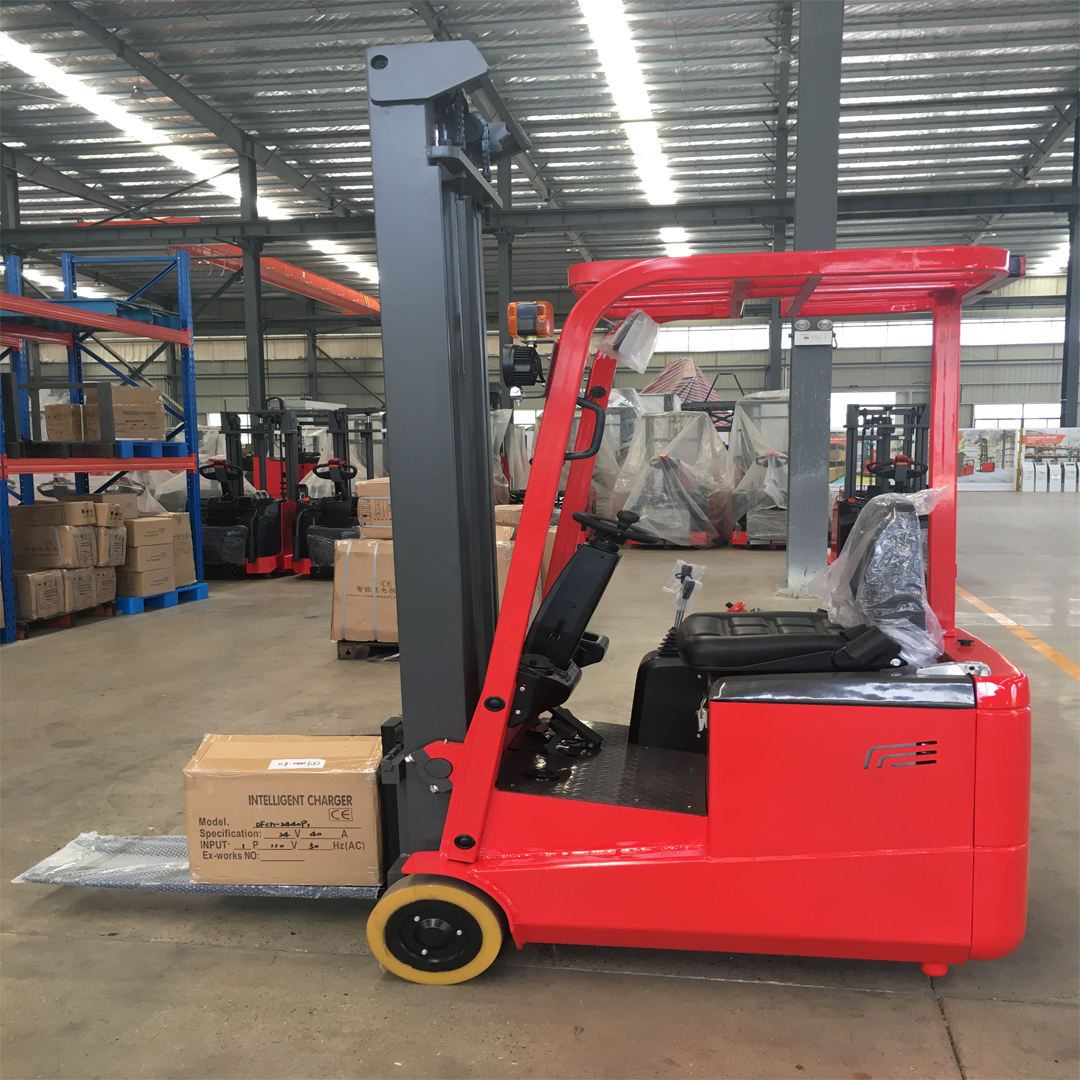

Featuring a twin-front and single-rear wheel design, three-wheel electric forklifts offer an extremely tight turning radius specifically engineered for narrow indoor spaces. Their turning radius is typically 10% smaller than that of comparable four-wheel models.
Ideal Applications: Narrow-aisle warehouses, retail backrooms, small distribution centers, and light manufacturing cells.
Key Advantages:
Zero emissions: Ideal for indoor use without worrying about exhaust issues.
Low noise: Distinct advantages in noise-sensitive environments.
Low operating costs: Electric drives are more economical than internal combustion engines.
Lower energy consumption: Three-wheel electric forklifts typically consume less battery power per shift than equivalent four-wheel models.
Load Capacity: Typically 1.5 to 2.0 tons, suitable for light-to-medium loads.

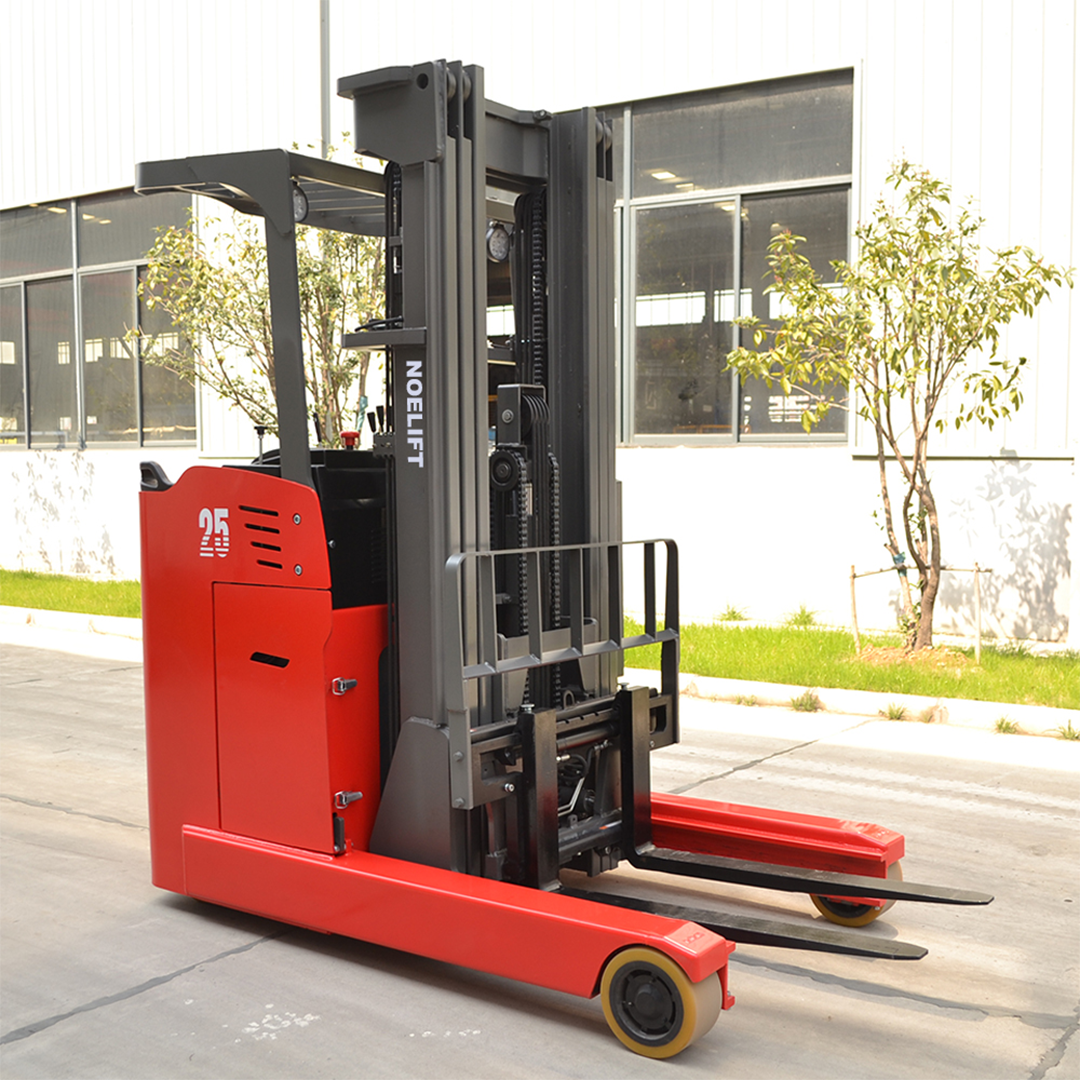

Reach trucks are equipped with extendable forks that move forward into racking to retrieve goods while the main chassis remains stationary in the aisle. Unlike counterbalance forklifts, reach trucks rely on two front-extending outriggers and a scissor mechanism to stabilize loads.
Ideal Applications: High-bay storage and narrow-aisle warehouses. Reach trucks can operate in aisles 2.5 to 3 meters wide, whereas standard counterbalance forklifts require 3.5 to 4.5 meters.
Key Advantages:
Maximizes vertical storage space utilization (elevating heights up to 8–12 meters or higher).
Increases pallet storage positions by 20% to 30% compared to operations using only counterbalance forklifts.
Supports double-deep storage, allowing operators to access two rows of deep pallets without relocating the truck.
Load Capacity: Typically 1 to 2.5 tons.

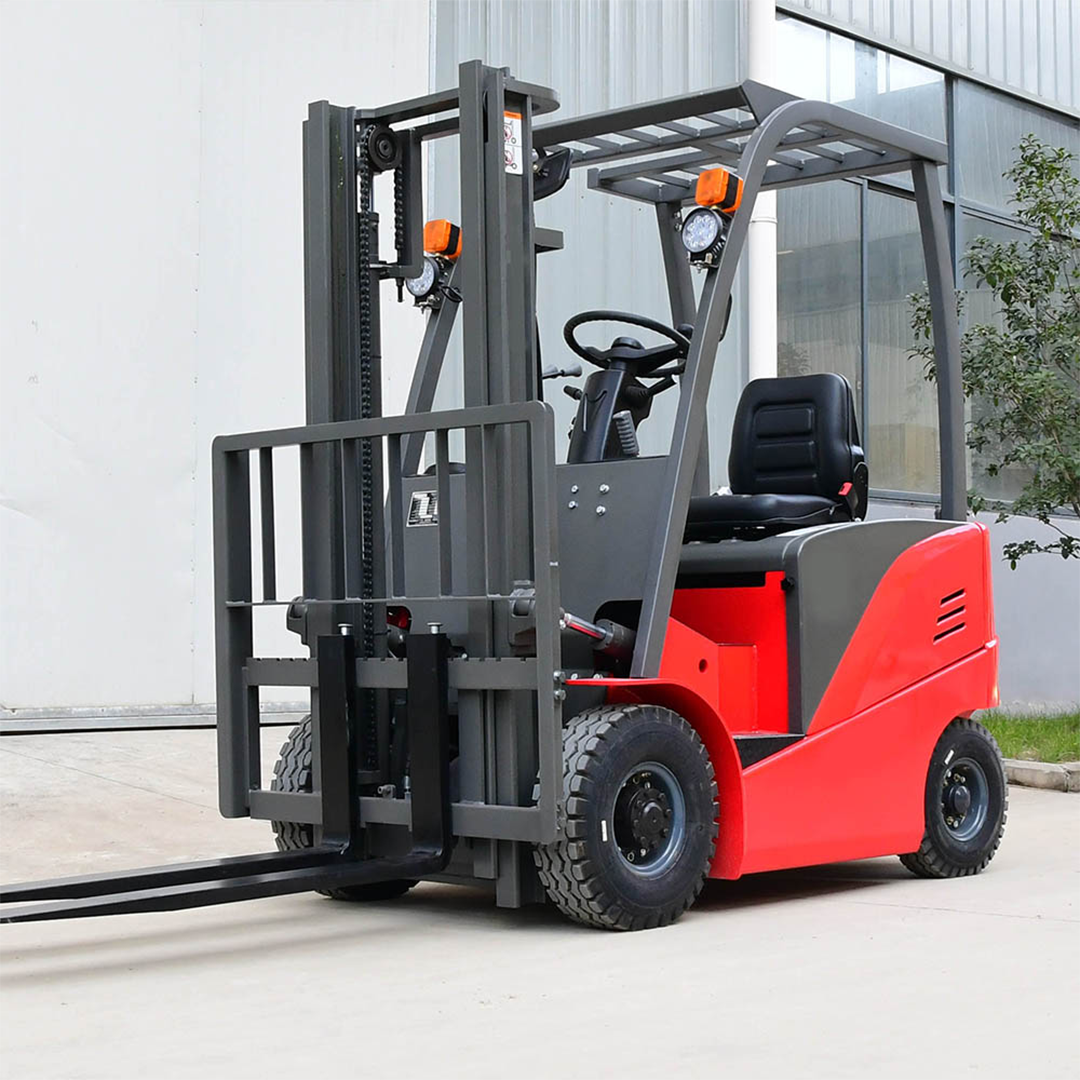

Utilizing a traditional forklift design, these units rely on a rear counterweight to balance the weight of the load at the front. Powered by electricity, they combine maneuverability with stability. Their load capacity generally ranges from 1.5 to over 5 tons, with lifting heights typically between 4 and 7 meters.
Ideal Applications: Small warehouses requiring mixed indoor-outdoor operations and loading docks.
Key Advantages:
Lower Total Cost of Ownership (TCO) compared to internal combustion forklifts.
Fewer moving parts and simplified maintenance.
Compatible with a variety of attachments (rotators, clamps, sweepers, etc.) for versatile multi-functional operations.
In addition to forklifts, small warehouses can consider the following supporting tools:
Manual/Electric Pallet Jacks: Low cost and simple to maintain, ideal for infrequent pallet handling. (Note: Brands like NEL offer various electric pallet truck options.)
Stackers: Positioned between pallet jacks and forklifts, perfect for medium-height lifting requirements.
When selecting material handling equipment, it is recommended to conduct a comprehensive evaluation based on the following six dimensions:
Accurately measure the width of all aisles in your warehouse—this is the primary factor in determining whether you need a narrow-aisle forklift or a standard model.
If aisle widths are between 2.5 to 3 meters, reach trucks are an ideal choice.
If aisles are narrower (1.6 to 2.5 meters), you may need to consider Very Narrow Aisle (VNA) forklifts.
If aisles exceed 3.5 meters, standard counterbalance forklifts can operate normally.
Determine the maximum height of your warehouse racking and choose equipment capable of reaching that elevation.
Reach trucks can elevate up to 8 to 12 meters.
Standard counterbalance forklifts typically reach 4 to 7 meters.
Select a model with a load capacity that covers your heaviest routine loads, rather than relying solely on the average weight.
Three-wheel forklifts are generally suited for light-to-medium loads under 2 tons.
Four-wheel forklifts accommodate heavier loads.
Smooth indoor flooring is well-suited for three-wheel electric forklifts.
Uneven surfaces or mixed outdoor operations require four-wheel models or internal combustion alternatives.
Lithium-ion batteries suit multi-shift operations (offering fast-charging and opportunity-charging capabilities).
Lead-acid batteries are appropriate for low-frequency usage.
Look beyond the initial purchase price to evaluate the full lifecycle cost. Although lithium-ion batteries have a higher upfront cost, their 8- to 10-year lifespan compared to the 3 to 5 years of lead-acid batteries can save 40% to 60% in replacement expenses.
Electric forklifts are rapidly becoming the global standard—driven not just by environmental mandates, but as a rational choice for optimizing Total Cost of Ownership (TCO). Battery-powered industrial trucks, advanced lithium-ion charging solutions, and regenerative braking systems are becoming increasingly widespread.
The penetration rate of lithium-ion batteries in small electric forklifts is growing rapidly. Although upfront costs are typically 2 to 3 times higher than traditional lead-acid batteries, an impressive 8 to 10-year lifespan drastically reduces long-term ownership costs. For multi-shift small warehouses, the fast-charging capability of lithium-ion technology translates into minimal downtime and maximized equipment utilization.
Small and medium-sized enterprises (SMEs) are increasingly adopting automation technologies such as AGVs (Automated Guided Vehicles) and AMRs (Autonomous Mobile Robots) as technological barriers and costs decrease. Easy-to-deploy solutions specifically engineered for smaller projects are significantly lowering the entry threshold for intelligent logistics.
Selecting the right material handling equipment for a small warehouse ultimately comes down to matching your specific spatial constraints, load requirements, and budget.
No matter how narrow your aisles, how high your racking, or how strict your budget, the right equipment can help you break through spatial limitations and boost operational efficiency. As a professional material handling equipment manufacturer, NELCN is dedicated to providing reliable, efficient, and cost-effective solutions for small warehouses worldwide.
